Fiat farm tractors used



Tractor overview




Zhengzhou Bona Enterprise Co., Ltd. is a middle scale enterprise mainly specialized in manufacturing and


export of agriculture machinery, such as: Farm Tractor, Farm tools, etc. High quality and timely shipping


is our motto. As an ISO and CE qualified supplier, Bona Enterprise is dedicated to provide professional


service to world wide customers.


fiat farm tractors used
1. Tractor Range:
1.1. Small horsepower 12HP, 15HP, 17HP, 18HP, 20HP, 22HP, 24HP, 25HP, 26HP, 28HP, 30HP, 35HP
1.2. Midsize horsepower: 40HP, 45HP, 50HP, 55HP, 60HP, 65HP
1.3. Large horsepower 70HP, 75HP, 80HP, 85HP, 90HP, 95HP, 100HP, 110HP
1.4. More than 110HP: 120HP, 125HP, 130HP, 160HP, etc
2. Farm Accessories Range:
2.1 Disc Harrow, Disc Plough, Rotary Tiller, Cultivator, Rigger
2.2 Lawn Mower, Seeder&Planter, Harvester
2.3 Grader Blade, Wood Chipper, Log Splitter
2.4 Front End Loader and Backhoe, Grapple Trailer, Farm Trailer etc


fiat farm tractors used


 554 600X600.jpg

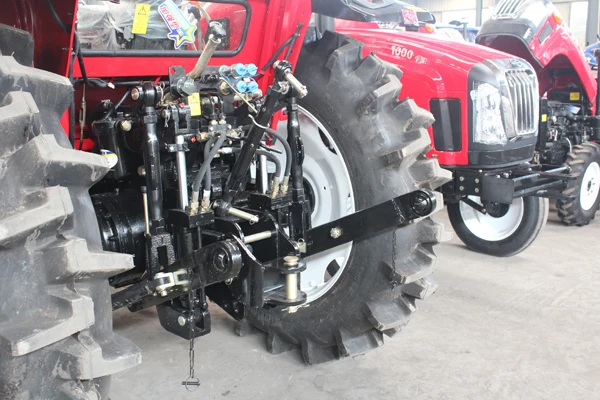

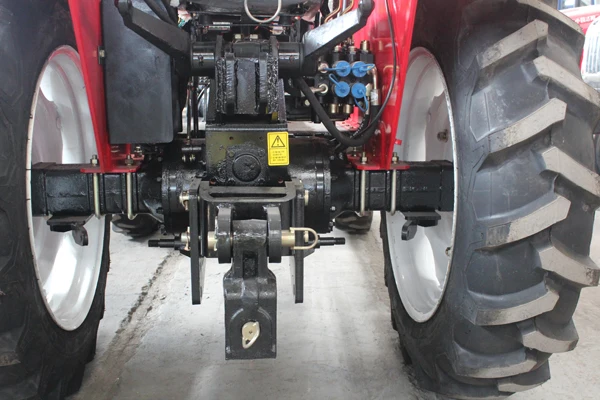

Detail show


Detail show.jpg







Main features of fiat farm tractors used





1. Adopt Xinchai/YTO diesel engine, good reliability, large reserves of torque, low fuel consumption,


high economic efficiency;
2. Double-function clutch,10 inches, high transmission capacity, reliable, comfortable manipulation;
3. Gearbox using 4 × 3(1 +1) engaging sleeve, shuttle-type gearshift, there are 12 forward gears, 12


reverse gears, reasonable match between the gears, and have high efficiency;
4. Independent power take off device, smooth transmission, large capacity, speed (540/760, 540/1000


r/min) for selection to meet the different operation requirements;
5. Full hydraulic front wheels steering, independent oil circuit for steering system, manipulating flexible,


reliable, and save energy;
6. Adopt hydrostatic disc-type brakes, a large braking torque, the braking effect is good;
7. Adopt high pressure type lifting device, reliable, easy maintenance, multi-hydraulic output can be optioned;
8. Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio;
9. New streamlined appearance, generous, modern, fashion;
10. Control levers can be mounted at side as optional, more convenient and comfortable.





Detailed specifications of fiat farm tractors used



























































































































































Tractor Model



BN604



BN654



BN704



Drive Type



4×4



Overall Dimension  L×W×H(mm)



3925×1728×2170



Wheel base(mm)



2010



Front wheel tread(mm)



1265



Rear wheel tread(mm)



1200--1500 (Common 1300)



Min. ground clearance(mm)



375



Min. steering radius



Unilateral brake(m)



3.8



Not unilateral brake(m)



4.3



Min. operating weight(KG)



2565



Gearbox  gears number



12F+12R



Speed



Forward(Kw/h)



2.33-31.04



Reverse(Kw/h)



2.04-27.21



Engine



Model



A4K41T60



A4K43T65A



A4K43T70A



Rated power (Kw)



44



48



51.5



Rated speed(r/min)



2300



2300



2300



Tires spec.



Front tires



8.3-24



Rear tires



14.9-28



Steering type



Full hydraulic  front wheels steering



Max. lifting force( KN )



9.9



11.8



13.5



PTO



Type



Rear-mounted, Semi-independent type



Speed (r/min)



540/760 or 540/1000



Power(Kw)



≥37.4



≥40.8



≥43.8



Control type of ploughing depth



  Height control & flotation control



Max. traction force (KN)



12.5



13



13



Front / Rear ballast (KG)



104/300



Notice: As our products will be improved continuously , all above parameters are subject to modification without notice.



Optional configurations:



Cabin



Air conditioner



Heater



Sunshade



Safety frame



Hydraulic output



Air brake



Side control



Paddy tires 8.3-24/12.4-28



/



/



.jpg


554 600X600.jpg







Implements


Fitted implements.jpg





Implements for fiat farm tractors used


Ihis tractor can mount with many kinds of tractor implements like harrow, plough, lawn mower, front end


loader, etc., to fulfill different needs during cultivating land or your garden. Generally these implements are


mounted with tractor 3 point suspension device, easy operation, wider usage and high quality.


.jpg




904 wiht front loader.jpg





Packaging & Shipping


p&l packing.jpg





Packing & shipping of fiat farm tractors used





Tractors: normally nude packed, or iron frame packed, customer’s required methods also available. When


packing, if your tractor is without cabin and safety frame, tractor funnel can be taken off to lower the


overall height, in this case, tractors under 120hp can be loaded in 20GP, that means both of us can save


some cost on sea freight.


Tractor implements: can be mounted on tractor before delivery for your quick use when receiving them,


but it will be a little bit space-consuming, above pictures for your reference.
Or, implements be packed by iron frame to save place.


There’s hooks inside every container which can be used to fix tractors and implements to avoid shaking


during shipping, this will ensure you to get all the products entirely intact.


Our products are exported to Europe, America, Oceania, Africa and South Asia, etc. High quality, timely


shipping and best after sales service help us earn world wide reputation. We standby our commitment to


provide best products for every of our customers.


fiat farm tractors used







Contact







Feel free to contact us if any question or interest.
