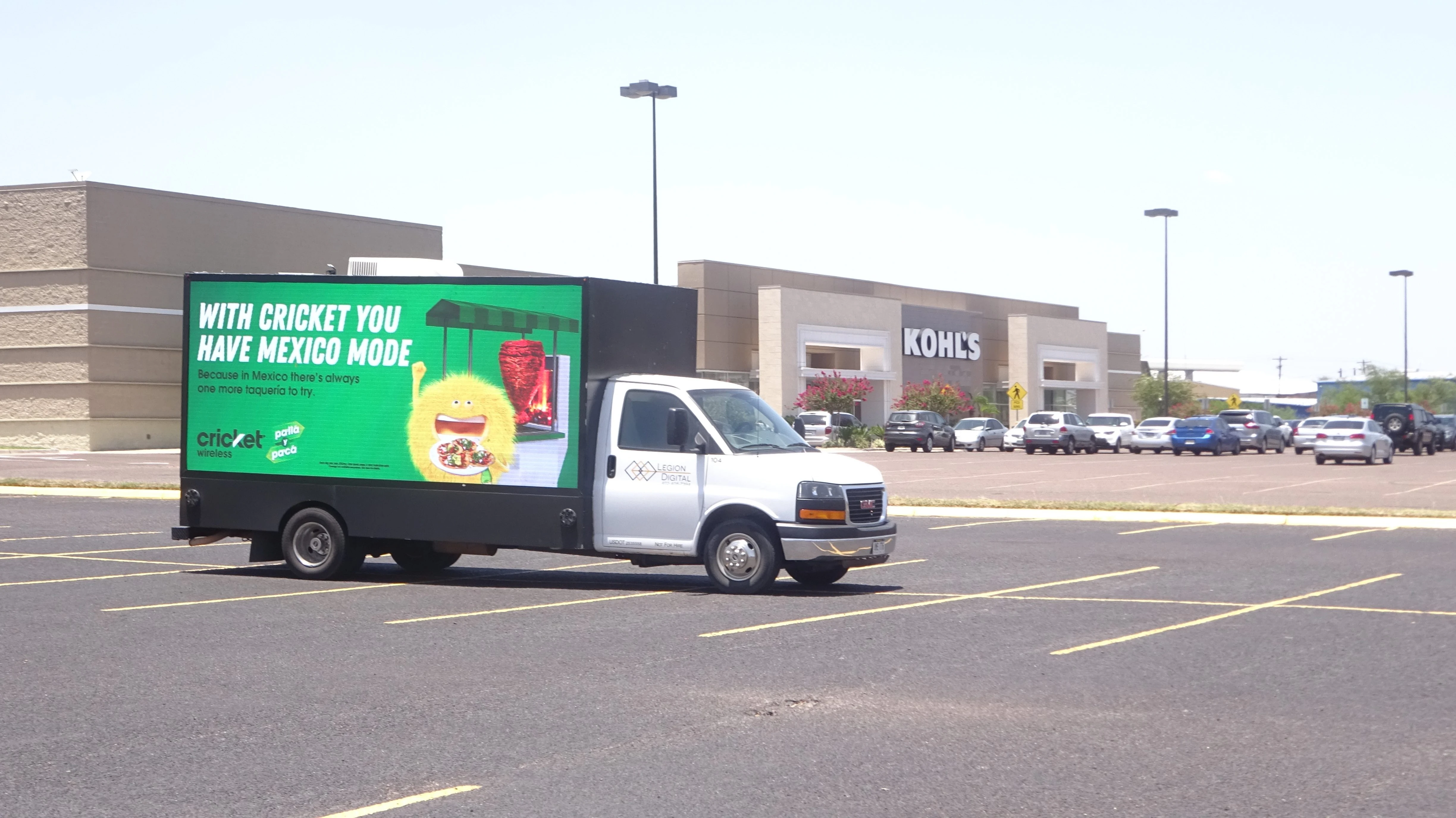

Sunrise новая идея светодиодный мобильный грузовик для продажи
- Категория: >>>
- Поставщик: Shenzhen Sunrise Opto-Electronic Technology Co. Ltd.
Сохранить в закладки 60089642023:
Описание и отзывы
Характеристики
Product Description
Truck Specifications:
Classification | Item | Unit | Parameter |
Vehicle | Vehicle model |
| Foton mini led advertising truck |
Manufacturer |
| ChengLi Special Automobile Co.,Ltd | |
Overall dimensions | mm | 5230×1900×2750 | |
Curb weight | kg | 3855 | |
Traction system |
| 4×2 | |
Max speed | km/h | 90 | |
Chassis | Chassis model |
| BJ1046V9JB5-H1 |
Manufacturer |
| Beiqi Foton Motor Co., Ltd. | |
Number of axles |
| 2 | |
Wheel base | mm | 2800 | |
Tire specification |
| 6.00-14,6.00-15 | |
Number of tires |
| 4+1 spare | |
F/R track base | mm | 1385/1280 | |
Engine | Engine model |
| 4A1-68C40 |
Manufacturer |
| Anhui Quanchai Engine Co., Ltd | |
Fuel type |
| diesel | |
Power | kw | 50 | |
Engine horse power | hp | 68 | |
Displacement | ml | 1809 | |
Emission standard |
| Euro IV | |
Driver’s cab | Brand |
| FOTON |
Model |
| Flat head,single row | |
Allowable seats |
| 2 | |
Steering |
| Left hand drive | |
Transmission |
| 5-speed with over drive | |
Operation control system |
| Electrically hydraulic control | |
Opition |
| Air-conditioner,air deflector | |
Standard | 1> One side LED full color screen, the other side advertising light box with subtitle 2> 5cm Composite steel box body, outside cold rolled steel sheet, inside aluminum alloy plate floor,wood floor or high-grade floor leather 3> 4 hydraulic legs,preciseness unilateral lifting-up LED screen, Electromechanical integration control 4> Circulating ventilation cooling system 5> Safe-intelligent inner and outer power distribution switch net system 6> High-performance silent diesel generator unit 7> Computer intelligent switch 2-7 pair pictures and lamp 8> Full waterproof highlight P10 truecolor car LED screen 9> Gigabit streaming media control system | ||
FOB Shanghai | USD | ||

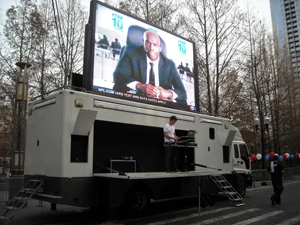

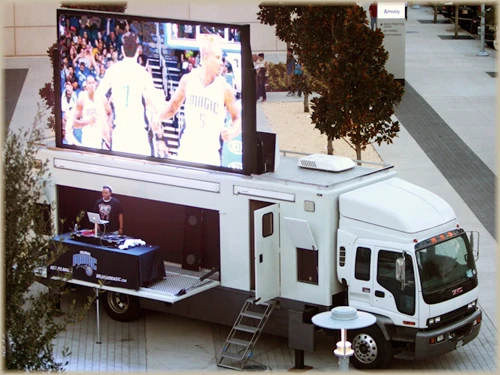

Mobile Outdoor Advertising LED Truck PH10mm
Sunriser new mobile LED display provides close 16:9 HD format that extends 20’ or more in the air for maximum viewing. Both trailers are self-contained and offer 360 degree rotation for day and night-time events. This advanced design is adaptable to all OEM tiles from premium LED manufacturers. Our LED Display Trailers can be built with our standard electronics package (which includes audio/visual equipment and LED tiles) or it can be customized to integrate your already existing equipment and LED tiles. Sunriser new mobile LED display provides close 16:9 HD format that extends 20’ or more in the air for maximum viewing. Both trailers are self-contained and offer 360 degree rotation for day and night-time events. This advanced design is adaptable to all OEM tiles from premium LED manufacturers. Our LED Display Trailers can be built with our standard electronics package (which includes audio/visual equipment and LED tiles) or it can be customized to integrate your already existing equipment and LED tiles.
- Euro US IV emission standards
Used in line with Euro IV emission standard vehicle chassis, more environmentally friendly and lower carbon
- User-friendly multimedia configuration
P10 full color outdoor LED large screen, monochrome screen bar, roller light box, high-power audio equipment, the effect of media show is outstanding, convenient and stable
- 7.03m² wide-screen design
Aspect ratio close to 16:9 can realize full view, split-screen play and other functions
- Independent power supply system
Built-in imported Silent diesel generator sets ensure all kinds of parades, road shows, promotional activities be carried out
successfully.
- Special chassis and powertrain
Special chassis and power systems which are jointly developed with well-known car brand ensure safe driving
- Customized LED Vehicle solution
Personlized remoulding and painting solution for promotional projects to achieve better promotional effects
Display Specifications:
LED Screen dimension: 2880mm x 2240mm
Dot pitch: 10 mm
External dimension: 4903mm x 2200mm x 4960mm
Total Weight: 4,290 Kg
Multimedia Control System: industrial PC + Video processor + 15-inch LCD monitor + speaker
| Brightness | nits | 8000 |
| Color temperature | deg.k | 6500 |
| Viewing angle - Horizontal | deg. | 110(plus 60/ minus60) |
| Viewing angle - Vertical | deg. | 55(plus 30/ minus 30) |
| Cabinet Weight | kg | 38 |
| Cabinet Width | mm | 960 |
| Cabinet height | mm | 1120 |
| Cabinet depth | mm | 150 |
| Cabinet area | sq. m. | 1.08 |
| Cabinet material | Aluminium or Iron | |
| Aspect ratio | 9 : 7 | |
| Ingress Protection (Front/Rear) | IP | IP65/IP54 |
Operating temperature range | deg. C | -20 to 60 |
| Operating Humidity range | HR | 10% to 90% |
| Pixel type and configuration | R/G/B | 1,1,1 |
| Pixel pitch | mm | 10.667 |
| Pixel matrix per cabinet | 96 x 112 | |
| Pixels per cabinet | 6912 | |
| Lines per meter | 94 | |
| Pixels per sq. meter | 10000 | |
| LEDs per sq. meter | 30000 | |
| Recommended minimum viewing distance | m | 11 |
| Colours | 1.07Billion | |
| Gray scale | Levels | 1024 levels per colour |
| Brightness control | Levels | 100 |
| Digital processing | bit | 10 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | ≥400 |
| Scan mode | 1/4 duty scan drive | |
| Input voltage | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 or 60 |
| Input power (max/avg) | Watts per sq.m | 600/250 |

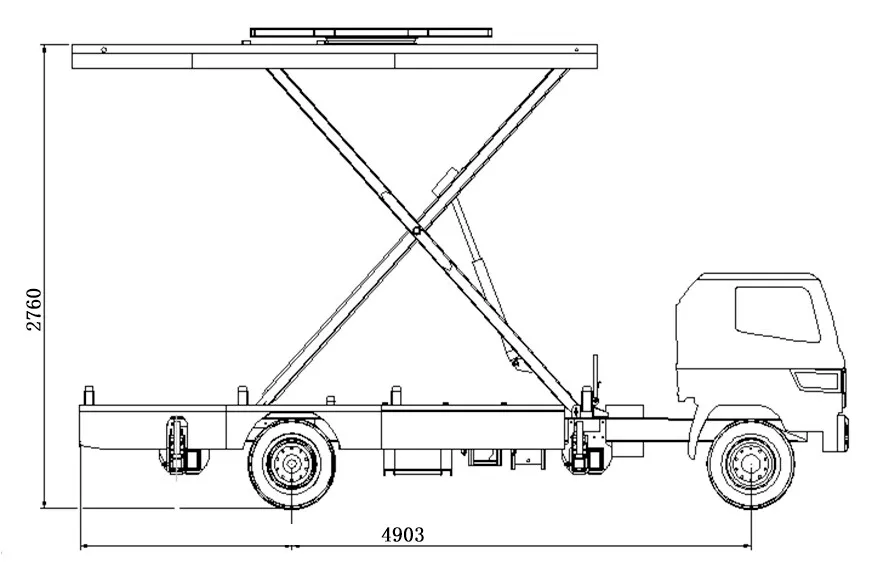

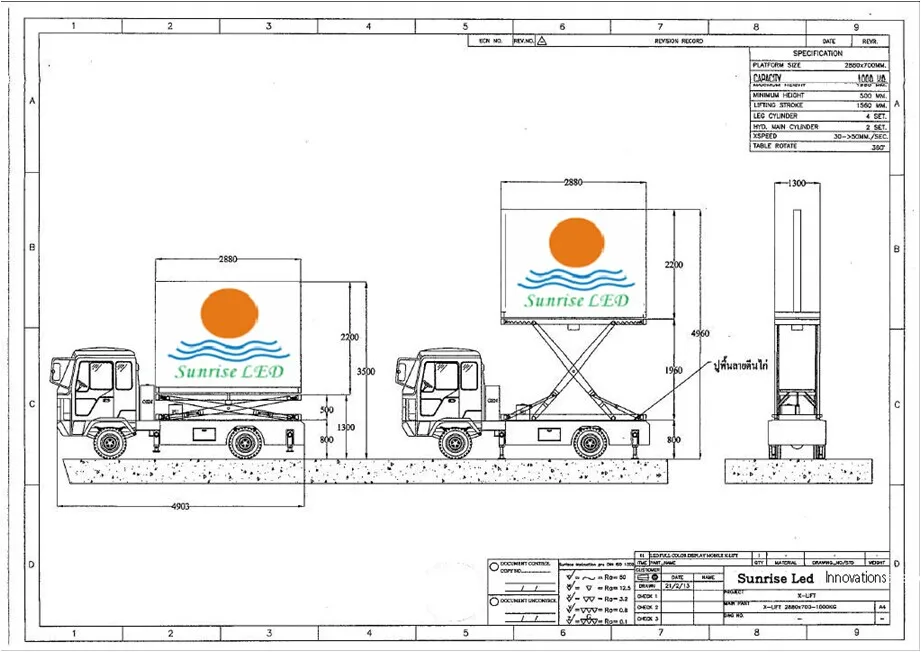

Trailer truck led display design

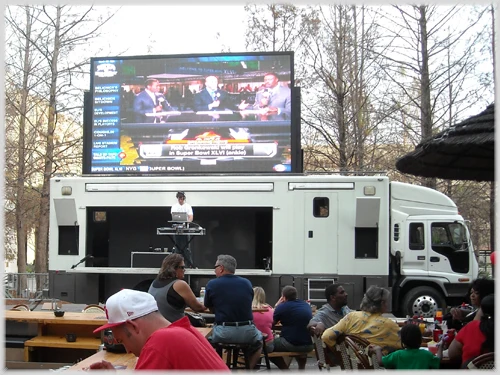

Unforgettable Success Stories In Chicago Illinois City,USA.
Company Information
Notes:
1. The unit price depends on the quantity, we can offer you at a competitive price.
2. Your inquiry related to our products or prices will be replied in 24hrs.
3. Well-trained and experienced staffs to answer all your enquires in fluent English
4. Distributorship are offered for your unique design and some our current models
5. Protection of your sales area, ideas of design and all your private information
SKYPE(hmx0086) and E-mail NOW~
