U Channel Steel Track Framing Machine For Ceiling Gypsum Board Roll Forming Machinery

1.Human-centered design
2.screen mesh protector
3.PLC control system
4. good after sale service

 1. Working Flow:

Decoiling--feeding---forming---cutting---finished product

2. Parts of Equipment:

Decoiler ,roll forming machine, hydraulic cutting (punching device),electric system(PLC control system),hydraulic system, stacker.

3. Techincal description:

1).Automatic inner tight decoiler

 a.coil inner diameter 450mm-550mm

 b. maximum width of coiling600mm

c. maximum weight of loading 2500kg

 2). Main forming machine

 a. number of forming steps 11rows

 b. material of shaft   45# steel . Outer diameter  60mm

 c.main motor power: 5.5kw

d.  The speed of forming: 0-50m/min

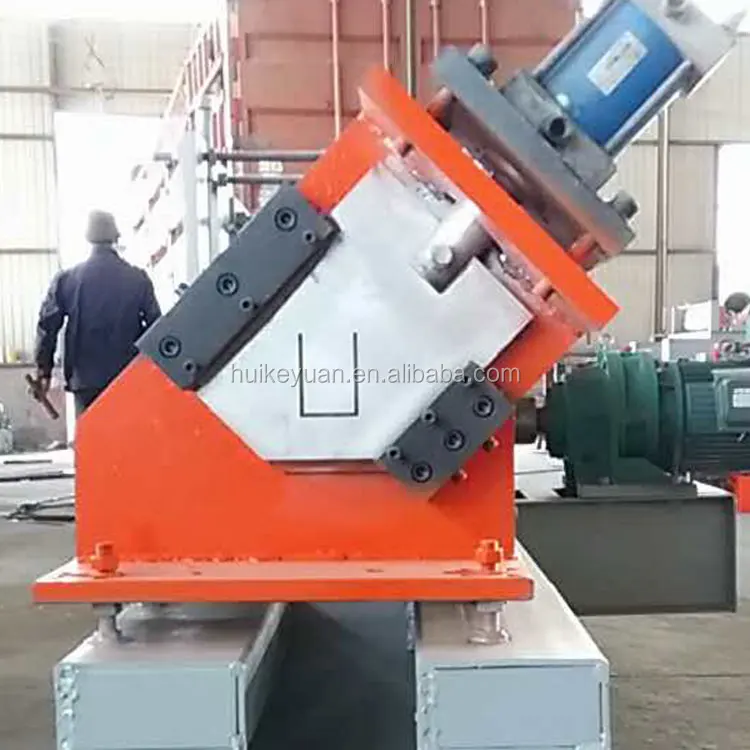

 3).Hydraulic cutter

 a. material of blade:Cr12 mould steel with quenched treatment 60-62

 b. cutting system :adopt advanced hydraulic drive, after forming automatic cut, no distort, no wasting , high safe factor.(tracking cutting)

 4).The electrical control system

 a. The Brand of display: DELTA

 b.The main computer (PLC): DELTA DVP14

 5).Hydraulic system

 a. Adopting advanced hydraulic system of Tai Wan

 b. Power:3kw

 6).The equipments coating , package

 a.the coating adopt international general shade-guide

 b.The package :simple waterproof package.

Workflow

Decoiling the sheet — Sheet guiding — Roll forming — Measure

length Cutting the panel— panels to the supporter

Profile drawing

sample picture

Parts of Equipment:

Decoiler ,roll forming machine, hydraulic cutting and punching device,electric system(PLC control system),hydraulic system, stacker.

Decoiler

PLC Control System (Taiwan Delta or as per the customers' requirement)

Detailed Picture Of the Machine
