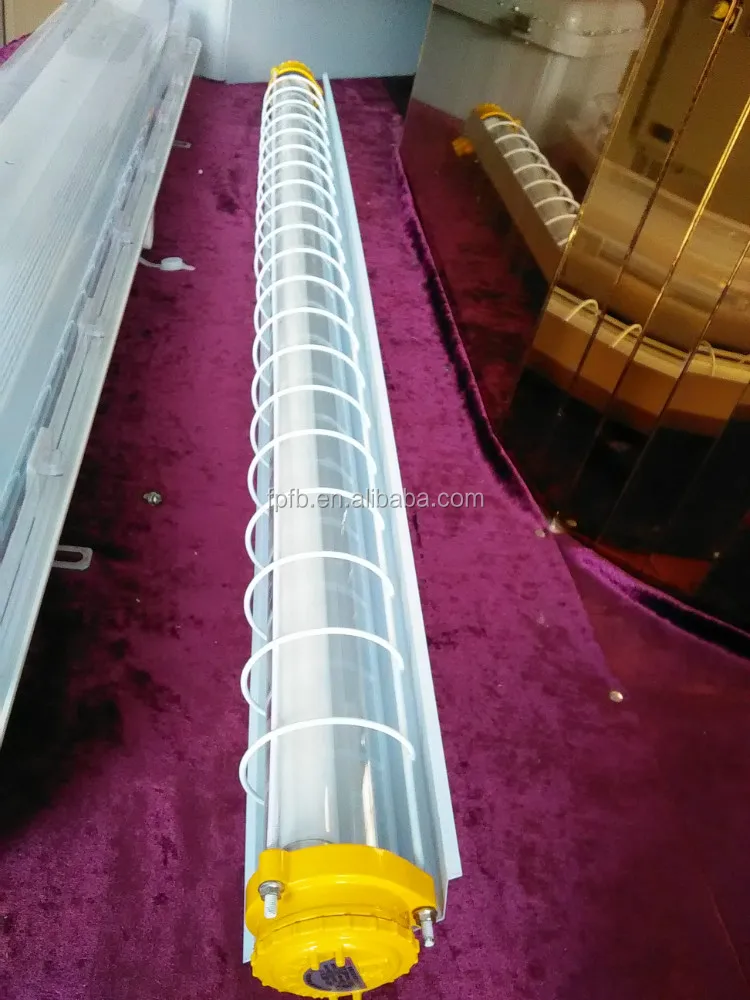

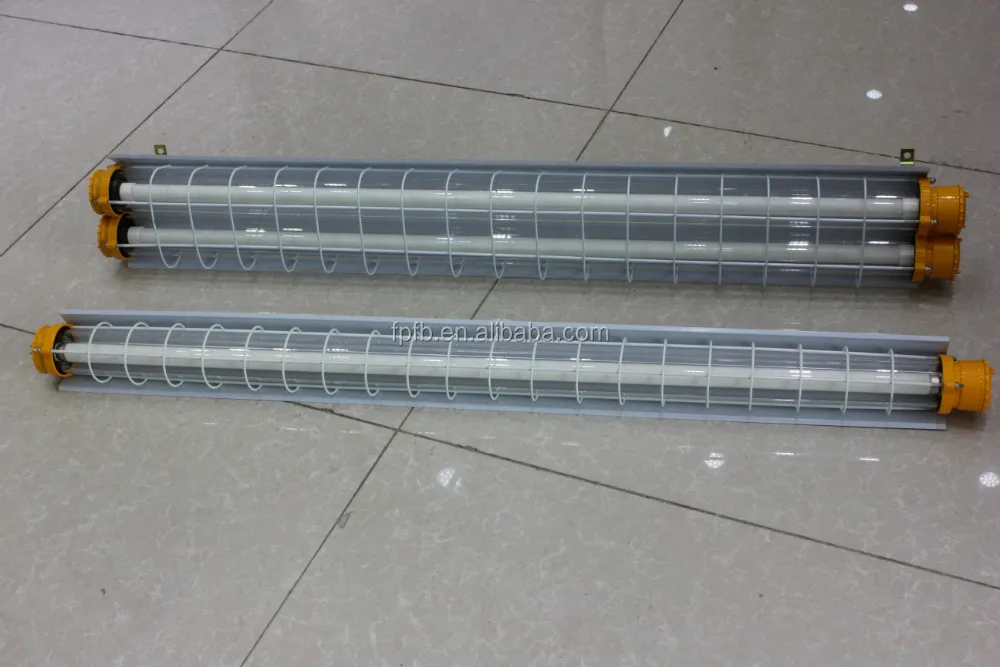

Взрывозащищенная люминесцентная лампа BPY LED опасных зон с T8 tules

Описание и отзывы

Характеристики

Youtube Video website:  //www.youtube.com/watch?v=-FfoMqyUrj4&feature=youtu.be

1. Can be used in hazardous areas: Zone 1 and Zone 2 .

2. Can be used in explosive gas atmospheres of Category II A and II B and II C where the temperature classification is T1-T6.

3. Lamp options: high light, fluorescent lamp.

4. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.

APPlications:

• Suitable for explosive gas environment Zone1 and Zone2.


• Suitable for IIA,IIB,IIC explosive gas environment.


• Suitable for Hazarous dust area: Zone20, Zone21, Zone22.


• Can be used in the environment of  temperature group for T1~T6.


• Lighint source:T5 or T8 bin-pin tube.


• Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.

Techinical parameters:

• Meet a criterion:G3B3836.1, GB3836.2, GB12476.1, IEC60079-0,IEC60079-1, IEC61241-1, EN60079-0, EN60079-1, EN61241-1


• Ex---proof Mark:Exd II BT6 Gb, Exd II CT6 Gb, DIP A21 TA, T6.


• Rated voltage: AC220V


• Ligting Source: Plz Refer the Selection Table.


• Protection grade:IP54, IP65, IP66*( If need IP66, need to info us)


• Corrosion-proof grade:WF1


• Inlet Thread: G1/2"


• Cable outer dia:6mm~10mm


• Battery charging time:≤24h


• Emergency Start time:≤0.3s


• Emergency lighting duration:≥90min

Selection Table:

Product Features:

• Aluminium alloy Enclosure,high voltage electrostatic powder coated after shot blasted.


• High strength toughened glass cover.


• Exposed fasteners are of stainless steel with function of high corrosion-proof.


• With grids to adjust lighting effect and reduce the glare.


• Modular plug structure design, only need disconnect end cover draw out core to change tubes.


• For fitting with emergency unit, It will automatically turn to emergency lighting when power circuit failed.


• Inside the emergency unit designed with over charging and over discharging protection circuit.


• Screw connection type, for easy installation and maintenance.


• Power factor can be over 0.95.


• Steel conduit or cable wirings.

Order Information :

• Lamps has factory configuration light source, can be used directly access power;


• Take emergency unit, installation only ceiling type and boom type applicable;


• When double tube fluorescent lamp start emergency unit, Only one tube work.


• Ingress protection IP65 is available as per request.
