Китайский производитель мини машина для инъекций пластмассы промышленный Роботизированный рычаг устройство автоматизации литья под давлением
- Категория: >>>
- Поставщик: Guangdong Switek Technology Co. Ltd.
Сохранить в закладки 60120491665:
Описание и отзывы
Характеристики
(1) Industrial Robotic Arm is applicable to all types of horizontal injection molding machine ranges of 100-800T for take-out products and sprues. |
(2).Two-axis driven by AC Servo motor, fastest take-out time of 0.7 seconds, fastest dry cycle time of 5 seconds. |
(3).Adjustable end-of-arm tooling, long using life and low failure rate. |
(4)It can be added with sub arm for three-plate mold to clamp products and sprues at the same time |
(5)Each axis of movement is equipped with shock absorbers. |
(6).Applicable to take-out products with short forming cycle or complex automatic, such as auto products, washing machine and household plastic products. |
Denote-----SW52 | |
D:Telescopic vertical arm | S: single vertical arm |
B:Placing to rear of machine | E:European standard |
| N:Pneumatic vertical sub-arm | H:High speed |
Main Specification | ||||
Model | SW5208H | SW5210H | SW5212H | SW5215H |
Power Source (KVA) | 1.6 | 1.6 | 1.7 | 1.8 |
Recommended I.M.M (Tons) | 100-250 | 250-380 | 380-600 | 600-800 |
Traverse Stroke(mm) | P1:300 P2:800 | P1:300 P2:900 | P1:470 P2:1100 | P1:470 P2:1350 |
Crosswise Stroke(mm) | 2300 | 2500 | 2500 | 2700 |
Vertical Stroke(mm) | 800 | 1000 | 1200 | 1500 |
Max. Loading (kg) | 5 | 6 | 8 | 10 |
Dry Take Out Time(sec.) | 0.6 | 0.6 | 0.6 | 0.7 |
Dry Cycle Time(sec) | 3.5 | 3.5 | 3.5 | 4 |
Air Consumption(l/cycle) | 25 | 25 | 24 | 23 |
Net Weight(kg) | 200 | 220 | 240 | 260 |
Outer dimensions | |||||||||||||||
Moldel | X1 | X2 | X3 | X4 | X5 | Y | YM1 | YM2 | Z | L | W | W1 | W2 | H | HA |
SW5208H | 150 | 105 | 710 | 60 | 50 | 600 | 260 | 340 | 1250 | 1800 | 1265 | 810 | 455 | 1130 | 400 |
SW5210H | 150 | 100 | 710 | 60 | 50 | 700 | 260 | 440 | 1250 | 1800 | 1265 | 810 | 455 | 1180 | 400 |
SW5212H | 150 | 100 | 710 | 60 | 50 | 800 | 310 | 490 | 1250 | 1800 | 1265 | 810 | 455 | 1280 | 450 |
SW5215H | 150 | 100 | 710 | 60 | 50 | 800 | 310 | 490 | 1250 | 1800 | 1265 | 810 | 455 | 1280 | 450 |
High Quality End Of Arm Tooling Parts |
Robot Arm Application |
(1) 27 years experience in the industry of Industrial Robotic Arm, products ranging from low load to high load various standards to meet the unique needs of our customers. |
(2).All components are new, main components are imported from German(Festo/Igus),Japan(NSK/THK/Omron/Panasonic),France(Schneider/Legris),Italy(Elatech) etc. |
(3).We do 100% testing before shipment. |
(4) Warranty are12 months for all products. |
(5)Provide CE/SGS Certification. |
(6).Provide professional automation system by customize requirements, saveing time and cost for you, enjoy the one-stop shopping. |
(7). Stand by service, our engineer or technician is able to visit your esteemed company for installation and debugging of machine. |
Certifications |
Our Partners |
Dongguan Switek Technology Automation Co.,Ltd is specialize in manufacturing Industrial CNC Robotic Arm
with 27 years experiences in offering professional automation solutions, range from Automobile parts industry,
electronic industry,Household Appliance industry, Commodities & Package industry to Medical Industry.
We cooperate with companys of injection molding machine and mould companys, aiming to provide advanced
integrated automation system to meet requirement of customer from all over the world.
We have established our reputation in China, South-africa, Turkey, America, Canada, Central & South America.
Switek also owns a good after sales service team to meet our customers' requirement, We insist customers are
the first and offer total consultant, technical importing and service for our customers.
Package |
FAQ |
1.What is the Industrial Robotic Arm minimum order quantity?
Switek: Minimum order quantity is one set.
2. Could you advise payment terms?
Switek: We accept both LC and TT.
3. What is your quality assurance like? Do you have relevant certifications?
Switek: We are certified by CE and SGS, quality is prioritized.
4.How about your after sale service?
Switek: A.One year warranty for all our Industrial Robotic Arm.
B.Engineers are available to services oversea.
C.24 hours technical support by E-mail.
D.Calling or video conference communications.
E.Full set of user manual and detailed videos.
5. Are you a trader or manufacturer?
Switek:We are both, Switek produce Industrial Robotic Arm and is permitted to import&export products
Похожие товары

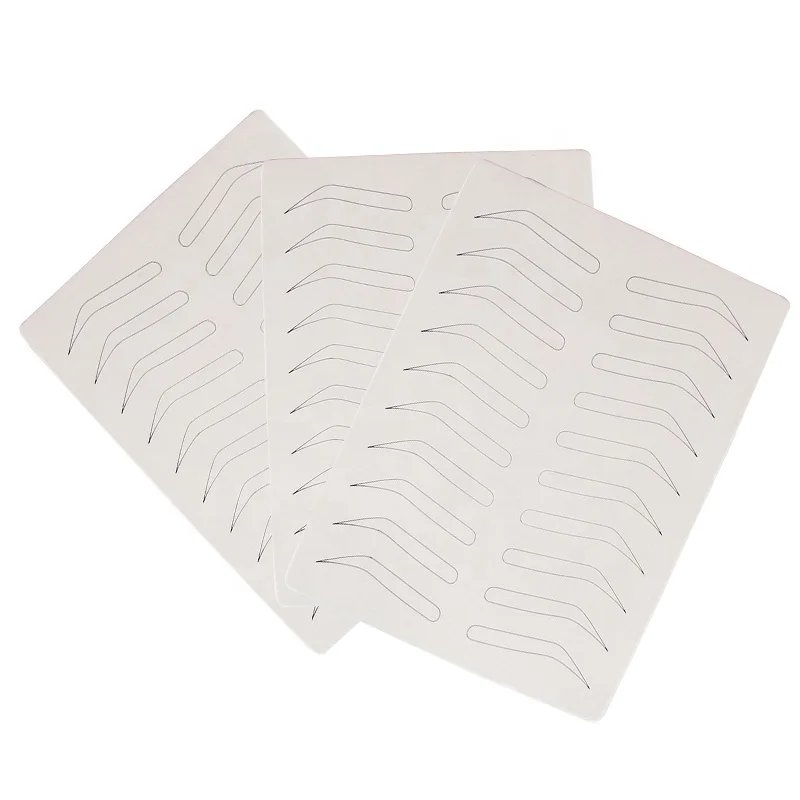

Оптовая продажа OEM белая брошь PMU полуперманентный макияж микроблейдинг латексная тренировочная кожа для красоты Академии
0,35 $ - 0,50 $
Глубокая латексная кожа для микроблейдинга бровей без микропигментов для перманентного макияжа и татуировки
0,30 $ - 0,60 $

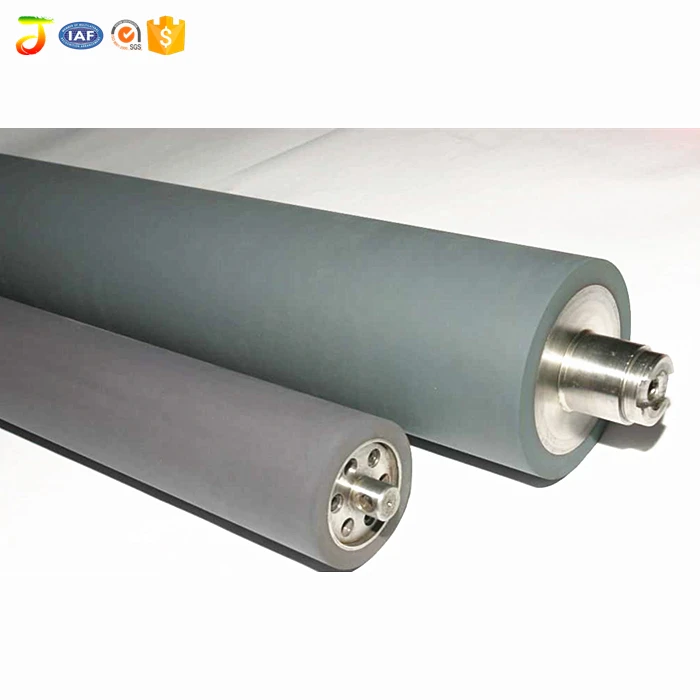

High quality rubber roller for mask machine manufacturer
Лучшая цена от производителя NBR латексная белая жидкость

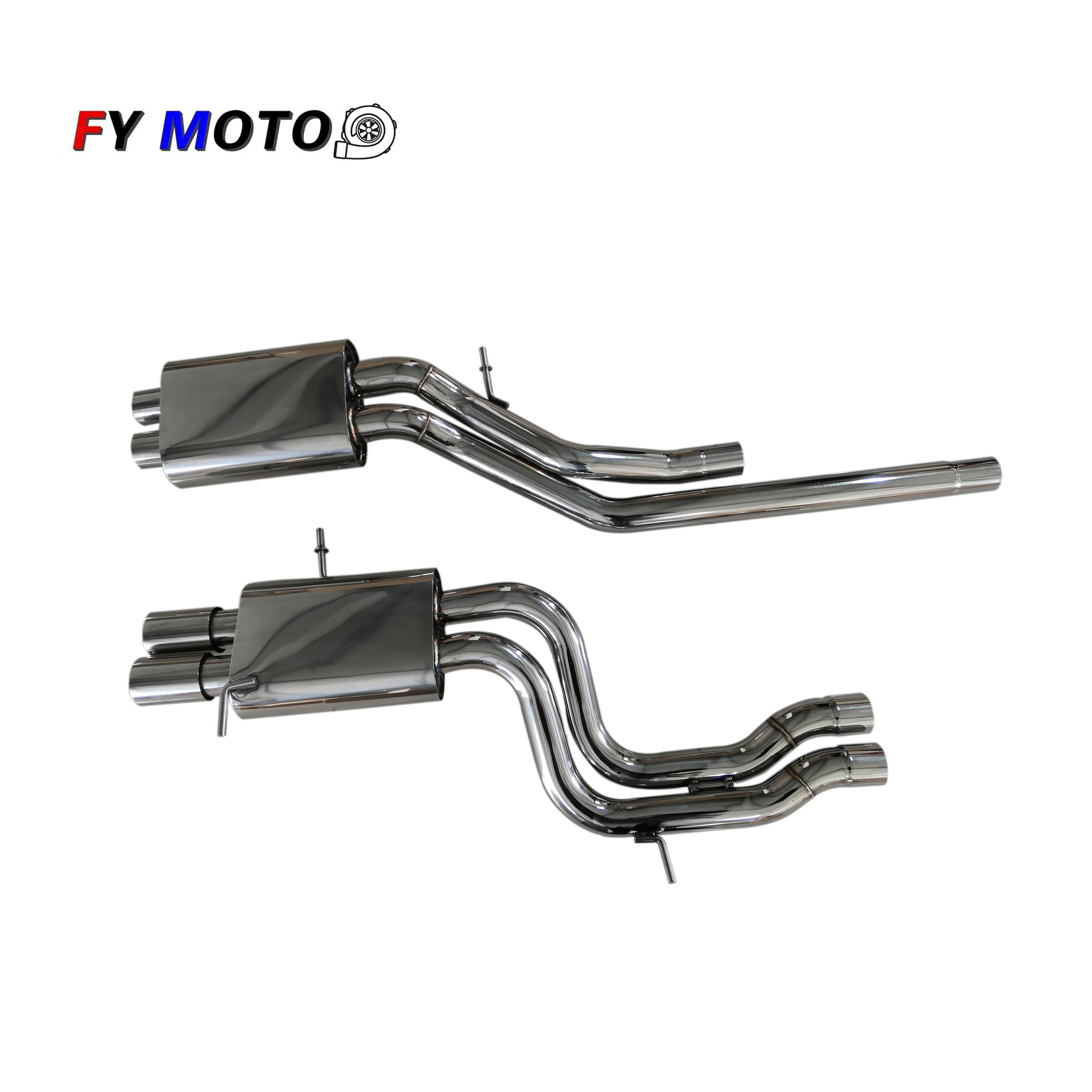

Выхлопной catback для S4 B5 A6 C5 2.7L Bi Turbo
170,00 $ - 190,00 $

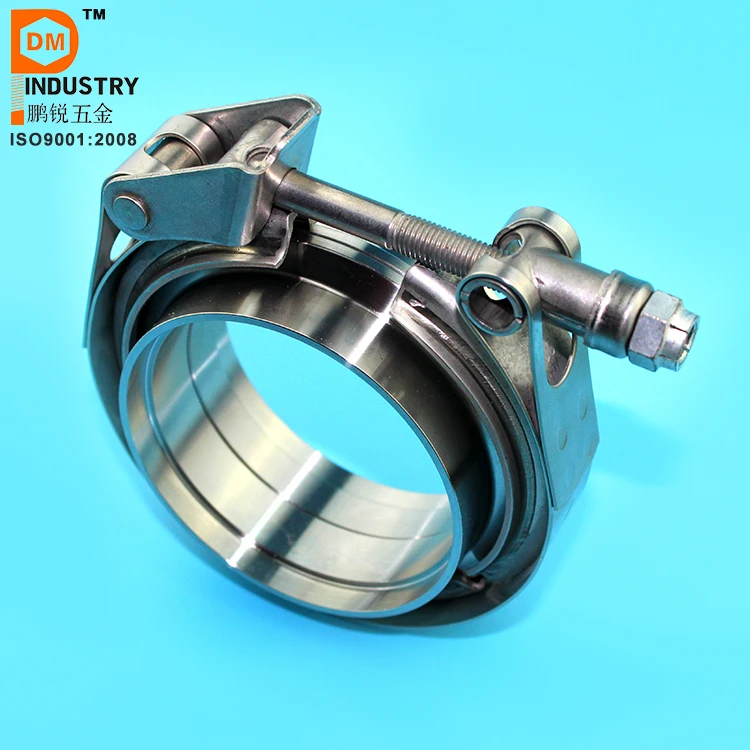

2.5 Quick Release V band Clamp Stainless Steel Exhaust Clamp
