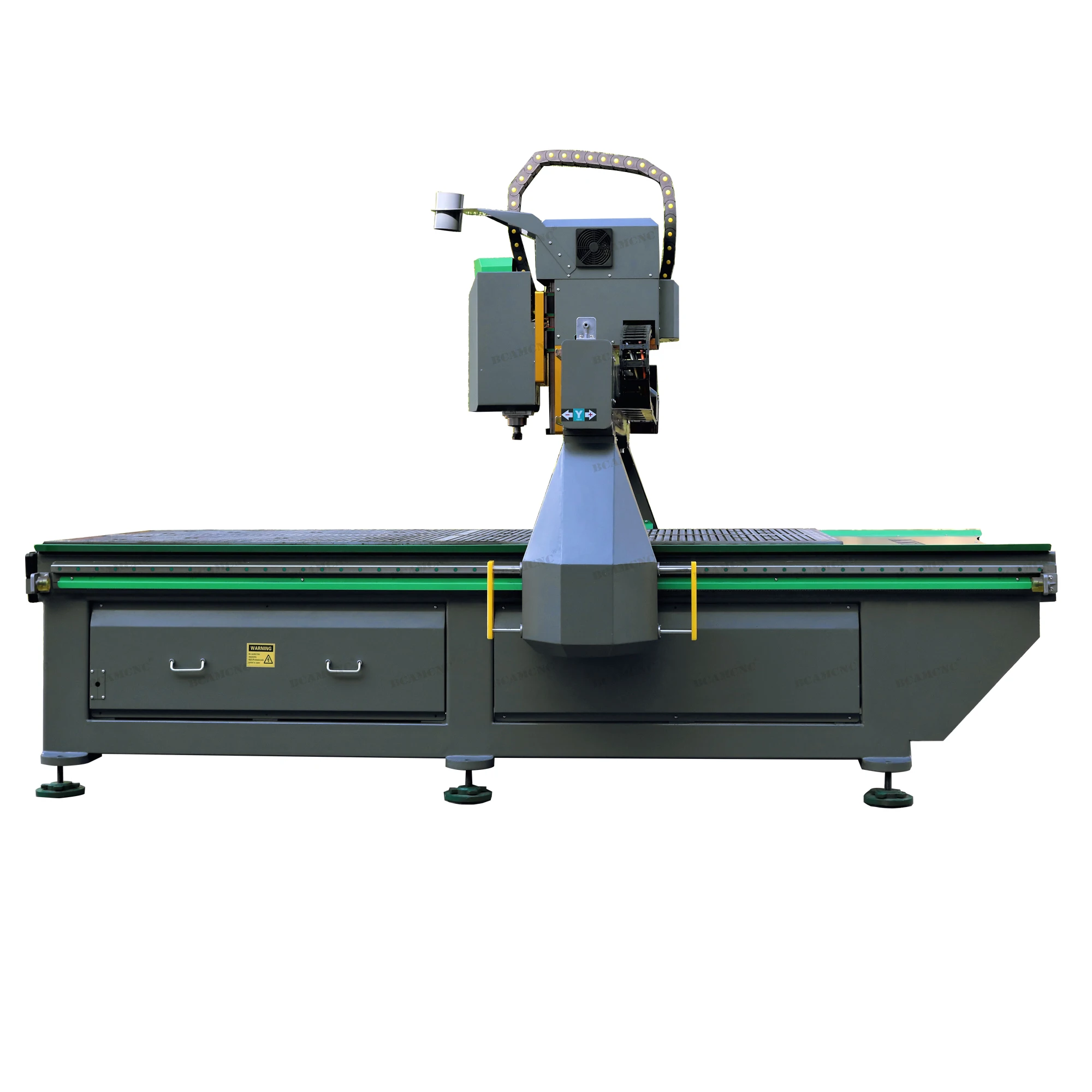

ЧПУ резьба мрамор гранит камень машина/маршрутизатор гравировальный станок BCS1530

Сохранить в закладки 60124622729:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики

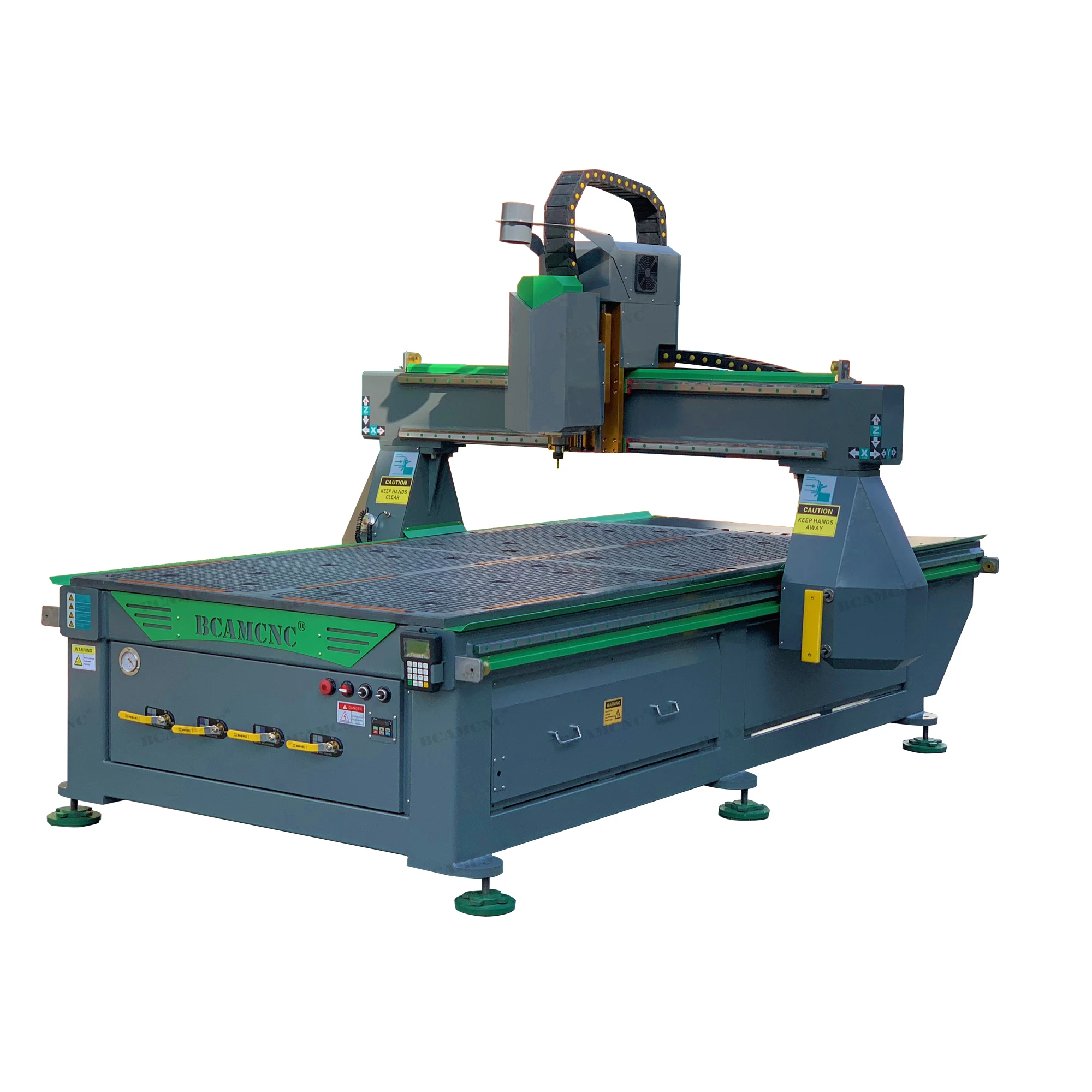

Cnc carving marble granite stone machine/router engraving machine BCS1530





photobank (1).jpg





Application


It is widely used industry


1.The advertising industry


2.Small-scale woodworking industry


3.Artwork industry


4.Soft metal processing


5.Electronic industry


It's widely used in wood engraving, wood cutting ,bamboo engraving, bamboo cutting, marble engraving, marble cutting, duotone acrylic engraving, duotone acrylic cutting, plastic engraving, plastic cutting and metals such as copper engraving, cooper cutting and aluminum engraving, aluminum cutting. It can be also used for lettering, embossment, and characters cut in relief, etc.







photobank (7).jpg

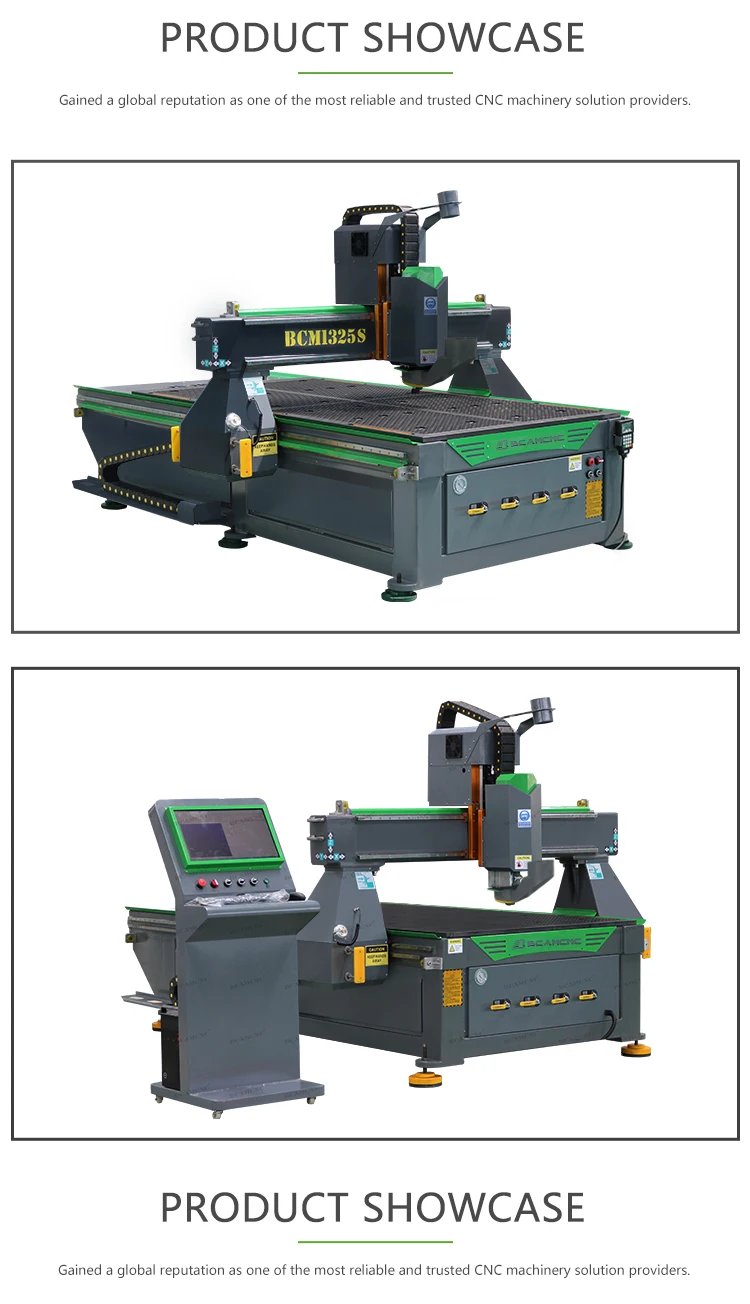

photobank (2).jpg

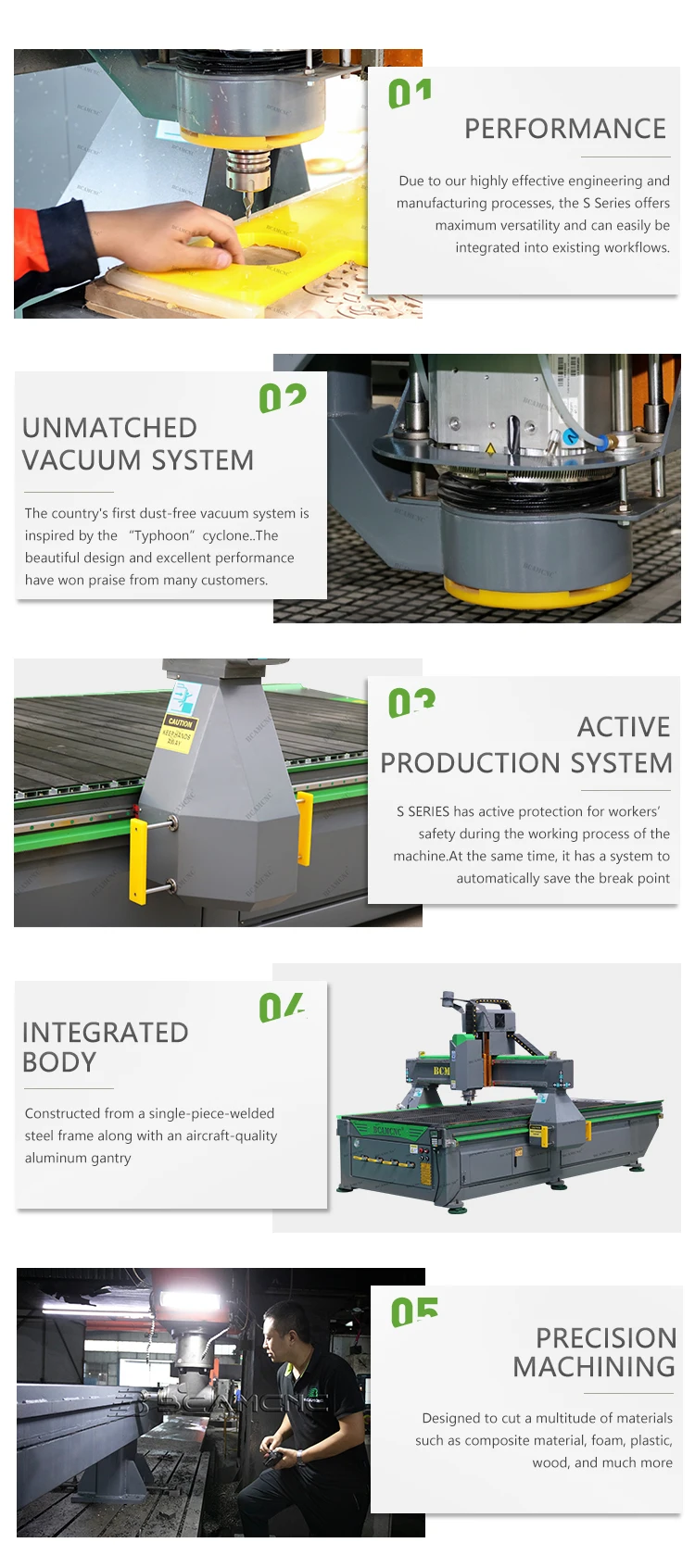

photobank (3).jpg


BCM1325S Proffesional CNC Router for Woodworking and Signmaking


1. Working area: 1300*2500*200mm|4′*8′

2. CE standard

3.  3.0kw water cooling spindle(Option: 5.5kw,6.0kw ,7.5kw Quick-Release Spindle)

4.  8mm Heavy duty frame

5.  Active safety system

6.  X ,Y axis gear transmission, Z axis Taiwan TBI ball screw transmission

7.  Taiwan Hiwin 25 rails

8.  Vacuum table+T-solt

9.  Schneider Electronic spare parts

10.  Automatic lubrication system

11.  Rich auto A11 control system

12.  Japan Omron limit switch

13.  High torque stepper motor and drivers

14.  Delta Inverter 3.7kw

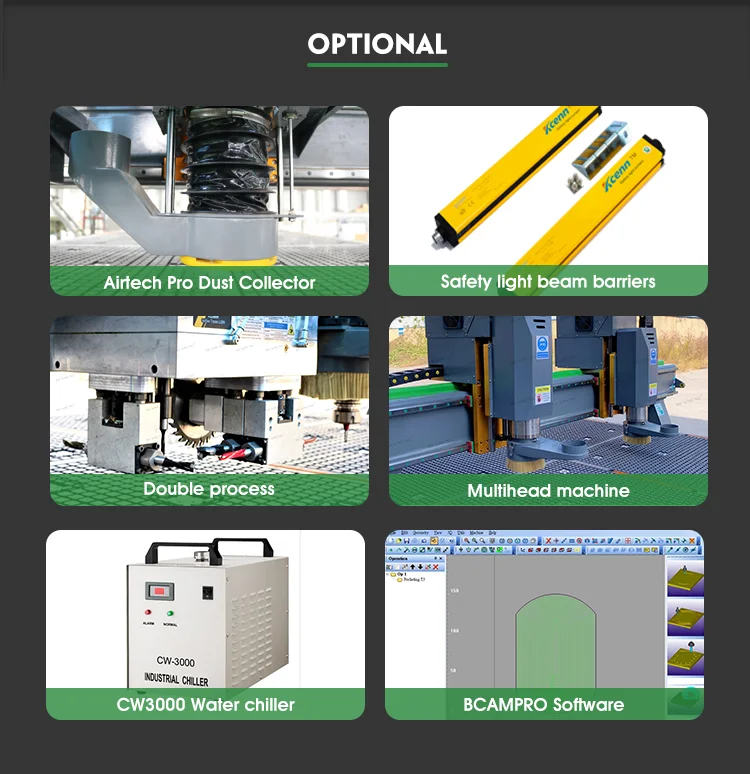

15.  3.0kw double dust collector +Dust collector pipe+Dust collector support

16.  Tool height sensor

17.  Industrial water Chiller CW3000

18.  Standard box of tools
































































































Parameters



Standard Specifications BCM1325S



X,Y,Z Working Area



1300*2500*200mm|4′*8′


Optional Working Area1300*1300*200mm|4′*4′
Optional Working Area1500*3000*200mm|5′*10′
Optional Working Area2000*3000*200mm|6′*10′
Optional Working Area2000*4000*200mm|6′*13′
Optional Working Area2000*6000*200mm|6′*20′

Spindle Power



3.0kw water cooling spindle



X,Y,Z Traveling Positioning Accuracy



±0.03/2000mm



Table Surface



Vacuum table+T-solt table



X,Y,Z Rail and Trasmission



X Y axis gear transmission, Z axis TaiwanTBI Ball Screw



Max. Rapid Travel Rate



40m/min



Max. Working Speed



30m/min



Cutting thickness



According materials



Spindle Speed



6000-24000RPM



Drive Motors



4 sets High Torque stepper motor and drivers



Working Voltage



AC220v0r380v/50HZ/3 phase,220v/1phase/50hz



Command Language



G Code



Operating System



Richauto A11 DSP control system



Interface



USB



Software Compatibility



Option:BCAMPRO/VCarve/VCarve Pro/UcanCAM/ArtCAM,etc.



Running Environment



Temperature: -20℃~45℃ Relative Humidity: 5%~75%






photobank (4).jpg


photobank (5).jpg


photobank (6).jpg




1. If you want to know whether the machine can work on your material, please tell me:


1)What materials do you want to engrave or cut?


For different types cnc woodworking machine apply to different material.


2)What’s the max size of the material?(Length *width* thickness)


For it decided the working size of machine.(for example: 1300*2500mm)


Once you tell me about this, then I am able to recommend you the most suitable machine and best price for you. Or we can customize one for you.





2. This is the first time I use this kind of machine, is it easy to operate?


1) English guide video and instruction book are sent to you free together with the cnc router.


2)Free training course in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side.


3)24 hours technical support by calling, video and email.





3. How can I get my machine ,what is the way to transport the machine?


We have a professional freight forwarding company here, we will choose the most suitable transportation route according to the location you provide. If you provide the industrial location, we can provide door-to-door service. You only need to provide the address to us.





4. Payment terms,There are 2 ways to pay money .


1)T/T, means international bank transfer. 30% deposit, we produce the machine for you. 70% balance payment before shipping. It is convenient and fast.


2)Alibaba Secure payment. Reliable and safe.

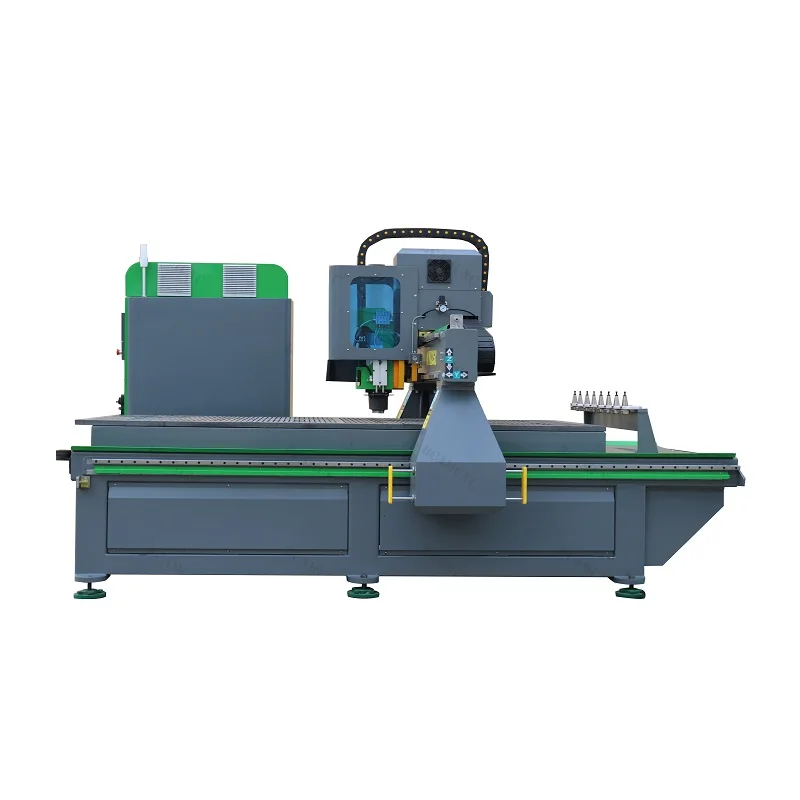

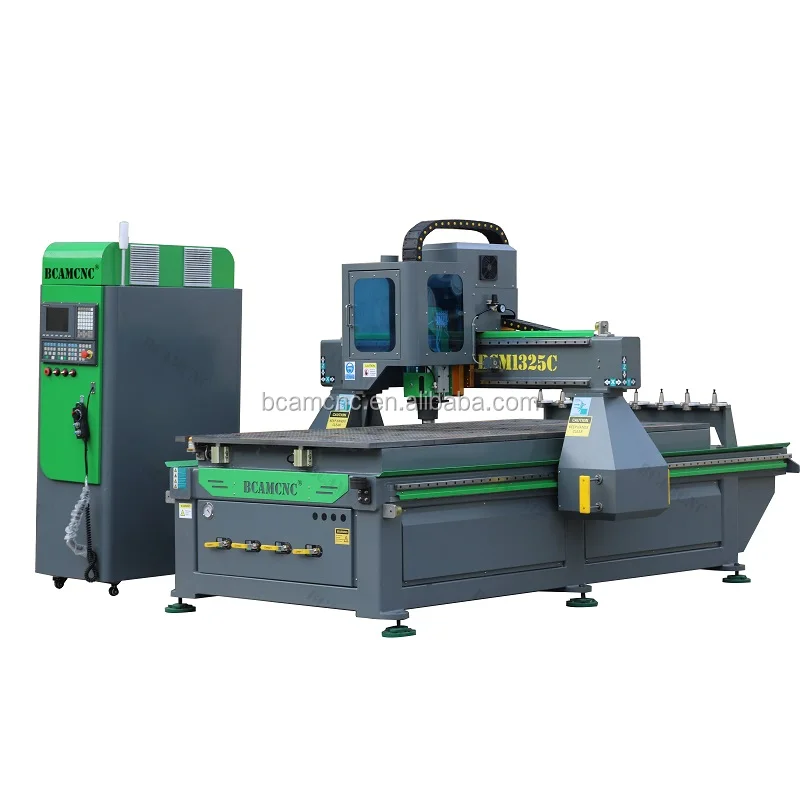

 2.jpg  1.jpg
