CE approved wood shavings sawdust recycling pallet forming machine with top qualtiy
CE approved wood shavings sawdust recycling pallet froming machine with top qualtiy
1.Hot press equipments
2.Pallet feet make with best quality
3.High density
4.ISO,BV
The Material of CE approved wood shavings sawdust recycling pallet forming machine with top qualtiy
Wood shavings/Wood wool/Wood sawdust/waste wood

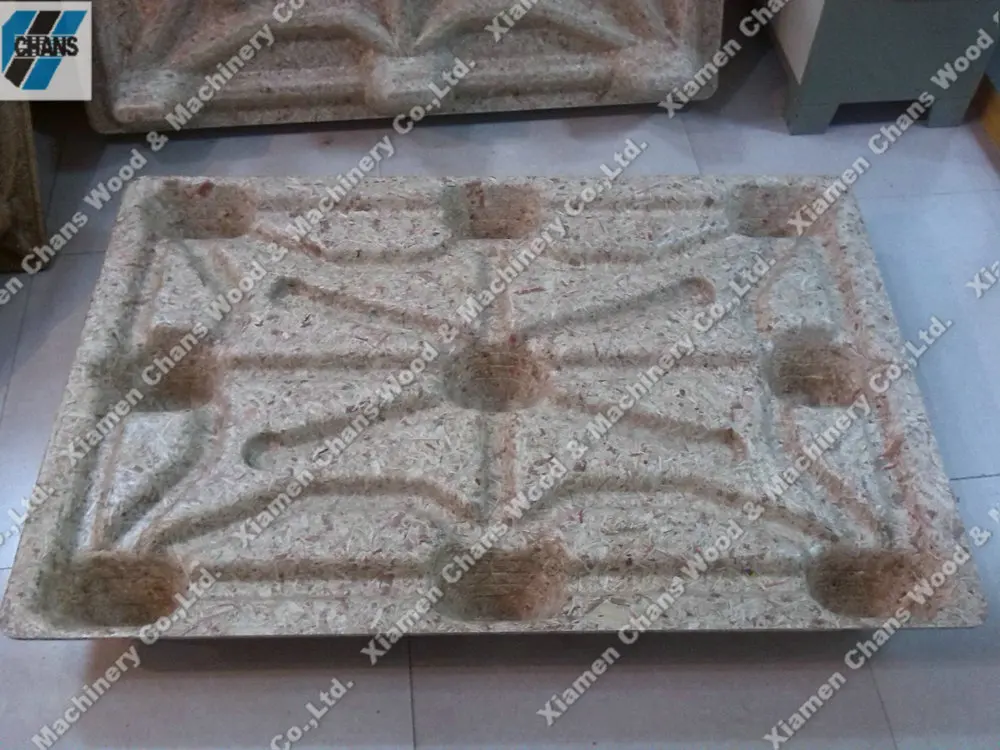

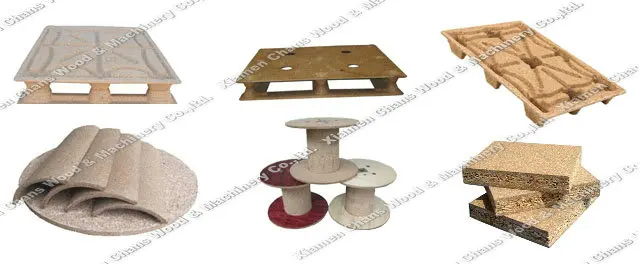

The final products of CE approved wood shavings sawdust recycling pallet forming machine with top qualtiy


Features and advantages of CE approved wood shavings sawdust recycling pallet forming machine with top qualtiy
1.One time shaped.
2.Material is cheap and common. waste wood can be as a material.
3.Final products can be kept in water within 24 hours.
4.After high temperature and pressure, the pallet is fumigation-free, inspect-free in export.
5.Mold working life is around 10 years.
6.Easy operation and long working life.
7.The installation is very convenient. Precise molding of pallets.

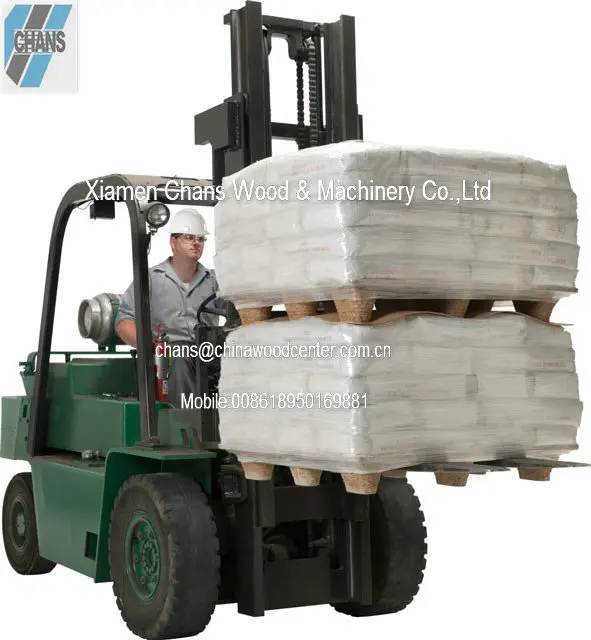

8.The pallet have super bearing ability.
--Dynamic load : ≥ 1000kg,
--Static load : ≥ 3000kg.
9.Standard pallet specification have 1200*1000*135mm, 1200*800*135mm, 1100*1100*135mm,1300*1000*135mm.
We also can design special mold according to your requirements.
Technical parameter
Item | Automatic wood chips pallet molding machine |
Cylinder | φ650mm*1pc |
Lifing cylinder | Φ90mm*2pcs |
Nominal pressure | 800tons |
Open | 1000mm |
Cylinder stroke | 800mm |
Heating | Thermal oil or steam |
Working pressure | 25Mpa |
Frame thickness | 50mm |
Weight | 20tons |
Power | 22kw |
Control | PLC |
Hydraulic pump | ycy63piston |
Working area | 1300*1620mm |
Overall | 2250*1250*3800mm(excludes oil tank) |

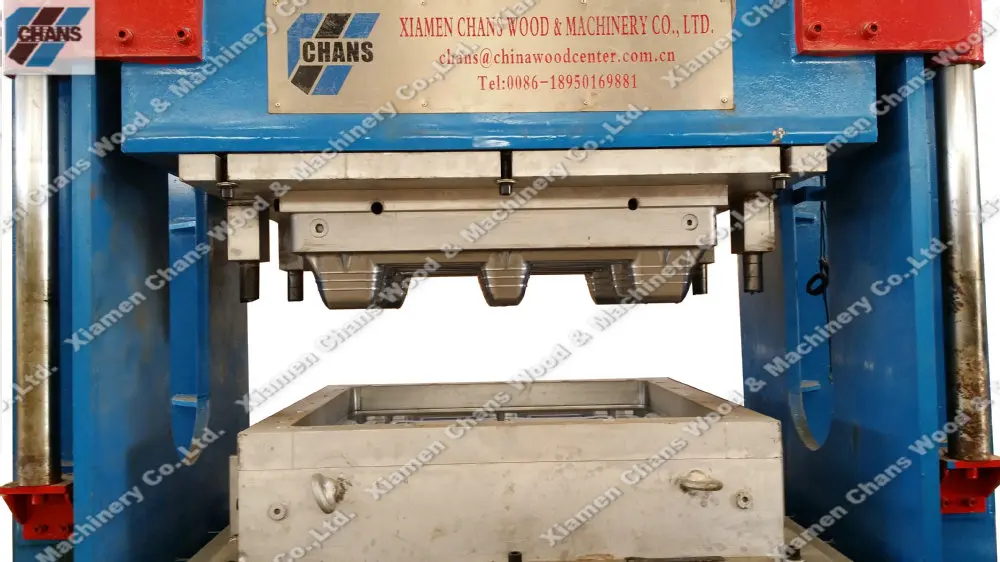

Automatic wood chips pallet molding machine introduction

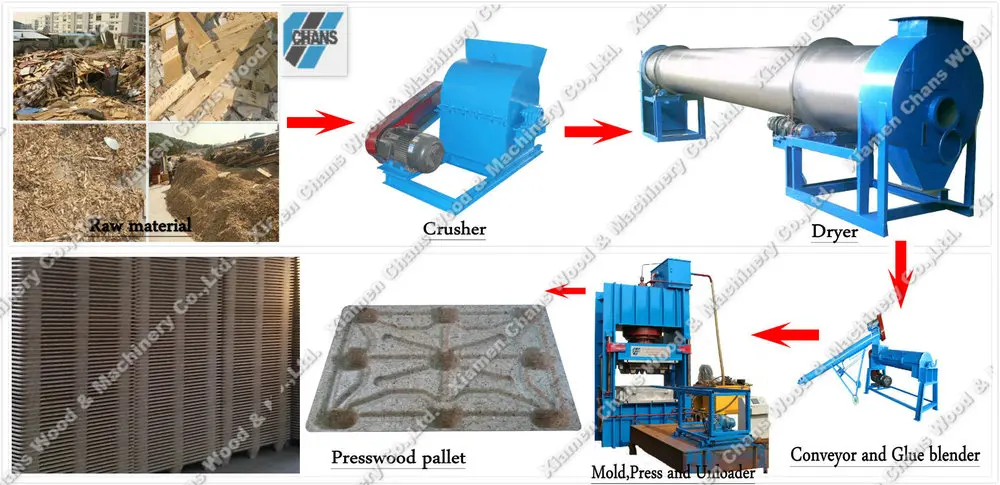

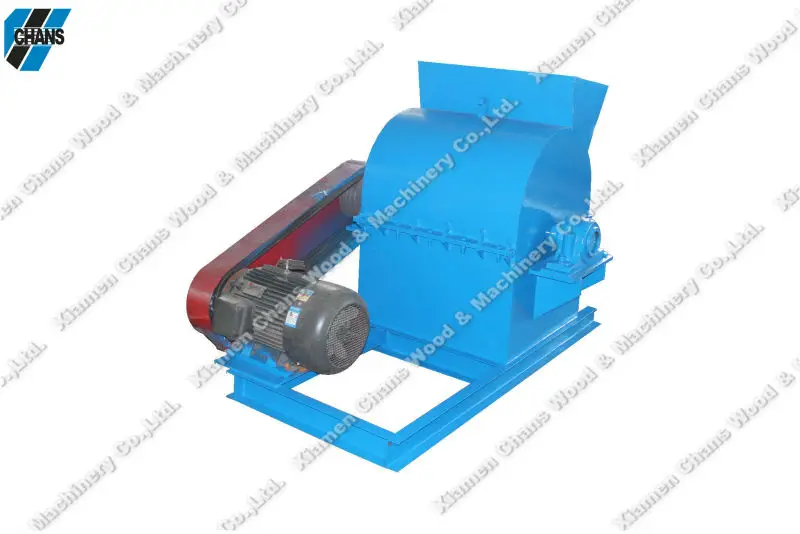

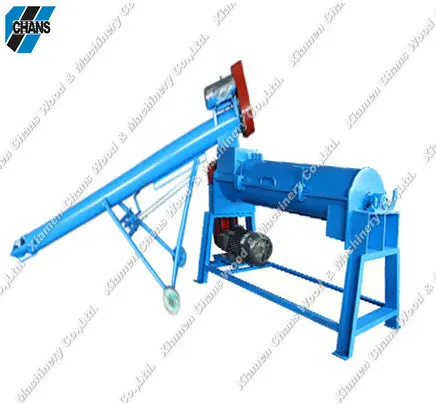

Pallet line includes crusher machine, dryer,screw conveyor, Glue blender machine, Pallet making machine, unloader.

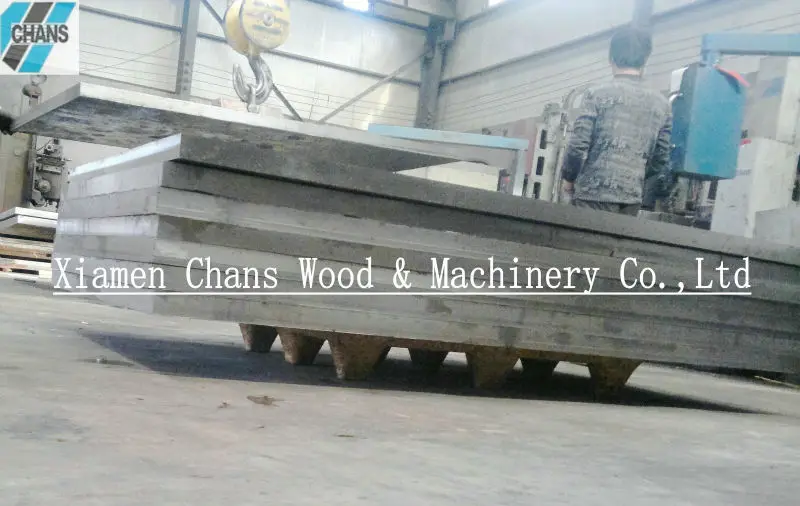

Pictures of press wood pallet molds



Test of press wood pallets


Seaworthy package
Engineers available to service machinery overseas.
If you have any questions,please feel free to contact us.
