P12 volt to 110 converter single phase solar inverter 2500w for pv system solar to ac converter dc to ac inverter price

>> Why Choose us?

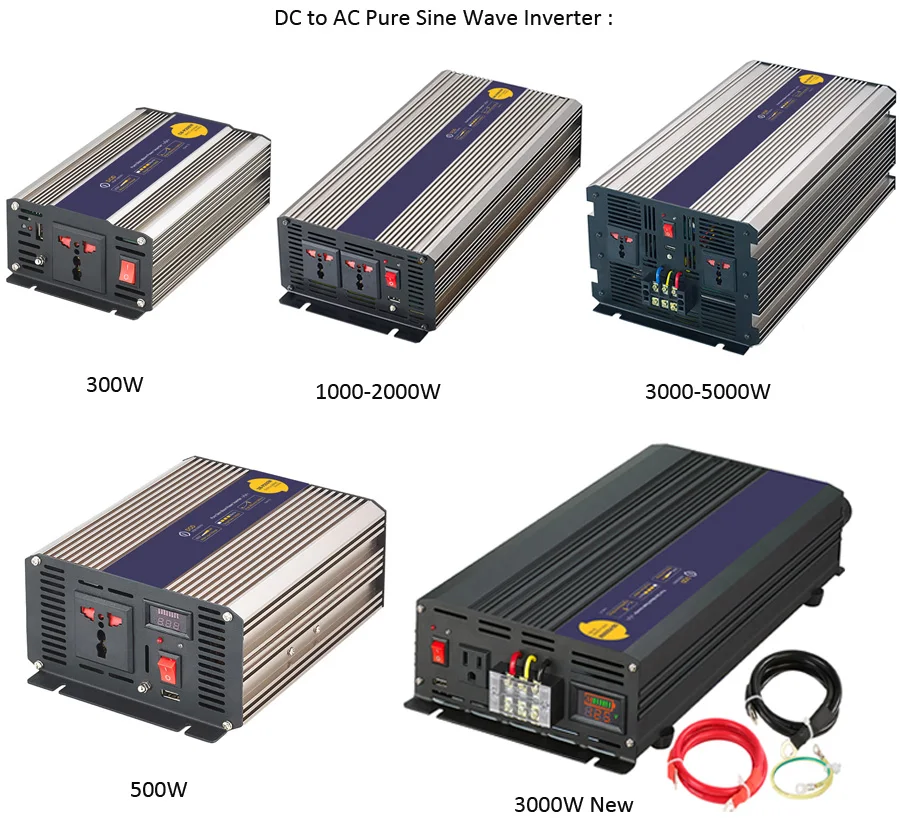

  • 1. We provide DC to AC pure sine wave inverters , modified sine wave inverter , inverter with charger ,

     car power inverter , with truly output over 88% efficiency and we also have mppt controller, pwm controller solar cable ,solar panel etc, customer can purchase each part of a whole solar system in our company to get more better discount.



    2. We provide OEM Service

    Not only printing customers logo on inverter , but also We can customize solar inverter appearance by open a new mold and also we can make change on some specification according to customer need.



    3. Design Solar power system:

    We have much experience on design solar power system. Customer just need to tell us what electrical appliance need to use and hours ,we can design a cost-effective system for our customers.



    4. We provide lifelong technical support while customer install and use of our products .

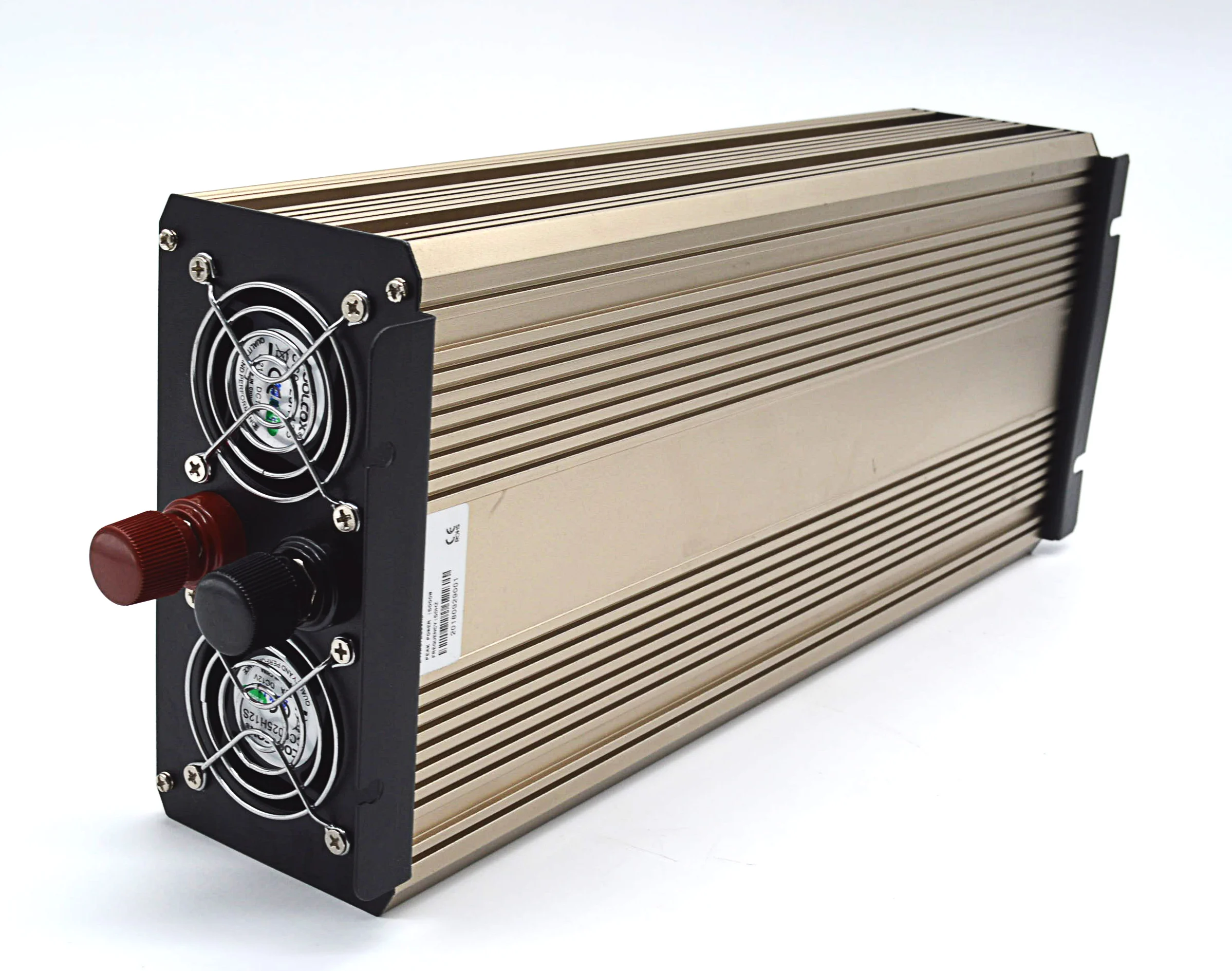

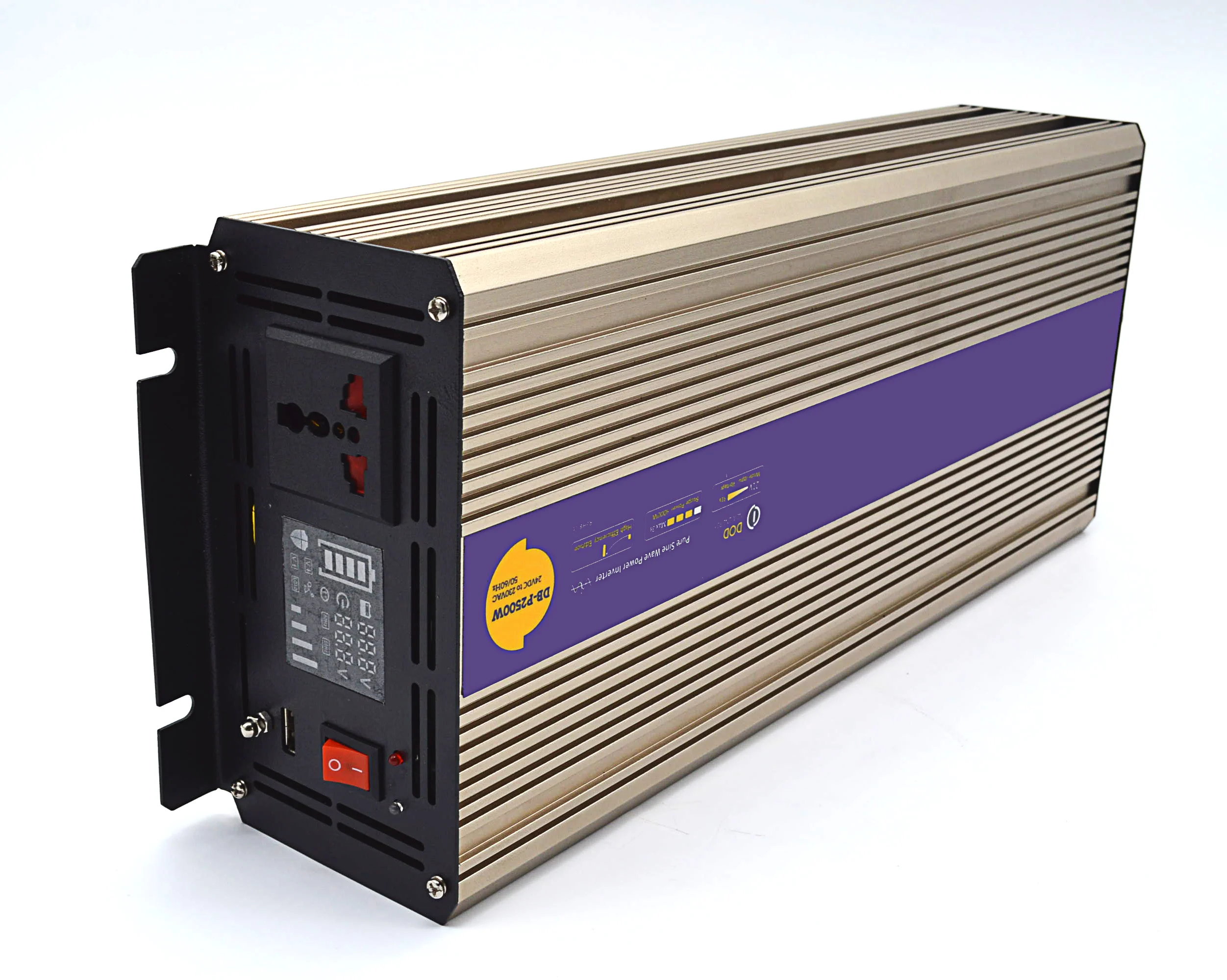

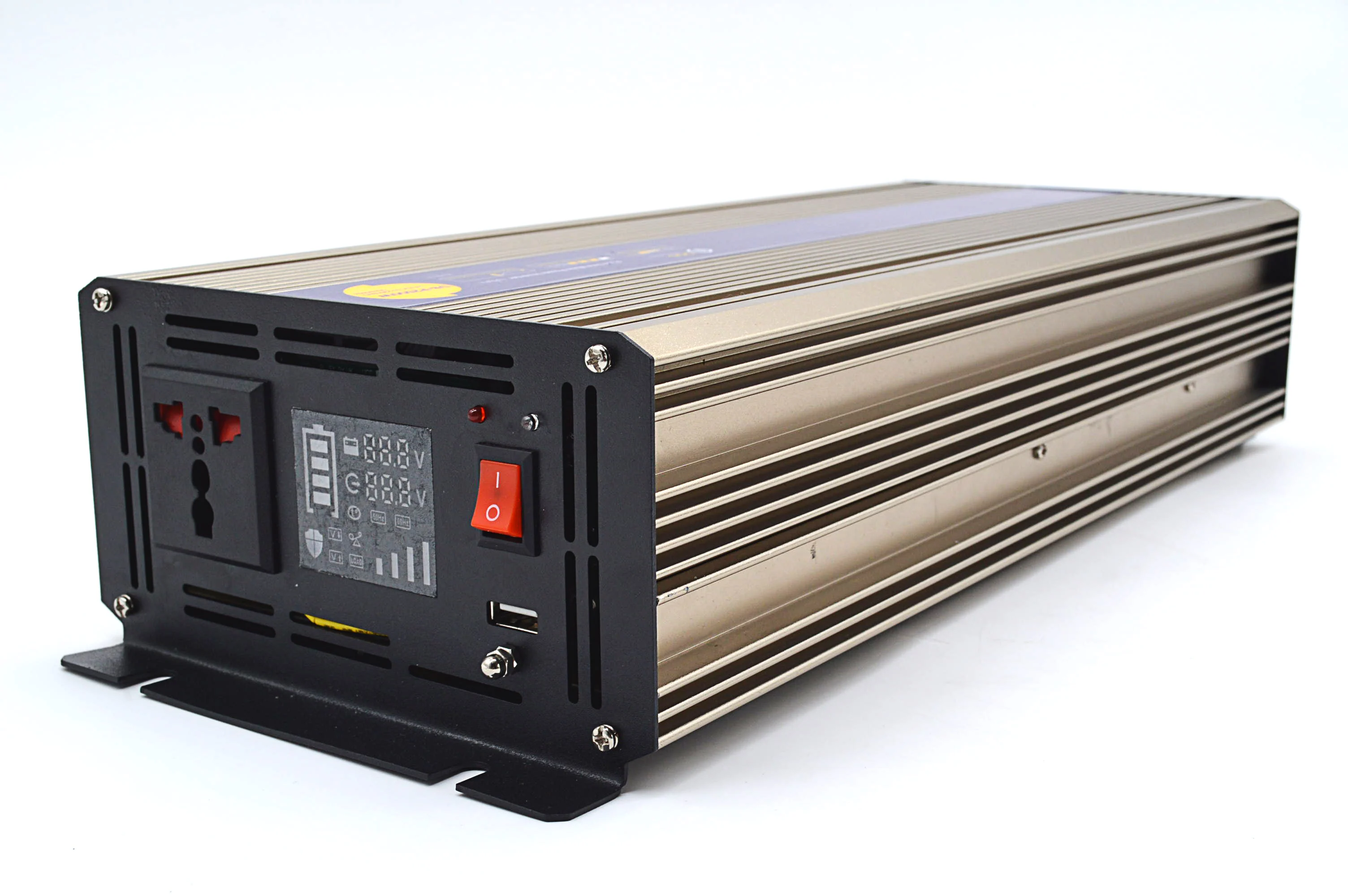

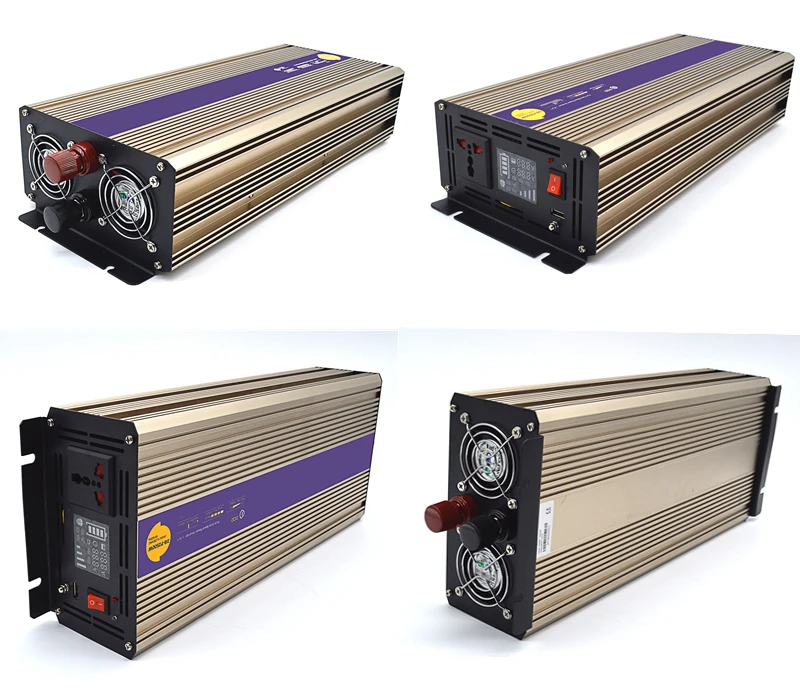

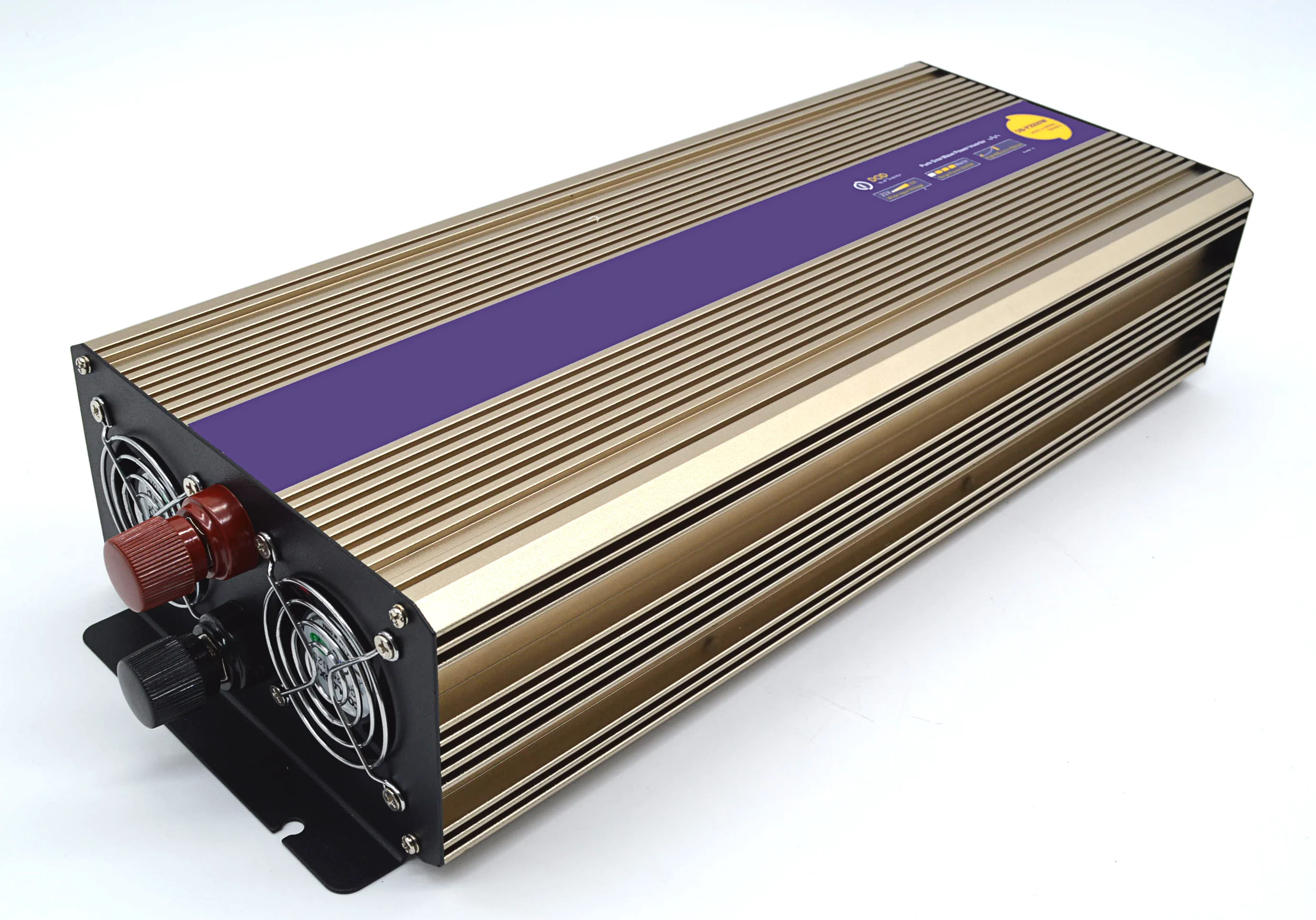

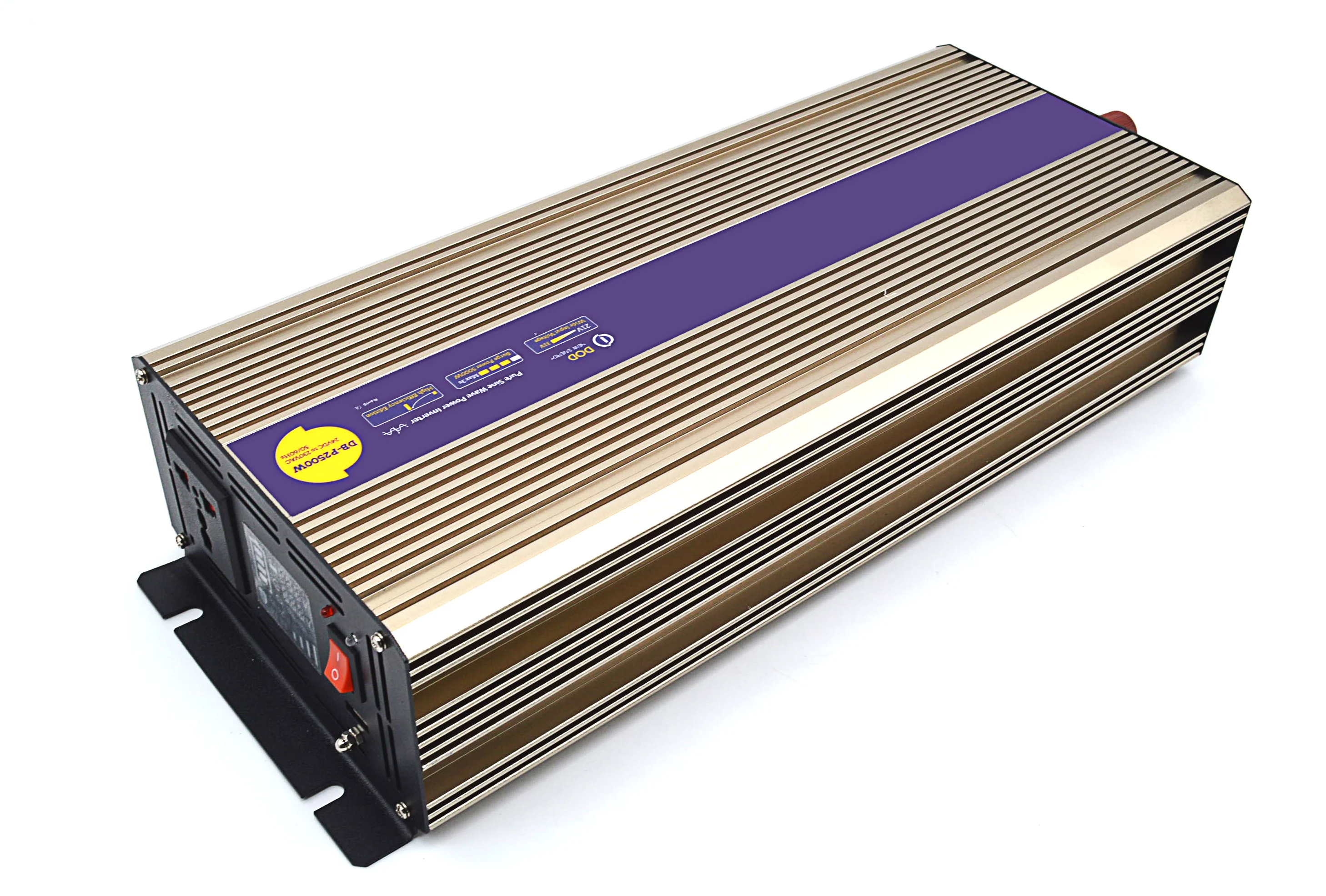

>> what's your pure sine wave 2500w inverter looks like  ?




>> Does the pure sine inverter have auto protection funtions  ?





Small family use silent 50hz60hz 24vdc 240vac

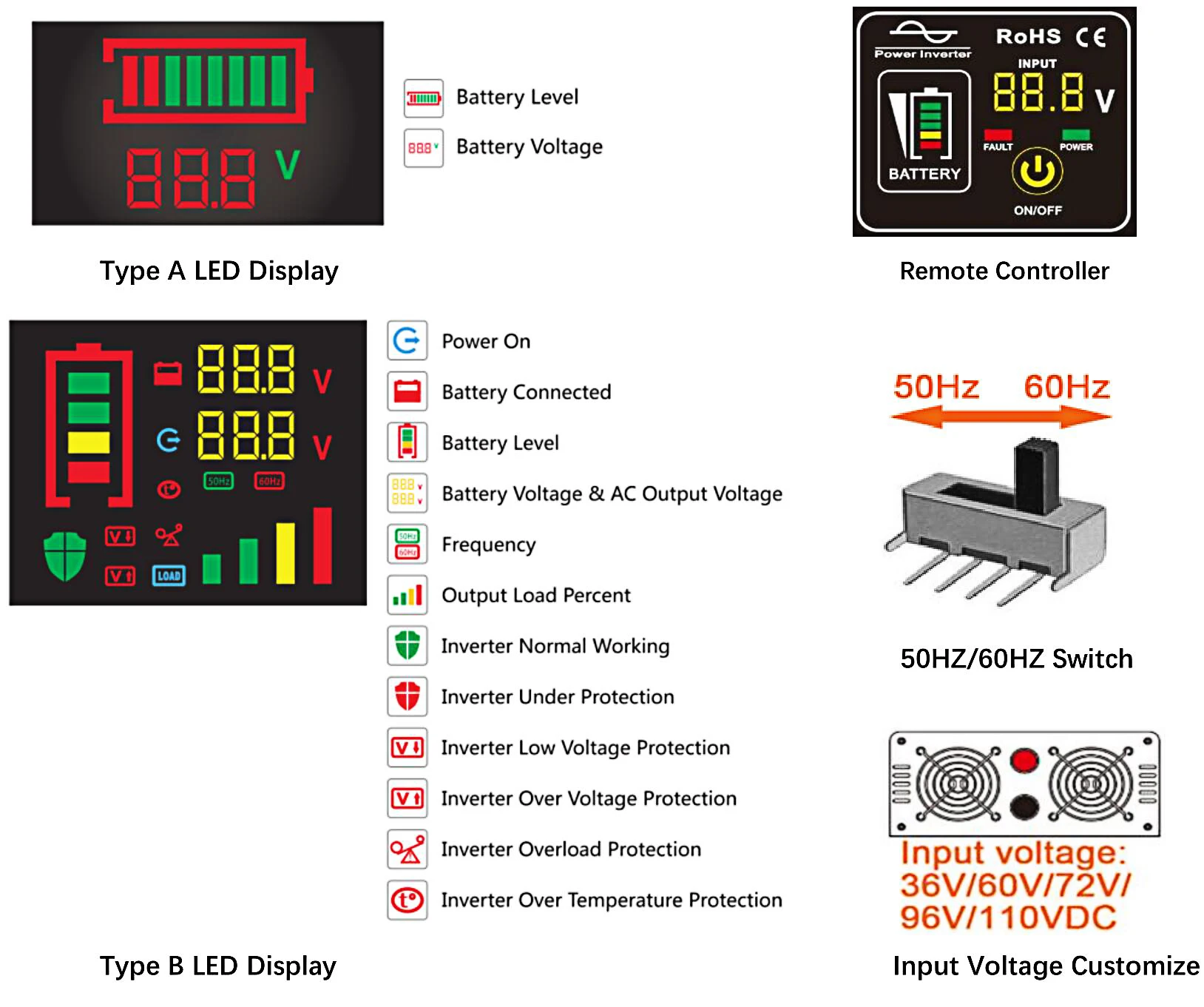

>> Does your inverter have LED display or remote controller ?



         all these functions are optional , if you need these functions , pls contact us before order .





2optional functions.jpg

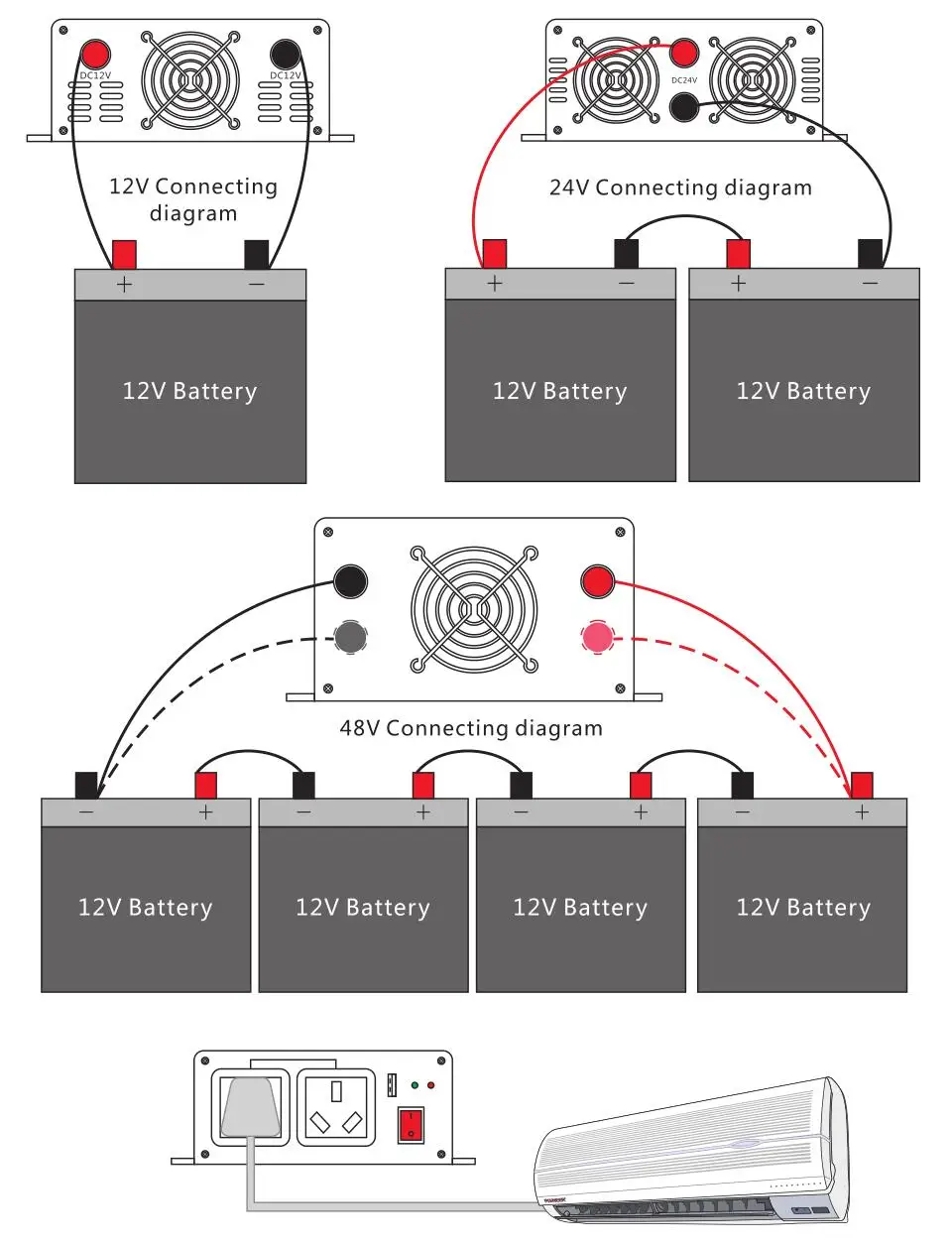

>> How to connect the inverter with battery ?






>> What're the advantages of your power inverter ?





Small family use silent 50hz60hz 24vdc 240vacSmall family use silent 50hz60hz 24vdc 240vacSmall family use silent 50hz60hz 24vdc 240vacSmall family use silent 50hz60hz 24vdc 240vac



>> What's the parameters of the inverter ?



ModelDB-P2500-121DB-P2500-122DB-P2500-241DB-P2500-242DB-P2500-481DB-P2500-482
Rated Power2500W
Surge Power5000W (few seconds)
Output Voltage110VAC±5%220VAC±5%110VAC±5%220VAC±5%110VAC±5%220VAC±5%
Frequency50Hz±3 or 60Hz±3
Output WaveformPure Sine Wave
Total Harmonic DistortionTHD<3% (Linear Load)
Rated Input Voltage12VDC24VDC48VDC
Input Voltage Range10-15.5V20-31V40-61V
Maximum Input Current235A118A59A
Input Current At No Load1.6A0.8A0.4A
Low Input Voltage Alarm10.5±0.5V21±0.5V42±1V
Low Input Voltage Shut Down10±0.5V20±0.5V40±1V
Low Input Voltage Recovery13±0.5V24±0.5V48±1V
High Input Voltage Shut Down15.5±0.5V31±0.5V61±1V
High Input Voltage Recovery14.8V±0.5V29V±0.5V59V±1V
InputTerminals with cylindrical hole:  12V: 24mm        24V:  20mm
Output Different socket type optional
Internal DC Side Input Fuse8*35A = 280A8*20A=160A
RemoteRemote controller optional
USB Port5V 1A
Soft StartYES
Output Efficiency> 85% (At full load)
Cooling WayTemperature controlled fan. Fan ON at 45°C ;
Fan OFF at 42°C (sensed at internal hot spot)
ProtectionBattery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit, Reverse Polarity



>> Where can the pure sine wave inverter be used ?

1. Field operation : lighting, drilling, disaster relief, commercial promotions.

2. Hospital emergency rescue:  surgical lighting, equipment use, etc.

3. Home Appliance:  Electronic energy-saving fluorescent, incandescent, small television sets, refrigerator, etc.

4. Energe: solar system, wind system .










>> What's the Difference of inverter & inverter with a charger?

Pure sine wave inverters have function with UPS.

When there is on Grid,  the load is the mains to the Grid. At the same time the inverter detects the battery power shortage, it will automatically charge the battery. Untill the battery is full charged, it will automatically stop charging. If a sudden power failure, the inverter will automatically switch to battery charging, will be not off power. So it can be guaranteed not to cause data loss or electrical damage due to sudden power failure.



inverter with charger.jpg

Small family use silent 50hz60hz 24vdc 240vac







>> do you have modified sine wave inverter ?

                        Yes , We also have Modified sine wave inverter  and Car Power Inverter .

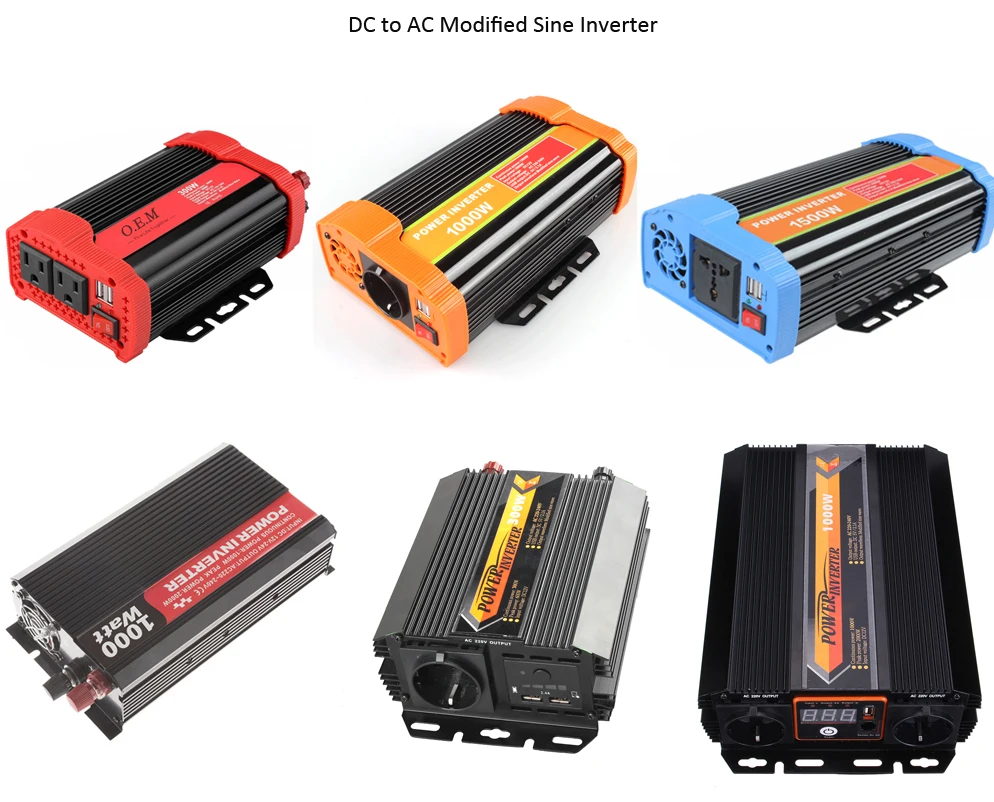

Modified inverter.jpg





>> How we pack & ship power inverter?



Small family use silent 50hz60hz 24vdc 240vac





>> About us

DOD New energy is high technology company which specialized in solar power system,wind power system and related products. We have branch in Zhejiang and Sichuan province. Main products contains solar charge controller,wind generator,solar panel,power inverter ,battery etc and most export to Europe and America.

Till now we have got ISO, TUV, CE, ROHS,IEC,SGS,UL Approval.

To supply the suitable and high efficient power system is DOD New Energy 's Goal. We will use our supply chain, professional knowledge and experience to help our customer to save Souring time and costs.



>> Our Certifications

Small family use silent 50hz60hz 24vdc 240vac

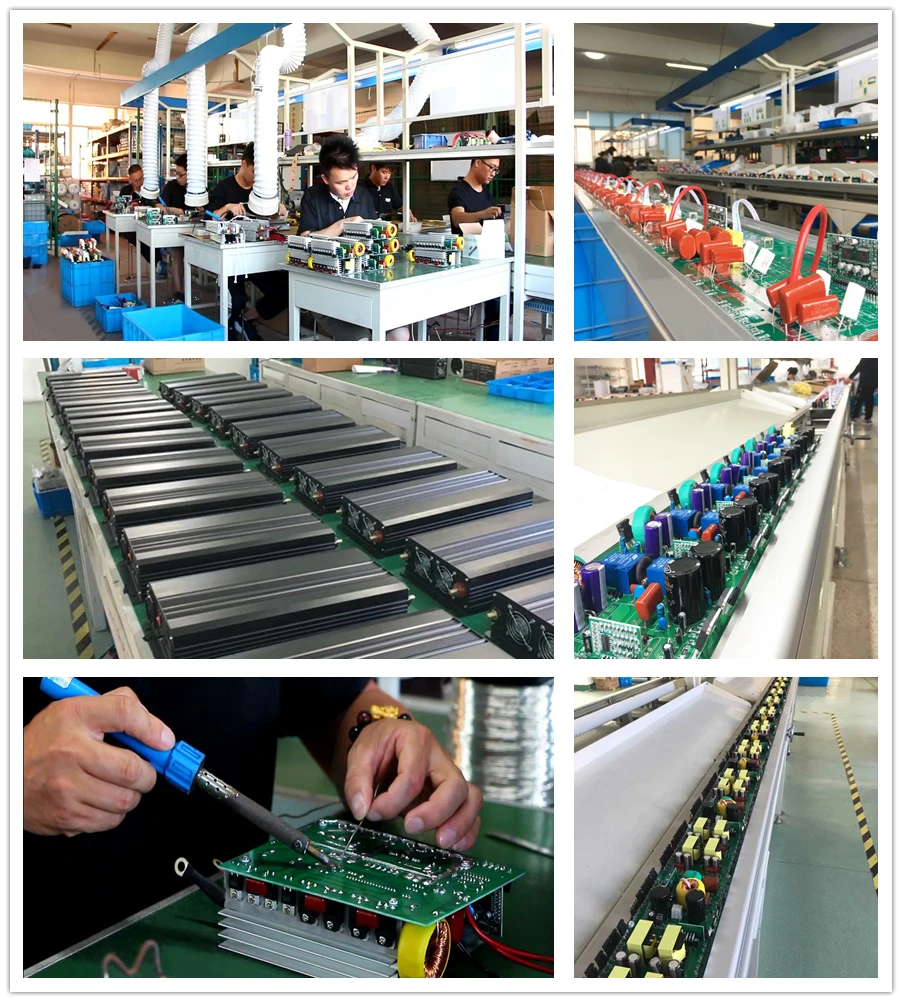

>> Our factory & Customer visiting




>> FAQ

Q1.How to buy a sample ?

A1. Customer need to choose the controller model, tell us your battery voltage and Ampere you need , then we will suggest you a suitable controller.

Delivery time will be 5 days below 10 pieces sample.

Samples will delivery be International express like FedEx ,UPS,DHL .



Q2. What is the payment terms ?

A2. For below 1000 USD, we accept Paypal ,Bank T/T .

For Above 1000 USD, We Accept Bank T/T,  Irrevocable L/C.

We welcome client to place order through Alibaba Trade Assurance .



Q3. Can you do the design for us?
A3. Yes. We have a professional designing team. Just tell us your ideas and we will help to carry out your ideas. Send us high resolution images, your Logo and text and tell us how you would like to arrange them, We will send you finished files for confirmation.

Q4. What is controller warranty ?

All our controller are warranty 3 years . Within 3 years if found defective, we offer free new controller for replacement.



For more products , you can also check our website : www.dodelectric.com
