40*7*15mm Diamond Segment for Andesite Sandstone Granite Marble Cutting Diamond Segment for 1000mm Segment Cutter Saw Blade
China Quanzhou Diamond Segment Manufactuere, Pulifei Diamond Tool main products, Diamond Segment, Diamond Granite Segment.
1) Diamond segment types include the sandwich segment, multi-layer segment and orderly arrayed segment and carbide tips,every type is designed for different stone or concrete, tile, ceramic, asphalt, floor to reduce segment cost and increase cutting efficiency.
2) Our diamond segments cutting tip are applicable for hard stone like hard granite, hard marble, andesite and construction material as concrete, asphalt, brick, porcelain, tile, special glass and fireproof material.
4) We accept OEM orders from the developed countries in Europe and America.
5) Please inform us the sizes of diamond segment and saw blank and the object to cut.
6)We have own development and research department, our technicians allocate the most suitalbe formula according to user's requirement.
7) Diamond Segment for grinding plate and core drill bit.
Diamond Grinding Segment with different girt and square shape or round shape,laser welded or high frequency silver welded on grinding plated with EZ change, screw lock, redi lock, then fix on floor grinding machine, floor grinder, floor polisher, for concrete floor, stone floor, terrazzo concrete floor dry or wet grinding.
Diamond Drill Segment for core drill bit, with normal type or matrix segment type, fix on handle drilling machine, for stone, concrete, reinforce concrete wet or dry drilling.
Common diamond segment sizes and teeth number are as follow:
Diameter Of blade (mm) | Specification (mm) | 1-2 Grade soft granite | 3-4 Grade hard granite | No./set | ||
Cutting speed | Cutting depth | Cutting speed | Cutting depth (mm) | |||
350 | 40×3.2×12 | 0.6-1 | 20-30 | 0.6-0.8 | 20-30 | 24 |
40×3.2×15 | 0.6-1.2 | 20-35 | 0.6-1.0 | 20-35 | 24 | |
400 | 40×3.2/3.6×12 | 0.6-1 | 20-30 | 0.6-0.8 | 20-30 | 28 |
40×3.6×15 | 0.6-1.2 | 20-35 | 0.6-1.0 | 20-35 | 28 | |
500 | 40×3.6/4.0×12 | 0.6-0.8 | 30-50 | 0.5-0.7 | 30-50 | 36 |
40×3.8×15 | 0.6-1 | 40-60 | 0.6-0.9 | 40-60 | 36 | |
600 | 40×4.6×12 | 0.6-0.9 | 40-60 | 0.6-0.8 | 40-60 | 42 |
40×4.6×15 | 0.6-1 | 40-60 | 0.6-0.9 | 40-60 | 42 | |
800 | 40×5.5×12 | 0.4-0.5 | 60-80 | 0.4-0.5 | 60-80 | 52 |
40×5.5×15 | 0.5-0.6 | 60-90 | 0.4-0.6 | 60-90 | 52 | |
1000 | 24×6.4/7.2×13 | 0.4-0.6 | 160-180 | 0.3-0.4 | 120-140 | 70 |
24×6.4/7.2×15 | 0.5-0.8 | 180-220 | 0.4-0.6 | 150-200 | 70 | |
1200 | 24×6.8/7.4×13 | 0.4-0.6 | 170-200 | 0.4-0.5 | 130-160 | 80 |
24×6.8/7.4×15 | 0.5-0.8 | 180-220 | 0.4-0.6 | 150-200 | 80 | |
1600 | 24×8.4/9.0×13 | 0.8-1 | 280-300 | 0.6-0.8 | 200-230 | 108 |
24×8.4/9.0×15 | 0.8-1.2 | 280-320 | 0.6-0.9 | 220-250 | 108 | |
2000 | 24×10.2/11×15 | 1-1.2 | 380-400 | 0.8-1.0 | 350-380 | 128 |
24×10/11×20 | 1.2-1.5 | 460-480 | 0.9-1.2 | 420-460 | 128 | |
3000 | 24×11.5/12.5×20 | 1-1.3 | 420-460 | 0.9-1.1 | 400-420 | 160 |
24×11.5/12.5×25 | 2.8-3.2 | 610-710 | 2-2.5 | 560-600 | 160 | |
3500 | 24×11.5/12.5×20 | 1-1.3 | 420-460 | 0.9-1.1 | 400-420 | 160 |
24×11.5/12.5×25 | 2.8-3.2 | 610-710 | 2-2.5 | 560-600 | 160 |

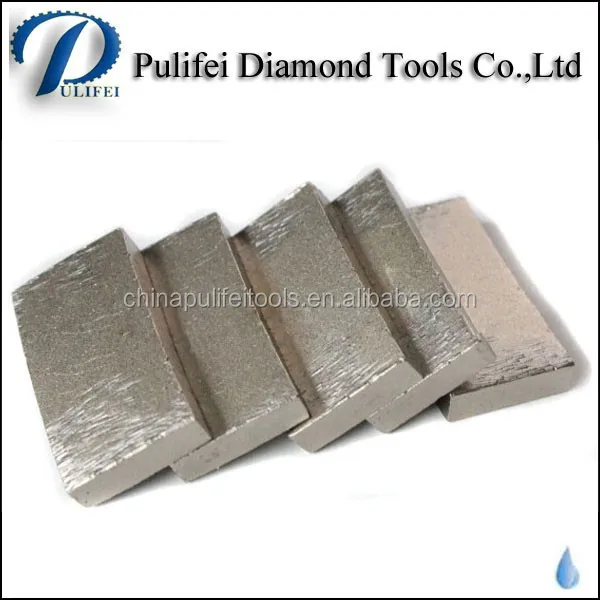

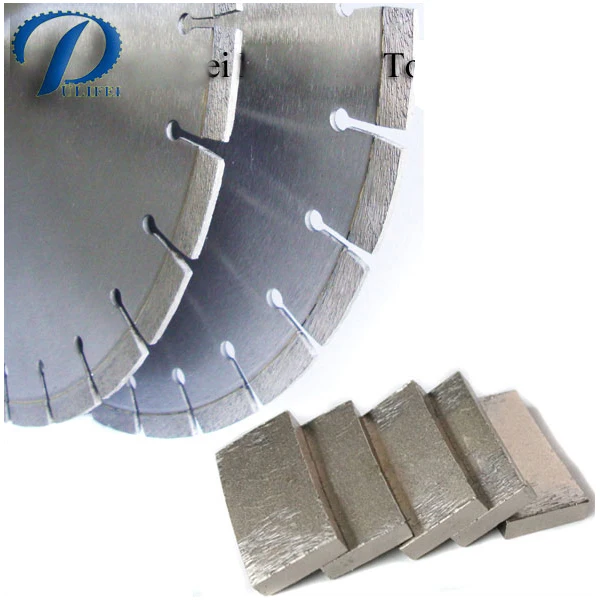

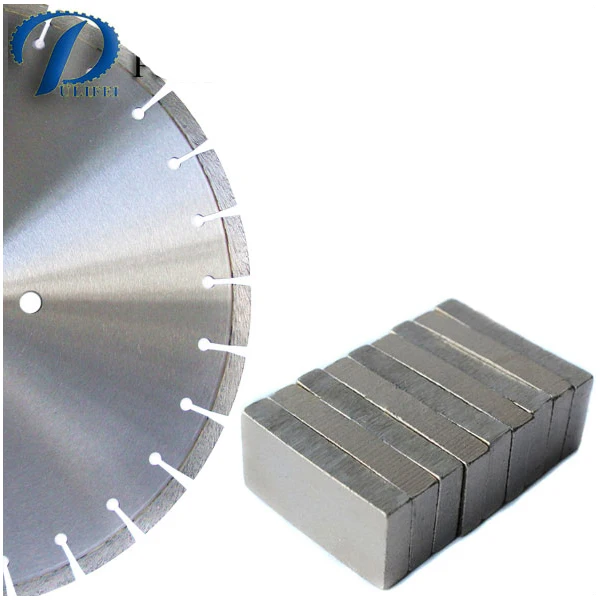

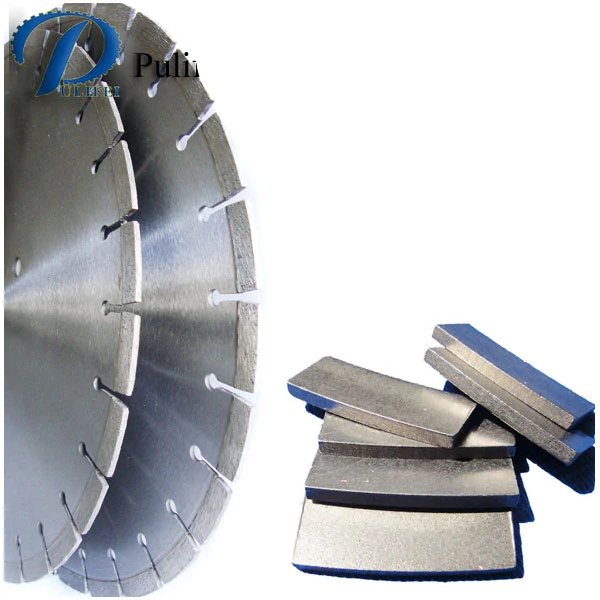

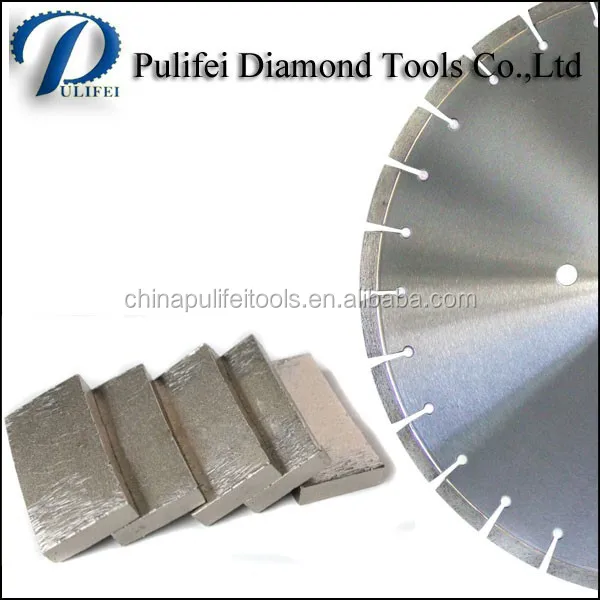

Diamond Segment Pictures
