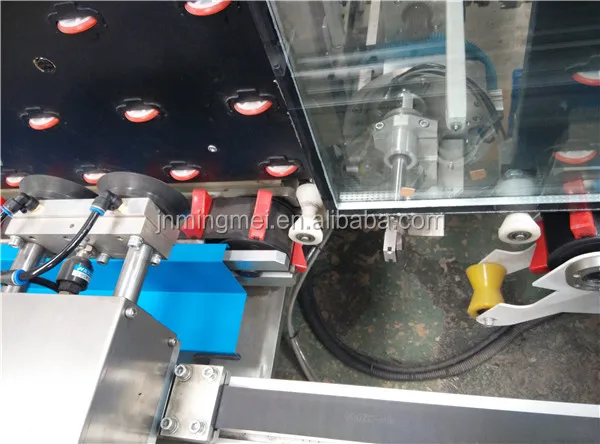

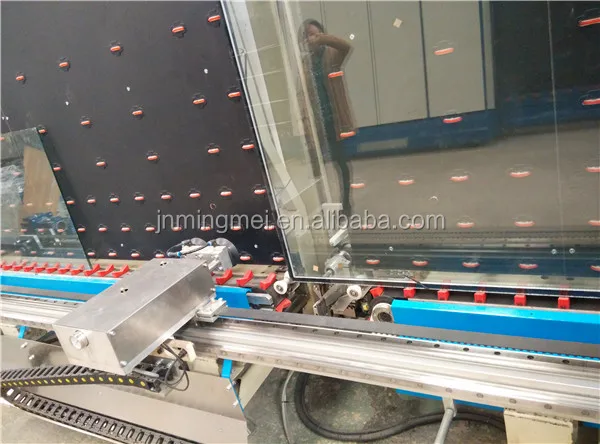

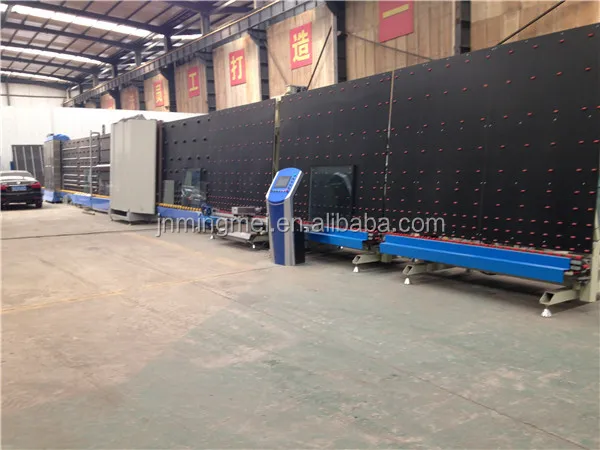

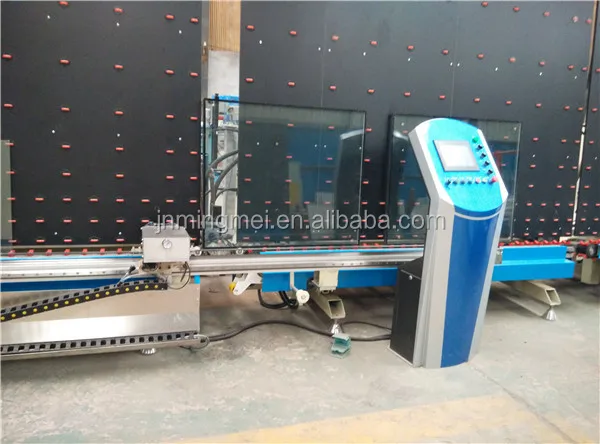

Автоматическая герметизирующая машина для изоляции стекла и силикона/герметичная

Сохранить в закладки 60168833151:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики


                             Insulating Glass silicone Automatic Sealing Machine ZNJ1800

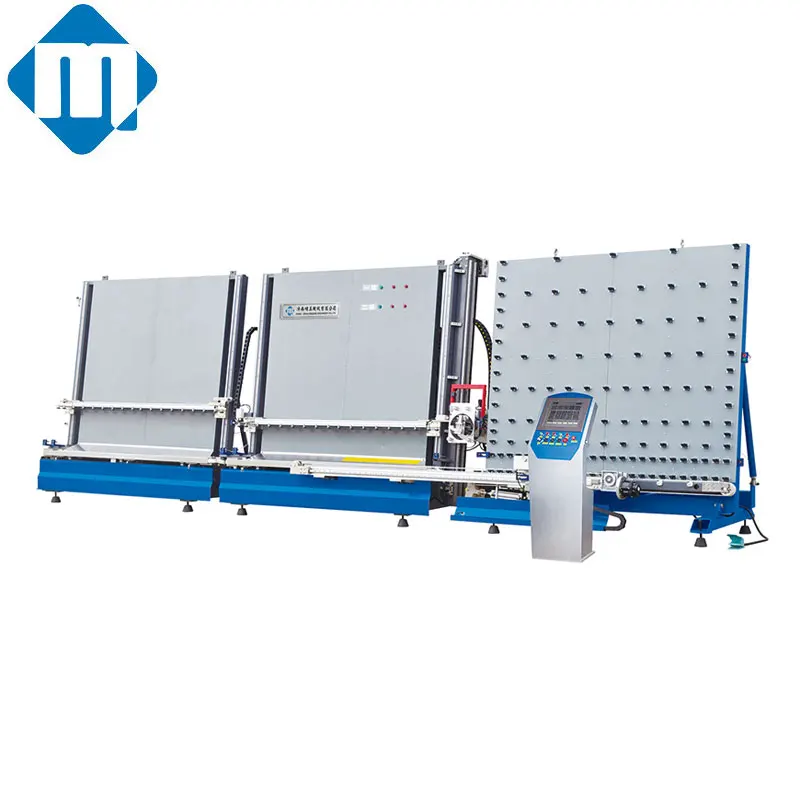

                                           ZNJ-1800-2500



Product Description


Feature




1. Suitable for big size enterprise to use for insulating glass deep processing, high automation, high efficiency.


2. Intelligent touch human-machine interface, operation is convenient
3. Servo control system adops world famous brand-Japan Yaskawa with very high stable performance.


4. Synchronous belt type transmission to make the glass conveying more stable and positioning accurate.


5. After coating, the glass edge and corner are full without bubbles, and the surface is smooth, no need trimming the corner.
6. The third section can prestore glass sothat can improve the efficiency.


7. Can use two sets independent sealant supply system(including the mixing device), two kinds of sealants switch in one-key operation easily.
8. Supporting three layers glass coating.


Technical parameter














































Model



ZNJ1800



Input Voltage



380V 50Hz /3P or As Customer need



Input Power



12KW



Work  speed



5-40m/min



Max. glass size



1800*2500mm



Min. glass size



350*500mm



Squeeze pressure



32mpa



Glass thickness



12-56mm



Oversize



8500*4000*2700mm



Gross Weight



4500KG




Detailed Images

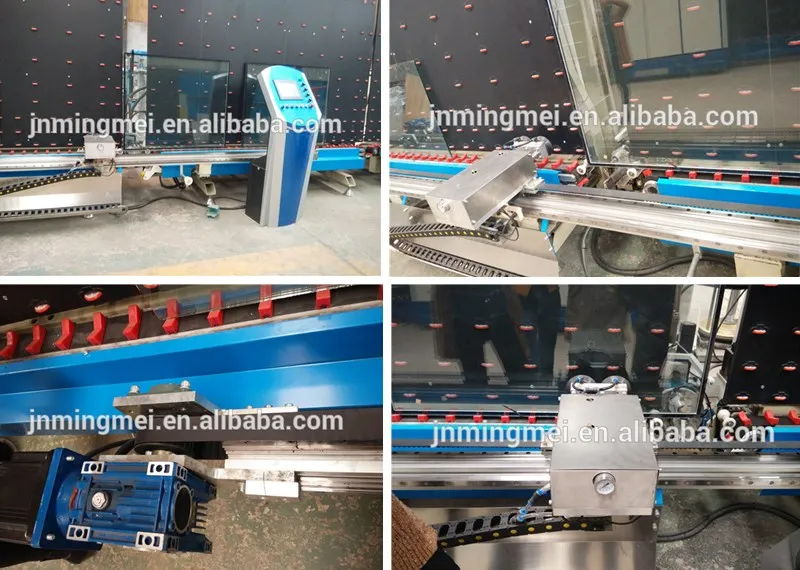

Sealing robot image 1.jpg





Certifications


CERTIFICATION





Packaging


6ea24PACKING1





Company Information


Company information





Customers


CUSTOMER





Our Services





Service1
