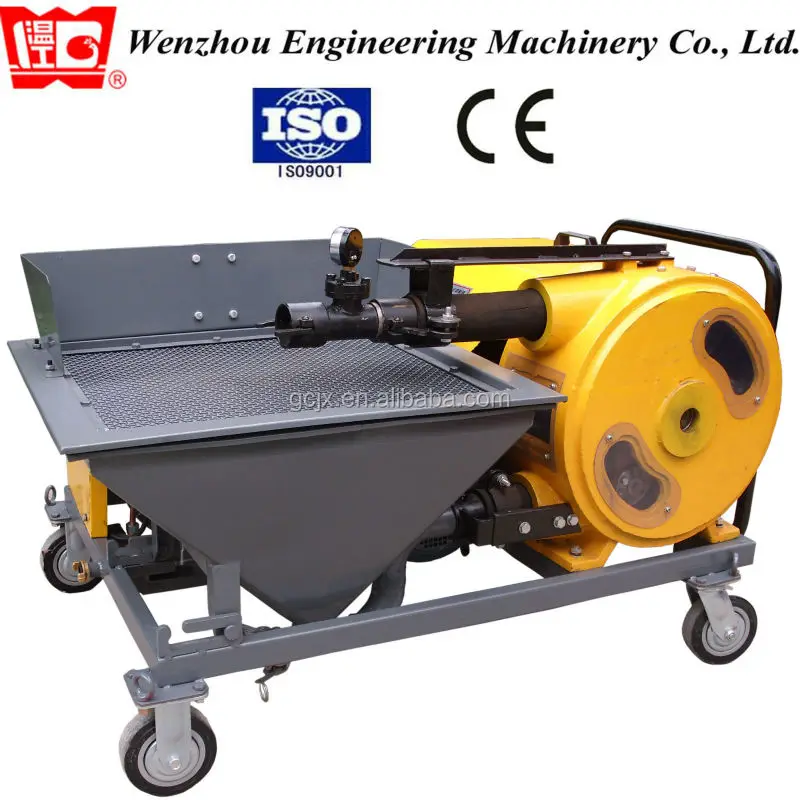

UBJ4-P Squeeze plastering machine
1. The UBJ series Squeeze plastering machine integrates the functions of press grouting, conveying, grouting and plastering etc
2. It is characterized in average discharging speed, high pump conveying pressure, long distance, high production efficiency and pressure grouting.
3. With good pumping grouting plastering effect, the pump includes feeding hopper, air compressor and mortar pump in one machine which can acheive different working purpose.
Technical Parameters
Model | UBJ3-P |
Supply power | 220V,3-phase,60HZ |
Motor power | 2.2/3.3/4 kw |
Output | 3 m3/h |
Air compressor displacement | 354L/min |
Delivery pressure | 2Mpa |
Horizontal delivery distance | 120m |
Vertical delivery distance | 50m |
Vibrating grid power | 0.35kw |
Hopper volume | 100L |
Net weight | 500kg |
Dimension (L×W×H) | 1510×980×810mm |
1. This is other respect of UBJ3-P Squeeze plastering machine . It's attached vibrating motor to make the overlarge size on above for avoiding larger size objects to blocking delivery hose.
Also it attached air compressor, you can use it for plastering directly!
2. UBJ4-P Squeeze plastering machine is always used for fireproof plastering, self-screeding mortar.
Fireproofing plastering to steel wall surface:
Mortar plastering to internal wall:
![N7ZN`HVAVA9BTX]G~MT91C](http://g01.s.alicdn.com/kf/HTB1iWn9GpXXXXc5XVXXq6xXFXXXh/200332041/HTB1iWn9GpXXXXc5XVXXq6xXFXXXh.jpg)
Self-leveling mortar pumping to groud floor
3. UBJ4-P squeeze plastering machine was appreoved ISO9001:2008.
company information
Wenzhou Engineering Machinery Co., Ltd. is a member of China Construction Machinery Association, China Bulk Cement Association of Popularization & Development, is the first batch of key enterprises in Zhejiang Province. It is leader of China's mortar spraying technology, and recognized as one of the scale of strong enterprises for the manufacture of mortar spraying machine.
Wenzhou Engineering Machinery Co., Ltd. has been committed to the manufacture of concrete machinery for such a long time, based on the domestic leading technology, relying on international cooperation R & D advantages, together with Germany NORD, CELLMANN and other famous companies to import advanced management concepts and management models, improved product quality management system. Following the ISO9001 quality management system, and with full implementation and effective operation of it, we are able to ensure product’s quality and stability.
Our products are renowned because of high quality and a famous brand at home and abroad. In the 1970s, our company introduced the German plunger type, squeeze type, Screw concrete transportation, Mortar spraying technology into China. And nowadays the continuation of the current concrete pump, mortar spraying machine products from the Chinese market has expanded to Europe, South America, North America, Australia, the Middle East, Southeast Asia, Africa and other regions and countries. Our products with high quality and reliable performance services are popular with the trust of users around the world. Now we have been formed the ability that our annual output of various types of mortar spraying machine reaches 12000 sets.
Exhibition & Visitng
Welcome to our factory!!!
It would be our great honor to show & test our machine for you.
***Clients from AUE/Saudi Arabia/Franch/ Chile/ India visited our factory.
***Exhibition every year---Welcome to our fair
Function&Application
Infinite number of possible applications
**Base coat plaster (interior and exterior)
**Scraped and floating render
**Sprayed and textured render
**Rough trowel finish render and
**bonding layers
**Masonry mortar
**Fire proofing
**Sealing slurry
**Injection mortar and filling mortar
**Dispersion plaster
**Glass-fibre-reinforced concrete
**Cementitious adhesive
**Repair mortar and Insulating plaster
**Loam rendering
**and much more
Packaging & Shipping
***Wooden case packing
Full container shipment---wooden pallent package
LCL shipment----wooden carton package
Related Products
Contacts
Похожие товары

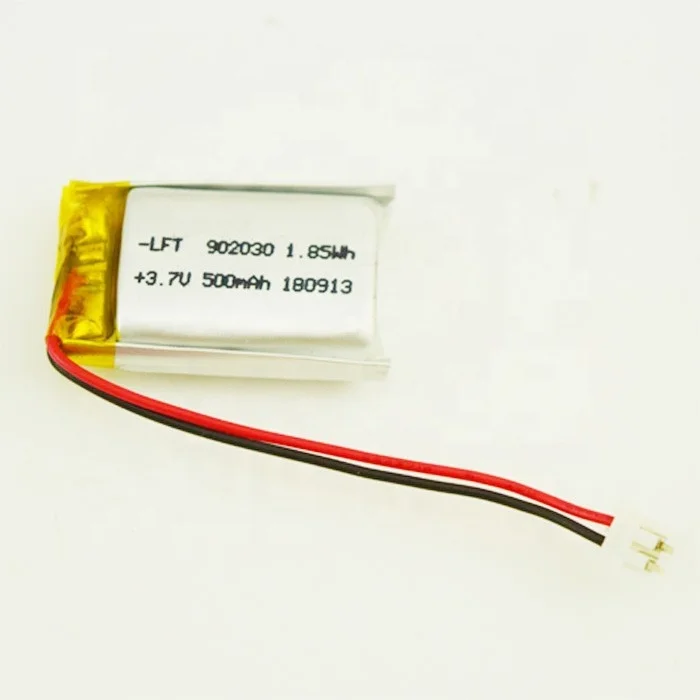

(Разработанно специально для заказчика)/поо (производство оригинального полимерный литий ионная батарея 3,7 v 500 мА/ч, 1.85wh литий-полимерный аккумулятор для наушников mp4
1,05 $ - 1,08 $

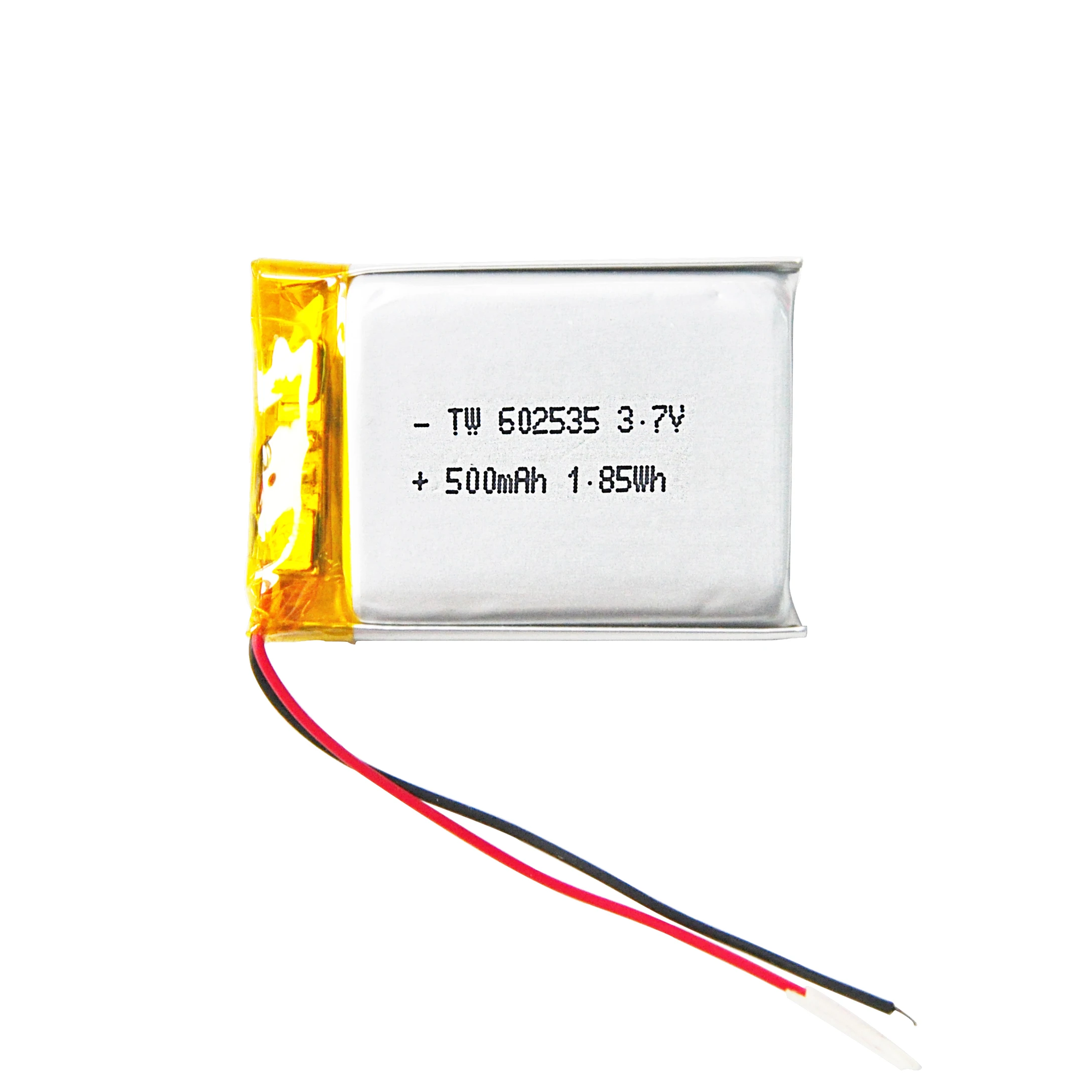

3,7 в перезаряжаемая литий-ионная батарея 602535 500 мАч
0,95 $ - 0,98 $

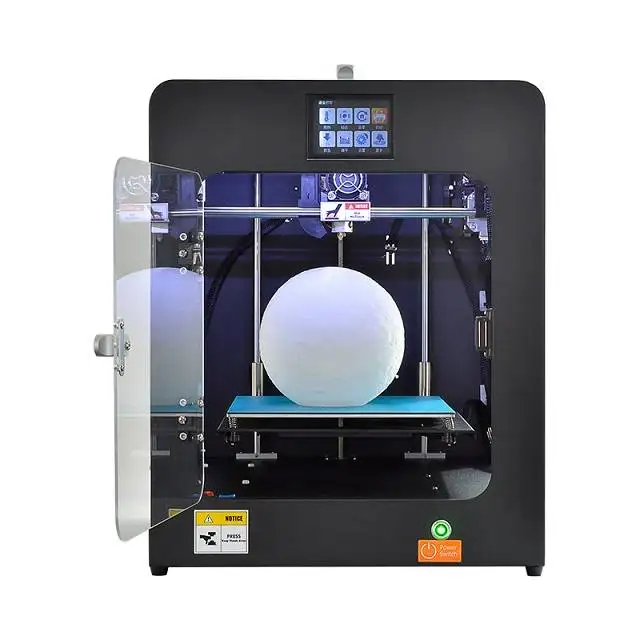

Машина печати Stampante размер модели 235*235*235 мм все металлические 3d принтер для продажи 3d принтер бетона
Перезаряжаемый литий-ионный 9 В литий-ионный аккумулятор 500 мАч lipo Сменный аккумулятор для 6F22

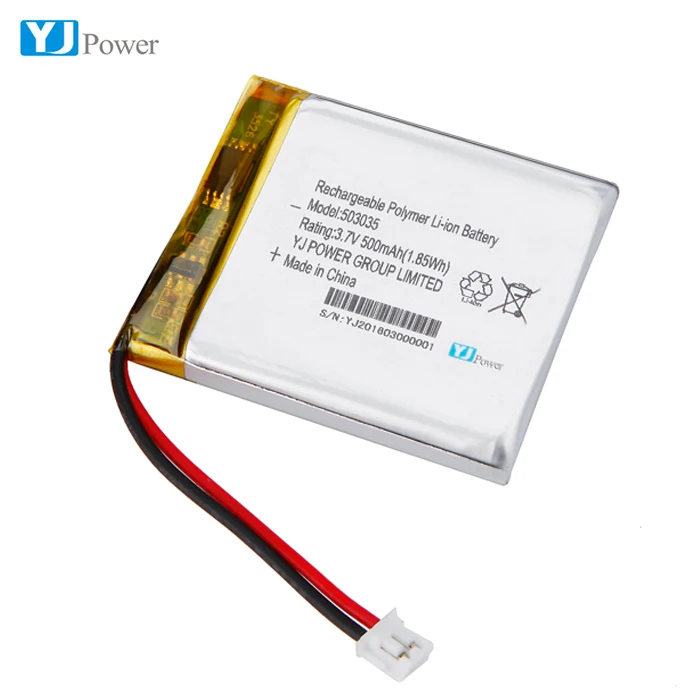

Высококачественная литий-ионная батарея 503035 500mAh 3,7 v

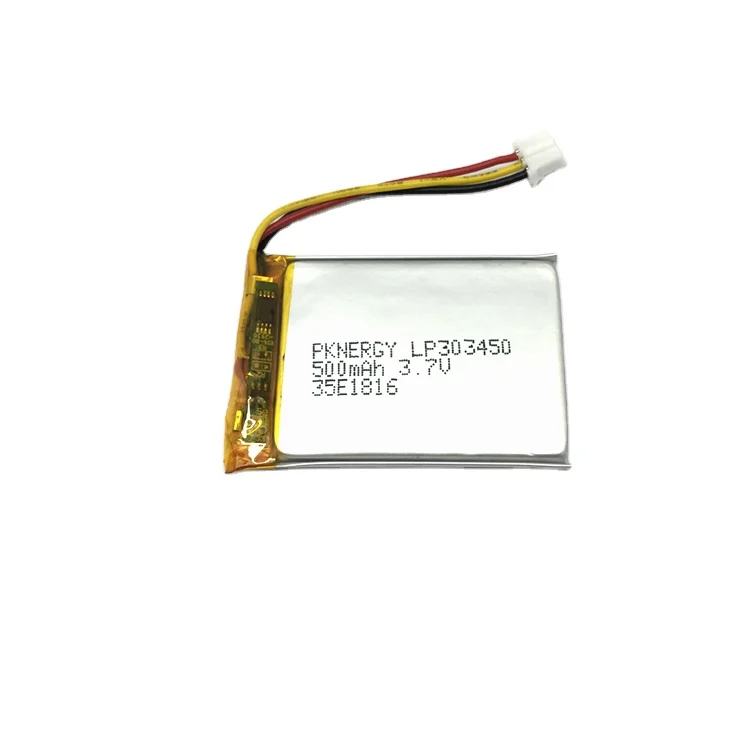

Литий-ионный аккумулятор 500 мАч, литий-полимерный аккумулятор 3,7 в 303450, ультратонкий литий-полимерный аккумулятор
