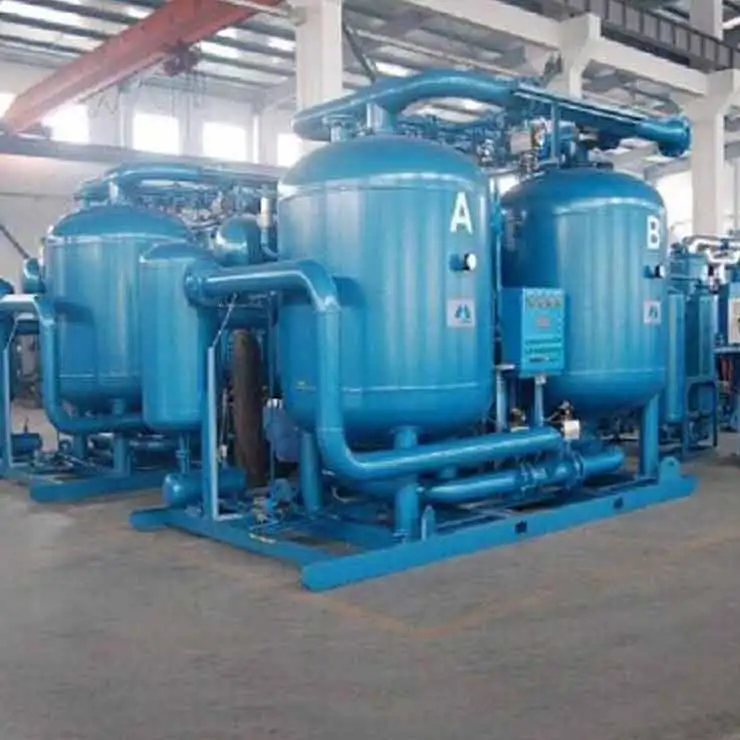

Shanli 200m 3/мин сушилка для воздуха с нулевой очисткой и сжатием тепла

Air Inlet Temperature 110-140℃

Air Inlet Pressure    0.8-1.0MPa

Air Consumption 0%

Pressure Loss ≤5%

Inlet Oil Content ≤0.1PPM

Dew Point  40℃

Cooling Water Inlet Temp ≤32℃

Cooling Water Inlet Pressure 0.2-0.4MPa

Control Way PLC

Cycle Time 8h

Feature:

1.High efficency with energy saving

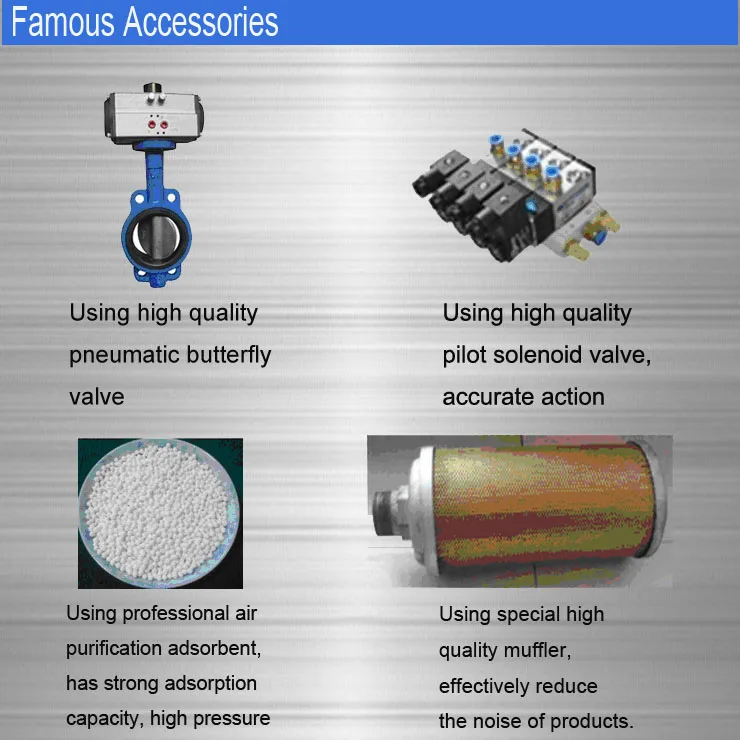

2.Excellent switch valve with stablity and realiable can ensure the integrity of the working process.Extend the components life time

3.Use the high activated oxide alumina with uniform shape and size,high strength,with low dew point,producing less dust with long lifetime

4.Use the air flow distribution design.ensure the regenerative air can be uniform distributed in heating and cold blowing.

   Uniform heating for the desiccant in the tower with a fast heat transfer and thorough regeneration

5.3 stage drain away water:liquid level,time,manual

6.Small pressure loss

Technical Parameters:

Packing details: Wooden crate pallet plus foam board and bubble film, Full closed wooden case. 1pcs/each package

(for stationary desiccant air dryer)

Transportations: sea transport,  rail transport, air transport, road transport, LCL/ FCL container transport  or as requested

Trade terms: FOB, CFR, CIF and EXW, DDP, etc.

Delivery time: in 20 days after receiving deposit (customized machines not included)

 Established in 1997, Hangzhou Shanli Purify Equipment Corporation is an enterprise specialized in design, development

 and production of compressed air dryers, filters and other purification equipments. Our company has a workshop of

30, 000 square meters and more than 300 staff. Shanli has become one of the largest manufacturers in the Chinese

purification industry with the top sales turnover. Our self-design and self-made equipment is compatible with many

 famous brands of air compressor to efficiently remove water, oil and dustfrom compressed air. On basis of IS0 9001

certification standard, our design, production, test and services of the machine are all well- managed and strictly

controlled since year 2001.

 Why to chose Shanli?

Quality

1.Certification: CE, ISO9001, ISO14001 and 26 patents to ensure unmatched quality of our product assortment.

2.Stringent quality control mechanism: updating the involved technology as per prevailing international standards;

3.Stable performance: using premium grade raw material from highly reputed manufacturers, like Danfoss, Emerson,

Performer, Bitzer, Fusheng, Sprolan;

Shanli Customer

Some of major cooperated customers (from our wide range of customers ) have been enlisted below for reference:

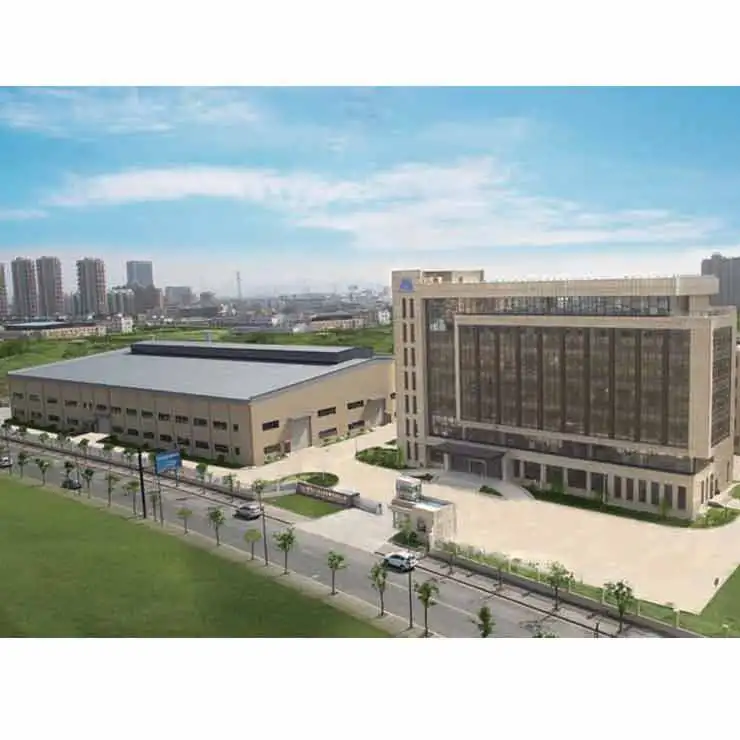

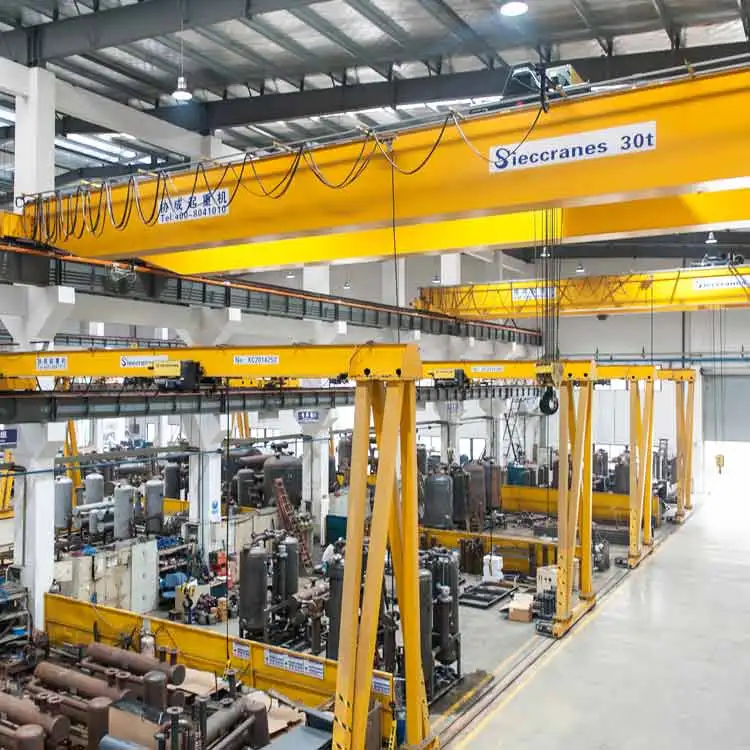

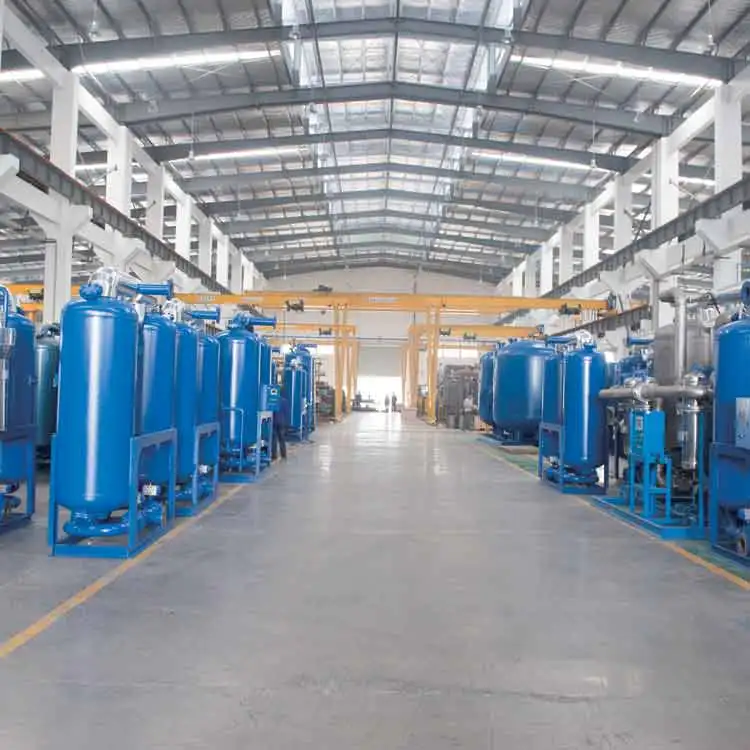

Factory

Shanli purify has become one of  largest manufacturers in purifying industry of China with annual sales turnover USD

22 million. Shanli air dryer has a wide range of customers who have full faith in our service delivery, warranty,

quality and workmanship.

Comprehensive Product Line

Refrigerated Air Dryer

Shanli supply Air cooled refrigerated air dryer,water cooled refrigerant air dryer,normal temperature refrigerator air

dryer and high temperatuer refrigeration air dryer.

Desiccant Air Dryer

Shanli provide Heatless adsorbent air dryer,heated adsorption air dryer,Heat of Compression desiccant air dryer

and Blower Purge adsorption air dryer.

Energy saving Products

It includes Zero purge Heat of Compression adsorption air dryer,Zero purge Blower Purge desiccant air dryer and

Combined type air dryer

Other Products

This series include Pre cooler machine, Water chiller, Heat recovery unit for air compressor, air Filter and air filter element.

1 Business Type
♦ Factory located in Hangzhou
♦ Factory covers an area of 40,000m²
♦ Employees,over 300 people

2 What are your main products?
♦ Refrigerated air dryer
♦ Adsorption air dryer
♦ Combined refrigerated and adsorption air dryer

♦ Water chiller

♦ Water chiller

♦ Oil filter

♦ Dust filter
3 How to make order?
♦ Communicate with our salesman
♦ Provide your customized technical parameters
♦ Offer you a price as your requirement
♦ Payment term,shipping packing
♦ Start the bulk production after receiving your deposit
♦ Forwarder books the cargo

♦ Delivery the goods and balanced after receiving the copy of B/L
♦ Welcome your second order and further more orders in future

4 Quality Assurance
♦ 100% inspection before shipment

(1). Pre service

A:24 Hours online service

B:Our prefessional sales will help choosing the right products for you

2. Middle service

A:Try to give you our best offer

B:Costomized products as your requirmen

C:Discuss the payment term as your convienent.

D:Talking about the delivery and packing

E:Can provide invoice value as you like to decrease your tax.

3. After sale service

A:1 year warranty service after the equipment debugging.

B:Technical Egineer are avalible for oversea trainning.

C:Free change for some parts

D:Free installation DVD

E:Maintenance plan
