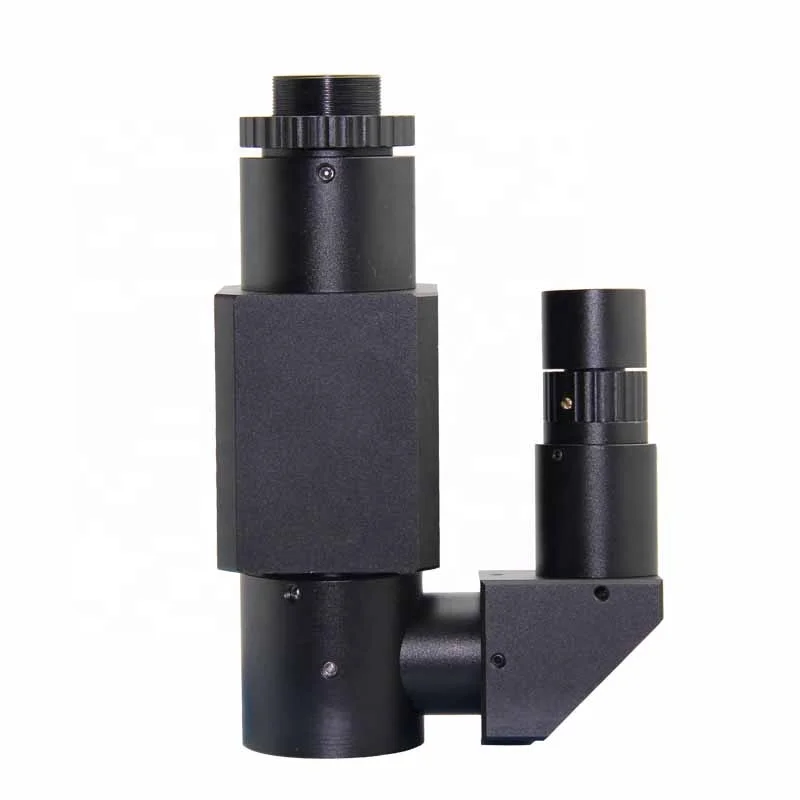

Промышленный микроскоп FB0010 для проверки печатных плат линза со светодиодным коаксиальным светом
- Категория: >>>
- Поставщик: Guilin FT-Opto Co. Ltd.
Сохранить в закладки 60178481422:
Описание и отзывы
Характеристики
Features
- This Industrial pcb Inspection Microscope Lens Designed for M26 x 0.706mm Infinity Objectives
- 2/3" Maximum Sensor Size
- 8 mm In-Line illumination Port
- M26 x 0.706 Objective Threading
- Ideal for Bright field Observation
- Compact Design for Simple Integration Into Systems
- Recommended for Use with FD10010 Video Metallurgical Microscope Unit
- FB0010 Industrial pcb Inspection Microscope Lens is used to connect infinity objectives to a C-mount camera for quick and easy setup of high powered microscopy systems. Providing 1X magnification, this zoom lens features an in-line illumination port for maximum contrast and simple illumination compared to epi-illumination techniques. This lens is also fitted with an adjustable iris to control light throughput without adjusting the camera shutter or gain,
Optional Accessory
| L6508 | Point light source 8mm | For LC6508, adaptor size is 8mm | |
| L6509 | Point light source 9mm | For LC6508, adaptor size is 9mm | ||
| L6510 | Point light source 10mm | For LC6508, adaptor size is 10mm | ||
| L6511 | Point light source 11mm | For LC6508, adaptor size is 11mm | ||
 | FO413 | Nosepiece | Nosepiece with three holes | |
| FO414 | Nosepiece | Quadruple Nosepiece | ||
 | FW235U | Infinity Plan Achromatic Objective | Mag. 5X; Numerical Aperture:0.12; W.D. 26.1mm | |
| FW2310U | Infinity Plan Achromatic Objective | Mag. 10X; Numerical Aperture:0.25; W.D. 20.2mm | ||
| FW2320U | Infinity Plan Achromatic Objective | Mag. 20X; Numerical Aperture:0.40; W.D. 8.8mm | ||
| FW2340U | Infinity Plan Achromatic Objective | Mag. 40X; Numerical Aperture:0.60; W.D. 3.98mm | ||
| FW2350U | Infinity Plan Achromatic Objective | Mag. 50X; Numerical Aperture:0.7; W.D. 3.68mm | ||
| FW2360U | Infinity Plan Achromatic Objective | Mag. 60X; Numerical Aperture:0.75; W.D. 1.22mm | ||
| FW2380U | Infinity Plan Achromatic Objective | Mag.80X; Numerical Aperture:0.8; W.D. 1.25mm | ||
| FW23100U | Infinity Plan Achromatic Objective | Mag. 100X; Numerical Aperture:0.85; W.D. 0.4mm | ||
| FW522M | 95mm M Plan Apo Objective | Mag.: 2X; N.A.: 0.055; W.D: 34.6mm; Focal length: 100mm; Resolution(μm):5; Depth of Focus ± Δp(μm):91; FOV(Objective)mm: Φ12; ±Δ(μm): 221 | |
| FW523.5M | 95mm M Plan Apo Objective | Mag.: 3.5X; N.A.: 0.1; W.D: 40.93mm; Focal length: 57.1mm; Resolution(μm):2.75; Depth of Focus ± Δp(μm):27.5; FOV(Objective)mm: Φ6.86; ±Δ(μm): 68.3 | ||
| FW525M | 95mm M Plan Apo Objective | Mag.:5X; N.A.: 0.13; W.D: 44.5mm; Focal length: 40mm; Resolution(μm):2; Depth of Focus ± Δp(μm):16.3; FOV(Objective)mm: Φ4.8; ±Δ(μm): 38.3 | ||
| FW5210M | 95mm M Plan Apo Objective | Mag.: 10X; N.A.: 0.28; W.D: 34mm; Focal length: 20mm; Resolution(μm):1; Depth of Focus ± Δp(μm):3.5; FOV(Objective)mm: Φ2.4; ±Δ(μm):8.6 | ||
| FW5220M | 95mm M Plan Apo Objective | Mag.: 20X; N.A.: 0.29; W.D: 31mm; Focal length: 10mm; Resolution(μm):1; Depth of Focus ± Δp(μm):3.3; FOV(Objective)mm: Φ1.2; ±Δ(μm): 5.8 | ||
| FW5250M | 95mm M Plan Apo Objective | Mag.: 50X; N.A.: 0.42; W.D: 20.1mm; Focal length: 4mm; Resolution(μm):0.7; Depth of Focus ± Δp(μm):1.6; FOV(Objective)mm: Φ0.48; ±Δ(μm): 2.3 |

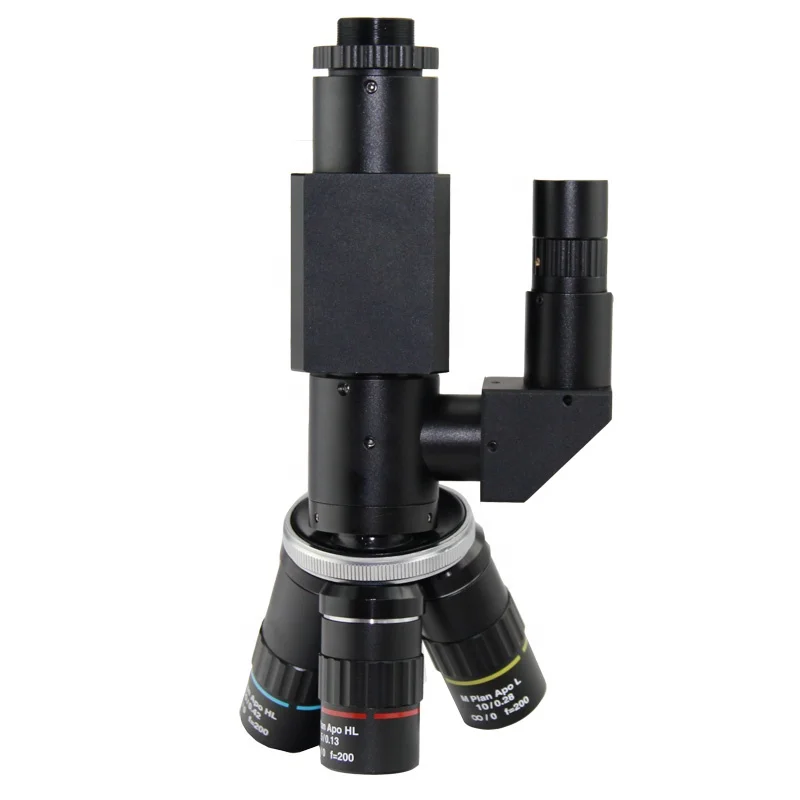

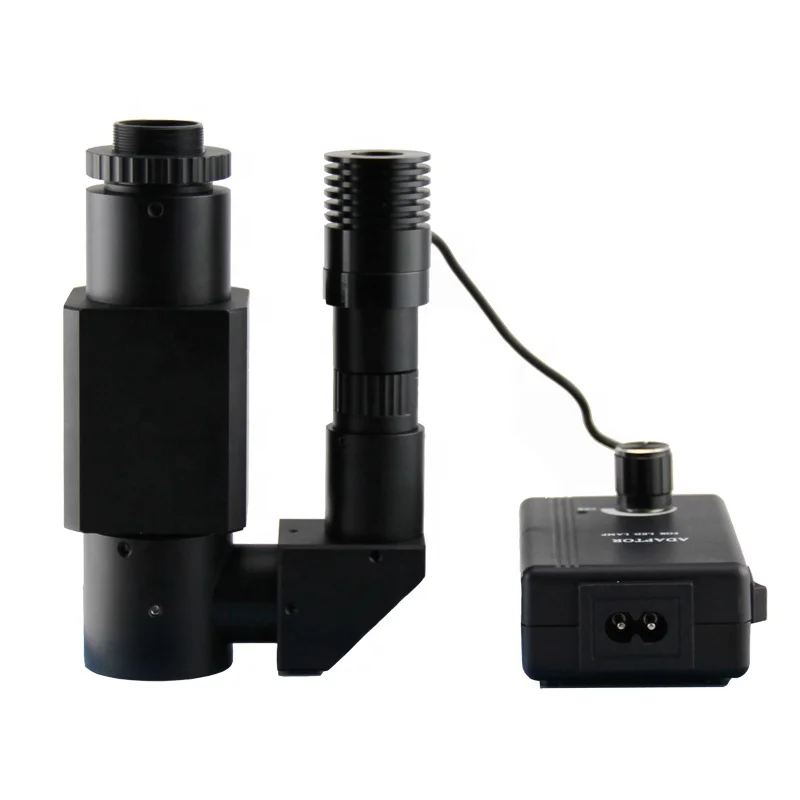

Exemplify of FB0010 Industrial pcb Inspection Microscope Lens with LED coaxial light
Related Products
Company Profile
Guilin FT-OPTO Co.,Ltd is a new high-tech enterprise which is specialized in high resolution zoom lens, machine vision lens, HDMI camera, LCD monitor, monocular digital microscope, measuring & tools microscope and stereo microscope. Our products are extensively used in the industry of electronic and precise industry dectection , education , laboratory and measuring instrument.
Through years of effort, our company gathered a group of professional sales and technology development personnel. Our products are widely sold in Southeast Asia, Europe and the United States countries, .
We promise to give you the most advanced technology , best products , lower operation cost and most convenient service
Work Shop
Exhibition
FAQ
Q: Can I get the sample order?
A: Yes.We welcome sample order to test and check quality.Mix sample are acceptable.
Q: How long is the delivery date?
A: It usually 3-7 working days.
Q: How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL,Fedex,Tnt ,SF ,EMS, By sea or By air.It usually takes 3-5 working days to arrive.
Q: How to proceed the order if I have logo to print?
A: First,artwork for visual confirmation,and next is sample picture or sending sample to you.
Q: How is your quality control?
A: We have strict QC process and all the products will be 100% testing before shipping.
Q: What is your payment way?
A: T/T, L/C, Paypal, Alipay ... ...
Q: Do you offer guarantee for products
A: Yes,we offer one year warranty for the product.
Похожие товары

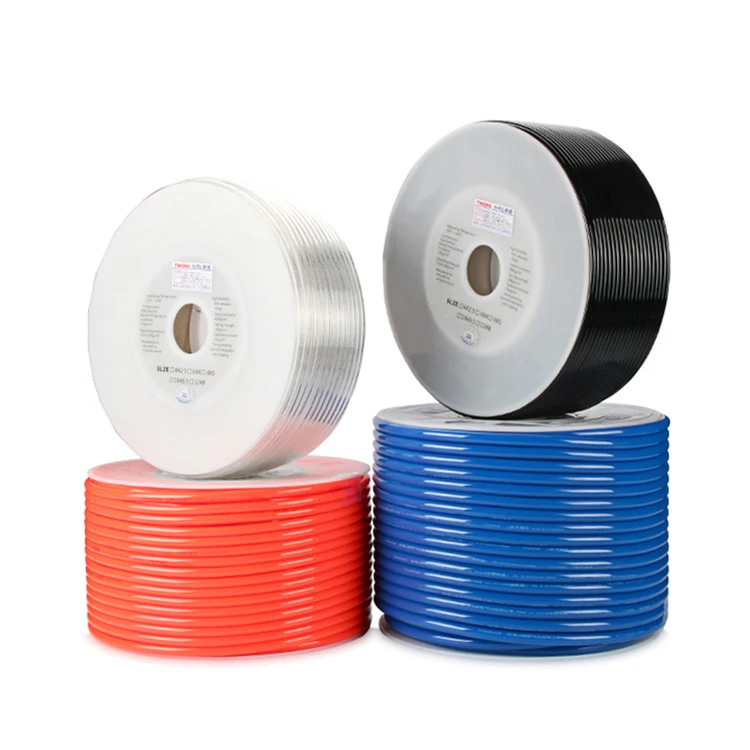

Прозрачный пневматический пластиковый гибкий шланг pu прозрачный шланг полиуретановая трубка

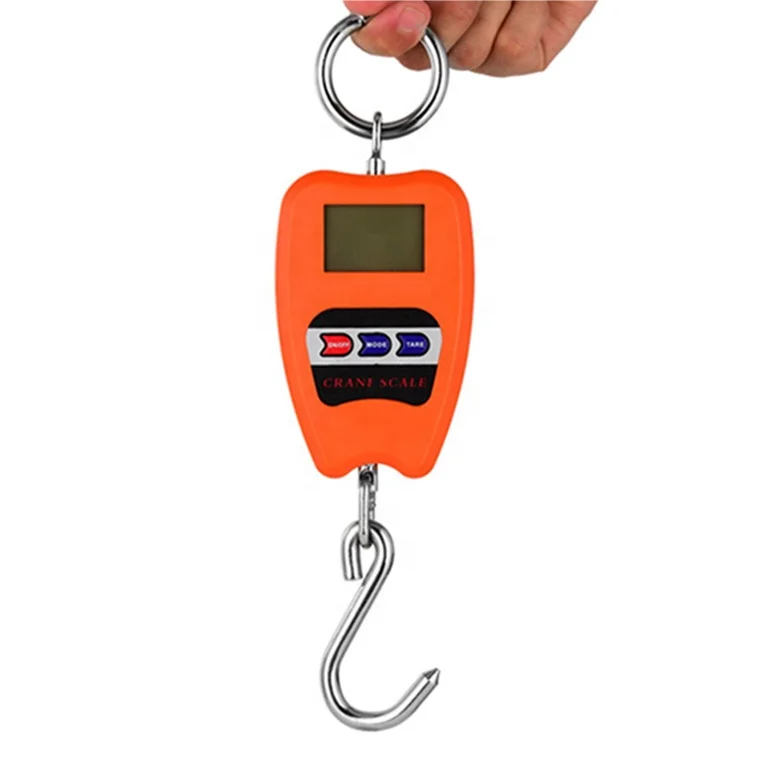

Ручные Цифровые весы, ручные весы 100 кг, цифровые весы
4,46 $ - 5,38 $

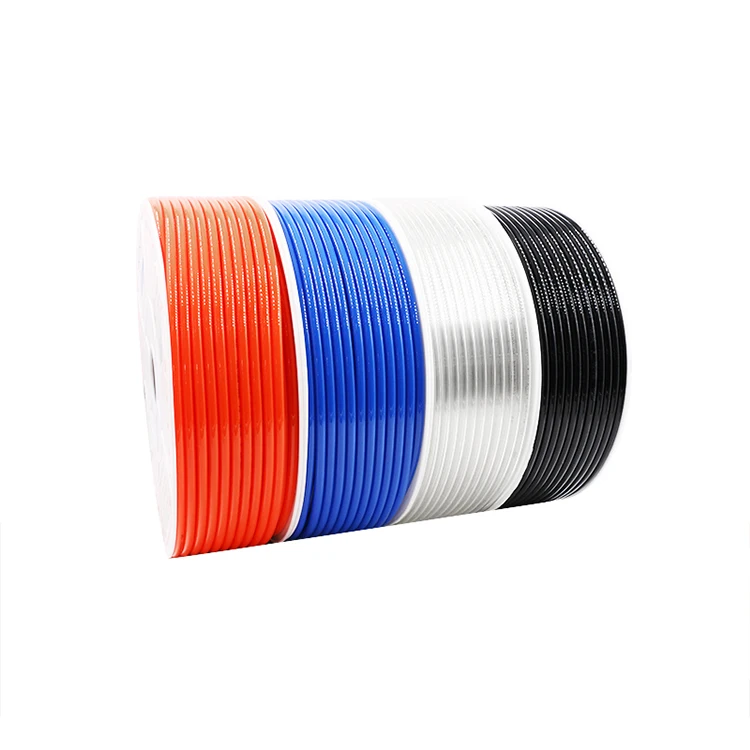

Высококачественный пневматический полиуретановый прозрачный шланг, пластиковая труба
Горячая Распродажа, пневматический шланг из полиуретана, Пневматическое соединение
Полиуретановая пневматическая трубка, широко используемая во множестве применений для полиуретановой трубки полиуретанового шланга полиуретана

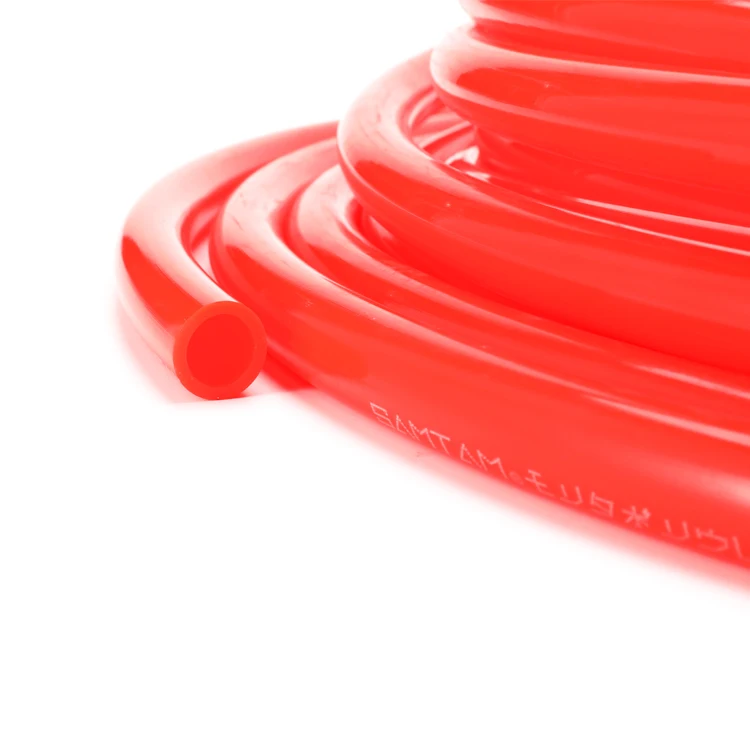

Пневматический полиуретановый шланг серии pu, полиуретановый шланг, воздушный шланг с красным, синим, черным, прозрачным

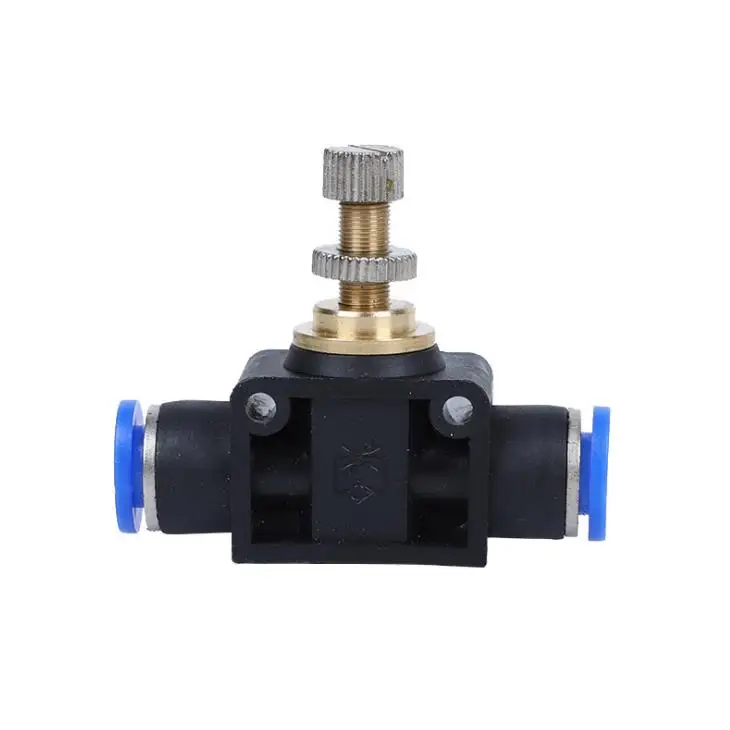

Соединитель труб Maxair LSA/SCF, латунный Т-образный прямой пневматический штуцер для соединения дроссельной заслонки, черный
