small staking machine key point animal skin processing machine
1. Auto lubricating system animal skin processing machine
2. Auto remove crease unit animal skin processing machine
3. Auto air dusty collector animal skin processing machine
4. PLC control all system animal skin processing machine
small staking machine Specification animal skin processing machine
Size and head | Work width | Vibration frequency | Feeding speed | Total power | Working pressure | Machine size | Weight |
1600-4 head | 1600mm | 600t/m | 0-20m/min | 22kw | 3.5-4.5mpa | 2220x2970x1610 | 11000kg |
2400-4 head | 2400mm | 600t/m | 0-20m/min | 29.7kw | 4.5-5.5mpa | 3020x2970x1610 | 15000kg |
3200-4 head | 3200mm | 600t/m | 0-20m/min | 29.7kw | 4.5-5.5mpa | 3820x2970x1610 | 18000kg |
Size and head | Work width | Vibration frequency | Feeding speed | Total power | Working pressure | Machine size | Weight |
1600-3 head | 1600mm | 600t/m | 0-20m/min | 23.4kw | 3.5-4.5mpa | 2220x2970x1610 | 9000kg |
2400-3 head | 2400mm | 600t/m | 0-20m/min | 30.4kw | 4.5-5.5mpa | 3020x2970x1610 | 11000kg |
3200-3 head | 3200mm | 600t/m | 0-20m/min | 38.4kw | 4.5-5.5mpa | 3820x2970x1610 | 14000kg |
Size and head | Work width | Vibration frequency | Feeding speed | Total power | Working pressure | Machine size | Weight |
1600-2 head | 1600mm | 600t/m | 0-20m/min | 9kw | 3.5-4.5mpa | 2220x2970x1610 | 6500kg |
2400-2 head | 2400mm | 600t/m | 0-20m/min | 12.5kw | 4.5-5.5mpa | 3020x2970x1610 | 7500kg |
3200-2 head | 3200mm | 600t/m | 0-20m/min | 17.2kw | 4.5-5.5mpa | 3820x2970x1610 | 9000kg |

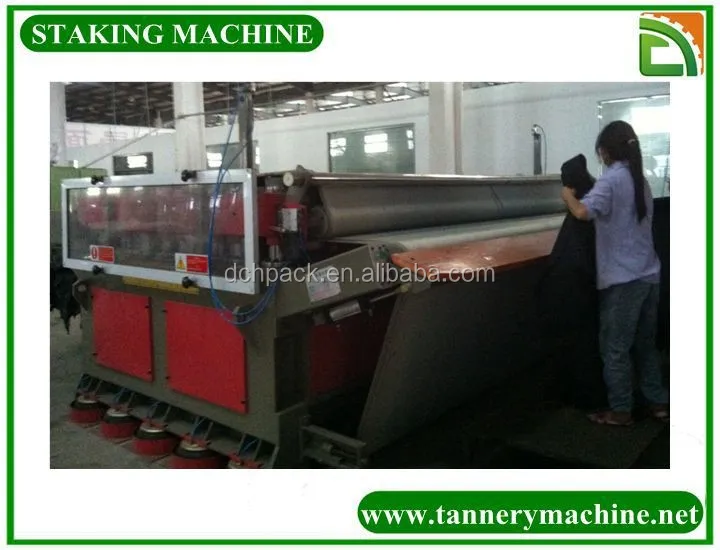

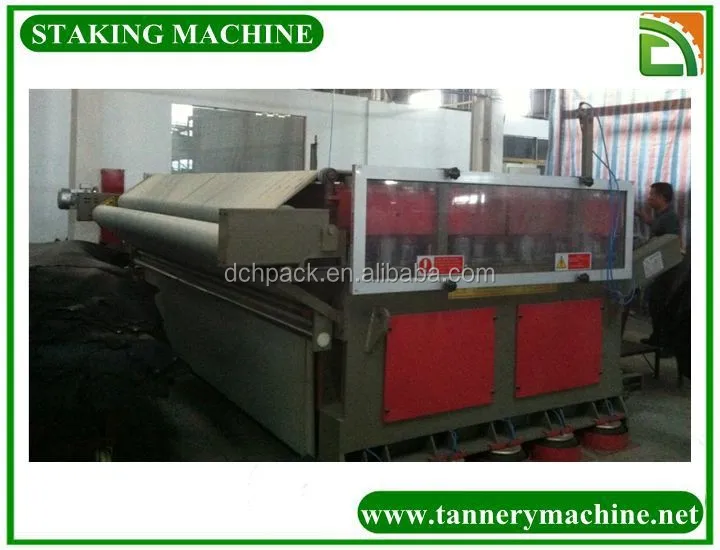

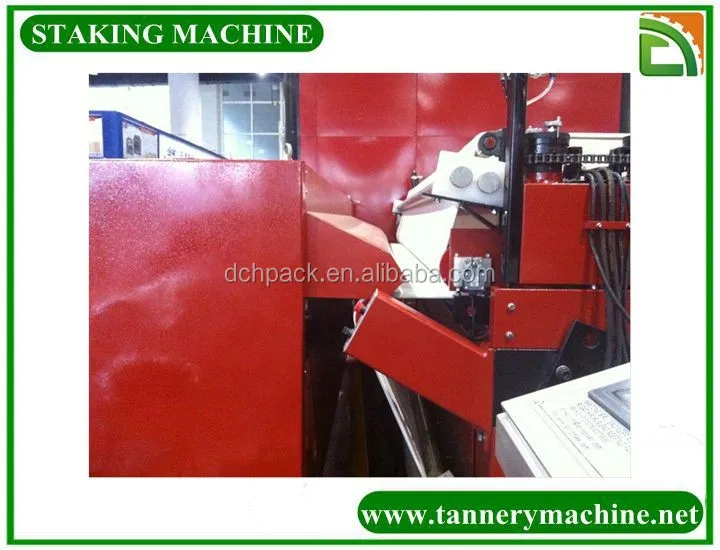

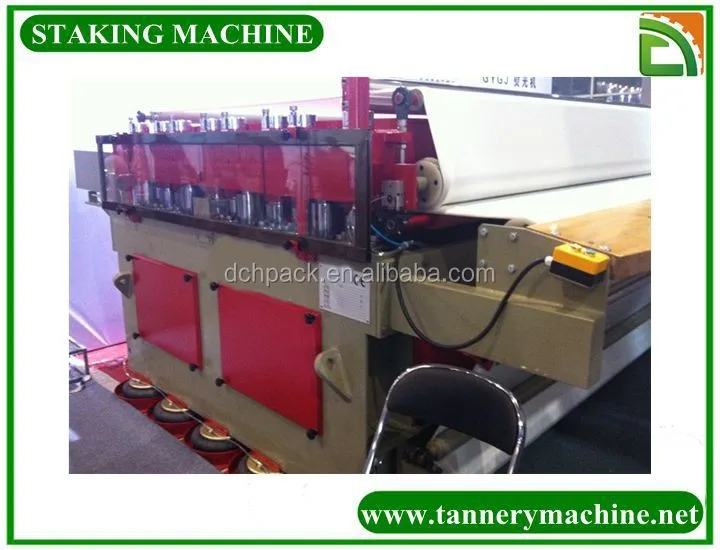

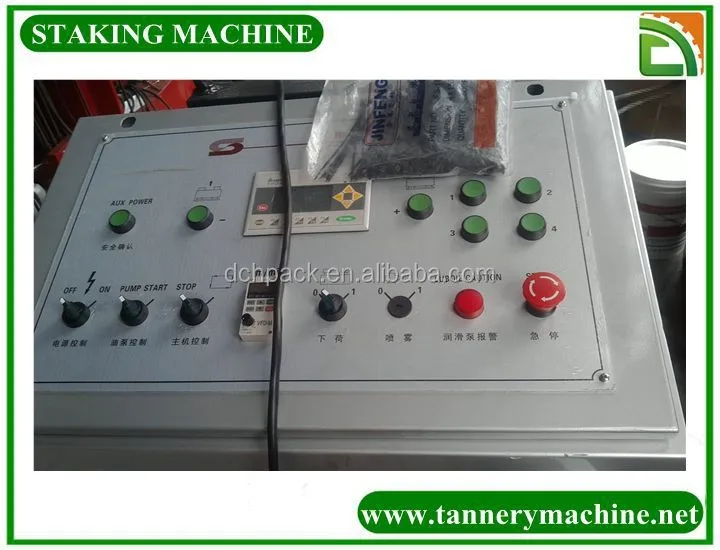

small staking machine key parts picture
small staking machine part brand
No | Part | Brand list |
1 | BEARING | JAPAN |
2 | Hydraulic pump | JAPAN |
3 | Breaker | JAPAN OR FRANCE |
4 | Contactors | JAPAN OR FRANCE |
| thermal relay | JAPAN OR FRANCE |
| air base | GERMANY |
| cloth | ITALY |
| valve | JAPAN |
small staking machine guarantee time :
one year after machinery arrive in buyer factory ,during one year ,if machinery part damage except by person, factory free change ,but transport charge paid by buyer.
