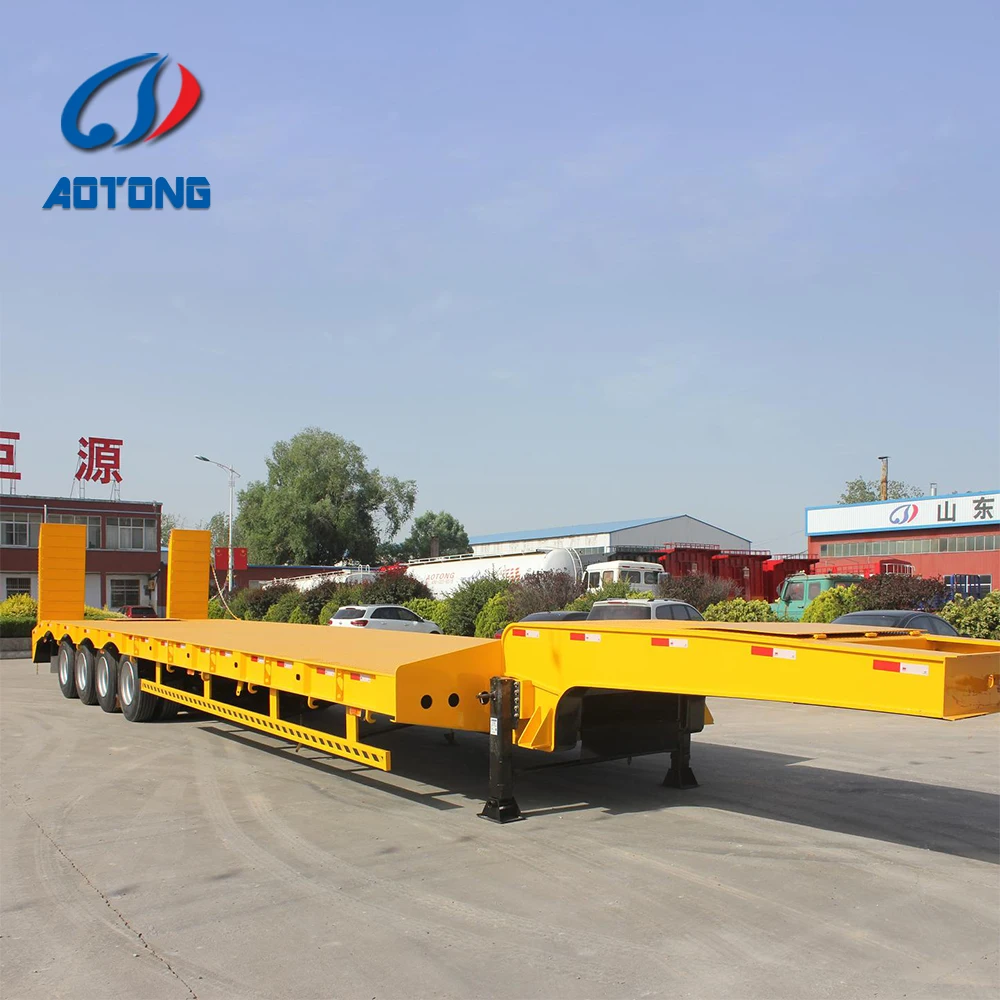

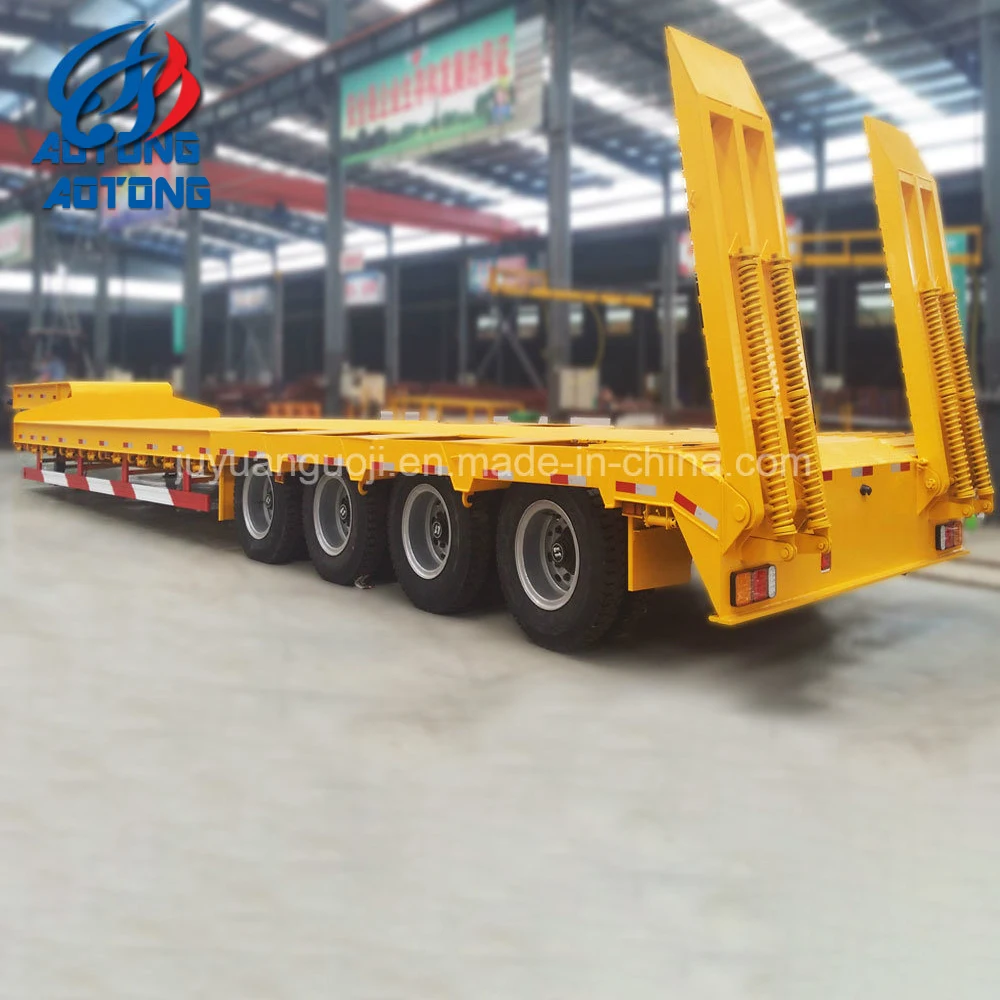

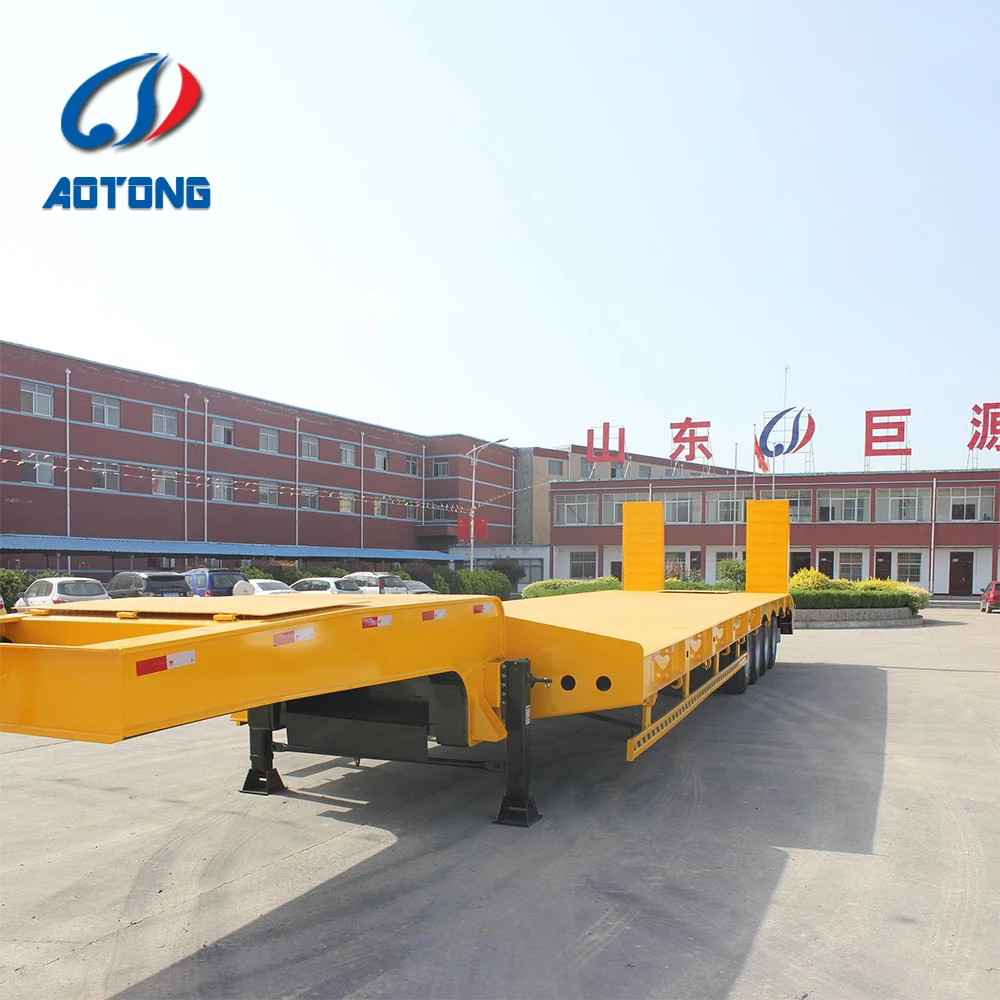

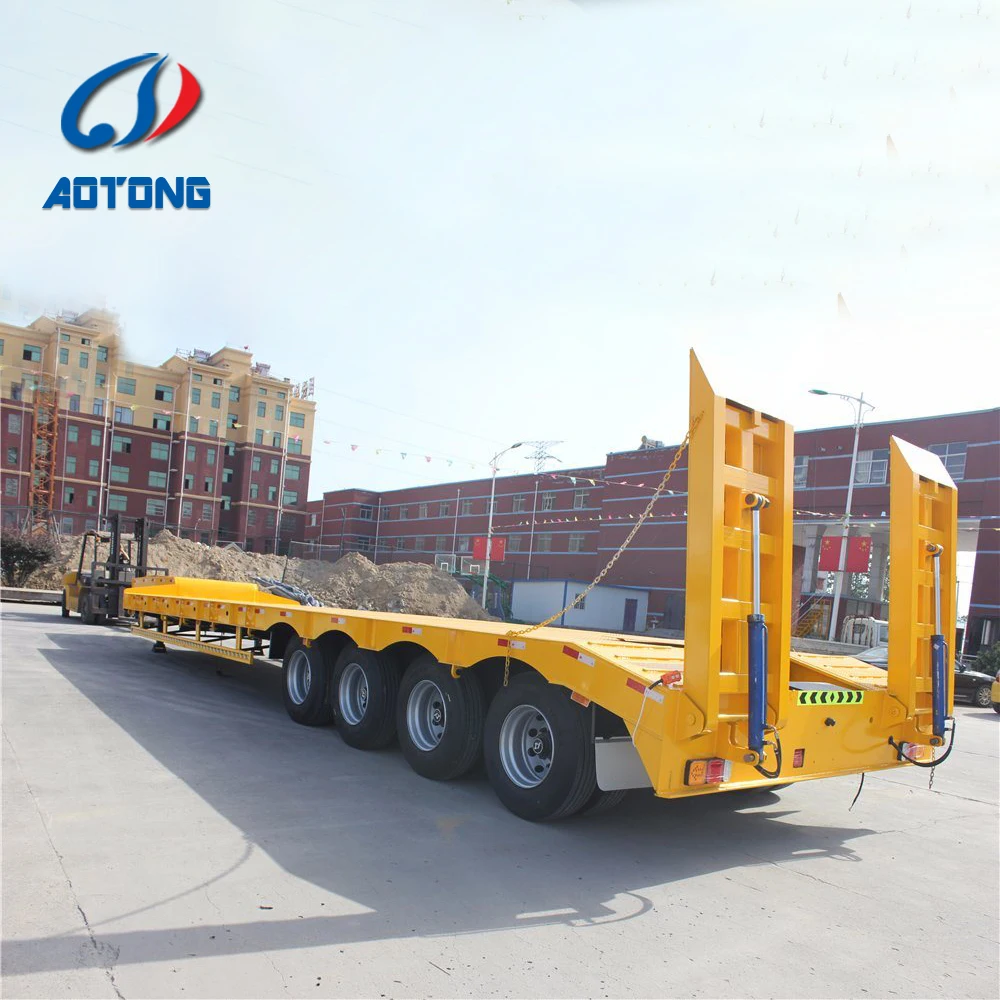

Тяжелый 3 х осевой тяжелого оборудования трейлер низкий прицеп грузовик полуприцепа 60ton 40ft
- Категория: >>>
- Поставщик: Qingdao Juyuan International Trading Co. Ltd.
Сохранить в закладки 60205775395:
Описание и отзывы
Характеристики
Products Description
★Construction machine , Mining equipments Wind blades , special bulk cargo transportation ★Customized require design for dimension , multi functionspecial purpose design
★Front loading ramp , folding gooseneck design optional
★Front loading ramp , folding gooseneck design optional
Aotong Trailer-Recommonded Manufacturer Customerize and OEM Service Available | ||||||||||
3 axles lowbed semi trailer | ||||||||||
Model | Outside Dimension (L×W×H)(mm) | No. of Axle | Tire size | Tare Weight(kg) | Rated Load(kg) | |||||
LAT9325TDP | 13000,12500X3000,2800X3150,1710 | 3 | 11.00R20 /12R22.5 | 8500 | 60000 | |||||
Main Frame | Q345B manganese plates,automatic submerged arc welded | |||||||||
Floor | Steel Sheet 3mm thickness or diamond plate | |||||||||
(Also can choose other thickness,such as 2mm,2.3mm,4mm,5mm,6mm) | ||||||||||
Axle | Brand: FUWA(BPW optional) | |||||||||
Suspension | Independent stamping steel rigid suspension( air suspension) | |||||||||
King Pin | 2"or 3.5"traction pin made in China( Jost optional) | |||||||||
Landing Gear | chinese brand loading 28000kg (JOST optional) | |||||||||
Spare Wheel Carrier | One set of spare wheel carrier including a riser. | |||||||||
Braking System | Kemi or other Brand of China; ABS (optional ) | |||||||||
Brake Air Chamber | Four double and two single chamber | |||||||||
Electrical System | 1. Voltage: 24v 2. Receptacle: 7 ways(7 wire harness) | |||||||||
Painting | Sand blasting processing clean rust | |||||||||
1 coat of anticorrosive primer | ||||||||||
2 coats of finish urethane paint | ||||||||||
Color as customer choice | ||||||||||
Accessory | One tooling box with a set of standard trailer tool | |||||||||
Usage | Is applicable for the transportations of the mechanical equipment, | |||||||||
large objects, highway construction equipment, large tanks, | ||||||||||
power plant equipment or machine, and all sorts of steel products. | ||||||||||
Other Descriptions | The cargo platform is lower than others, | |||||||||
is applicable for unsound road condition, | ||||||||||
ensuring the stablenessof the transportation. | ||||||||||
Other Specifications | It's concave structured with tyre appeared style, | |||||||||
the height of the cargo's carrying platform from ground is 900mm, | ||||||||||
(ladders belong to optional components), with the overall height of 1710 mm | ||||||||||
Remark | We can design model according to client's requirement | |||||||||
AOTONG low loader trailer can satisfy the concentrated force, the anti bump and the distortion resistance
AOTONG make sure that lowbed semi trailer can meet load requirements on different kind of roads and has a long service life.
AOTONG start from every detail, carefully craft to customize your high-quality semi trailer.
Excellent design ability!
We have many experienced designers, according to your needs to develop the most reasonable design and meet
your customized needs.
Click for your own design！
your customized needs.
Click for your own design！
Strict load test before delivery！
Recommend Products
Packing and Shipment
In nude,Polish with water wax before shipment1. By 40ft/45ft/40fr container
2. By bulk /roro ship
3. As your requirments.
Professional package saves freight cost for you. In order to prevent seawater corrosion,we will carefully Wrap film or covered
tarpaulin.When goods arrive in Africa, Australia and even South America, they can maintain a good appearance.
High quality painting and professional transportation ensure good condition of goods.
We believe that we can win-win by providing detailed services.
2. By bulk /roro ship
3. As your requirments.
Professional package saves freight cost for you. In order to prevent seawater corrosion,we will carefully Wrap film or covered
tarpaulin.When goods arrive in Africa, Australia and even South America, they can maintain a good appearance.
High quality painting and professional transportation ensure good condition of goods.
We believe that we can win-win by providing detailed services.
Other Hot Products
Company Profile
Aotong Brand Semi Trailer
★We are the direct factory for all kinds of good quality semi trailers with competitive price.
★It's established in 1992 with more than 30years experience and well equipped testing facilities and strong technical force.
★It covers a total area of 150, 000 square meters with more than 670 workers ( 16 senior titled personnels, 118 professionals).
★Up to now, 60 series with hundreds of special vehicles and related products, which are best selling in more than 30 countries.
Welcome to visit our factory！
★It's established in 1992 with more than 30years experience and well equipped testing facilities and strong technical force.
★It covers a total area of 150, 000 square meters with more than 670 workers ( 16 senior titled personnels, 118 professionals).
★Up to now, 60 series with hundreds of special vehicles and related products, which are best selling in more than 30 countries.
Welcome to visit our factory！
Our Advantages and Service
★Years of production experience, good at controlling product quality. Choosing us, you choose professional supplier.
★ we gain Compulsory Product Certificate (CCC Certificate) , Information of P.R.C, ISO9001 certificate ,8 patent certificates , WIPO MADRID The Internationa Trademark System and etc.Provide strong technical support and quality assurance for your semi trailer.
★ we gain Compulsory Product Certificate (CCC Certificate) , Information of P.R.C, ISO9001 certificate ,8 patent certificates , WIPO MADRID The Internationa Trademark System and etc.Provide strong technical support and quality assurance for your semi trailer.
★We have a professional and enthusiastic service team .According to your order, we provide suitable trailer.
★ We also provide rational packing and shipping program , let shipment save money and security.
★ We also provide rational packing and shipping program , let shipment save money and security.
★ We serve customers in many countries and get their praise and recognition.Just trust us, you will get a satisfactory answer.
AFTER-SALE SERVICE | ||||||||||
THE MAIN COMPONENTS OF THE WARRANTY PERIOD (SEE TABLE): | ||||||||||
ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||||||
MAIN FRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS | |||||
SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | |||||||
KING PIN | 1 YEAR | WHEEL HUB | 3 MONTHS | |||||||
BALANCE ARM | 3 MONTHS | TIRE | 6 MONTHS | |||||||
ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||||||
BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS | |||||
BRKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS | |||||||
AIR RESERVOIR | 6 MONTHS | |||||||||
ITEM NAME | WARRANTY | |||||||||
OTHERS | LEAF SPRING | 3 MONTHS | ||||||||
BRAKE CHAMBER DIAPHRAGM | 3 MONTHS | |||||||||
EMERGENCY RELAY VALVE | 3 MONTHS | |||||||||
BRAKE SHOE | 3 MONTHS | |||||||||
RELAY VALVE | 3 MONTHS | |||||||||
Customer recognition
Up to now, 60 series with hundreds of special vehicles and related products, which are best selling in more than 30 countries such as Australia, Singapore, Japan, Sudan, and other Middle East, Southeast Asia and Africa countries.
Our services and products are highly recognized by customers.
Похожие товары
Высококачественные зерна рыбы для продажи по лучшей цене

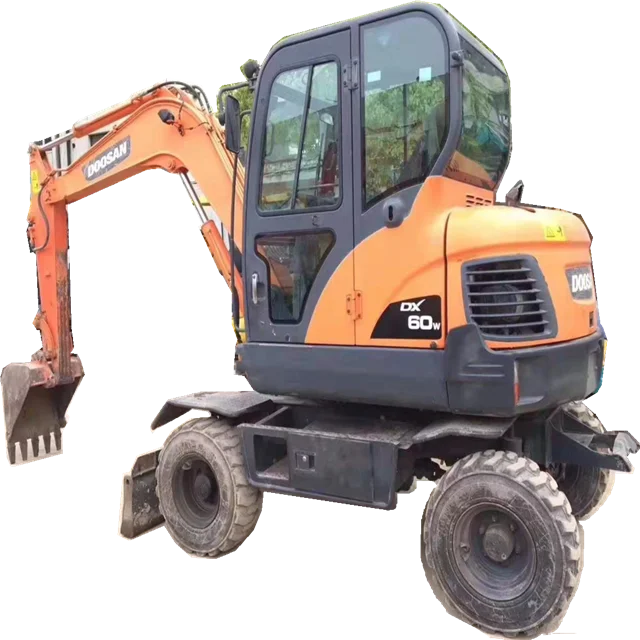

Б/у корейский экскаватор Doosan

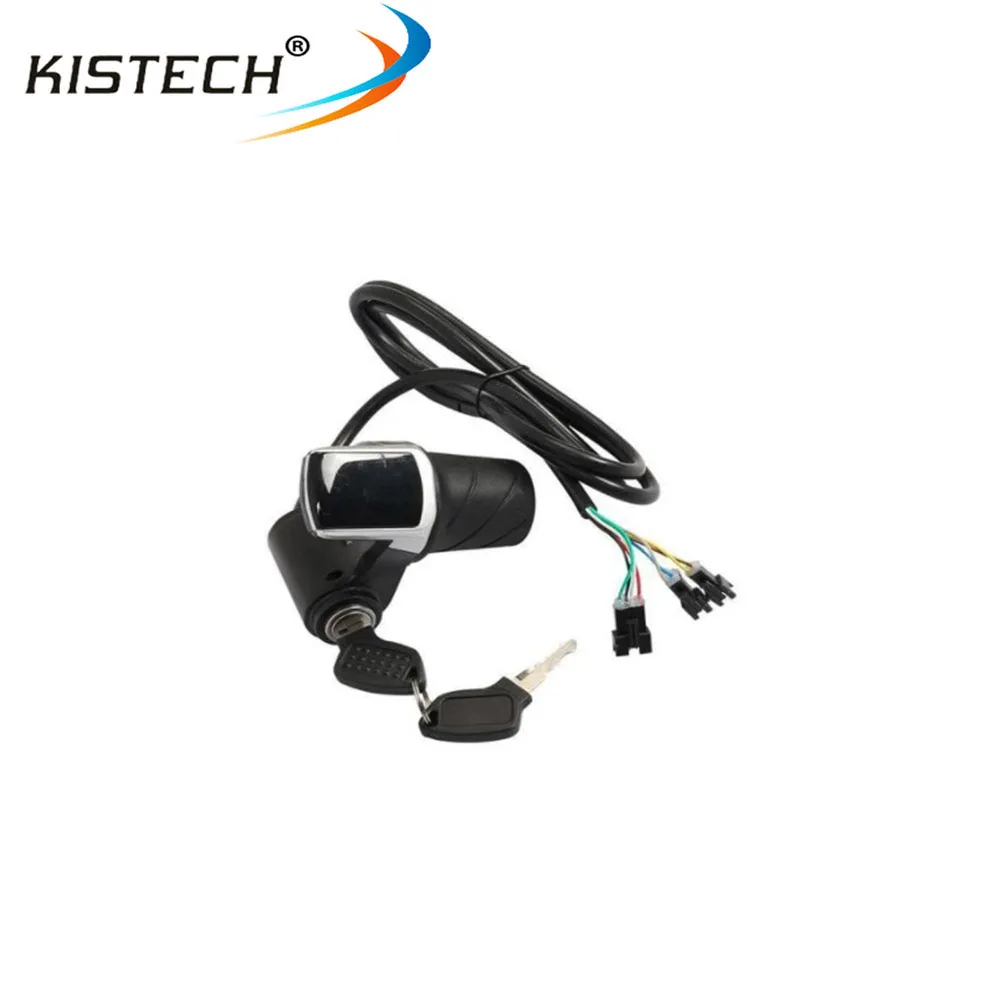

Дроссельное устройство для FIIDO D1/D2
