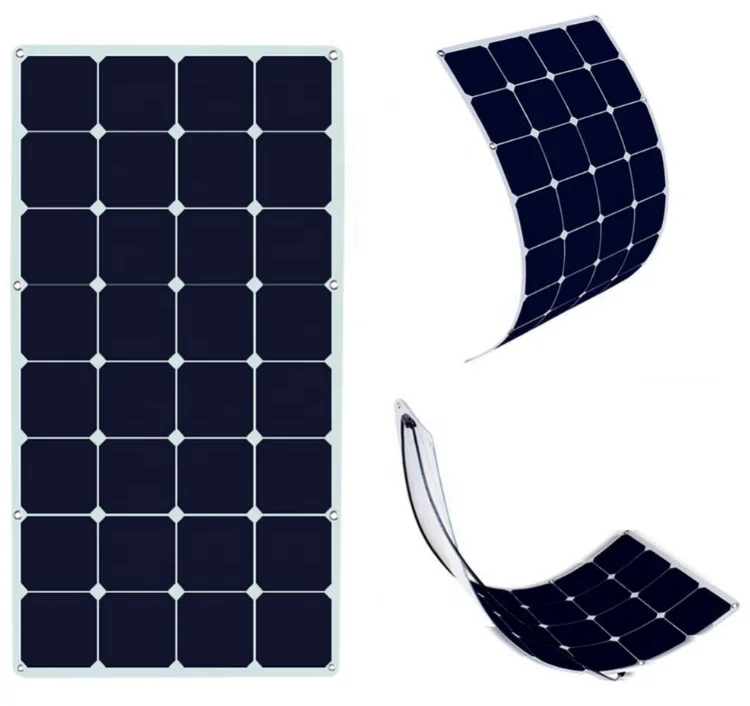

108 ватт Полугибкие солнечные панели производство солнечный модуль зарядное устройство для ноутбука большая батарея путешествия Кемпинг Лодка

1. Electrical Data:
1).Peak Power(Pmax): 108W
2).Maximum Power Voltage (Vmp): 17.3V
3).Maximum Power Current (Imp): 5.68A
4).Open Circuit Voltage (Voc): 20.77V
5).Short Circuit Current (Isc): 6.23A
6).Maximum System Voltage: DC 500V
7).Cell Efficiency: >22%
8).Power Tolerance: ±3%
9).Number of Cells: 32pcs
10).Operating Temperature: -20℃~+50℃
11).Storage Temperature: -20℃~+30℃
12).Temperature Coefficients of Isc(%): +0.09%/℃
13).Temperature Coefficients of Pmax(%): -0.37%/℃
14).Temperature Coefficients of Voc(%): -0.34%/℃
(International Standard Test Condition: AM=1.5,E=1000W/M2 ,Tc=25°C)

2. Mechanical Data:
1).Junction-Box: IP 65 Class With 2PCS Bypass Diode.
2).Thickness of ETFE: 0.025mm
3).Thickness of solar panel: 2.5~3mm(Custom)
4).Type of Solar Cells: American Sunpower
5).Eyelets: 4pcs (Custom)
6)Dmension:1050X540mmX3mm(Custom Size)
7)Junction Box Location:Front or Back-side

3.Widely Compatibility

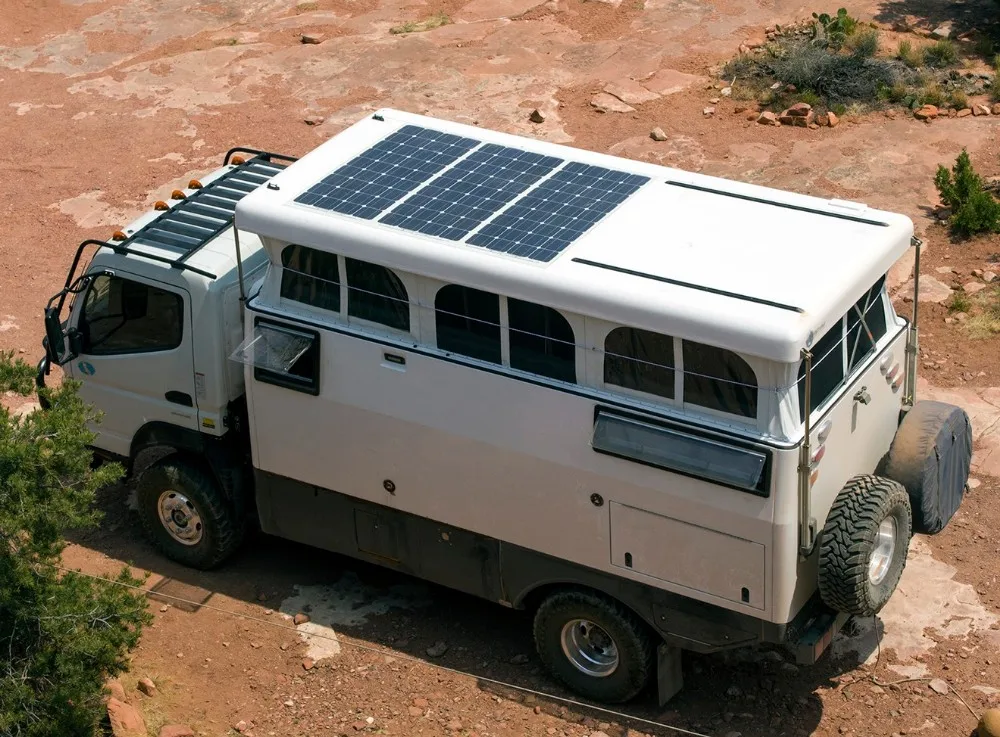

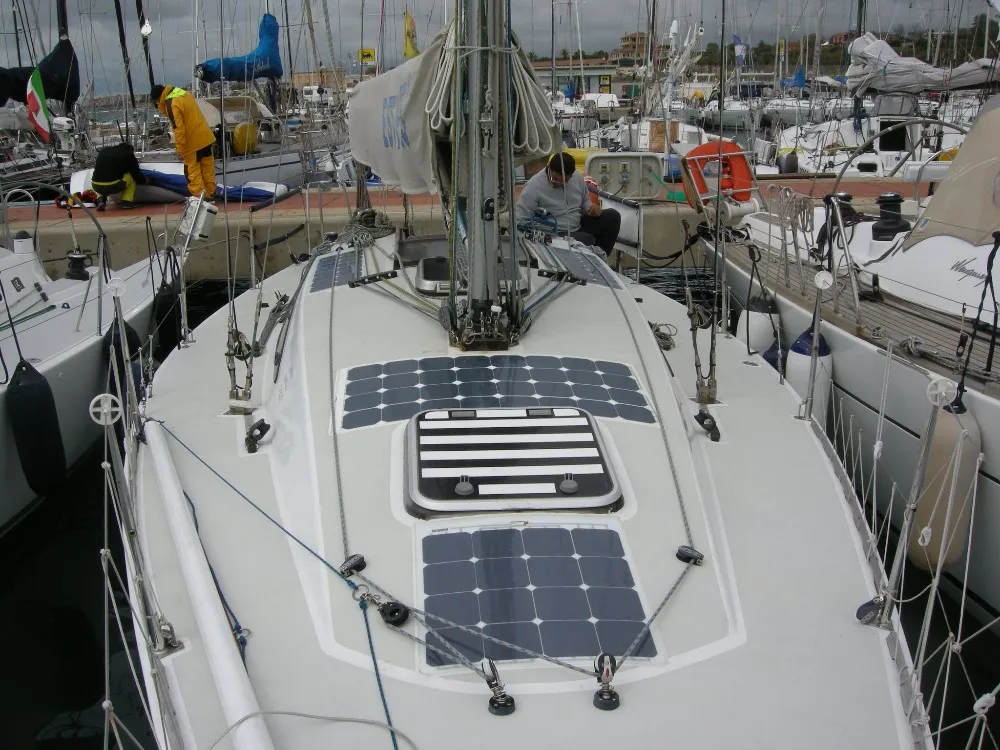

Boats/Sailboats,Yachts,Marine applications,Motorhomes/RVs, Expedition Vehicles, Bus Station,
Commercial Trucks/Trailers, Caravans/Popup Off-Grid and Remote Communication sites and more

·Semi flexible: bending angle up to 30 degrees.
·Backed with oxide PET, bendable, no glass
·Completely waterproof
·Light weight 70% less than rigid solar panel for easy carrying
·The thickness only 2.5mm, easy joint to your RV roof
·Rounding corners to prevent hand from bending scratched
·High efficiency Sunpower crystalline solar panel

About us

Flextech Company is a listed company on NEEQ market. We concentrate on foldable solar chargers,portable solar panels and home solar systems.

Patents and certificates

We have owned more than 45 independent patens. All standard products have been approved by CE,FCC, RoHS authorities with certificates.

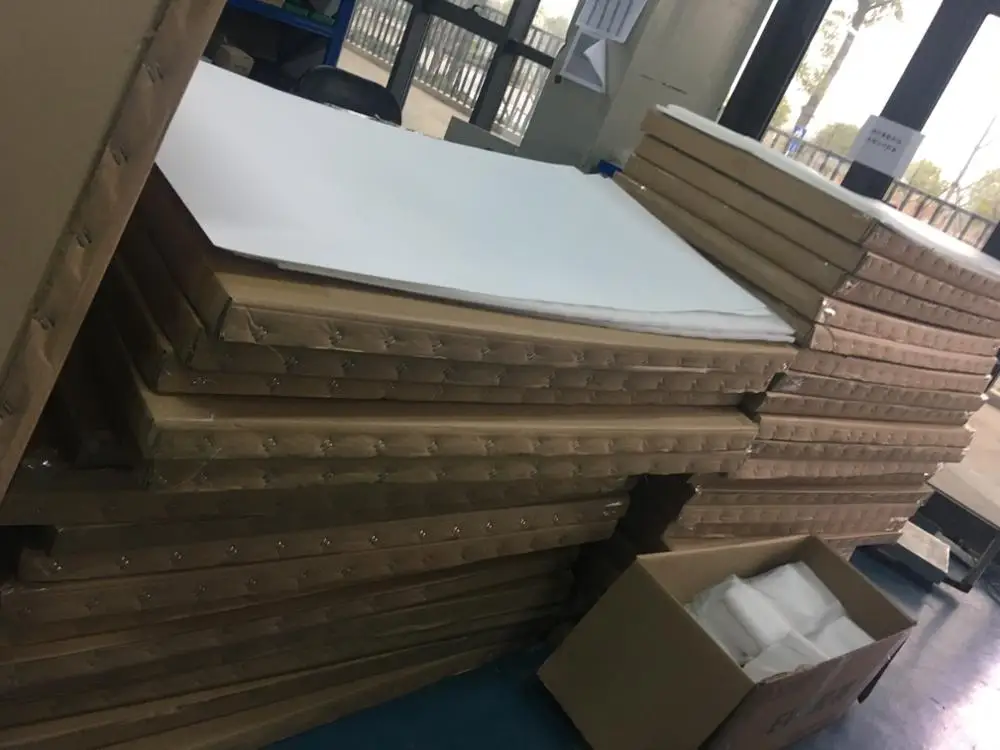

Manufacture

With 2 factories, we have advanced machines, more than  200 workers and full production line. Large production capacity can meet your needs.

    Located in Donghu Hi-Tech Development Zone in Wuhan, Hubei, China, Flextech company is established by the "Thousand People Plan" expert --Doctor John Yupeng Gui and it's a high-tech company which includes R&D, production, sales and customer service of the solar panels and its applications.
    Through the "solar +" product innovation model, Flextech Company has already developed mobile energy products in 6 categories: Solar outdoor, Solar Integrated Wearable, Solar Integrated Shading, Solar Integrated Transportation, Solar Agricultural, Solar Integrated Electronics. In addition, through continuous technological breakthrough, design innovation and equipment integration, Flextech Company realized a implementation of application extension and product structure optimization and upgrading. Flextech Company is on the way to our goal: Where there's light, there's electricity. FlexSolar makes life better.
From now on, Flextech Company owns 2 brands: "FlexSolar"and"FLY". Our products have been sold to more than 51 countries and we are the famous supplier for outdoor solar energy customers all over the world.

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 500pcs.

A: Low MOQ, 10pcs for sample checking is available.

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

A: Yes, we offer 12 months warranty to our products.

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will be responsible for any fake products if it's due to orginal product quality. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
