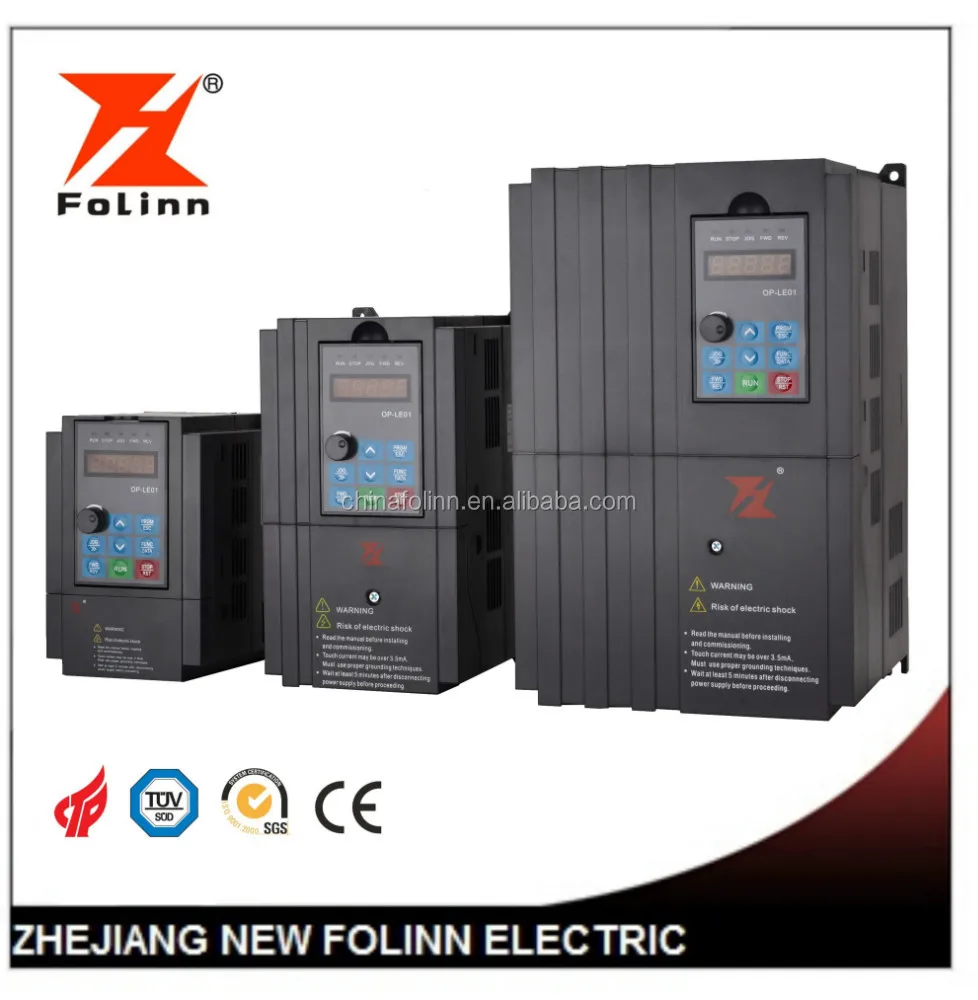

Folinn BD330 привод переменного тока закрытый цикл векторное управление преобразователь частоты 2 кВт VFD

      Product overview

• BD330 is the newest high-performance open-loop inverter based on DZB300. It has superior performance and rich functions with elegant appearance; heat dispersion is good, and the volume is smaller with a more reasonable design; the configuration is flexible that it can meet different demands of customers.

     Product features

• Two control modes:non-PG vector control(SVC),V/F control
• Multistage V/F curve setting function
• Pull-in torque:non-PG vector control(SVC)0.5Hz could reach 150%
• Internally installed PID control function that could implement close-loop constant temperature and constant voltage control.
• Multiple frequency setting is supported:digital set, analog quantity set, PID set, RS485communication set.
• Free programming is available for I/O terminal  and could combine various work patterns according to users’ need.
• It’s equipped with control function of hopping frequency, and could actively suppress mechanical resonance to make system more stable and reliable.
• It’s equipped with maintaining function in cases of instant power down so that it helps avoid influencing production caused by instant power down.
• Detection function for torque rich and less torque.
• Switch function of main and auxiliary frequency,  run command, and on the spot and long-distance.
• Automatic voltage adjustment function that could effectively solve low frequency oscillation problem of high-power motor.
• Provide protection functions for many malfunctions: omnibearing real time monitoring and protection of overcurrent, overvoltage, undervoltage, superheat, overload, phase loss to ensure safe running.
• 0.75~15kW internally installed brake unit. It just needs to add a brake resistor to implement fast stop.
• Higher than 7.5kW.  Internally installed trace function of revolving speed that could realize shock-free smooth start to the rotating motor.
• Modular design that could be configured with various expansion cards.
• 16 speeds. Time for each acceleration and deceleration is adjustable.

       Applications

• Metal processing, numerically-controlled machine tool, drawbench and other mechanical equipment.
• Boiler fan, induced draft fan, exhaust blower underground coal mine.
• Municipal engineering, energy conservation transformation for central air-conditioning.
• Cyclone cluster, centrifugal fan, etc.
• Circulating water pump, make-up pump, oil field injection pump, fuel delivery pump, music fountain.
• Papermaking equipment, chemical industry, pharmaceutical industry, textile industry, etc.

      Technical parameters

• Input voltage:1AC220V±15%  3AC220V±15%  3AC380V±15%

• Input frequency: 47~63Hz  power factor≥95%

• Control mode:non-PG vector control and V/F control. Thereinto, V/F control is divided into three curves such as linear type, multipoint type and multiple power of two type.

• Source of operation instruction:  given by panel, terminal and   RS485 communication

• Source of given frequency:given by panel figure, analog quantity, RS485  serial communications, multi-speedsimple PLC and PID etc.

• Overload capacity:type B :150% rated current 60s,180% rated current10s; type P 120% rated current 60s,150% rated current 10s

• Pull-in torque:0.5Hz/150%(non-PG vector control(SVC)),range of speed 1:100(SVC),control accuracy of speed  : non-PG : ±0.5%.

• Carrier frequency:1.0kHz~15.0kHz,and can be automatically adjusted according to temperature and load characteristic.

• Frequency resolution:the given digital value is 0.01Hz,and the analog quantity is given as the highest frequency plus 0.1%.

• Torque elevation:manual torque can elevate 0~30%.

• Brake:DC braking when starting and closing down.

• Inching operation:frequency range:0.0Hz~ maximum frequency of output,time  of inching acceleration and deceleration:0~3600.0s

• Simple PLC and multi-speed operation:as many as 16 speeds operation can be realized through built-in PLC or controlling terminals.

• Internally installed process PID:convenient for the realization of close-loop control of quantity of process (pressure, temperature, rate of flow);

• Automatic voltage regulation:automatically keep the output voltage stable during voltage fluctuations.

• DC bus can be shared by many inverters and the energy is balanced automatically.

• Input and output terminal:6 digital input, 2 relay output, 1OC transistor output, 2 analog input, and 1 analog output.

• LED can display set frequency, output frequency, output voltage, current output and other parameters.
