Product Description

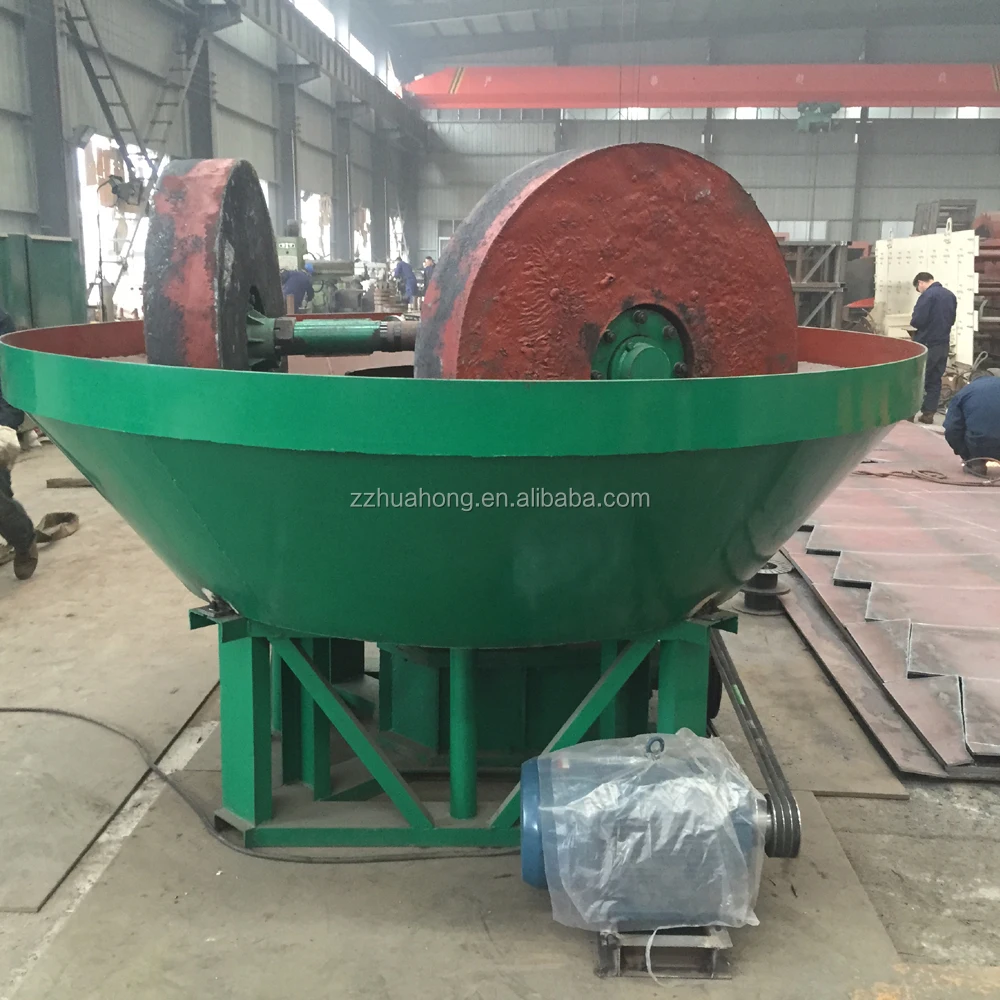

Factory price High Efficient 3 wheels Gold Mining Mill/Wet Pan Mill







Brief introduction


Grinding gold machine is also called wet pan mill,wheel mill;It is mainly used for grinding materials which has beed crushed;The wet pan mill is widely used in cement, Portland products, new building material, refractory material, fertilizer, black and non-ferrous metal ore dressing,glass ceramics and some other industry;It used for grinding all kinds of ores or other grindability materials with dry type or wet type;It is the excellent equipment for replacing ball mill, is the first choice of milling equipments for small and medium-sized enterprises.









Features

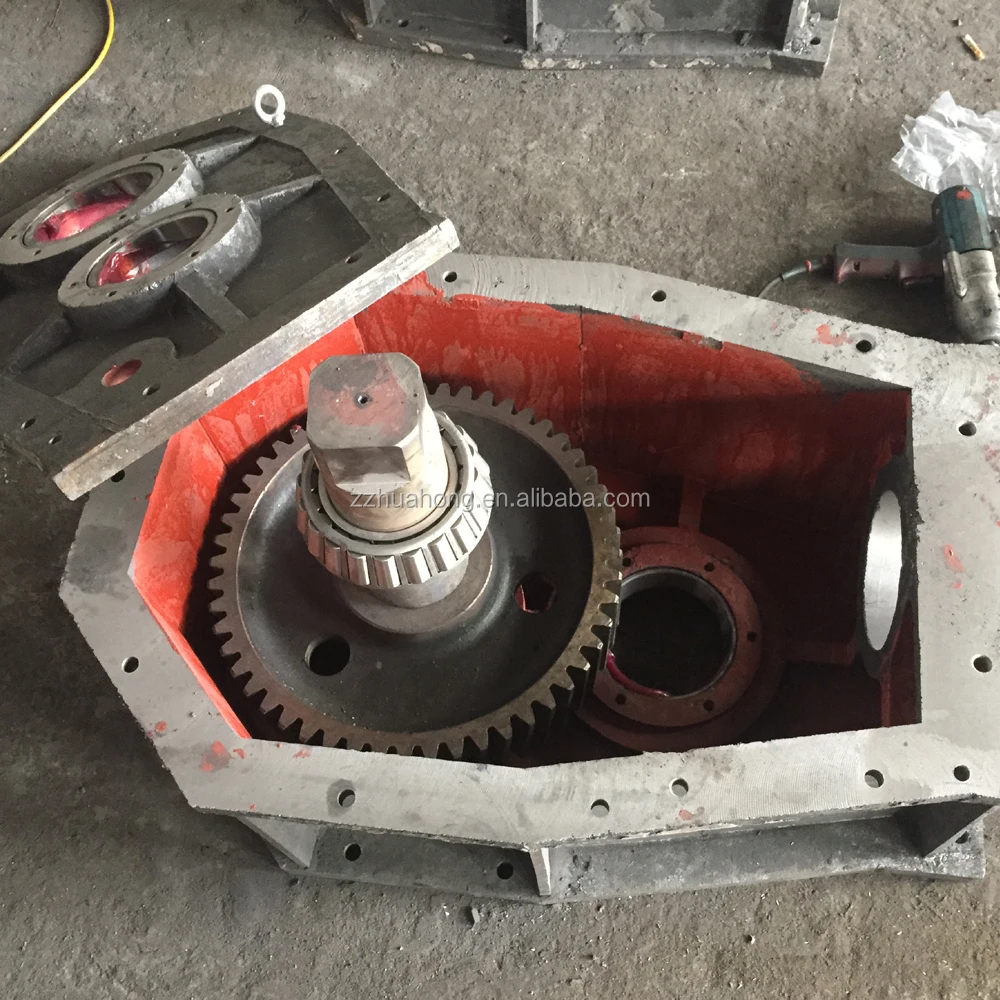

1.This Series products of our company's dedicated reducer gear after heat treatment, it with good transmission,
2.high safety coefficient, superior Performance and quality than general reducer on the market.




 Main Technical Parameters


















































































































Model



Specification



   Input size(mm)



Process ability


   (t/h)



Speed


(r/min)



Motor


(kw)



Weight


  (t)



1600



1600×400×±20



 Less than 30mm



4



20-22



6-30



17



1500A



1500×400×±20







3



20-22



6-22



15



1500B



1500×350×±20







2.5-3



20-22



6-22



14



1500C



1500×300×±20







2-2.5



20-22



6-22



12.5



1400



1400×250×±20







1.5-2



16-18



6-18.5



9.5



1300



1300×250×±20







1.5



21-23



6-15



7.8



1200A



1200×220×±20







0.9-1.2



16-18



4-7.5



6.0



1200B



1200×200×±20







0.8-0.1



21-23



4-7.5



5.8



1100



1100×200×±10







0.6-0.8



16-18



4-5.5



5.5



1000



1000×200×±10







0.5



21-23



4-5.5



4.5



900



900×150×±10







0.3



17-19



  3



3.2




Working principle





Gold mill machine mainly through the mixing of raw materials, rolling, crushing, rolling repeatedly to reach moisture equilibrium, the ratio of uniform, low gas content, to increase molding and molding quality, grind the material through the machine molding products,It has a high density, strength, and no porosity ratio. Energy efficient, high output, the product is used for iron ore tailings recovery process, not slag the loss, the effective resources can be fully utilized.


Gold grinding machine when the choice of gold sorting methods and process


1. gold grinding machine after the installation is completed to gold grinding machine groove bottom 5 kilograms of mercury begins normal operation.


2 each class receive once the Sands, the shift added to 1 kg of mercury to receive the grind at the end of the Sands and mercury, the mercury received Sheng gold equipment, with a relatively high density of red cloth mercury screwed out to the package, open the red cloth which left Sands. One kilogram of mercury each class started on it. Containing one is grasping the cloth of gold or grab the gold behind the blanket and put on the mercury board can receive the gold.


 006.jpg 003.jpg 004.jpg





Advantages


As their small investment, high yield, the production cost is low, good benefits, praised by users, domestic alternative to the ball mill equipment. Grind gold machine easy installation and maintenance, small investment, high yield, quick, low-cost production, is the ideal equipment for mine SMEs beneficiation.











Packaging & Shipping















Our Services


 We will provide the best service within reasonable price. If you have any questions or interested in our machines , you can connect with us. Tell us the details about your request, we will reply you ASAP and design the products according to your need.





Company Information





Zhengzhou Huahong Machinery Equipment Co., Ltd is a manufacturer.


The main products of the company are straw press block machine, stalk crusher , cotton stalk the grinder, multi-functionnal wood powder grinding machine, cutting machine,grass shredder, drum chipping machine, wood peeling machine, wood chip screening machine, sawdust machine, conveyor, and dryer the company integrates research, production, and sales as a whole.The company has long-term cooperation with domestic and foreign research institutes, has introducing adwanced technology, process and testing equipments at home and abroad.


 Customers









Our Certifications







Contact information


 Skype iessicawu201541






FAQ





1. Are you a trading company or a manufacturer?


We are a manufacturer.


2. How can I get to your company?


You can get a flight to Zhengzhou Xinzheng International Airport  . and we can go to airport to pick you up directly.All our clients from home or abroad, are warmly welcome to visit our factory and inspect our products!


3. How long is your guarantee?


One year(Calculated from the equipment arrives the customer’s side.). After this period we will definitely support you when needed. You will be welcome to contact us with any problem may happened.


4. Will you send engineers to install the plant?


yes, but at an extra cost payable by the customer. Or you can get local contractors to do thecommissioning and we send one supervising engineer.







Whatsapp: 008613027783958


Wechat:13027783958
