Китай Baojun американский тип хомуты для шланга из нержавеющей стали продукты
- Категория: >>>
- Поставщик: Yancheng Baojun Stainless Steel Products Co. Ltd.
Сохранить в закладки 60219046218:
Описание и отзывы
Характеристики

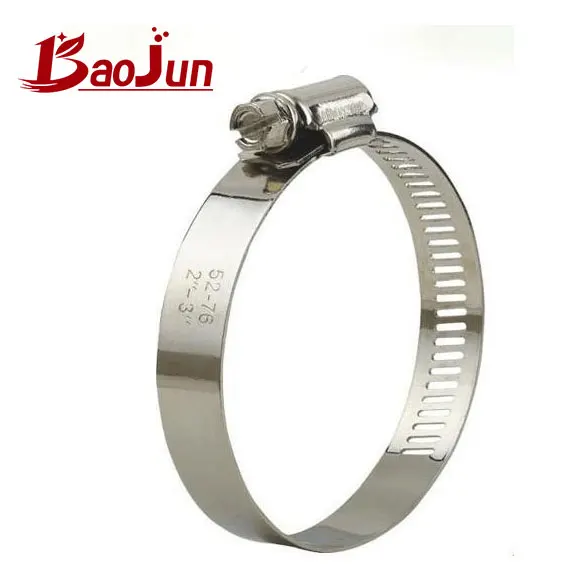

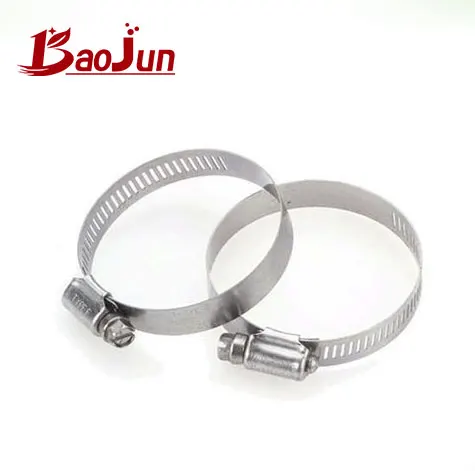

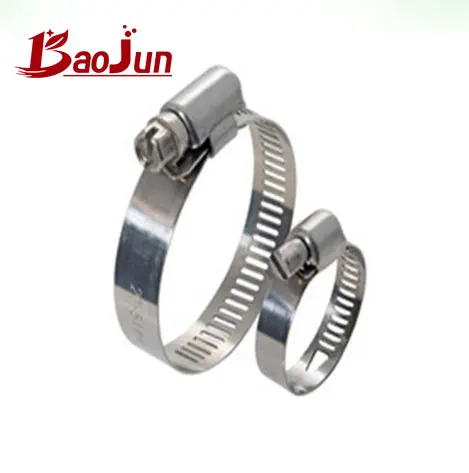

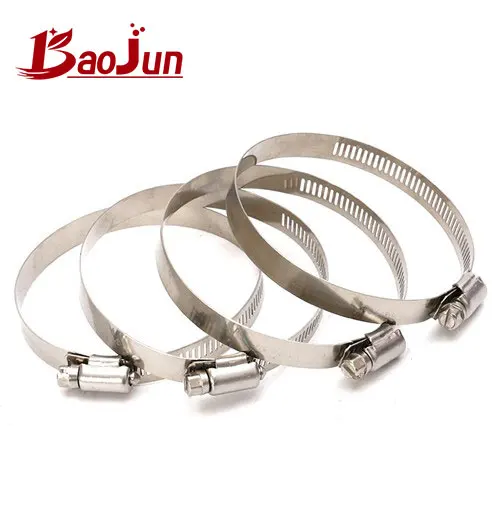

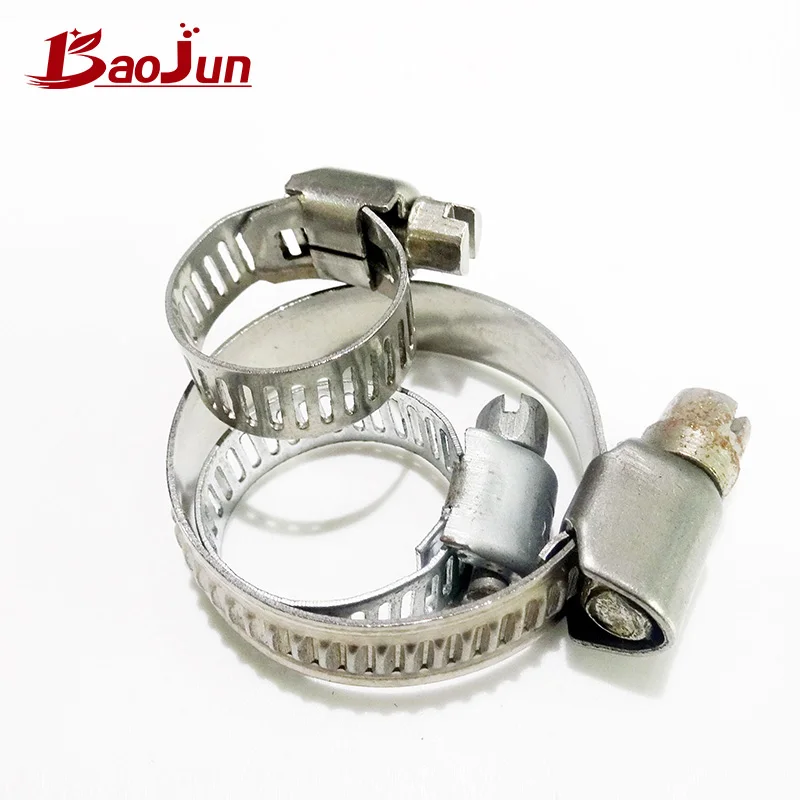

China Baojun American types hose clamps stainless steel products
| 1) Name: | high pressure stainless steel T-bolt hose pipe clamps made in China |
| 2) Material: | W1 /W2 /W4 |
| 4) Size: | Dia: 6mm-300mm; Band width:8mm/10mm/12mm/12.7mm; or according to client's requirement |
| 5) MOQ: | 500 Pcs |
| 6) Packing: | First in plastics bag or box, then in carton |
| 7) Payment term: | L/C, T/T, Paypal, Western Union,etc. |
| 8) Delievery Time: | 7-15 working days |
| 9) Application | Pipe connection |
(Note W1: Galvanized steel band; Galvanized steel housing ; Galvanized steel screw
W2: Stainless steel band; Galvanized steel housing ; Galvanized steel screw
W4: Stainless steel band; Stainless steel housing ; Stainless steel screw )
Specification And Dimension
| SIZE | INCH | MM | WIDTH(mm) |
| 4 | 7/32"-5/8" | 6-16 | 6 |
| 6 | 7/16"-3/4" | 11-20 | 6 |
| 8 | 1/2"-7/8" | 13-23 | 6 |
| 9 | 1/2"-1" | 13-25 | 6 |
| 10 | 1/2"-11/16" | 14-27 | 6 |
| 12 | 1/2"-11/4" | 18-32 | 6 |
| 16 | 13/16"-2" | 21-38 | 8 |
| 20 | 13/16"-13/4" | 21-44 | 8 |
| 24 | 11/16"-11/16" | 27-51 | 8 |
| 28 | 15/16"-21/4" | 35-57 | 8 |
| 32 | 19/16"-21/2" | 40-63 | 10 |
| 36 | 113/16"-23/4" | 46-70 | 10 |
| 40 | 21/16"-3" | 52-76 | 10 |
| 44 | 2516"-31/4" | 59-82 | 10 |
| 48 | 29/16"-31/2" | 65-89 | 10 |
| 52 | 213/16"-33/4" | 72-95 | 10 |
| 56 | 31/16"-4" | 78-101 | 10 |
| 60 | 35/16"-41/4" | 84-108 | 10 |
| 64 | 39/16"-41/2" | 91-114 | 10 |
| 72 | 41/8"-5" | 105-127 | 10 |
| 80 | 45/8"-51/2" | 118-140 | 12 |
| 88 | 51/8"-6" | 130-152 | 12 |
| 96 | 55/8"-61/2" | 143-165 | 12 |
| 104 | 61/8"-7" | 155-178 | 12 |
Chemical Composition
| MATERIAL | NAME | ELEMANTS | |||||||||
| C | Cr | Ni | Mn | P | S | Mo | Si | Cu | N | ||
| 201 | 1Cr17Mn6Ni5N | <0.15 | 16.0-18.0 | 3.5-5.5 | 5.5-7.5 | <0.06 | <0.03 | - | <1.0 | - | <0.25 |
| 202 | 1Cr18Mn8Ni5N | <0.15 | 17.0-19.0 | 4.0-6.0 | 7.5-10.0 | <0.06 | <0.03 | - | <1.0 | - | <0.25 |
| 301 | 1Cr17Ni7 | <0.15 | 16.0-18.0 | 6.0-8.0 | <2.0 | <0.065 | <0.03 | - | <1.0 | - | - |
| 303 | Y1Cr17Ni7 | <0.15 | 17.0-19.0 | 8.0-10.0 | <2.0 | <0.20 | <0.03 | - | <1.0 | - | - |
| 304 | 0Cr18Ni9 | <0.07 | 17.0-19.0 | 8.0-10.0 | <2.0 | <0.035 | <0.03 | - | <1.0 | - | - |
| 304L | 00Cr19Ni10 | <0.03 | 18.0-20.0 | 8.0-10.0 | <2.0 | <0.035 | <0.03 | - | <1.0 | - | - |
| 309S | 0Cr23Ni13 | <0.08 | 22.0-24.0 | 12.0-15.0 | <2.0 | <0.035 | <0.03 | - | <1.0 | - | - |
| 310S | 0Cr20Ni20 | <0.08 | 24.0-26.0 | 12.0-15.0 | <2.0 | <0.035 | <0.03 | - | <1.0 | - | - |
| 316 | 0Cr17Ni12Mo2 | <0.08 | 16.0-18.5 | 10.0-14.0 | <2.0 | <0.035 | <0.03 | 2.0-3.0 | <1.0 | - | - |
| 316Ti | 0Cr18Ni12Mo2Ti | <0.08 | 16.0-19.0 | 11.0-14.0 | <2.0 | <0.035 | <0.03 | 1.8-2.5 | <1.0 | - | - |
| 316L | 00Cr17Ni14Mo2 | <0.03 | 16.0-18.0 | 12.0-15.0 | <2.0 | <0.035 | <0.03 | 2.0-3.0 | <1.0 | - | - |
| 317L | 00Cr19Ni13Mo3 | <0.08 | 18.0-22.0 | 11.0-15.0 | <2.0 | <0.035 | <0.03 | 3.0-4.0 | <1.0 | - | - |
Related Products
Main Products
1.German hose clamps: the unique side pressing design, and non-perforated design can effectively prevent the soft surface of the silicone tube and hose from damage.
2.American hose clamps: with band thread through-hole, and teeth of the screw fitted in, they have more powerful locking. and accurate Occlusal. Also,american hose clamps can be used in non-circular objects, they can bundle the square columnar objects, such as flue, electric vehicle batteries,etc.
3.T bolt hose clamps: similar to their brothers ---- the single-head solid strong clamps, both of them belong to the powerful hose clamps , which also called European clamps. The common bandwidth 20MM, 24MM, 26MM,etc., have a larger Strong torque. Widely used in places with strong fastening force requirements.
4.Quick release hose clamps: mainly used in fast conversion, such as sealing of the air duct, dust channel interface. meets quickly tied needs to enable work very efficient.
...............
Production Process
Yancheng Baojun Stainless Steel Product Co.,LTD.
Our company is specialized in stainless steel products manufacturer, has many years of experience, professional and technical personnel, enthusiastic service attitude, make our products sell well both at home and abroad.We can be customized for clients special specification and special material products.
Welcome come to visit our factory!
Why choose us :
1. Competitive price and quality from our own factory
2. Approved by ISO9001, CE, SGS every year
3. Best service with 24 hour`s reply
4. Flexible payment with T/T,L/C , paypal, kunlun bank, etc
5. Smooth production ability(50000tons/month)
6. Quick delivery and standard exporting package
7. OEM/ODM
Our certificates :
F&Q:
1. Are you a factory or a trading company?
YANCHENG BAOJUN STAINLESS STEEL PRODUCTS CO., LTD. is a professional export-oriented head marketing factory.
2. Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.
3. Is the sample available?
Yes, samples are available for you to test the quality.
4. Are the products tested before shipping?
Yes, all of our wheelbarrows and wheels were qualified before shipping.
We test every batch every day.
5. Whats your quality guarantee?
We have 100% quality guarantee to customers. We will be responsible for any quality problem.
Send your inquiry details in the below for free sample click "send" now !
--------------------------------------------------------------------------------------------------
Похожие товары

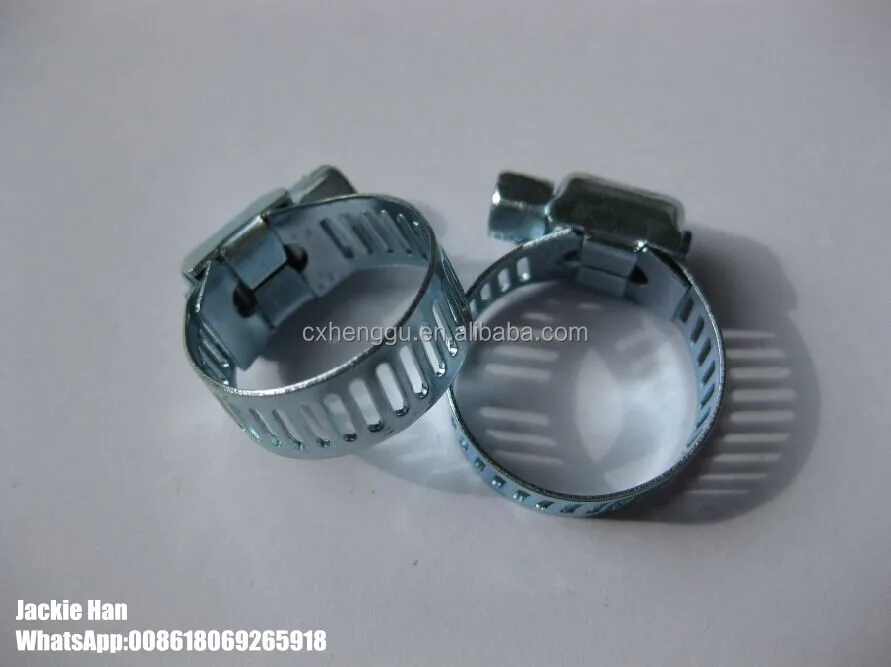

QIZA зажим для шланга американского типа/тайваньский зажим для шланга WS WX W8 поворотный зажим

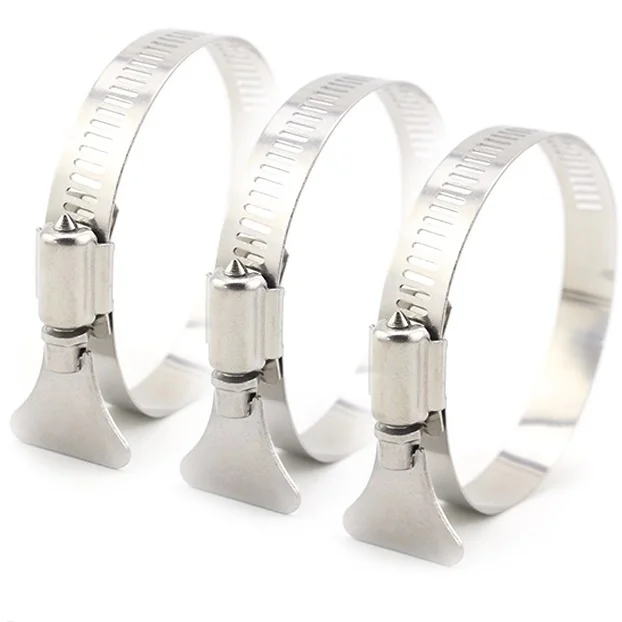

Зажим для шланга из нержавеющей стали KAIHONG 304 с ручкой
T-образные зажимы для шлангов, быстросъемный ленточный зажим

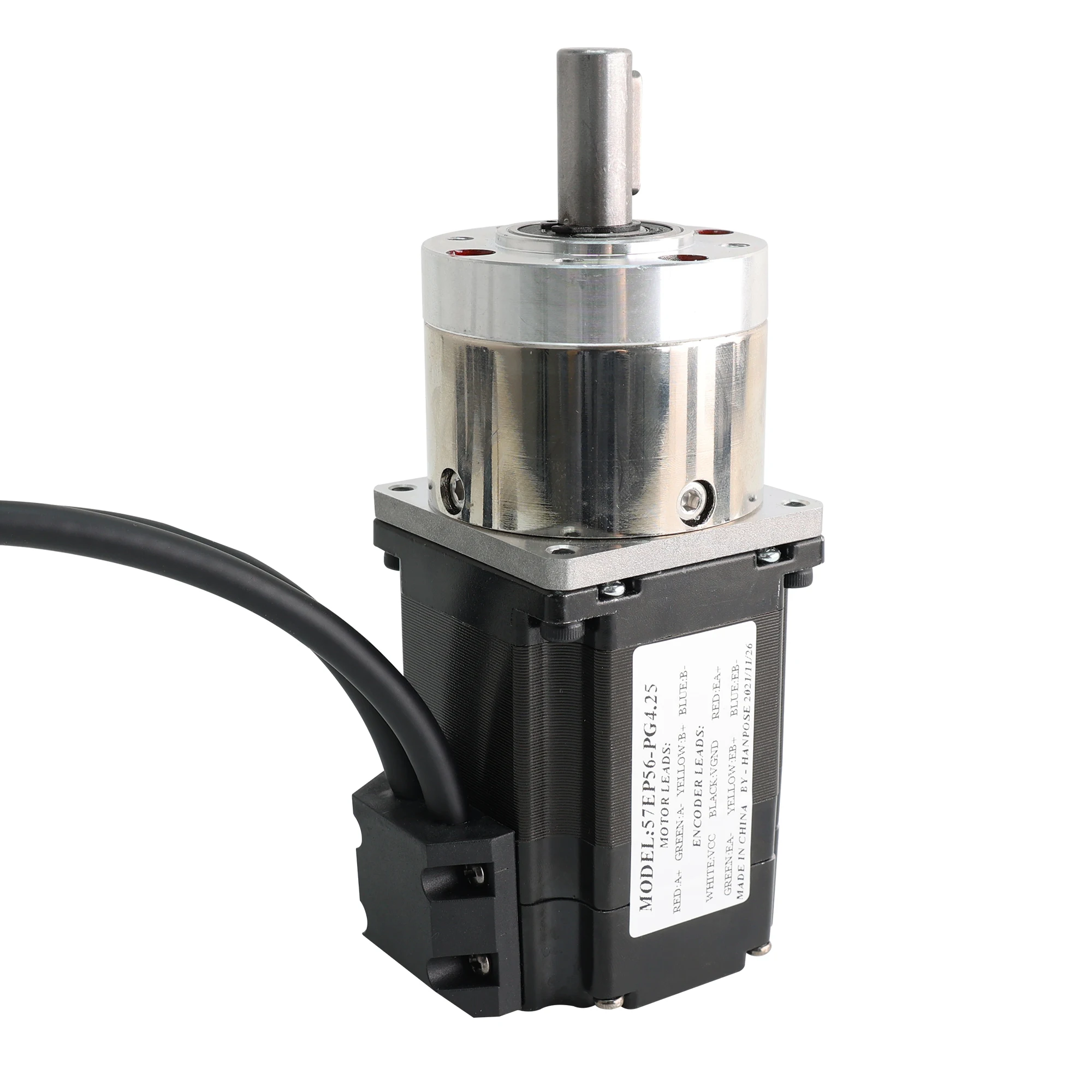

Серводвигатель 57CME13 4.0A 57EP56-PG ратиo3.6-1 4,25-1, редукторный двигатель с замкнутым контуром, гравировка 1.3N.m, кодировщик, шаговый двигатель nema23
55,00 $ - 59,99 $
Вал полый кодировщик шаговый двигатель Nema 08 шаговый двигатель для промышленной автоматизации
1 098,00 $ - 1 200,00 $

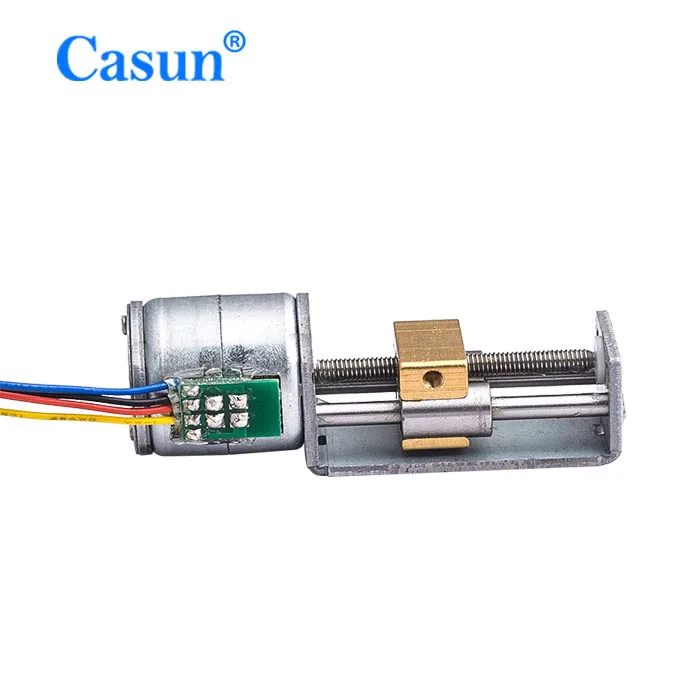

Линейный двигатель SM2016 микро слайдер линейный шаговый двигатель винтовой двигатель с кронштейном для микро 3D принтера
10,34 $ - 12,84 $

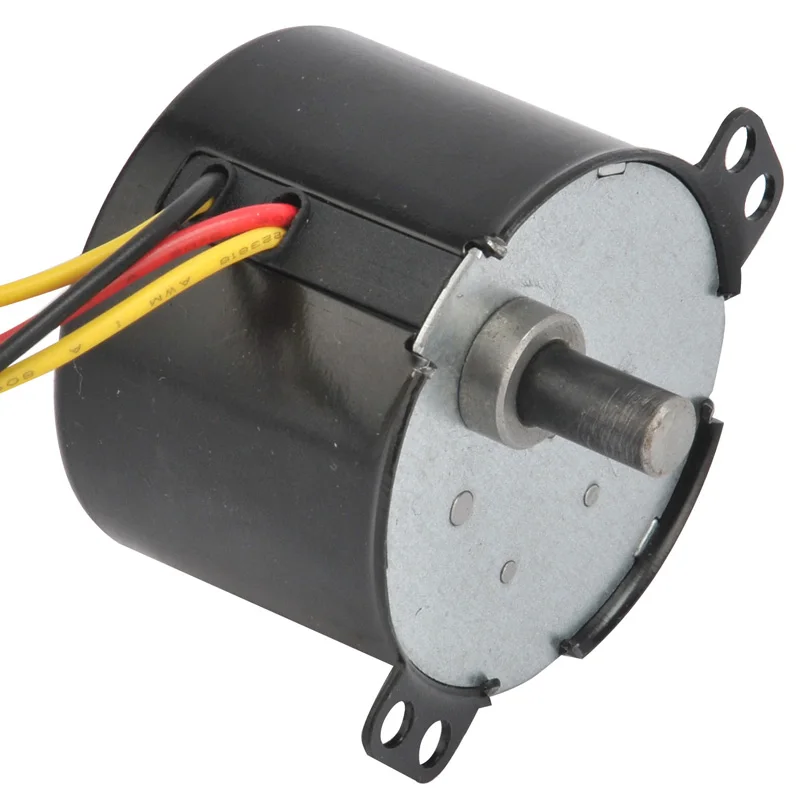

Низкая цена, китайский низкооборотный редукторный электродвигатель переменного тока 49TYD-1
