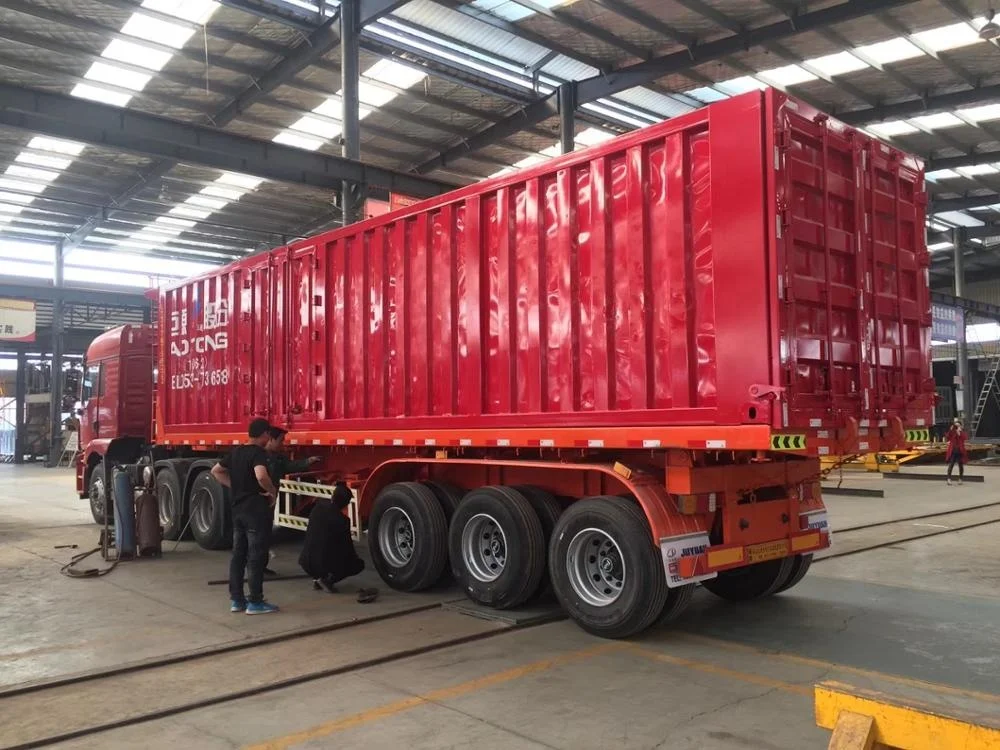

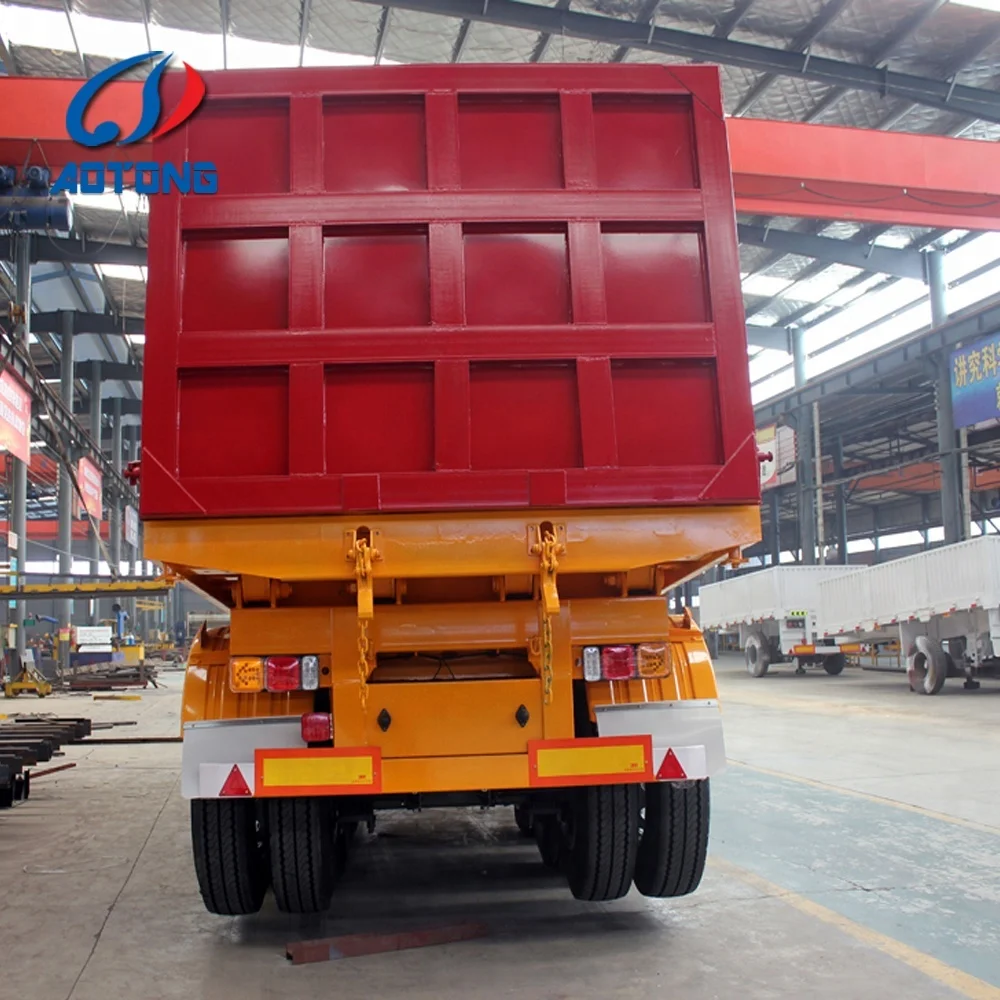

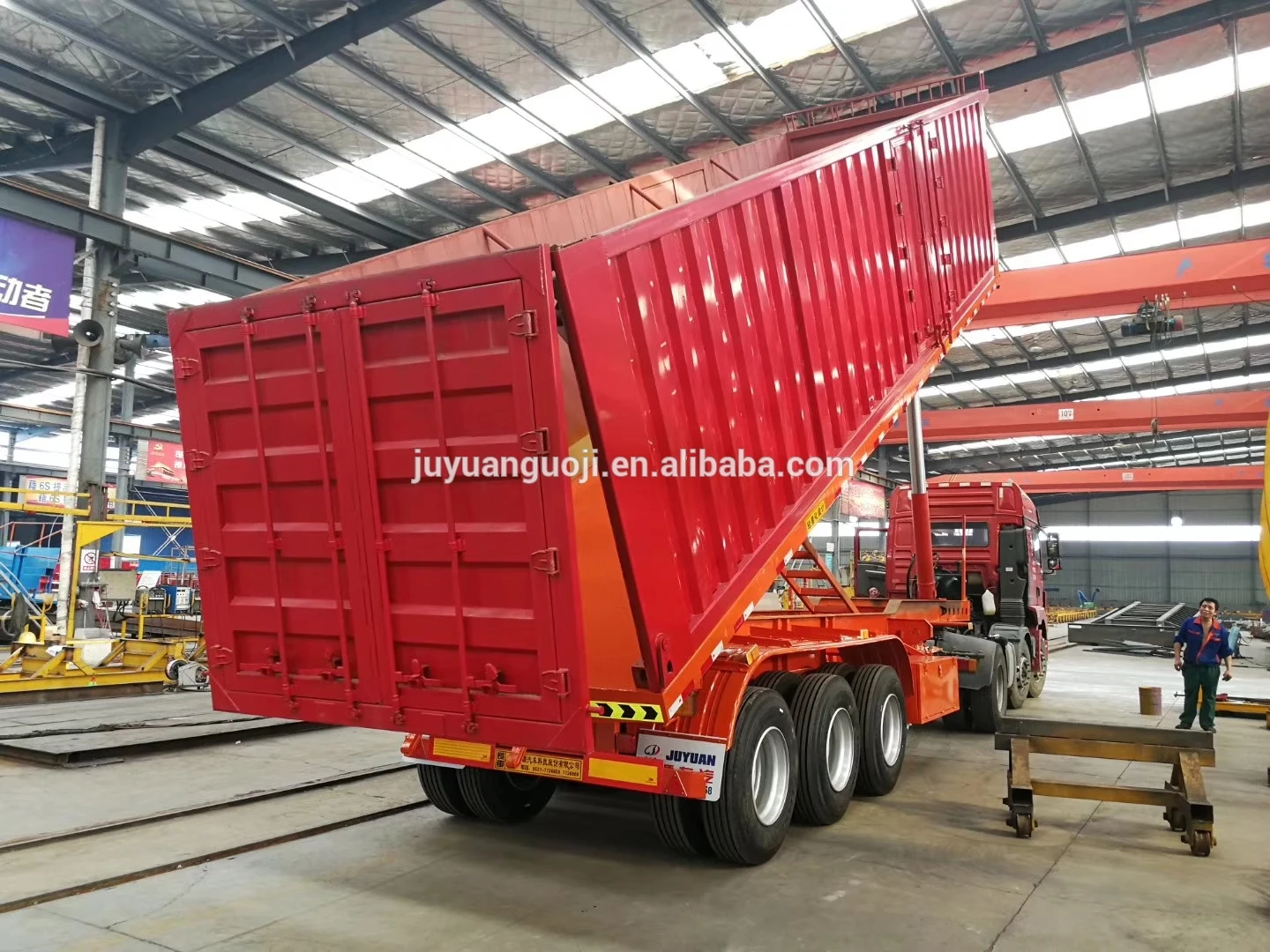

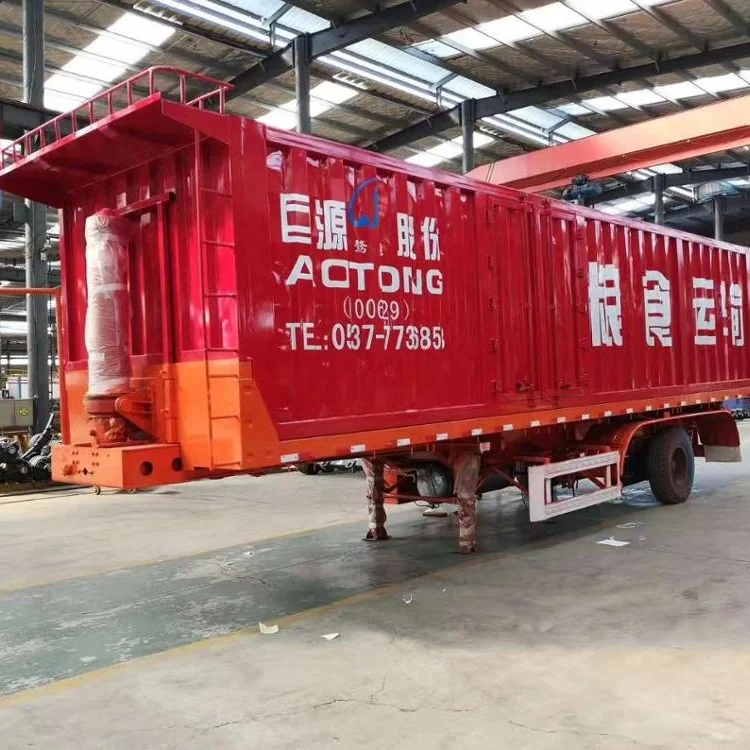

New Rear Dump Tipper Semi Trailer Truck Side dump truck trailer
Product Description
Application:
1.This type of dump semi trailers is applicable for the transportation of the coal, ore, building materials like stone, sand and other bulk cargo.
2. The capacity is for 50tons , we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc
Dump Trailer Specifications:
vehicle name | 3 axle rear dump tipping semi trailer |
Overall dimension (LxWxH) | 11000×2500×3850 mm |
Basic Specifications |
|
Tare Weight | 9500kg |
Payload | 60 Ton |
Kingpin setting | 850mm |
Wheel base | 1310mm |
Running Gear |
|
Axle | 3 pieces/16T per * FUWA Brand (BPW optional) |
Suspension | mechanical suspension with 10pcs leaf spring each |
Tire specs. | 11.00R20-18PR / 12 pcs |
Wheel hub | Cast steel, 10 studs |
Brake | Dual lines pneumatic brake system, T30/30+T30 air chambers; parking brake |
Under Frame |
|
Main Beam | I shape, Mild Alloy Q345B by Automatic submerged arc welding |
Main Beam Thickness | Main beam height is 500mm; upper flange 14mm, lower Flange 16mm, mid web 10+8mm(Double Plate) |
Cross Beam | Mild Alloy Q235 |

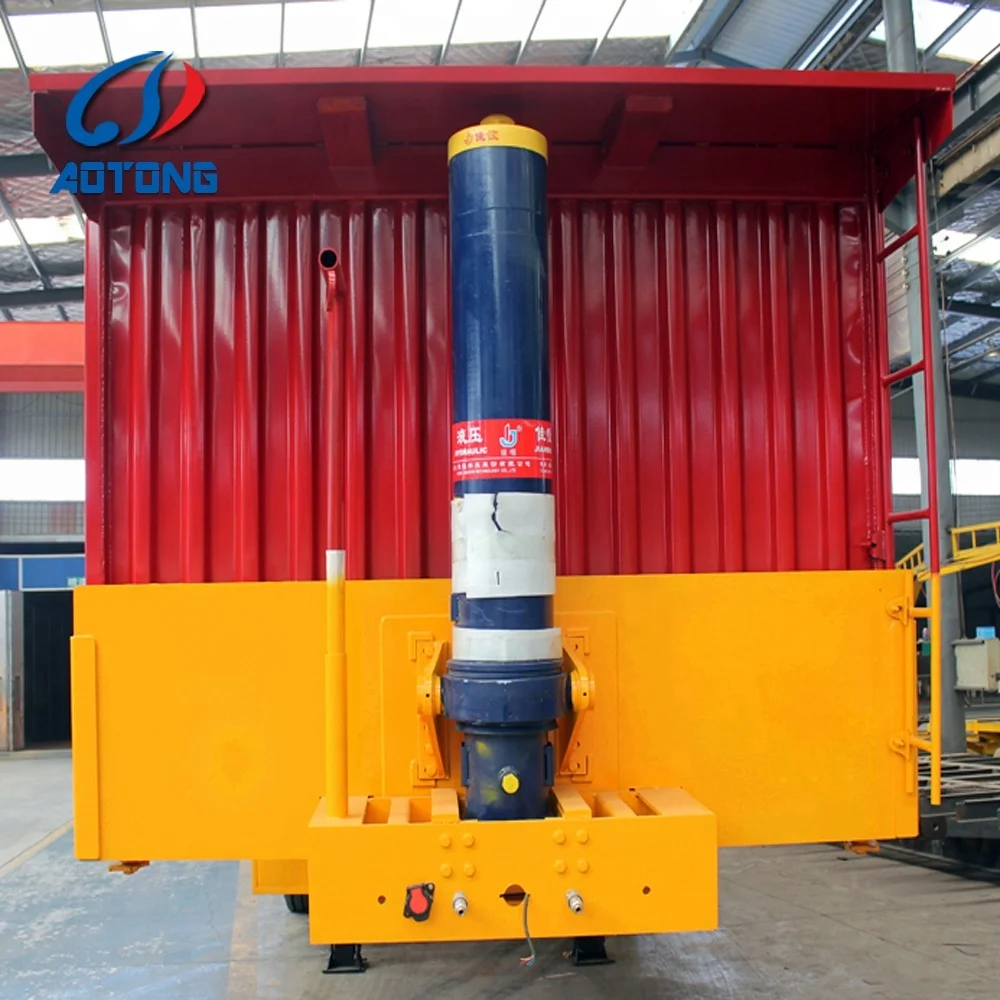

Hydraulic cylinder | HYVA 214 |
Kingpin | Size: 90#(3.5’’); Type: bolted on king pin plate |
Landing gear | 28T Double sides operation, Static capacity 60Ton |
Box Specifications | Sides 6mm; bottom 8mm. |
Electrical & Paint | 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
Color | color upon customers’ request |
Accessory | Two spare tyre carriers and one tool box with tools |
Packaging & Shipping
We will spary wax for the dump trailer before shipment against saltwater corrosion.
Regarding to the shipping method, you could choose which one is better for you, by container vessel, Ro-Ro vessel or by bulk vessel.
Company Information
Established in 1992, our factory is specialized in the manufacture of dump trailer. Located in Liangshan,Jining. We enjoy convenient access to major transportation networks. Our factory covers an area of 15,000 square meters and has around 500 staff members. Furthermore, all our dump trailer are manufactured with advanced equipments and strict QC procedure in order to ensure high quality.
Wih stable and timely supply, credible quality and sincere service, our dump trailer sell well in both domestic and overseas market...
Factory Strength
Welcome to visit our factory and we will pick you up at airport!
Production Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used |
|---|---|---|---|
| CNC Flame Plasma Cutting Machine | GS | 2 | 4.0 |
| Press Machine | JC21-160 | 4 | 4.0 |
| Hydraulic Plate Bender | WC67Y-200/4000 | 2 | 3.0 |
| Hydraulic Pendulum Plate Shears | QC12Y-12*3200 | 2 | 3.0 |
| Drilling Machine with Jointed Arm | ZN3050*16 | 4 | 4.0 |
| Shaping Machine | BS6065 | 2 | 4.0 |
| Universal Rotary Milling Machine | X6232 | 1 | 4.0 |
| CNC Lathe | EL6140N | 2 | 4.0 |
| Saw Machine | GD4028N | 2 | 5.0 |
| Expander | ZX-3000 | 1 | 3.0 |
| Rolling Machine | W11-4-200 | 2 | 3.0 |
| Automatic Round Welding Machine | W11SNC-10-6500 | 1 | 4.0 |
Testing Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used |
|---|---|---|---|
| Vernier Caliper | 0.02 mm | 2 | 3.0 |
| Ultrasonic Thickness Gauge | SMART SENSOR | 1 | 3.0 |
| Sound Level Meter | AZ8928 | 1 | 3.0 |
Certifications
Our Services
1. Professional design model of dump trailer for customers' special requirements.
2. Strict Quality Control for the dump trailer.
3. Longer guarantee terms for the dump trailer in whole Chinese market.
THE MAIN COMPONENTS OF THE WARRANTY PERIOD (SEE TABLE):
ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
MAIN FRAME | FRAME | 18 MONTHS | RUNNING GEAR | AXLE | 18 MONTHS | |
SUSPENSION | 18 MONTHS | AXLE BEARING | 18 MONTHS | |||
KING PIN | 18 MONTHS | WHEEL HUB | 12 MONTHS | |||
BALANCE ARM | 18 MONTHS | TIRE | 12 MONTHS | |||
ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
BRAKING DEVICE | BRAKE DRUM | 12 MONTHS | SUPPORT DEVICE | LANDING GEAR | 12 MONTHS | |
BRKE CHAMBER | 12 MONTHS | SPARE WHEEL CARRIER | 12 MONTHS | |||
AIR RESERVOIR | 18 MONTHS | |||||
ITEM NAME | WARRANTY | |||||
OTHERS | LEAF SPRING | 10 MONTHS | ||||
BRAKE CHAMBER DIAPHRAGM | 10 MONTHS | |||||
EMERGENCY RELAY VALVE | 10 MONTHS | |||||
BRAKE SHOE | 10 MONTHS | |||||
RELAY VALVE | 10 MONTHS | |||||
Welcome to visit our manufactury, we will pick you up from airport.
Похожие товары
Оптовая продажа Гидравлический выключатель TNB5M TNB7E TNB7J TNB16B TNB141 TNB150 TNB151 TNB190 TNB230 TNB310 штифт
355,29 ₽ - 369,79 ₽
Высокая частота, 1000 мм, Лидер продаж, электрическая машина для резки бетона
394 685,10 ₽ - 519 322,50 ₽
Поставка для холодильника Danfoss Secop TLES4KTK TLES5KTK
120,00 $ - 150,00 $
Новый стиль оригинальный 1 литр/бутылка Galaxy Dx5 Экологичные Сольвентные чернила для DX5 DX7 TX800 XP600 печатающая головка эко-растворитель струйный принтер
8,68 $ - 8,90 $
Мужские духи charm 50 мл EDP долговечные французские импортные ароматы премиум-класса мужские одеколонные духи
4,18 $ - 5,23 $
2-оксоглютаровая кислота AKG кальция альфа-кетоглутарат порошок кальция альфа-кетоглутарат

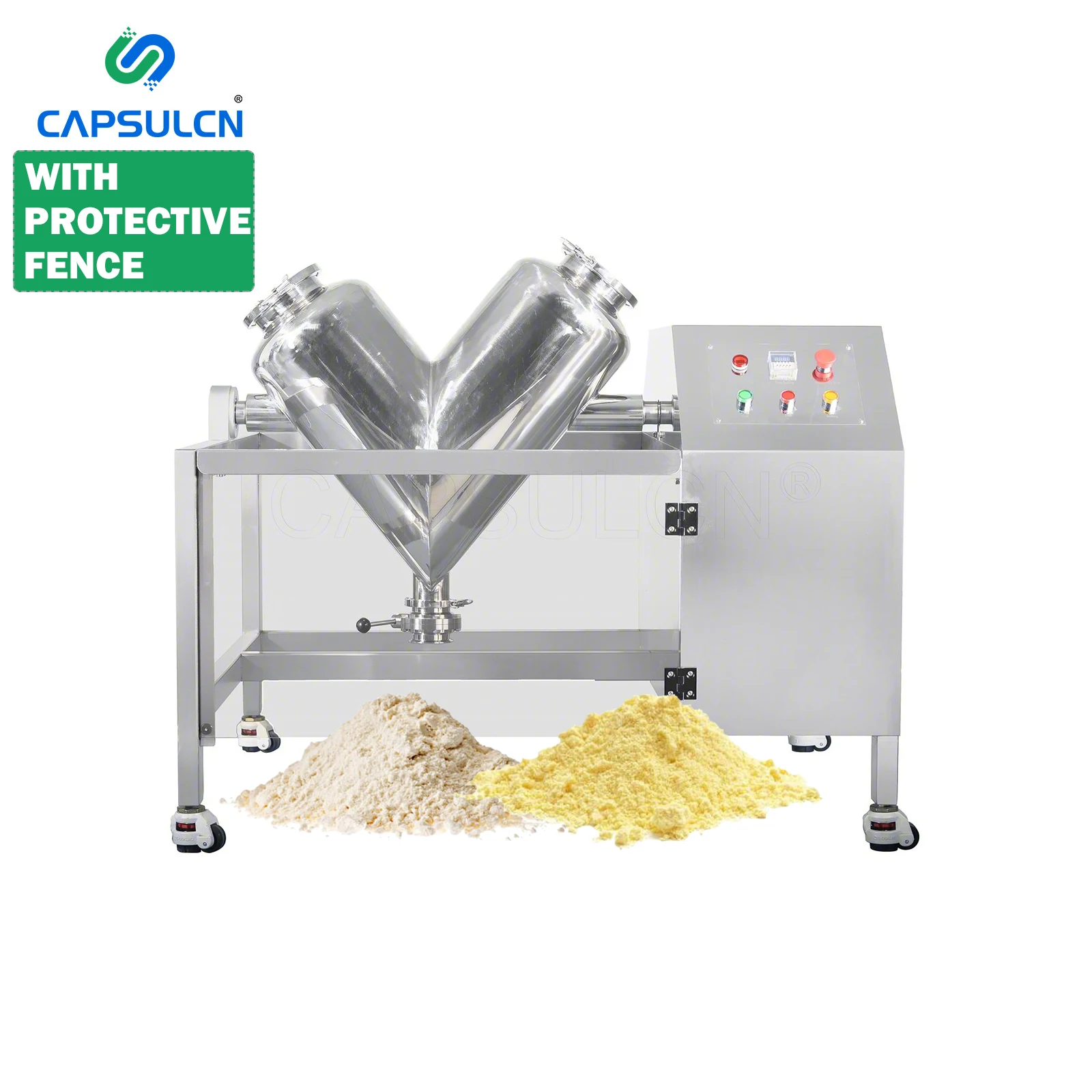

Новинка, смешивание порошка V для металлического углеродного кремния, молочного питания, сухого порошка V, блендер, миксер, машина
