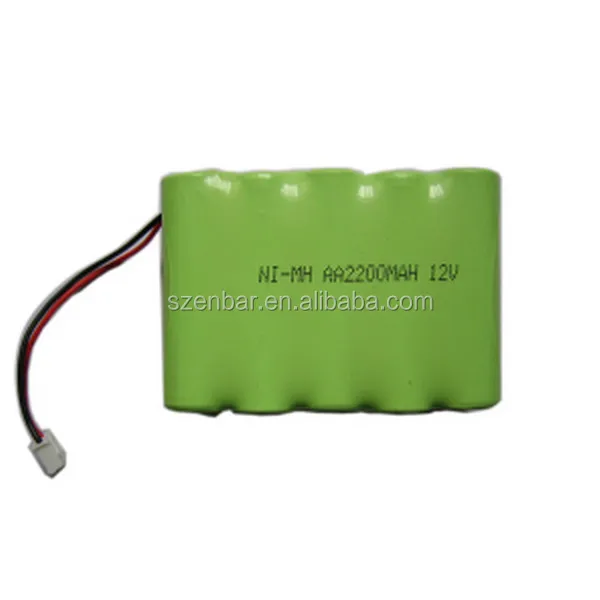

12v 2200mAh NIMH AA battery pack
Specification:
Nominal Voltage | 12V | |
Nominal Capacity | 2200mAh | |
Standard Charge | 220mA(0.1C)×15h | |
Rapid Charge(with –ΔV control system) | 1100mA(0.5c)×3h | |
Trickle Charge current | 22mA(0.01C)~66mA(0.03C) | |
Discharge cut-off Voltage | 10.0V | |
Maximum continuous discharge current | 2200mA(1C) | |
Temperature | Standard charge | 0~45℃ |
Rapid charge | 10~45℃ | |
Trickle Charge | 0~45℃ | |
Discharge | -20~60℃ | |
temperature | Within 2 years | -20~30℃ |
Within 6 months | -20~40℃ | |
Within 1 month | -20~50℃ | |
Humidity for operation and storage | Max 85% | |
Approx weight | 300g |
Features:
1. Long operation life: Cycle life is more than 500 times in normal conditions;
2. Wide operation range: It can be operated in the environment of -18~50centigrade;
3. Small self discharge: Load holding capacity is batter than IEC standard;
4. Strong emergency adaptability: It can charge quickly in 1~6h in emergency conditions;
5. Good safety and reliability: Each battery has a safety valve, so it can have high safety and reliability during long-period operation process or in major failures.
Application:
1. Power tools: electric drills, screwdriver and electric saw and so on;
2. Power toys: electric auto, electric plans ;
3. Video cassette recorder ;
4. Other equipment in high power discharge.
The other models:
Model No. |
Voltage(V) | Capacity | Dimensions | Standard Charge | Rapid Charge | Approx. Weight. (g) | ||||
Min. (mAh) | Typical (mAh) | Height (mm) | Diameter (mm) | mA | H | mA | min | |||
AAA30 | 1.2 | 300 | 320 | 44.0±0.5 | 10.0+0.3 | 30 | 16 | 300 | 72 | 8.0 |
AAA60 | 1.2 | 600 | 650 | 44.0±0.5 | 10.0+0.3 | 60 | 16 | 600 | 72 | 11.5 |
AAA70 | 1.2 | 680 | 720 | 44.0±0.5 | 10.0+0.3 | 70 | 16 | 700 | 72 | 11.5 |
AAA80 | 1.2 | 780 | 800 | 44.0±0.5 | 10.0+0.3 | 80 | 16 | 400 | 135 | 12.5 |
AAA90 | 1.2 | 860 | 900 | 44.0±0.5 | 10.0+0.5 | 90 | 16 | 450 | 140 | 12.5 |
AAA95 | 1.2 | 900 | 950 | 44.0±0.5 | 10.0+0.5 | 95 | 16 | 450 | 145 | 13.0 |
AA70 | 1.2 | 700 | 730 | 49.8±0.5 | 13.9+0.5 | 70 | 16 | 700 | 72 | 14.0 |
Welcome to contact us for more details!
