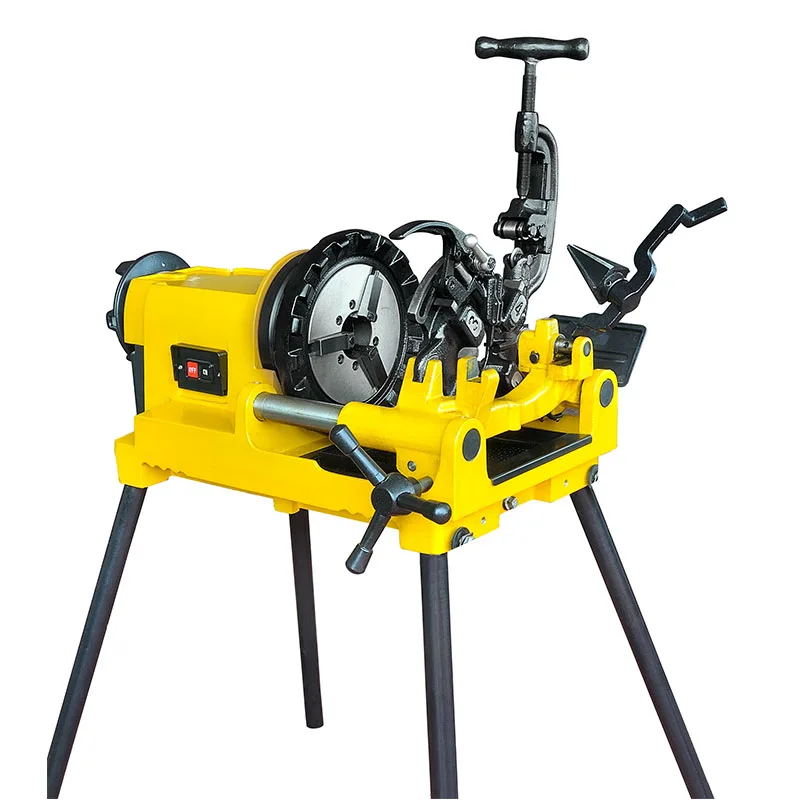

Электрическая машина для нарезки резьбы труб SQ50E на продажу 1/2 2 дюйма одобрена

Reliable and proven for constand professional use for up to 2" pipe threading. Ideal for stationary threading in workshop, on building sites, for repair and service.

Universal applicable, can also work on workbench.

Can be interchanged with RIDGID 300C Compact threading machine.

Compact and durable design with heavy-duty performance. Easy and fast transport and set-up.

With powerful universal motor, net weight only 65kg.

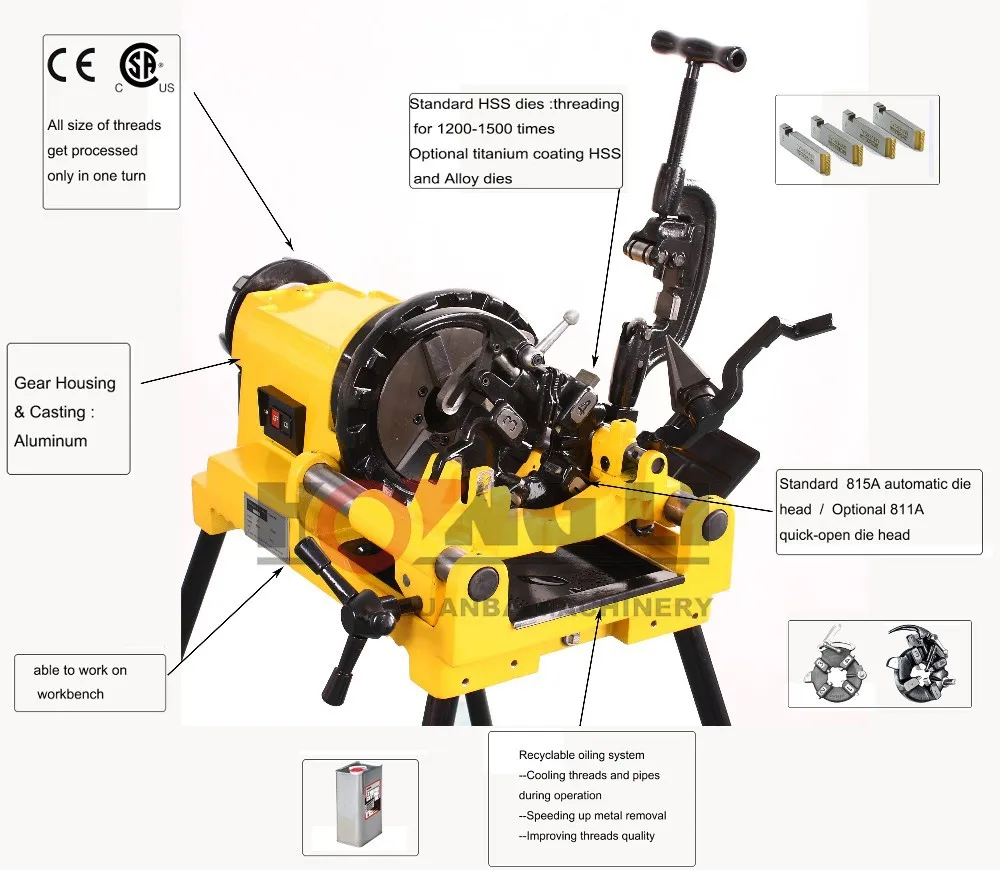

All size of threads get processed only in one turn.

High-performance die head, the same with RIDGID type, can insert RIDGID's 1/8", 1/4"-3/8", 1/2"-3/4", 1"-2" universal dies.

High precision, to ensure the threads accuracy.

Use ductile iron as the material, to make it strong and durable. Hard to damage.

Equipping RIDGID type High-Speed Steel (HSS) threading dies for standard, and use full milling technology to process dies teeth, sharp and durable.

Around 1200 times using life for galvanized pipe tested.

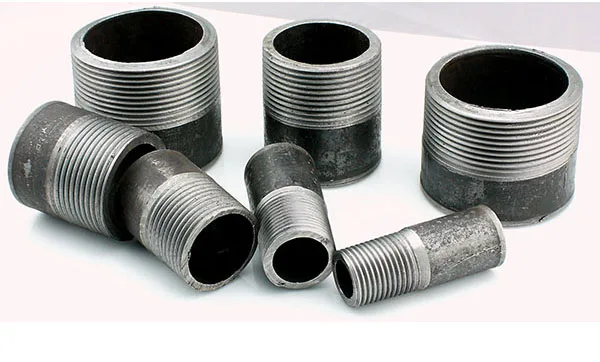

Can deal with galvanized pipe, seemless steel pipe, stainless steel pipe, black iron pipe.

Threading die heads for choosen.

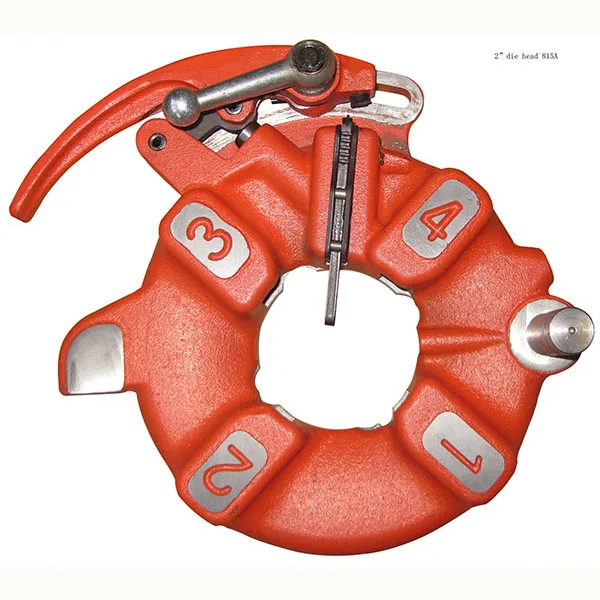

RIDGID type 815A, automatic for standard.

RIDGID type 811A, quick-openning for optional.

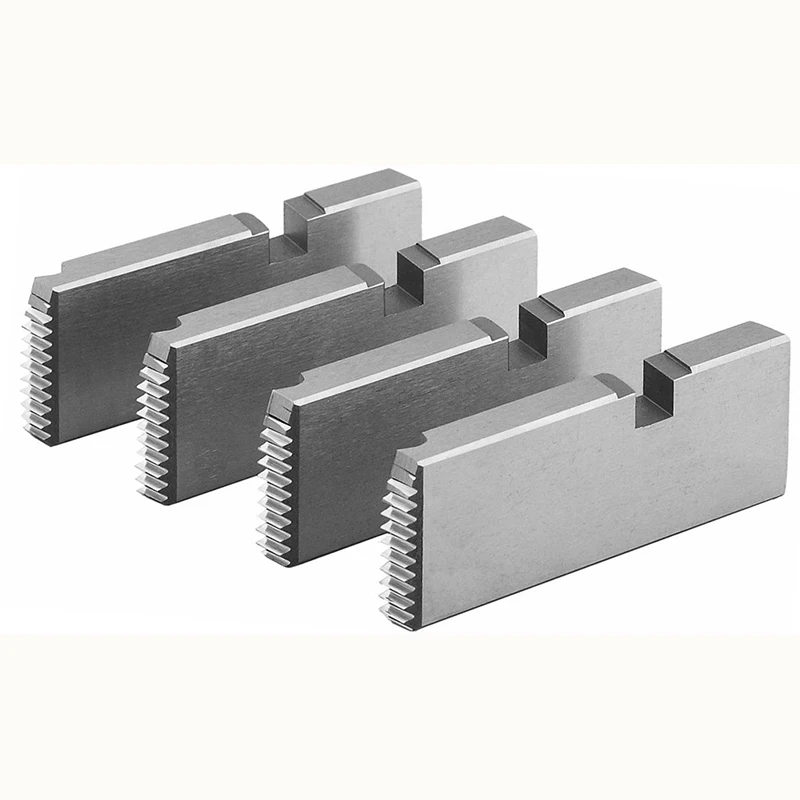

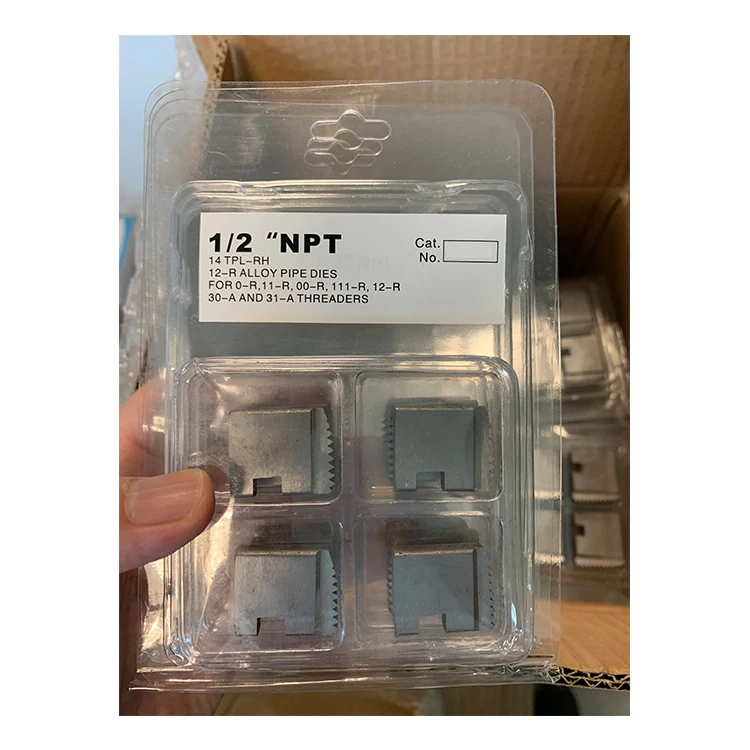

Threading dies for choosen.

RIDGID universal type HSS dies, 1/2"-3/4", 1"-2" for standard.

HSS 1/4"-3/8" dies for optional.

Alloy M14-45 dies for optional.

Titanium-coating 1/4"-3/8", 1/2"-3/4", 1"-2" dies for optional.

Also can choose to equip Folding Wheel Stand to make the machine easy to transport.

And to equip Foot Padel Switch, to make the easy to operate.

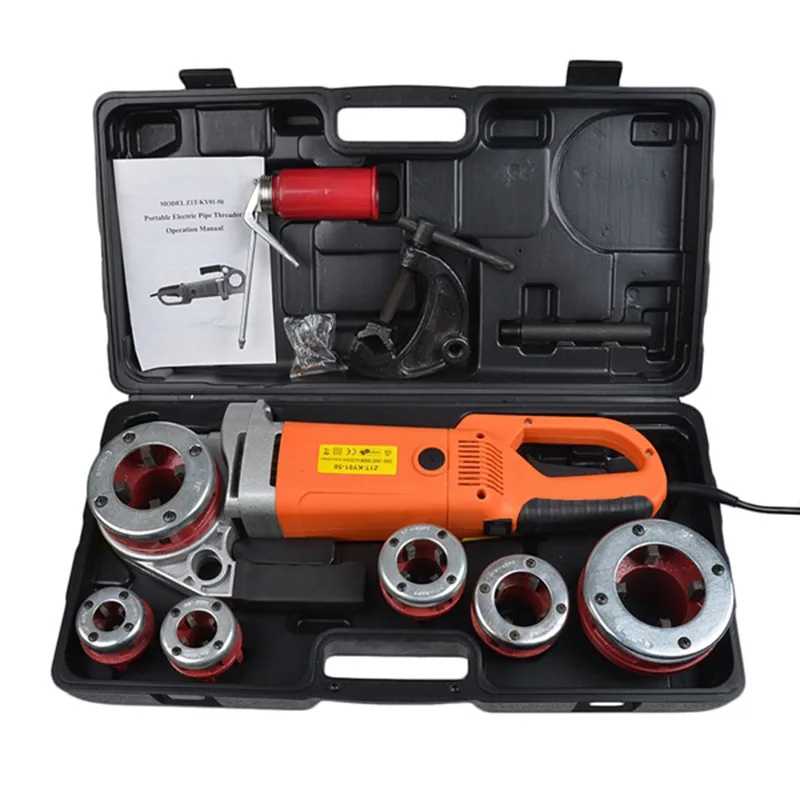

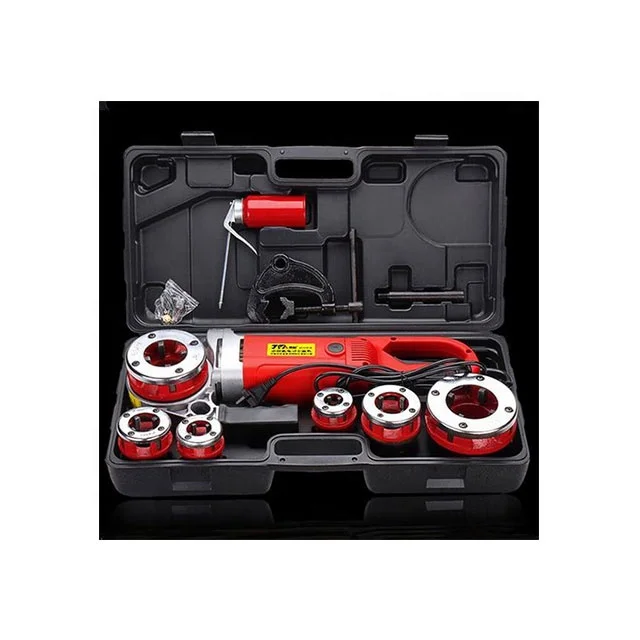

Model:SQ30-2B portable pipe threader

Capacity:1/2“-2” (DN 15mm-50mm) pipes

Motor:1200~1350W Universal type

Speed:28 RPM for threading, 51 RPM for reverse

Die Heads Included:  ½”, ¾”, 1”, 1 ¼”, 1 ½”, 2” (Type 11R)

Dies Material:  Alloy standard, (HSS optional)

Certificate:  CE&CSA

Model :SQ50E electric pipe threader

Capacity: 1/4”-2”  pipe, 1/4”-1 1/4”bolt.

Motor: 1500W Universal reversible motor

Spindle Speed: 38 RPM (No load)

Die head: RIDGID 815A automatic type 1/8”-2”,(RIDGID 811A quick-open type optional)

Dies Included: 1/2”-3/4”, 1”-2”, (1/4”-3/8” optional)

Certificates:CE&CSA

Model:SQ80C1 electric pipe threader

Capacity: 1/4”-3” pipe, 1/4”-1 1/4” bolt

Motor: 1500W Universal reversible motor

Spindle Speed: 32 RPM (No load)

Die head: RIDGID 815A automatic type 1/8”-2”,   and automatic type 2 1/2”-3”

Dies Included: 1/2”-3/4”, 1”-2”, 2 1/2”-3”, (1/4”-3/8” optional)

Certificates:CE&CSA

Model:SQ100F electric pipe threader

Capacity:1/4”-4” pipe, 1/4”-1 1/4”bolt.

Motor: 1500W Universal reversible motor

Spindle Speed: 36 RPM for 1/2 ”-3/4” pipes, 20 RPM for 1”-2” pipes, 11 RPM for 2  1/2”-4” pipes (No load)

Die head: RIDGID 711/911 automatic type 1/8”-2”, and RIDGID 714/914 automatic type 2  1/2”-4”

Dies Included:1/2”-3/4”, 1”-2”, 2  1/2”-4”, (1/4”-3/8” optional)

Certificates:CE&CSA
