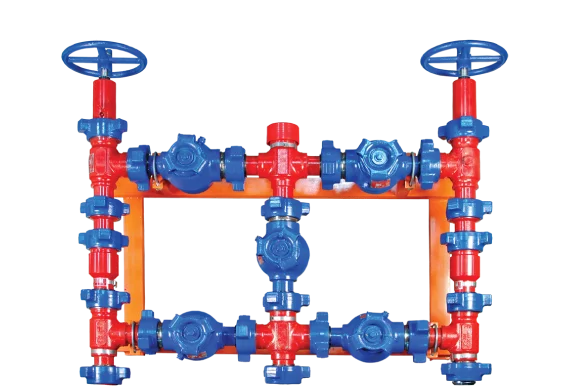

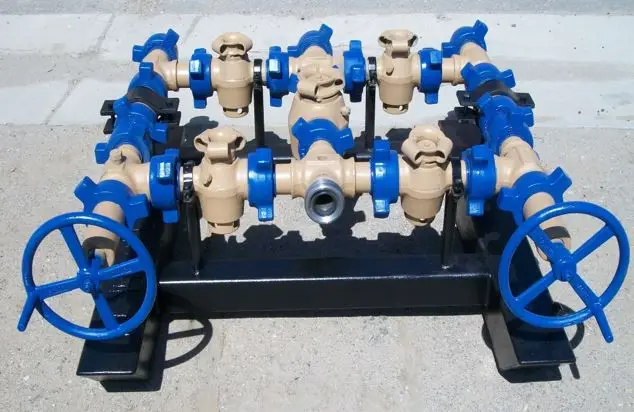

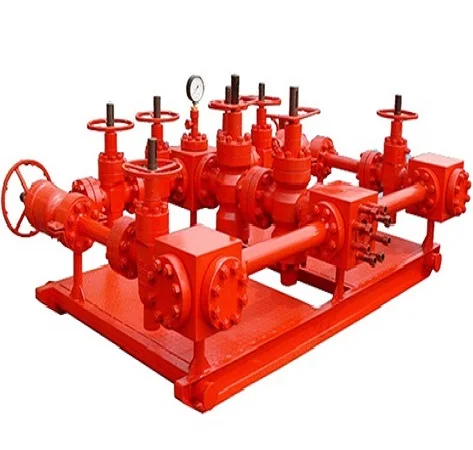

Гидравлический Дроссельный коллектор API 16c с дроссельным клапаном и панелью управления

Описание и отзывы

Характеристики

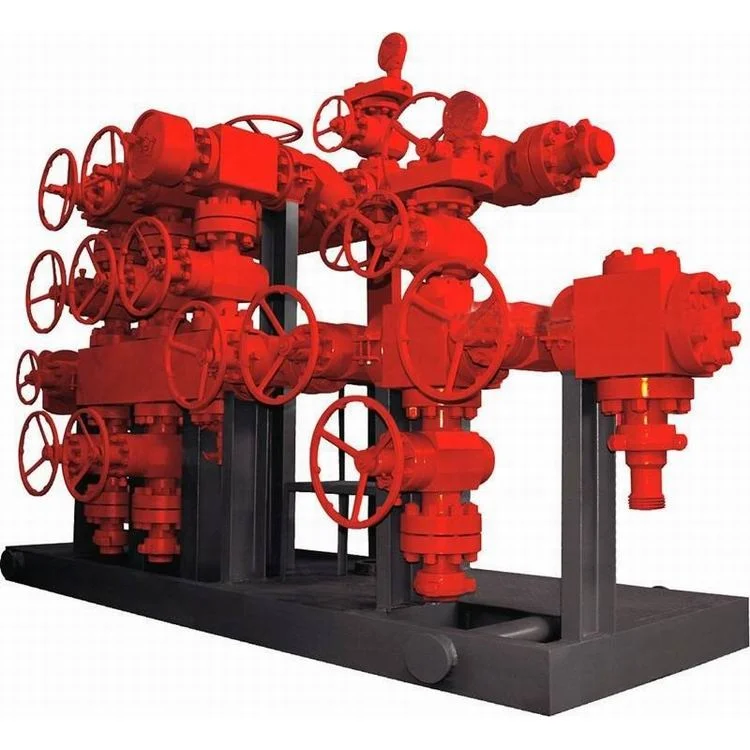

                             api 16c choke manifold for drilling

Specification:

Working pressure (PSI): 2000, 3000, 5000, 10000, 15000

Medium: oil, gas, ,mud.

PSL: PSL1 to PSL4.

Material Grade: EE, FF, HH.

Master bore size : 2-1/16'', 2-9/16'', 3-1/8'' (3-1/16''), 4-1/16''.

Certificate: conforms to API 16C.

Choke and kill manifolds are wellhead equipments that are assembled on the blowoul preventer units. After the blowout preventers are closed, the manifolds assure the following operations:

To direct the drilling fluid from the well in to the buffer tanks through adjustable chokes, drilling chokes or freely,in order to obtain a controlled reduction of the pressure into the well;

The main characteristic:

To direct the drilling fluid in the reversed direction, in order to stop the blowoul manifestation with the help of the

pressure exerted on the layers, to fill up the layers or in other purposes;

-       Measuring the pressure in the annular space of the wellhead;

-       Fluid expansion after it passes by the adjustable chokes;

-       Collect and distribute the well fluid depending on its nature (mud, oil, gases and so on) through five outlet

        connections.

-       Measuring the pressure in the manifold collector (after the fluid passes by the adjustable chokes).

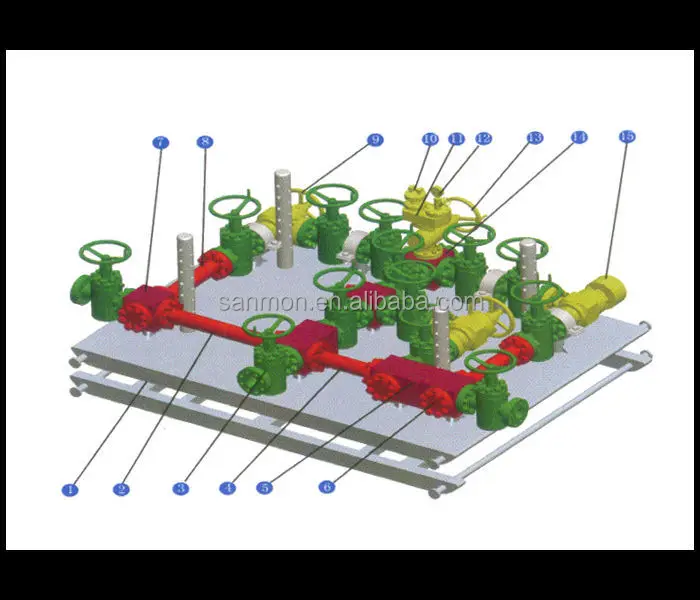

-       Choke and kill manifolds containing the main follow components: handwell valves, hydraulic actuated valves,

        adjustable chokes, drilling chokes, check valves, pressure gauge.

-       All component valves and chokes are acc. to API 6A;

Sanmon Machinery Equipments Co., Ltd. provides many kinds of

wellhead equipment, such as casing head, tubing head, x-mas tree

and some parts. All our wellhead products are according to API6A&16A.

We not only have standard design wellhead products, but also provide

products according to customer's requirements.

package and delivery

We promise double packages to prevent rusting during shipment!
