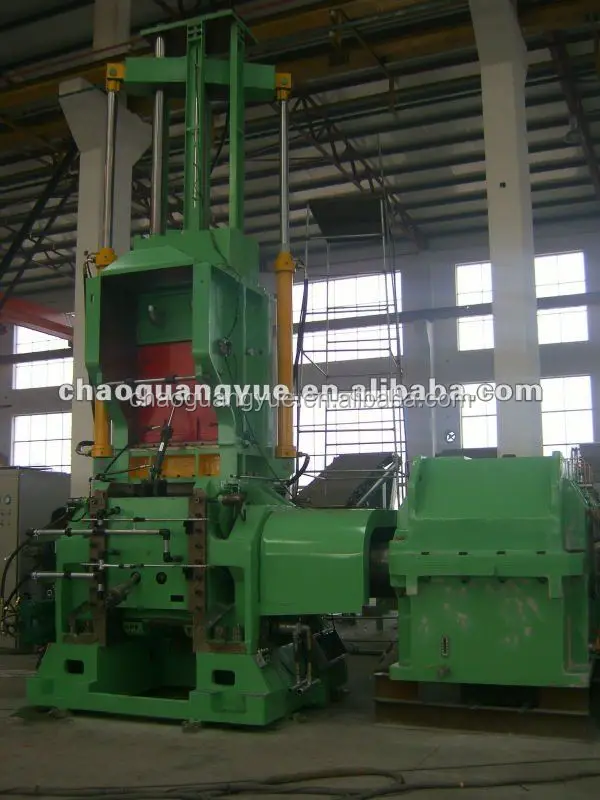

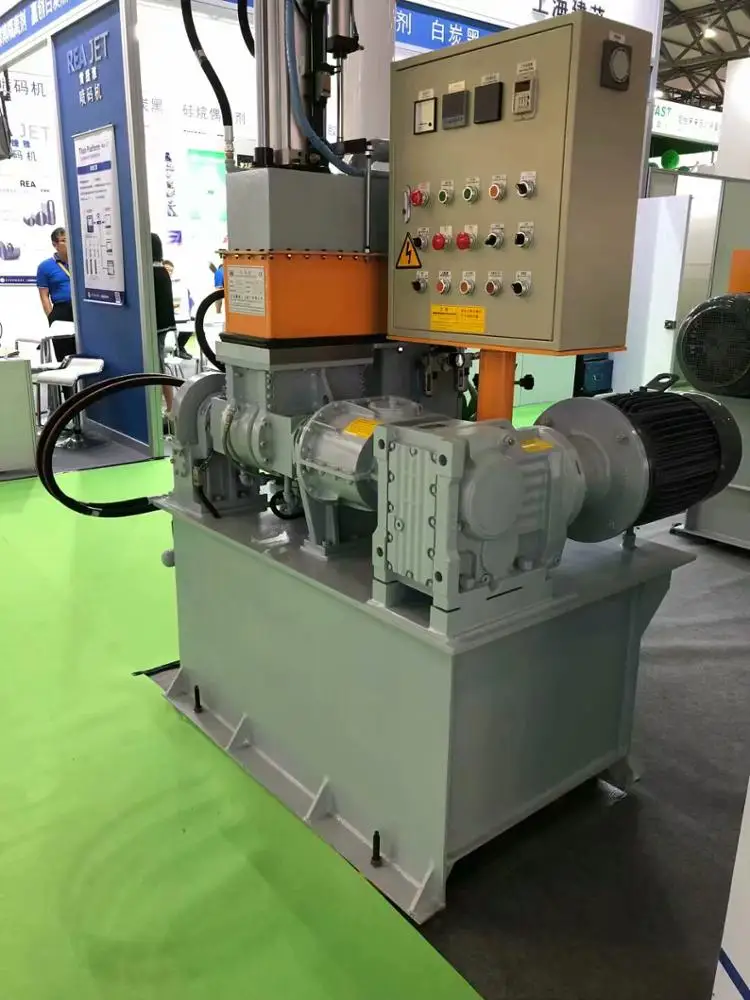

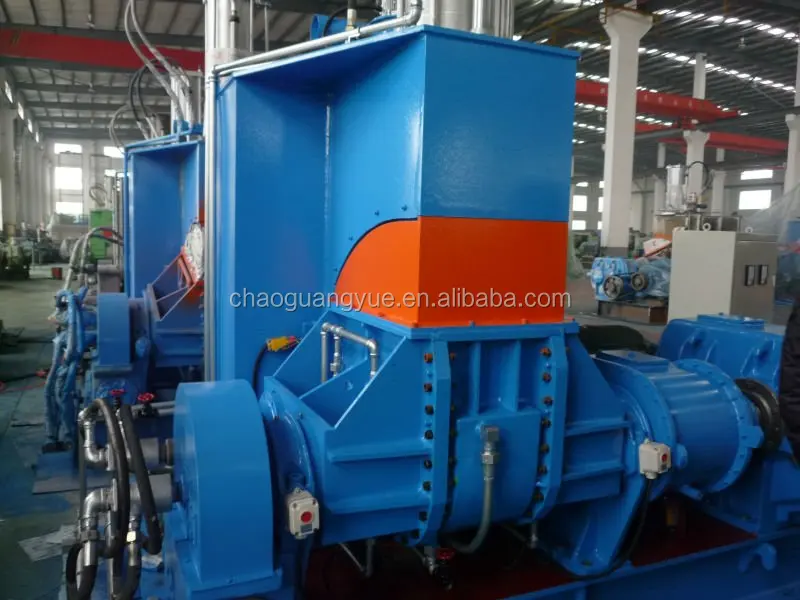

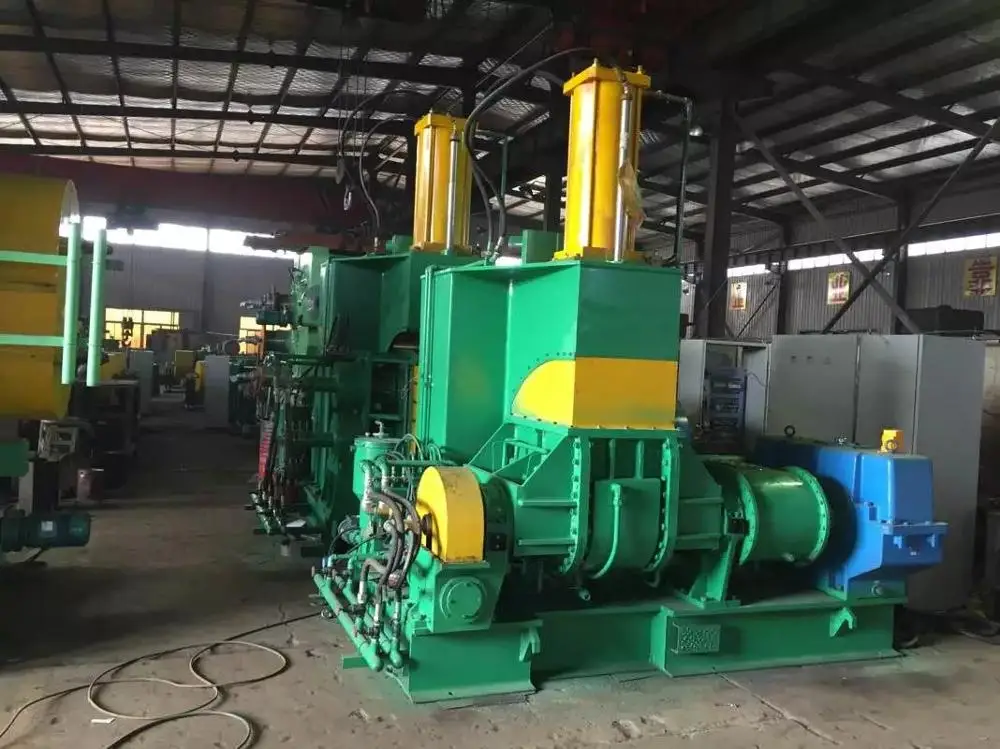

10, 20, 35, 55, 75, 110L Rubber Compounding Dispersion Banbury Kneader Machine Factory Plant

1-Name: Rubber banbury mixer Internal rubber mixer, Rubbe kneader.

2-Function:

Dispersion kneader, equipped with a pair of rotors which perform relative rotation with the specific shape, is a kind of machine for intermittently plasticating and mixing the polymer materials under with adjustable temperature and pressure.

3- Range for materials processing:

Rubber Compounds and End Products
Natural Rubber, Synthetic Rubber, Mastication of NR, SBR, CR, EPDM, Fluorine Rubber, Silicone Rubber, ECT.

4-Specification: XSN-110/30

5-Description:

1)Maximum Dispersion & High Production

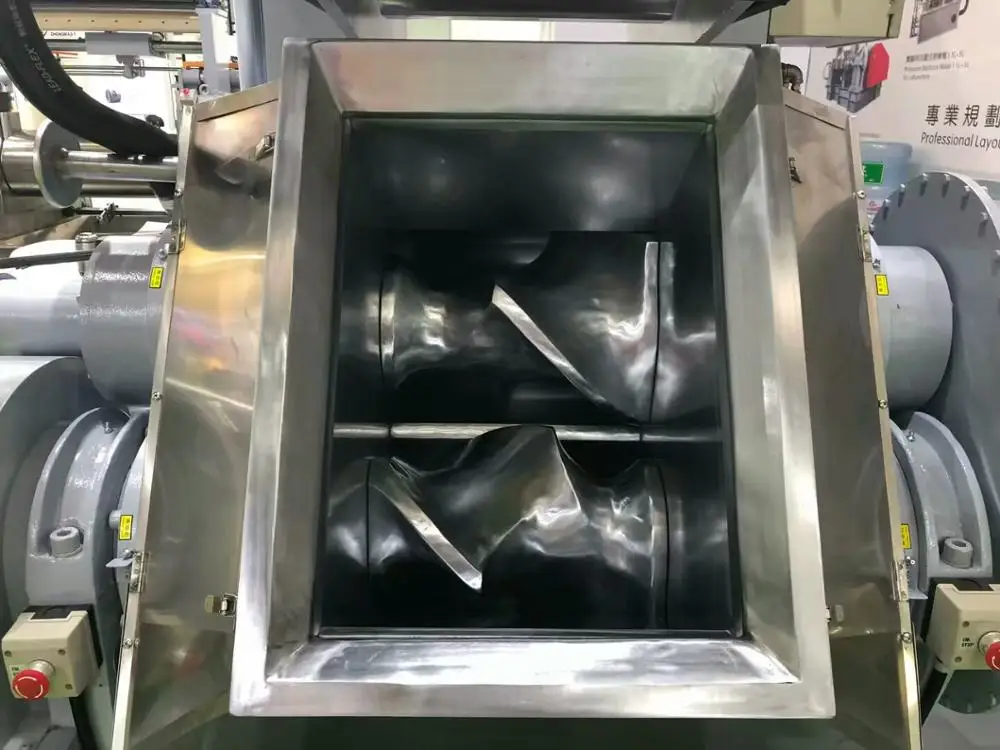

Double blades, proper clearance & high cooling effect gives excellent dispersion . Its production is 4 to 5 times more than an ordinary mixing mill thus saving on labor and electricity.

2)Easy Cleaning and Colour Change
Mixing chamber can be tilted which enables easy cleaning, because of this, different coloured compounds can be made nice.

3)Short Mixing Time
Mixing time ranging from 6 to 12 minutes depending on compound's specific gravity.

6- Main parameters:

Parameters	XSN-35/30	XSN-55/30	XSN-75/30	XN-110
Mixing capacity (L)	35	55	75	110
Main Power(kw)	55	75	90	160
Brake Motor (kw)	2.2	3.0	4.0	5.5
Tilting angle	140	140	140	140⁰
Air compressor (kw)	5.5	7.5	10	10
Dust collector	HLL-10	HLL-15	HLL-20	HLL-30
Cooling water (MPA)	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
Heating Steam (MPA)	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
Electric Heater (kw)	12	15	18	24
Overall Size L×W×H (mm)	3200×1900×2950	3750×1950×3050	3760×2143×3050	3930×3000×3660
Weight(kg)	6500	7800	10500
