Aluminum window corner cleat cutting machine/aluminum window making machine





Product Description

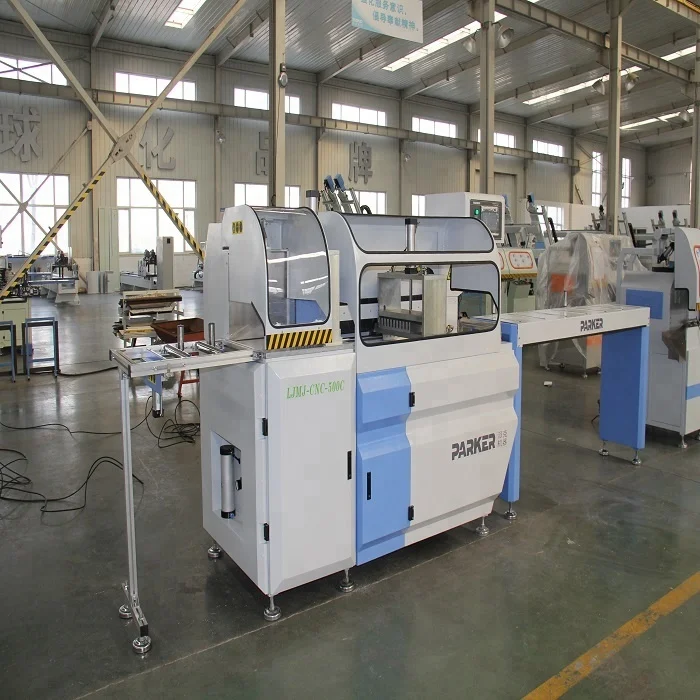

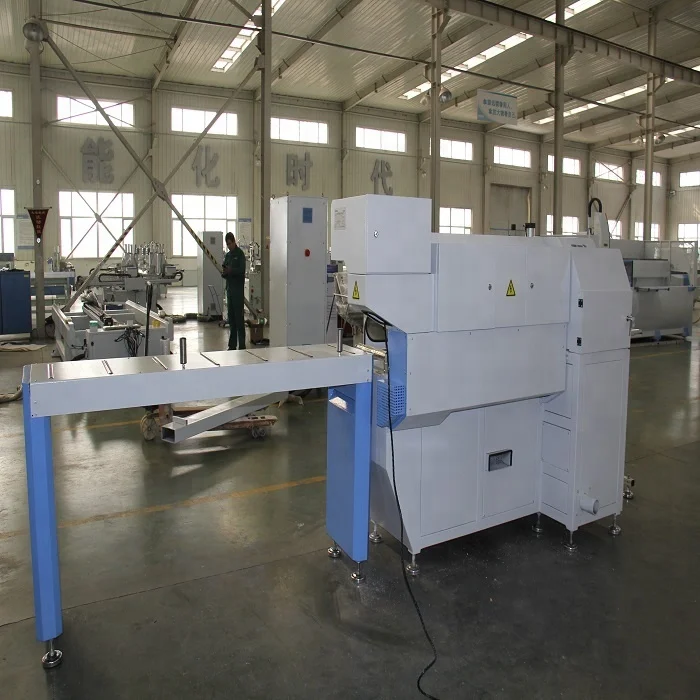

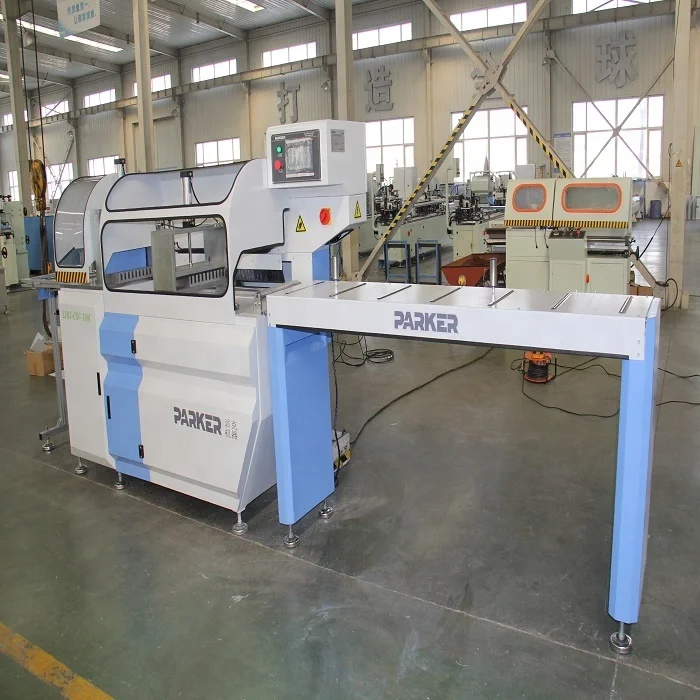

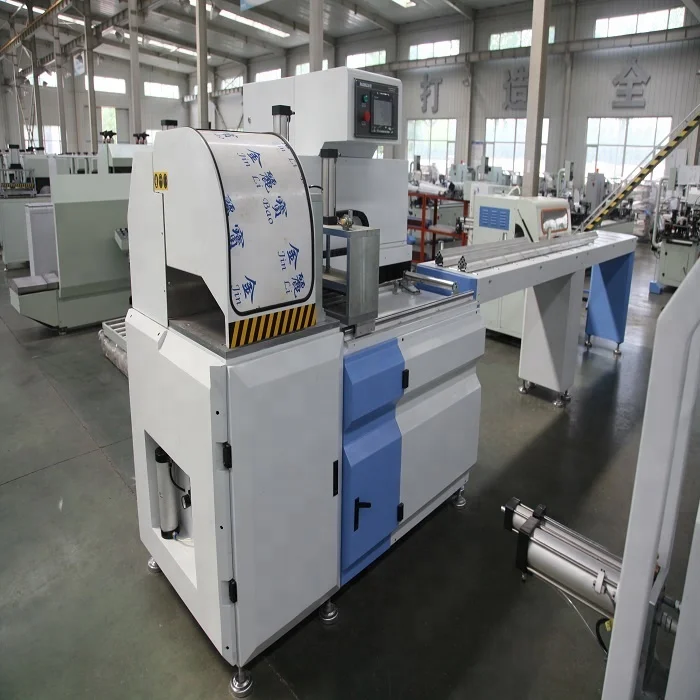

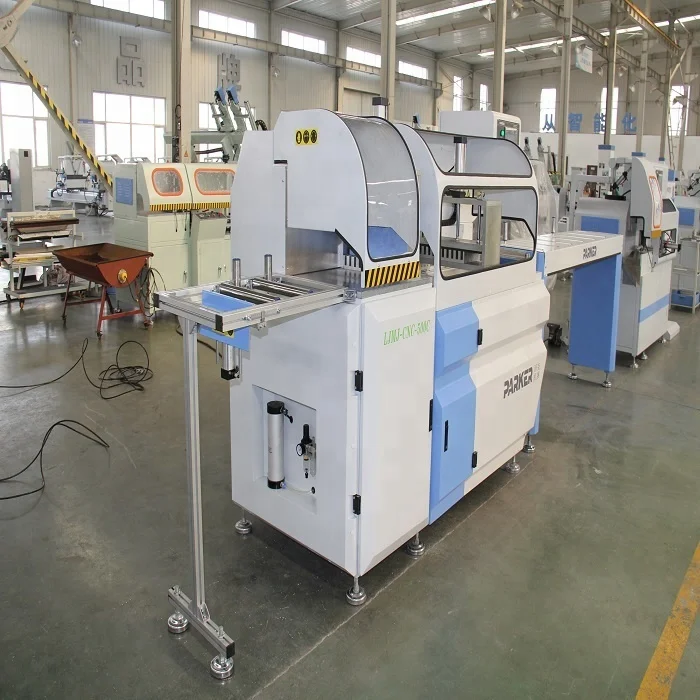

Aluminum Window Door Corner Cutting Machine:Model:LJMJ-500B





Features:

  • For aluminium corner key cutting.
  • High efficiency, high precision, for large scale produce.
  • Automatically cutting and counting.
  • When power is turned off suddenly, clamping devices keep fixing profiles to protect wokers and machine.
  • Safe guards get down during cutting, arise after cutting.
  • Automatically feeding by servo motor driving ball screw.
  • Imported high quality hard metal saw blade-WEMARO; servo motor and PLC-OMRON; touch screen-Eview; squar guide rail-HIWIN.

Parameters:

  • Name

Aluminum CNC corner key cutting machine

  • Model

LJMJ-CNC-500B

  • Power

380V/50HZ/2.6Kw

  • Rotary speed

2840rpm/min

  • Air pressure

0.5-0.8MPa

  • Air consumption

10L/min

  • Blade specification

Φ500xΦ30x4.4 Z=120

  • Feeding length

5-700mm

  • Cutting width

Max. 140mm

  • Cutting height

Max. 140mm

  • Weight

About 800Kg

  • Overall dimension

About 1500x1600x1600mm
