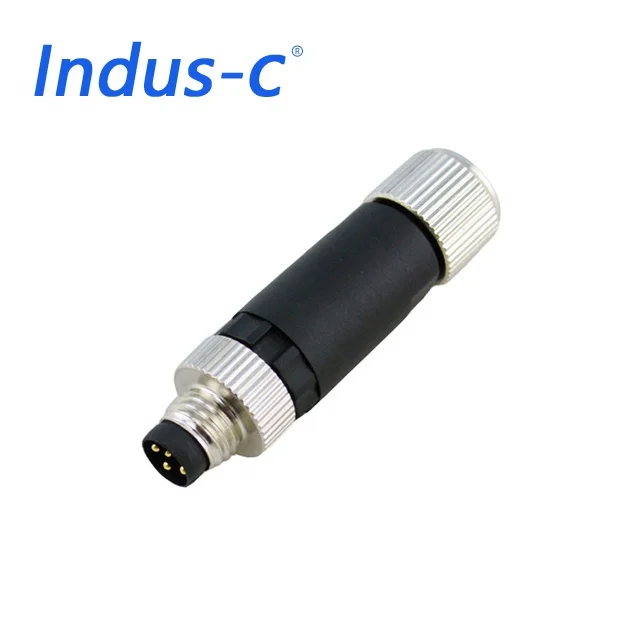

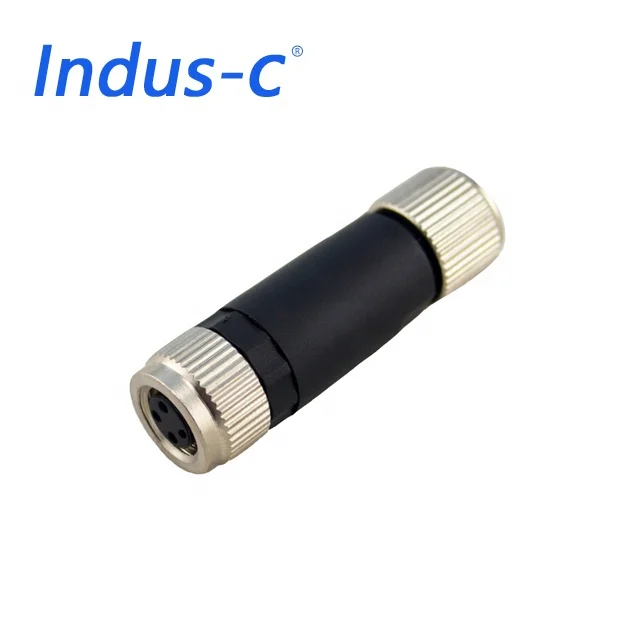

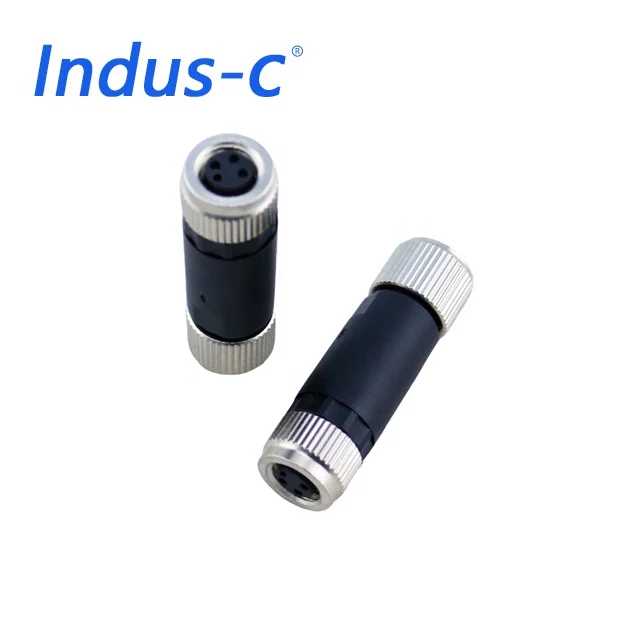

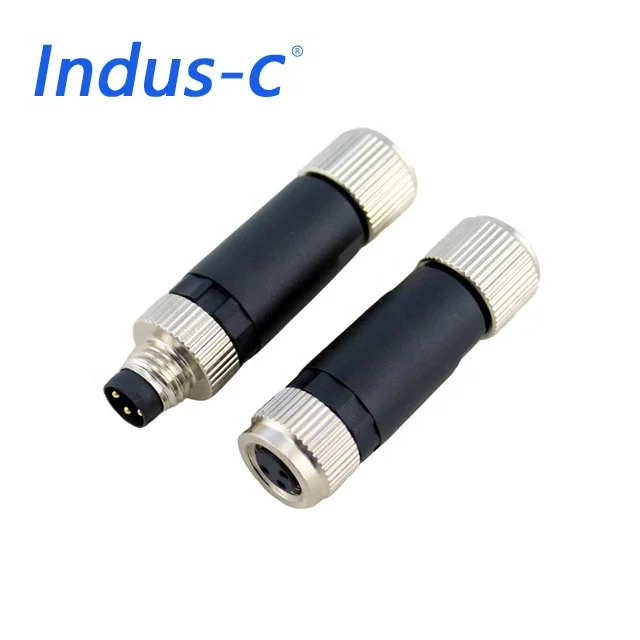

Поле подключаемое разъем осевой мужской женский 4 полюсный автоматический m8

3 pin, 4 pin are available

Anti-vibration locking screw design

IP67/IP68, RoHS, REACH, UL certification

A coding, 3 pin

1--------------------Brown
3--------------------Blue
4--------------------Black

A coding, 4 pin

1--------------------Brown
2--------------------White
3--------------------Blue
4--------------------Black

Electrical Data:
Rated current: 3A/3A
Rated voltag: 60V/30V
Contact resistance: ≤5mΩ
Insulation resistance: ≥100MΩ

Connector Specification:
Gender: Male/Female
Insert: PA66+GF
Contacts: Brass with gold plated /Phosphorus copper with gold plated
Screw: Brass with nickel plated

Over-mold: PVC / TPU
Connector locking system: Screw locking
Degree of protection: IP67 in locked condition

Wire Specification:
Wire gauge (AWG): 22AWG/24AWG
Wire gauge (mm²): 0.34mm²/0.25mm²
Jacket material: PVC/PUR
Temperature range: -40°C ~ +105°C

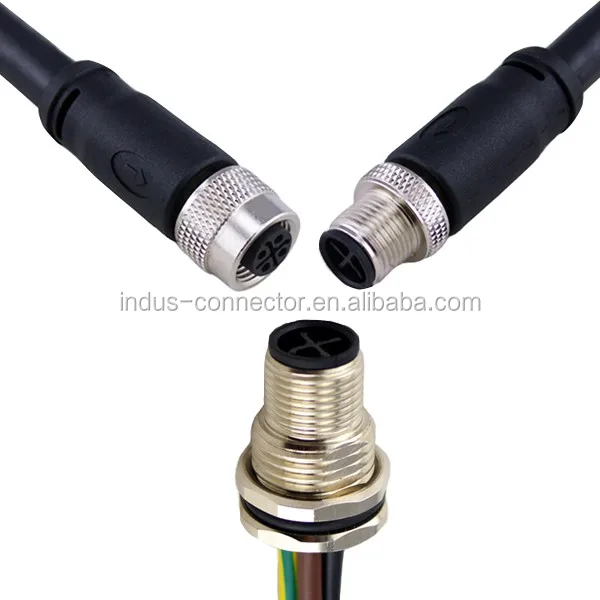

• The M8 circular connector we produced conform to international standard IEC61076-2-104 with M8*1.0 screw locking compatible with Binder, Phoenix, LTW, Molex...

• Waterproof rating is IP67, protected from dust and water during immersion,resistant to many oils and chemical

• All materials conform to RoHS, REACH without any harmful substance comprising strickly checked QC

• 100% testing for open circuit and short circuit and 100% smooth operation before shipping
• Insulation resistance: 10M OHM
• Hi-pot: DC 300V 10ms

• Low cost but good quality in ip68 waterproof in locked condition with ISO9001 management under efficient service

• Provide free samples within 2 working days if it is normal product with existing tooling

• 10 years quality assurance

• OEM, ODM are available

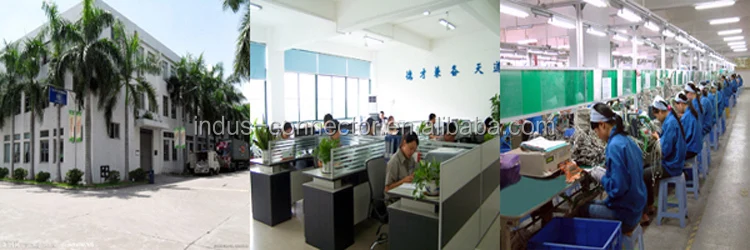

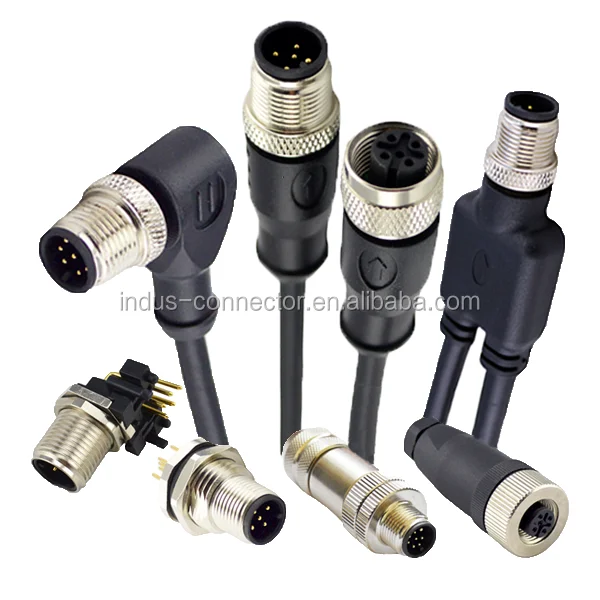

With 9 years experience in self researching and developing covers diversified connectors equivalent to binder, Phinex, LTW, Lemo, Shenzhen Indus-connector Limited, a well-known for sensor conenctor, waterproof connector, circular connector, industry connector and customized solution connector manufacturer, mainly in M5, M8, M10, M12, M16, M23 and 7/8''.
