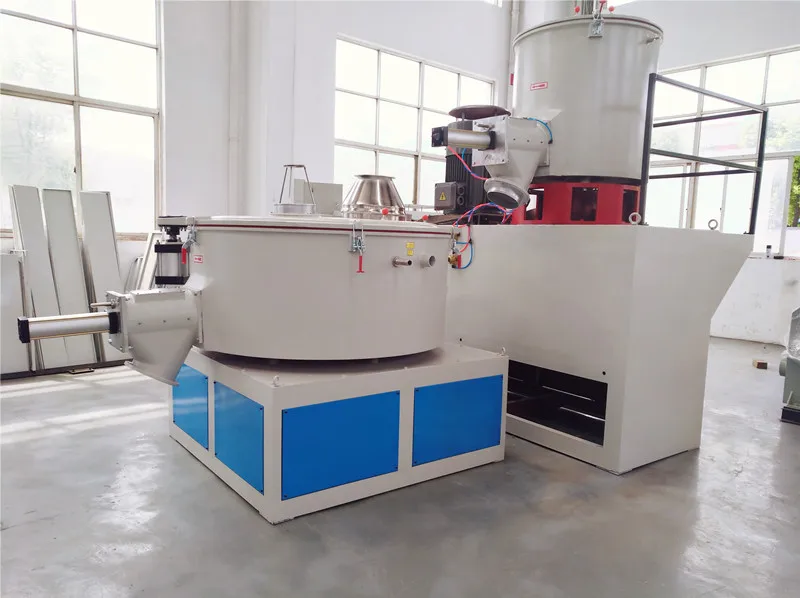

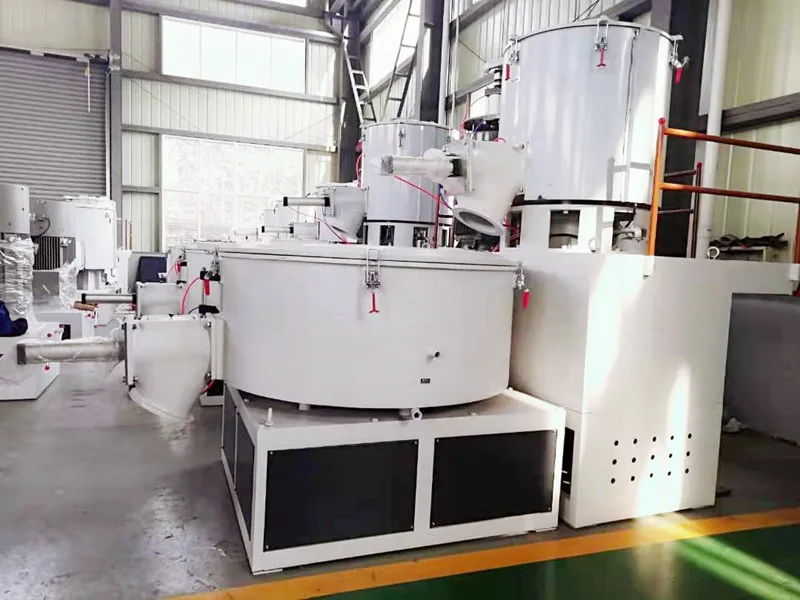

Product name: 500kg/h PVC High speed heating/hot cooling mixer
Feature:
1. The upper set is for hotting, and the lower one is for cooling;
2. We also can use the variable-frequency motor as your needs;
3. Five parts included in this unit: two containers, transmission agent, pneumatic components, cooling system and base structure.
4. The container:
A. The interior is made of stainless steel with polished finish;
B. The cover adopts aluminium alloy castings with inlet orifice and air exit hole, we also can produce it as your requirements;
C. The discharge hole is made of aluminium alloy; the valve is controlled in the force of pneumatic;
D. The paddle is made of stainless steel in the structure of top, center and bottom;
E. Temperature measuring equipment (TME) in the interior wall of the container;
5. Specifications:
Model | Total capacity | Effective capacity | Rotational speed | Power | Water consumption volume(m3/h) | Unloading mode | Appearance size(m) | Total |
SRL- | 100/ | 75/ | 650/ | 14/ | 3.5t/h | Pneumatic | 2500× | 3T |
SRL- | 200/ | 150/ | 460/ | 30/ | 5 t/h | Pneumatic | 4580× | 3.5T |
SRL- | 300/ | 200/ | 475/ | 40/ | 5.8 t/h | Pneumatic | 4580× | 3.8T |
SRL- | 500/ | 375/ | 500/ | 47/ | 6.9 t/h | Pneumatic | 4600× | 5.8T |
SRL- | 500/ | 375/ | 500/ | 55/ | 10 t/h | Pneumatic | 4600× | 7.3T |
SRL-Z800/ | 800/ | 600/ | 370/ | 60/ | 10 t/h | Pneumatic | 6230× | 8T |
SRL-Z800/ | 800/ | 600/ | 370/ | 83/ | 12 t/h | Pneumatic | 4850× | 8.5T |

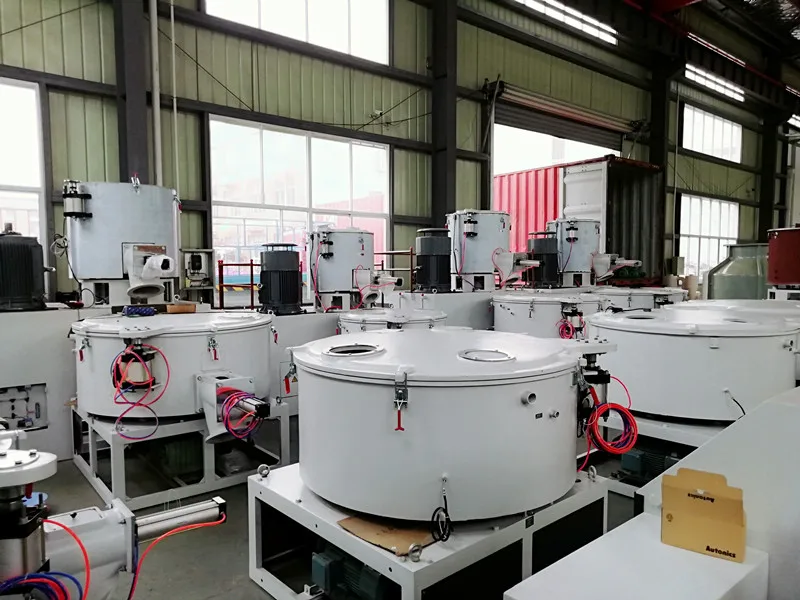

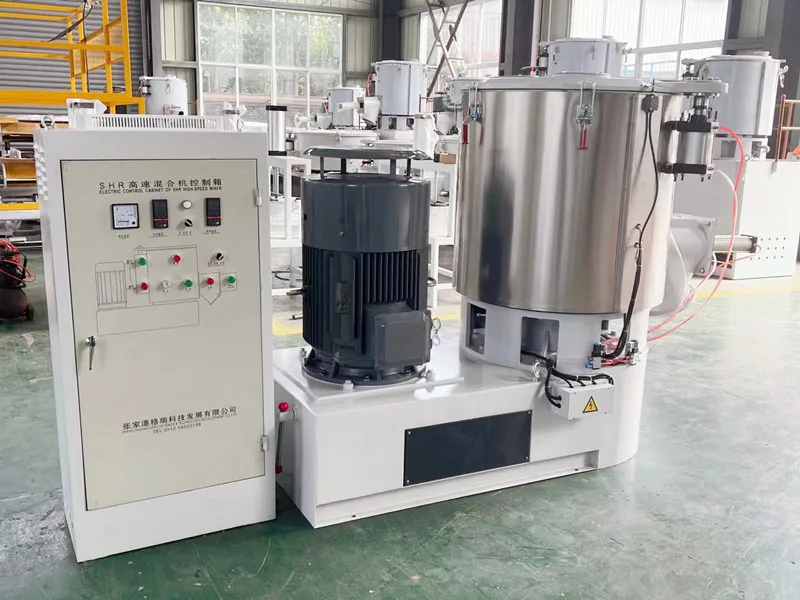

All the mixers we offer:
For more information, please feel free to contact me as the information below.
