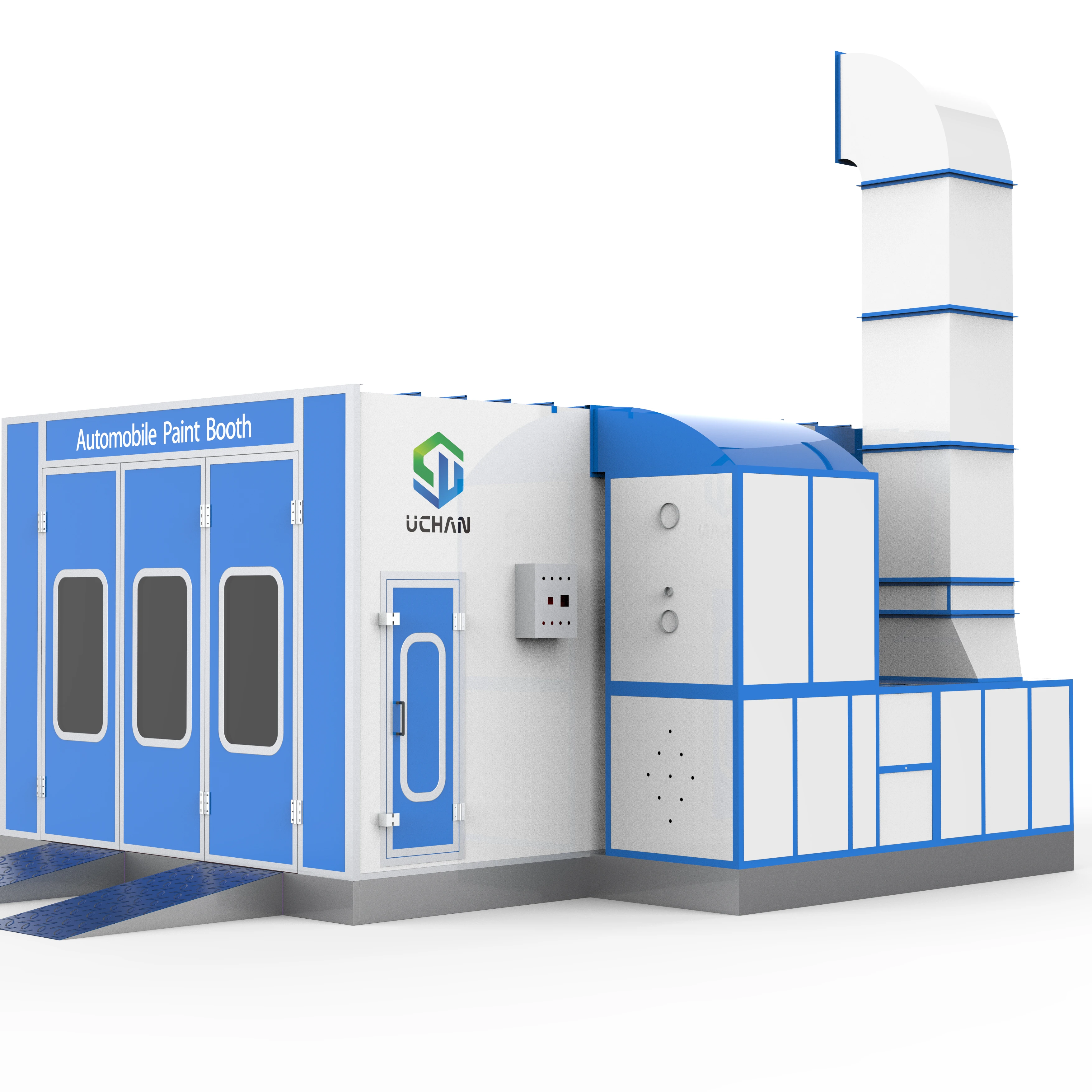

Немецкая техническая окрасочная камера/окрасочная камера б/у

Описание и отзывы

Характеристики

House system

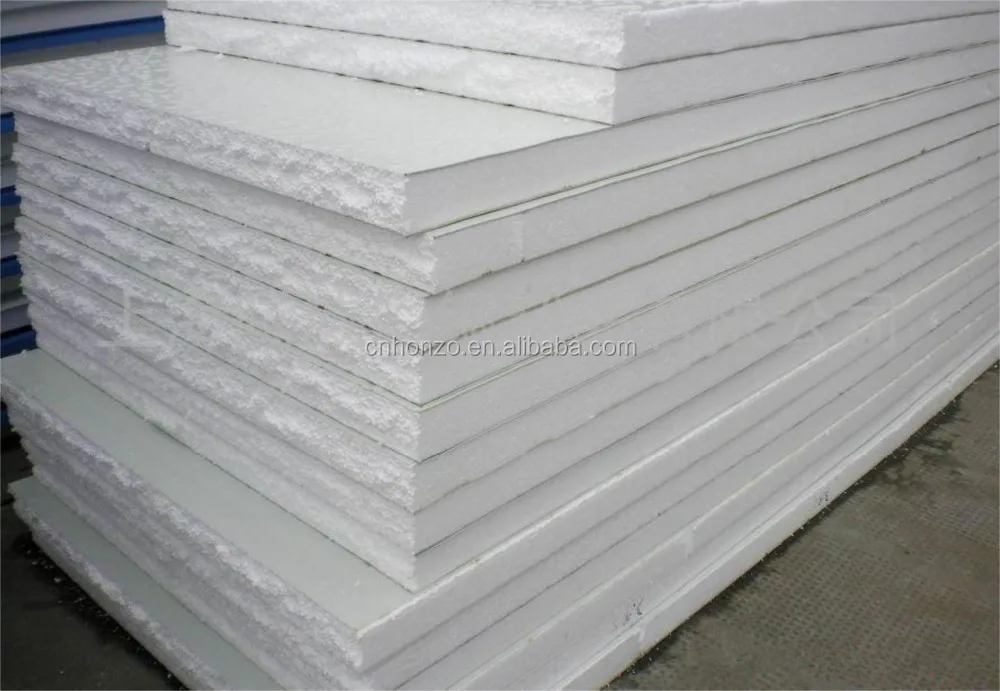

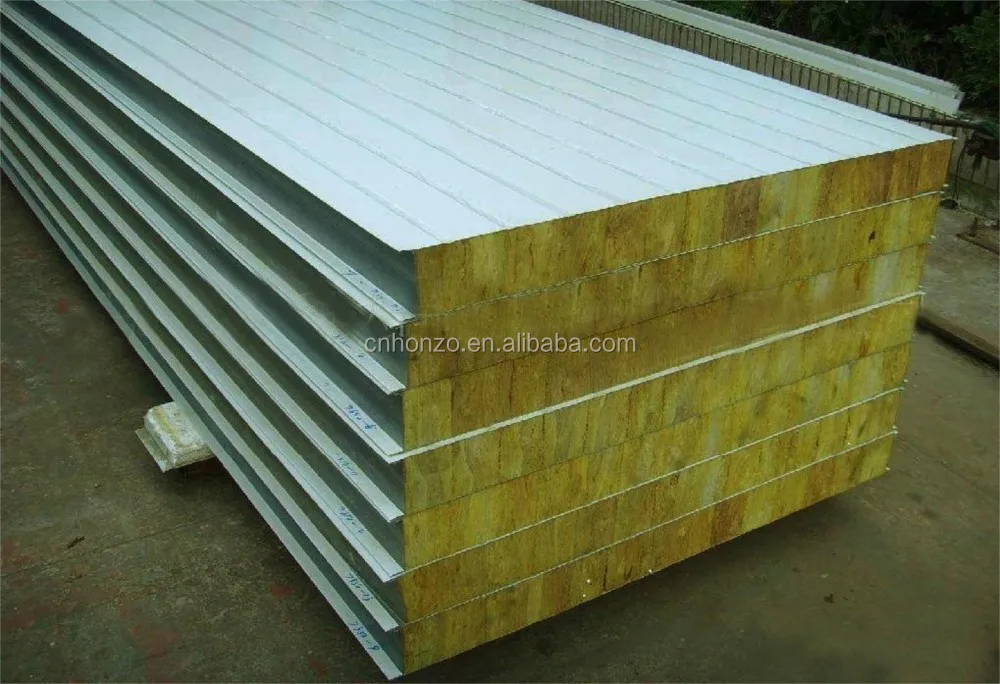

The real body assembling structure, self-made EPS thermal insulation wallboard 12kg/m3, bulk density, high strength, good thermal insulation performance, can effectively prevent the dust into the wall, a total thickness of 60mm. Around the real body with galvanized plate bending decoration, door door, security door edge structure of aluminum alloy, with tempered glass observation window, convenient to observe the operation of painting. A high 300mm, made of galvanized plate bending and steel beam assembly, the upper 2 rows of electro galvanized grille and 3 rows of pattern plate, half step slope.

Lighting

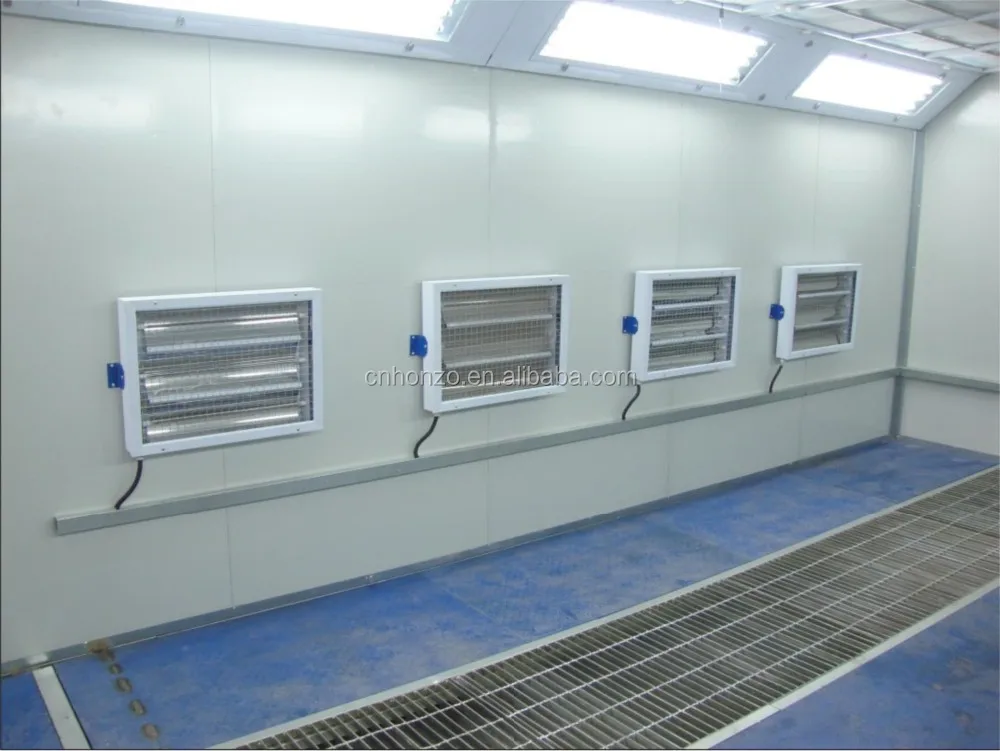

With 45 ° top side of 4 × 36W × 8 group, Philips lighting lamps, electronic ballast with brand, toughened glass cover, and fully guarantee the lamp has a good safety performance, light is greater than or equal to 800Lux.

Air filtration system

Domestic high-quality type air inlet primary filter cotton, effectively capture diameter larger than 10 μ m dust particles. The top domestic sub high efficiency filter can effectively catch dust particles larger than 5 μ M. C type steel roof net hold the top cotton, ensure the purification efficiency of air in the room is more than 98%.

Air supply and exhaust system

Configuration 2 centrifugal blower. A fan base is the profile frame, Outer Mongolia galvanized plate, is arranged under the electric door automatic conversion for painting and baking varnish, guarantee cycle entirely within baking, shortening the heating time and save energy. The exhaust duct for high quality galvanized steel beading, professional production equipment flange assembly.

Heating system

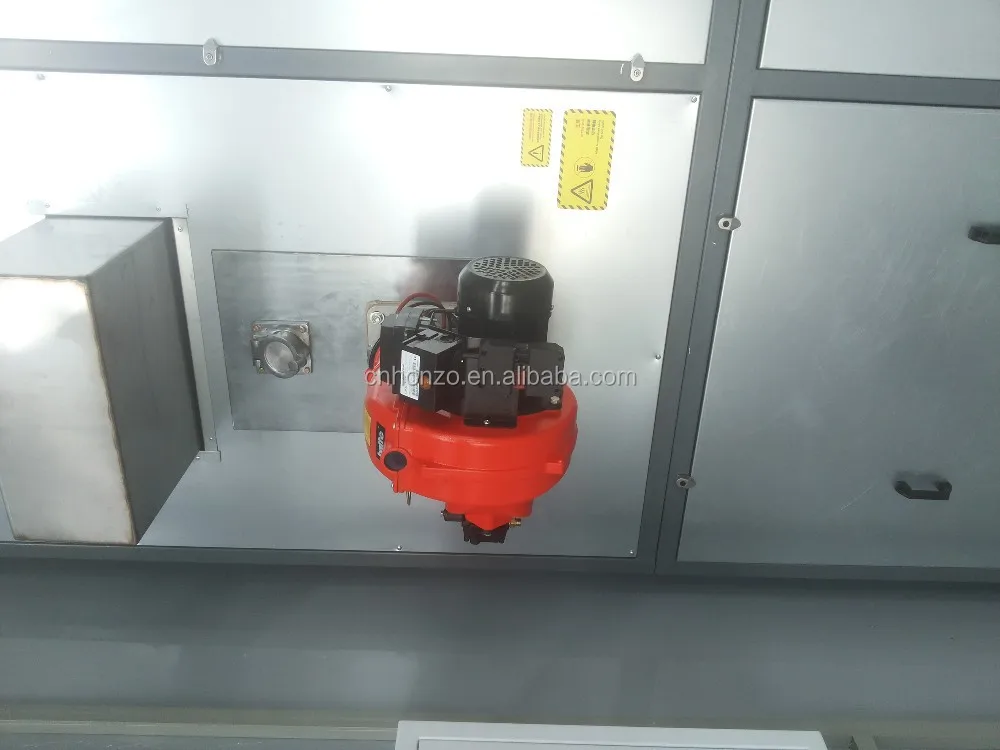

gas or oil heating system

Control system

The main components used in all domestic famous brands, such as contactors, circuit breakers and switches, mechanical and electronic temperature double protection device. With over temperature alarm, anti phase multiple protection, safe and reliable.
