  panel solar system off grid 10KW solar energy solar panel 250w complete PV system

What is the off-grid power generating system?

     Off-grid solar system is mainly used for application with relatively-small power consumption, and the areas have no grid network coverage, or the area has grid coverage but grid power is in unstable or outage condition. This system needs batteries to store the electricity. And all the loads shall fully rely on the batteries for power supply.

10KW 96V off grid solar power system including:

1. 250W solar panel 40pcs (all the solar panel divide into two systems,and for each of the system      the connection is; 4pcs a group in series, total 5groups in parallel)

2. MPPT Solar Charge controller 96V-40Amp 2pc

3. deep cycle battery 12v-200Ah 160pcs(8pcs a group in series,total 2 groups in parallel)

4. Off grid inverter 10KW/96V  1pc

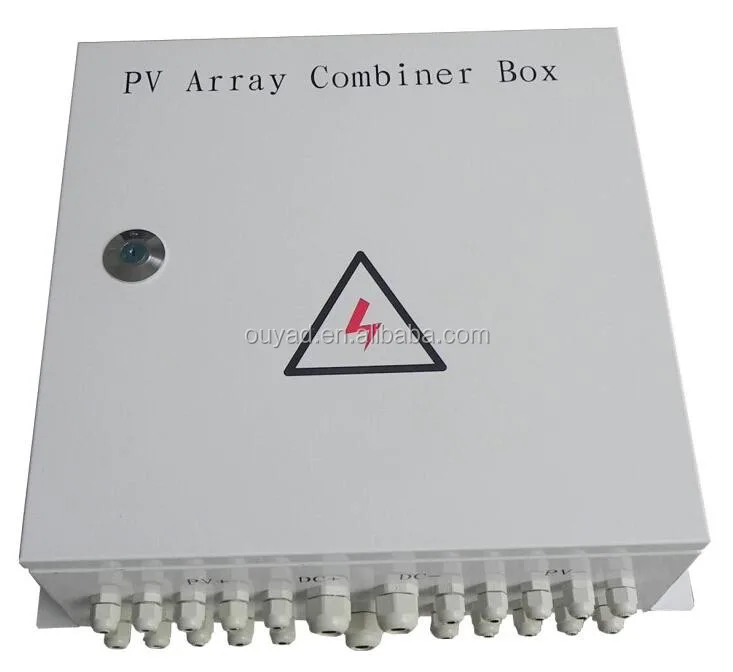

5. PV Array Box 2 set

6. solar panel mounting brackets 10 sets

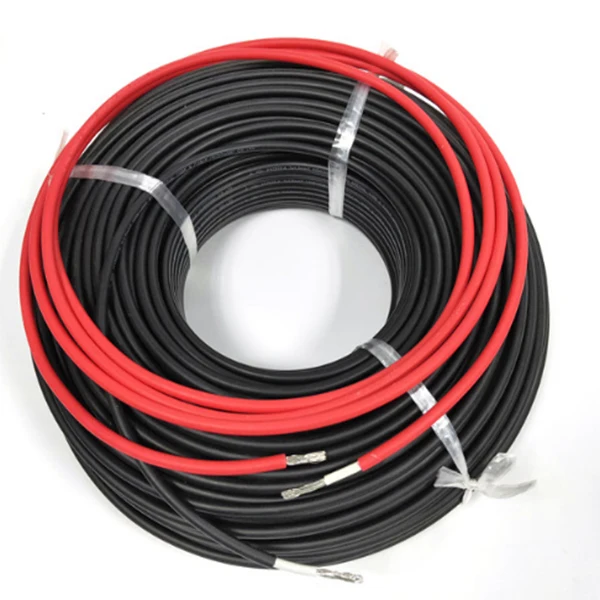

7. All necessary cables 200m

Introduction of the products:

1.250w Poly Solar panel Characteristics

2. Features:

* Solar panels make from A grade solar cells with high efficiency. We implement strictly A grade         solar cells test standard that meet the worldwide standard when we choose solar cells.

* Our A grade solar cell comes from powerful suppliers which is famous on global market, such as     LDK Solar Hi-Tech (Xin Yu) Co.,Ltd, CSG PV Tech Co., Ltd.

* one piece of our Poly solar cell is 4.23W, and 250W Poly Solar Panel consists of 60 pieces solar     cell, so the power of our 250W Poly Solar Panel actually is 253.8W.

* Warranty: (1)10 years warranty on product material and processing technology,

                   (2)Industry power output warranty: 90% in 10 years, 80% in 25 years

Materials of solar panel:

    1. Solar cell------conversion efficiency of solar cells: 24%-17%, and  ensures high performance                                 and more  power under same condition

   2. Front glass------3.2mm, high transmission, low iron, tempered glass, to enhanced

                                stiffness and impact resistance

   3. EVA------ excellent anti-aging EVA , to enhance the rigidity and stability of solar cells

   4. TPT------TPT hot seal made of flame resistance.

   5. Flame------is equipped with drainage holes in order to eliminate the risk that rain or snow                                  water may accumulate in the frame

   6. Junction box------Ip65 rated, high quality, with diode protection

   7. Bypass diodes ------to avoid hot-spot effect.

Electrical characteristics:

Mechanical characteristics:

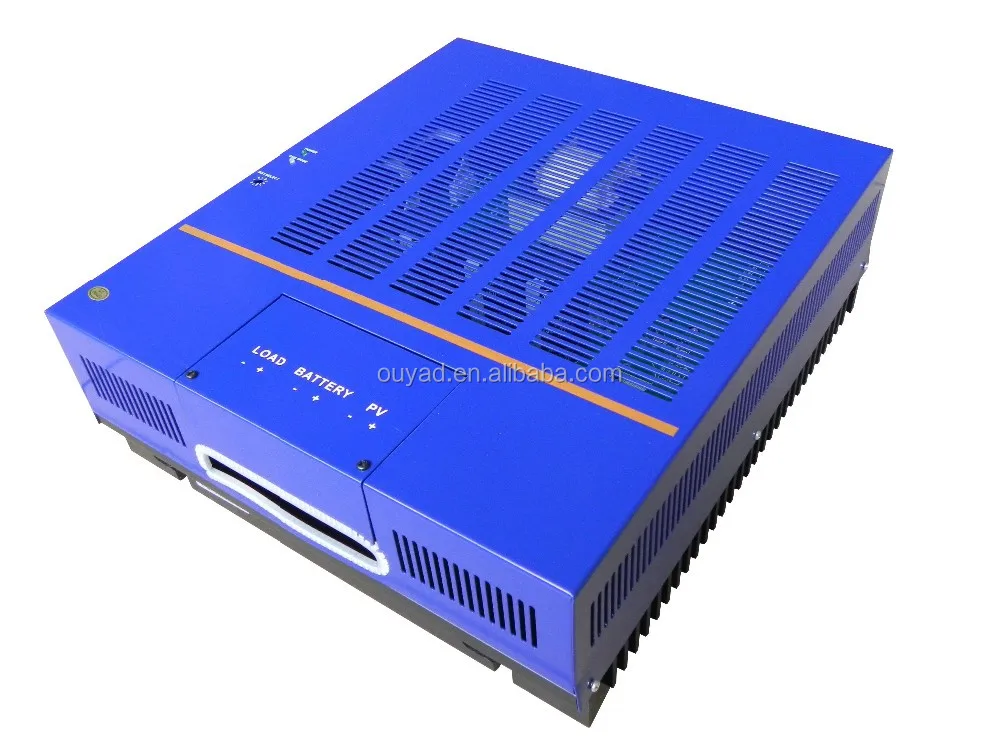

Feature of controller:

 1. Integrated MPPT capability increases PV system efficiency 20%~30%

 2. ADC Load

 3. An optional battery temperature sensor ensure precise battery charge.

 4. LED displays to indicate the status of charge.

 5. Lighting protection.

 6. Reverse current at night.

 7. Three-stage battery charging (bulk,absorption,and float) with optional temperature                           Compensation.

 8. It can improve battery life.

 9. Automatic overload protection in both active and passive modes.

10. Microprocessor controlled.

11. 2 years warranty.

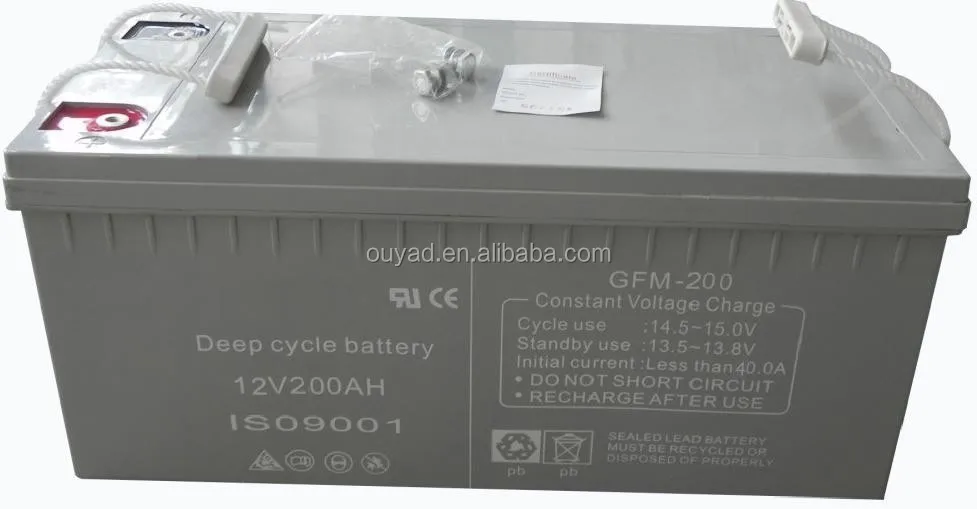

Feature of deep cycle battery:

Features:

•


  Special additives make battery have superior high discharge current performance.





•


  High-strength ABS plastic shell.





•


  A large number of statistical techniques used in production.





•


  High-density lead paste, high temperature and humidity curing process, long life span.





•


  Multiple levels of security.





•


  Long designed life, it can reach up to 5-8 years.




Performance and Specifications:

Constant Current (Amp) and Constant Power (Watt) Discharge Table at (25℃)

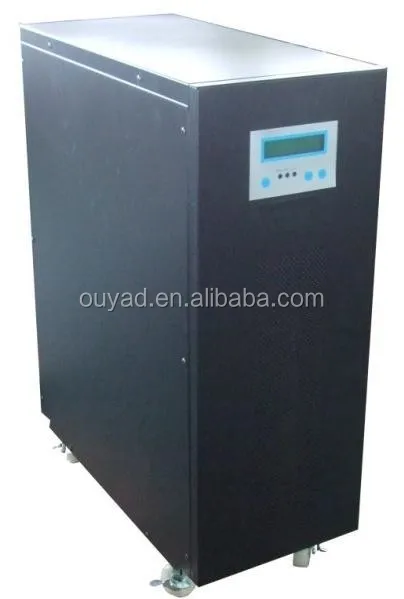

10KW 96V off grid  inverter:

Features:

1. High transfer efficiency, highest can reach 95%

2. Output pure sine wave

3. Protections: against short-circuit, overload, battery reverse polarity, low-voltage, and  over-              voltage protection, etc.

4. Special overload protection: when it is overload, it will lock the unit automatically,when it                  restores,it will restart the unit 5,automatically again.

6. Strong ability of resist concussion, can load all kinds of electric apparatus and industry                    equipments, such as air 7,condition, refrigerator, television, fan, washer, fill water electric

    motor, tortile gate, etc.

8. Intelligent battery management; provide the battery overcharge, discharge protection extend          battery life

9. The service life can reach a decade.

 Specifications :
