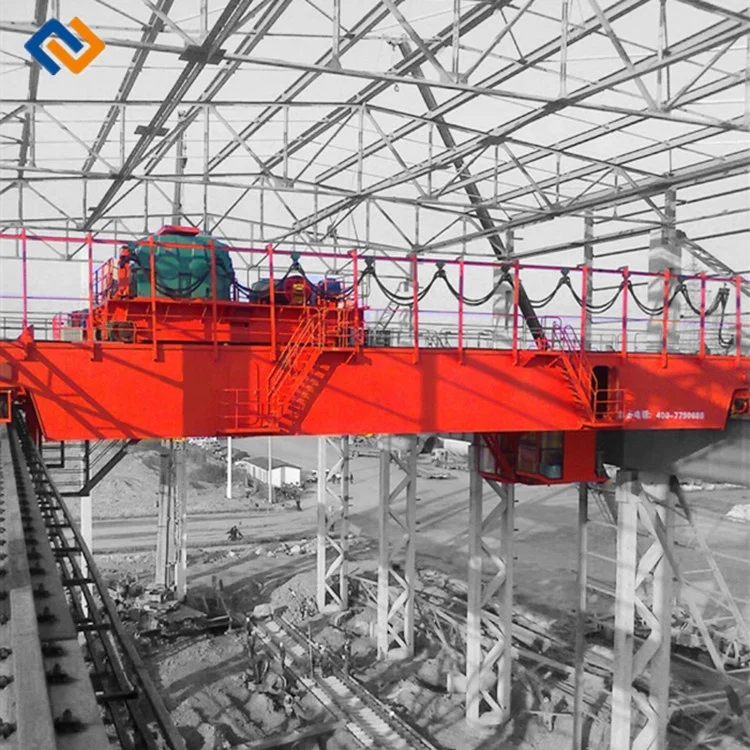

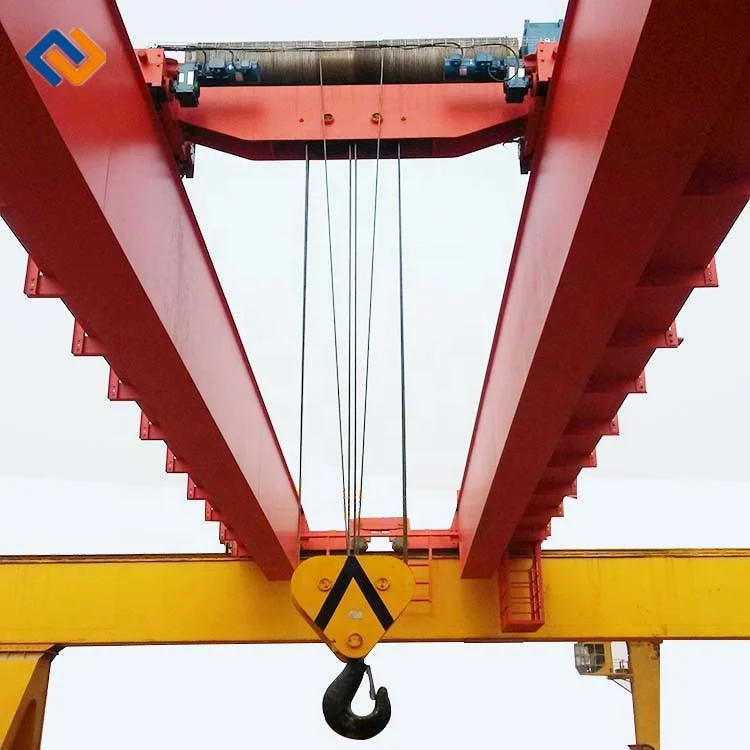

Лидер продаж ковш 50 тонн Ковш мостового крана для стального завода

1. Overhead crane for steel industry is a special indispensable lifting equipment for continuous casting and continuous hot rolling production line.


2. Overhead crane for steel industry are used to lift molten steel,steel coils,steel material and so on.


3. It consists of bridge, crane travelling mechanism, trolley, electric equipment and electromagnetic carrier beam. Both travelling mechanism and trolley motors are special motors for canes, large starting torque and loading capacity.


4. Difficult loads, reliable and versatile handling functions, high or extremely fluctuating ambient temperatures: the harsh operating conditions in foundries demand high levels of safety and functional reliability for crane systems.


5. The capacity of the crane is up to 550 ton,the span is up to 31m.

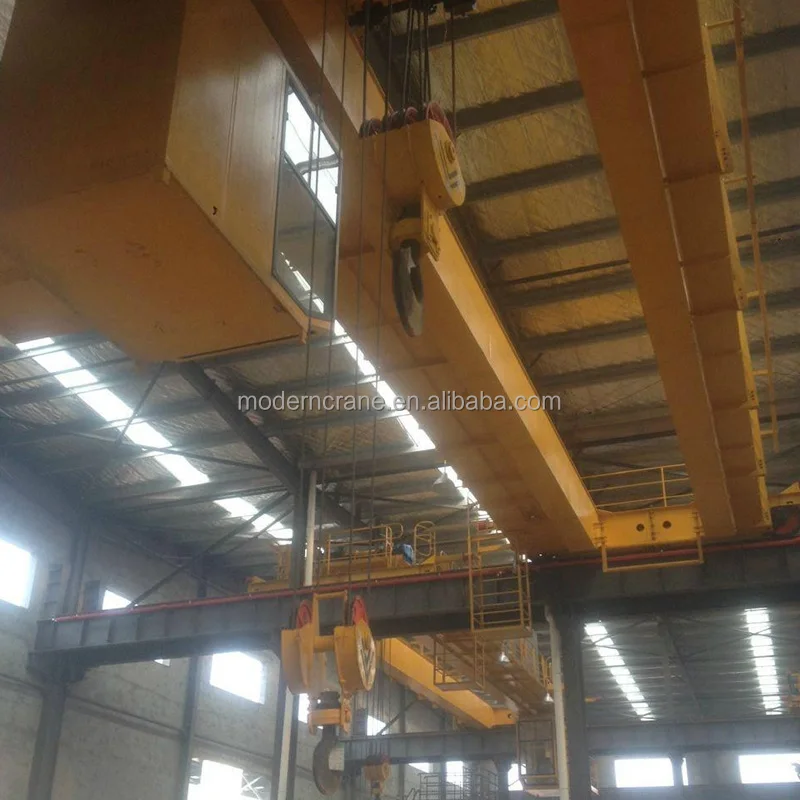

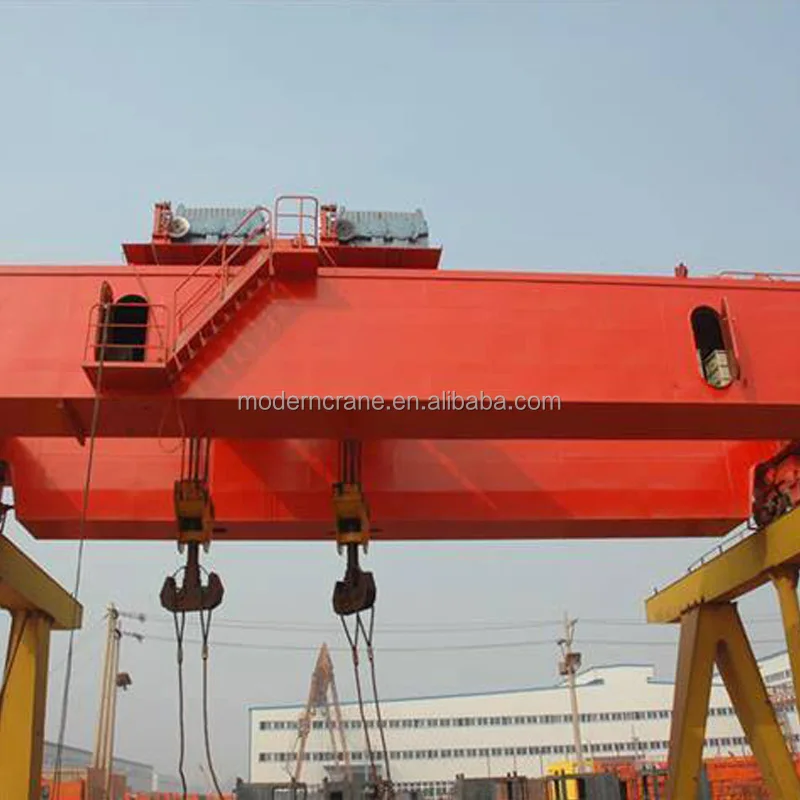

       About ladle crane

1. Because of a higher risk level, special safety features are designed for the ladle cranes that transport molten metal.


2. The main hoist mechanism includes four independent rope reevings, double service brakes on primary shafts, and backup brake acting on the rope drum.


3. Rope equalizer beams are provided with a dampening unit to slow down equalizer beam tilting in case of wire rope failure.


4. An upper emergency stop limit switch is also used in the main hoist.


5. In addition to this overload protection, the 'emergency stop' system bypassed from PLC, derailment supports, main hoist overspeed supervision, and end limit switches are automatically standard features of the equipme

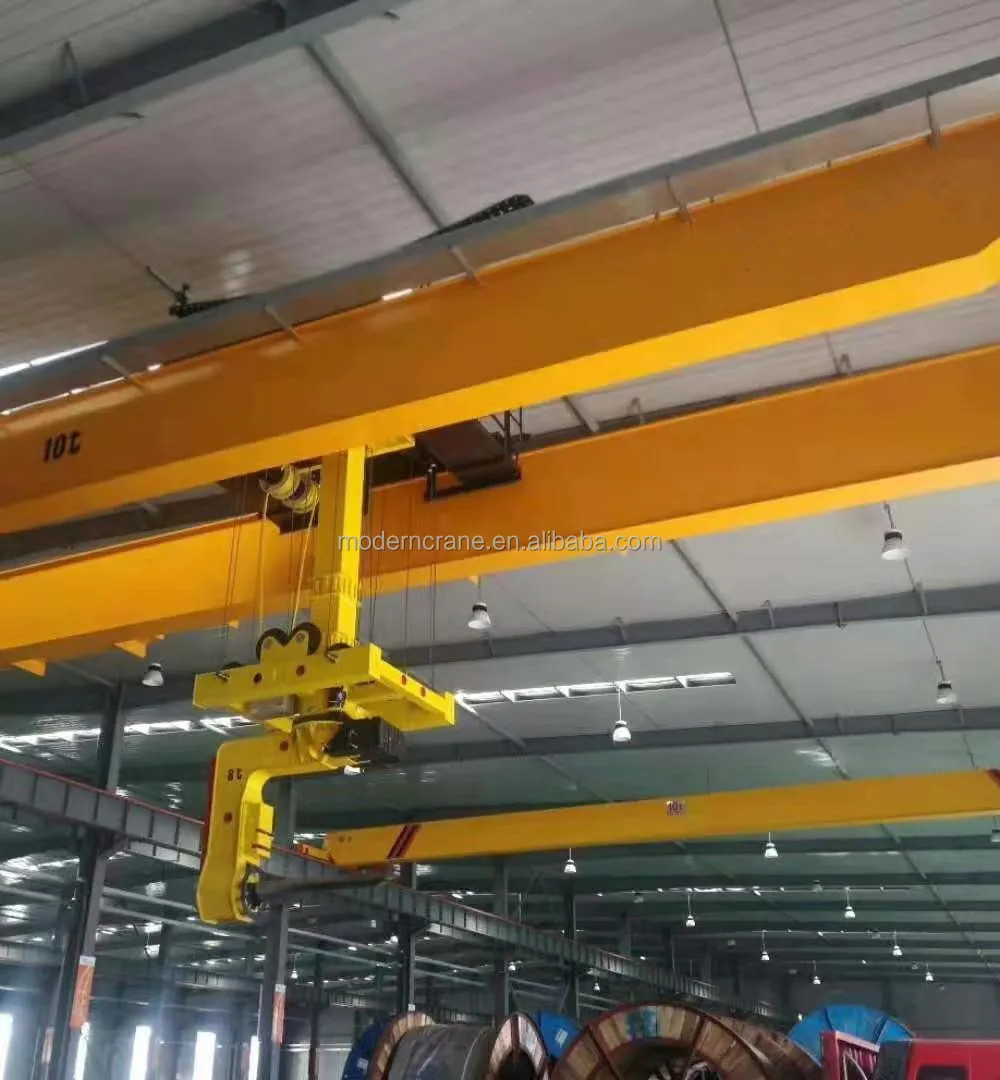

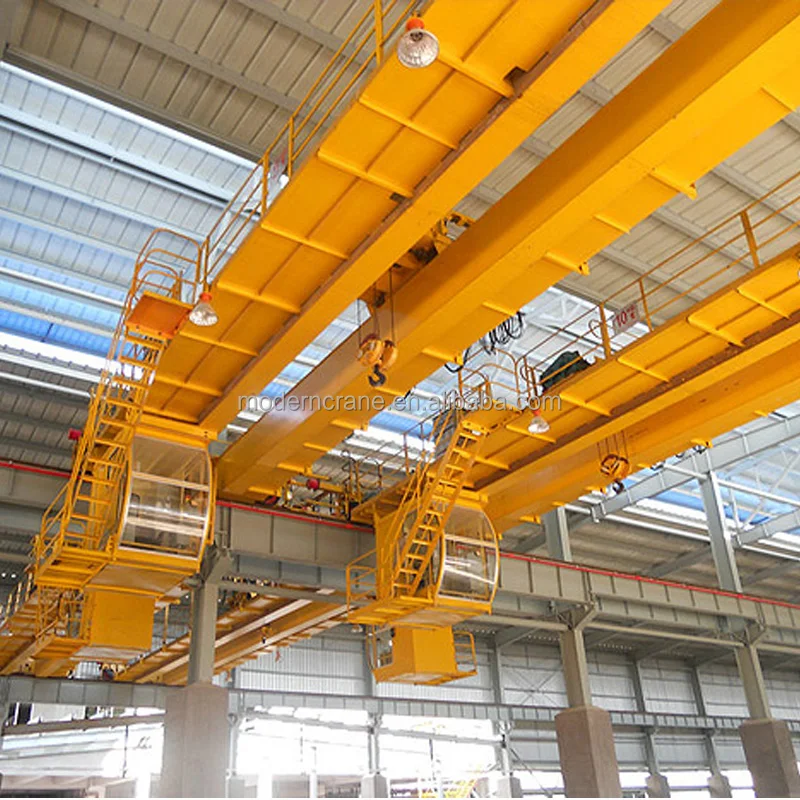

    About overhead crane for steel coils and steel scape

1.


   Overload protection, the 'emergency stop' system bypassed from PLC, derailment supports, and end limit switches are automatically standard features of the equipment.





2.


   Advanced automation function options enable improving safety but also lead to better productivity.





3.


   All parts of the mechanical and electrical equipment are designed so that they are easily accessible from permanent service platforms for adjustment, lubrication, inspection, maintenance and repair. Emphasis is placed upon quick replacement of faulty or worn parts as opposed to repair.





4.


   Improved crane reliability and availability can be reached with extensive real-time measurement and diagnostics data. The most sophisticated version of the diagnostic tool provides clear reports for analyzing the use and productivity of the crane.




      About electro magnetic overhead crane

1. It is a special crane with electromagnetic disk, used in metallurgy and mechanism factory to load and unload metallic materials such as steel plate, scrap iron, and so on.


2. Lifting material: cast ingot, steel scraps,steel ball, steel billets


3. Wide use in steel plants, melting plant, waste warehouse,billet processing workshop,


4. High working efficiency, safe and reliable operation.Strong absorption force,perfect performance,low maintenance


5. Magnetic retentive is 10~20minutes after power failure

• Overload protection: equipped self re-setting overload protector, the hoist motion is

• stopped if overloading occurs, but lowering is permitted, making the crane safe
• Lifting limit switch: adjustable, geared 4-step rotating limit switches,

self re-setting,

• slow down and stop
• End stop: energy-absorbing rubber buffers
• Wireless anti-collusion limit switch: infra-red type
• Overheating protection: equipped with imbedded bi-metallic thermal switch(or thermistors)

• in the windings to protect against overheating

• Electrical braking is provided in all circumstances and the mechanical brake as standby
