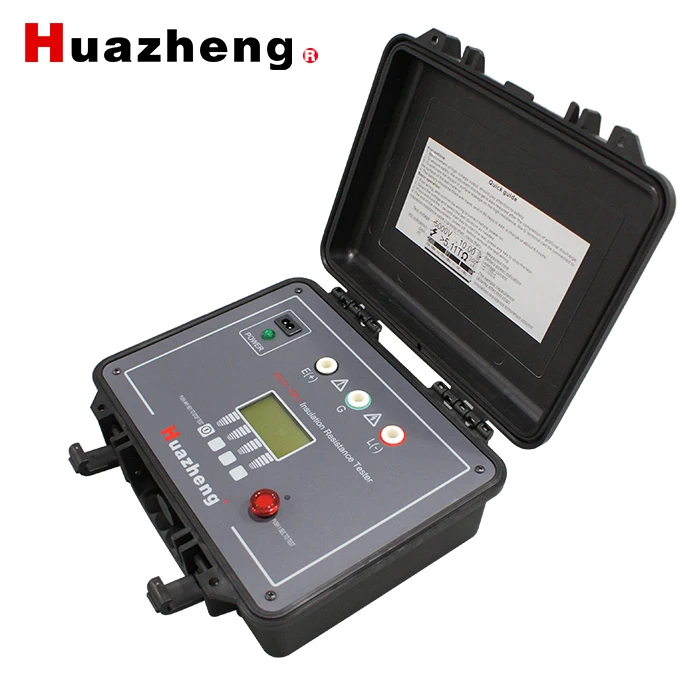

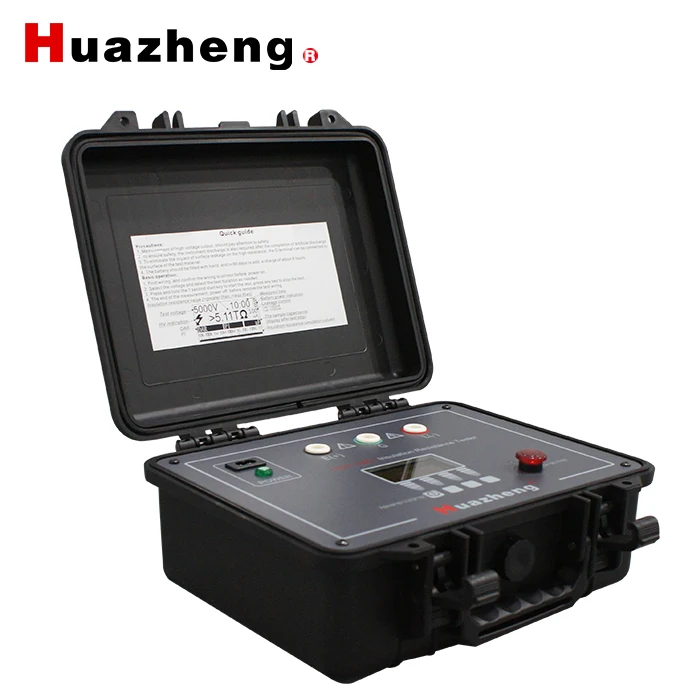

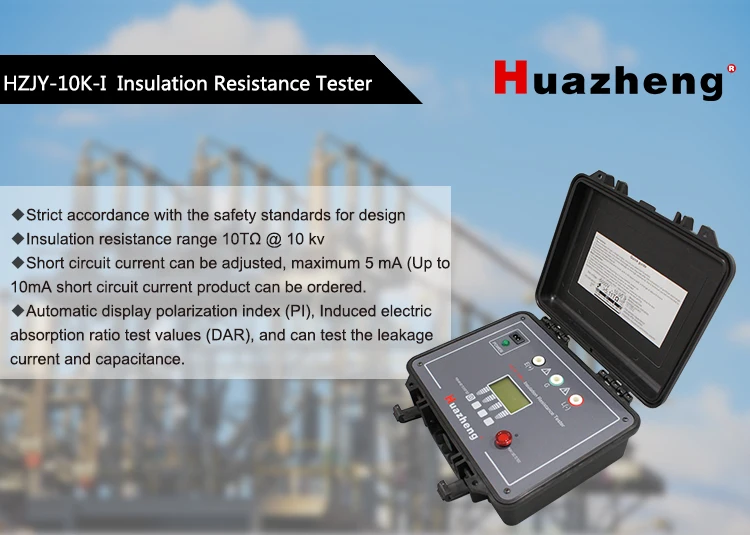

Цифровой высоковольтный тестер Huazheng с индексом поляризации и диэлектрической скоростью поглощения 10 кВ

Feature

Intelligent High-voltage insulation resistance tester, with 5 range: 500V, 1000V, 2500V, 5000V, 10000V, test up to 10TΩ.

 Strict accordance with the safety standards for design

 Insulation resistance range 10TΩ @ 10 kv

 Short circuit current can be adjusted, maximum 5 mA (Up to 10mA short circuit current product can be ordered.

 Automatic display polarization index (PI), Induced electric absorption ratio test values (DAR), and can test the leakage current and capacitance.

 The anti-interference performance is superior. When the interference current reaches 2mA, the instrument still ensures the test accuracy.

 Rapid discharge of capacitive test products, no need for manual discharge when testing cables, automatic rapid discharge of instruments.

2 power supply modes: the battery is powered by lithium ion battery, and the battery life can reach 4 hours (10000V @100m test resistance). It can also be charged while in use. In case of power failure, it can be automatically converted from AC power supply to battery power supply.

 Insulation resistance simulation column.

 Digital filtering functions, external influence deviation display value causing mitigation point using filter function.

 Perfect protection function, and the spare fuse prompt functions.

III. Specification Parameter

 Safety Standard

IEC 61010-1    CAT.IV  600V

IEC 61326      EMC specification: test, control and electrical equipment for testing

IEC60529 IP64 (Outer closed state)

 AC Power:220V±10%,50/60 HZ ,20 VA

 battery:16.8V Lithium ion rechargeable battery

 Battery Life:10000V@100M, 4 hour

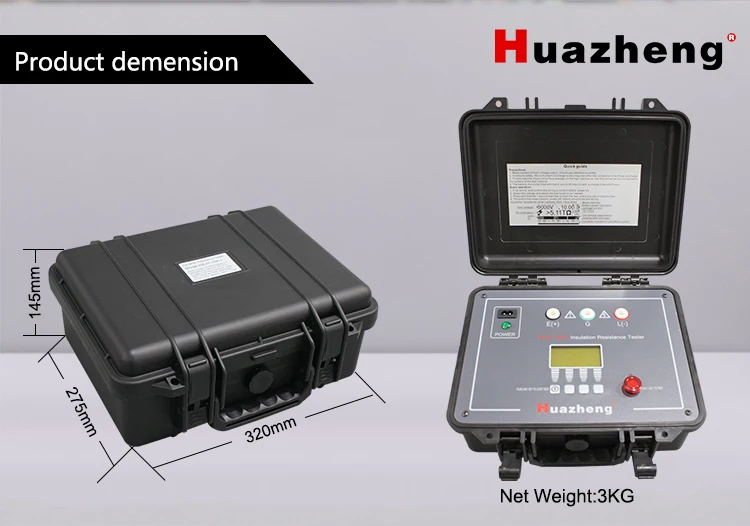

 size(L x W x H):26cm x 20cm x 16cm

 weight:3kg

 Test voltage accuracy: the nominal value  100% to 110%

 Voltage measurement accuracy:5%+3V

 Current test range:10mA

 current measure precision:5%+0.2nA

 short-circuit current: 5mA

 Capacitance test range:20uF

 Capacitance testing accuracy:15%+0.03uF

Capacitor discharge rate: from 10000V to 10V,0.5S/µF

 Insulation resistance testing range and accuracy (T:23±5ºC ,RH :45 – 75%)

1. Q:What is voltage of   insulation resistance meter / tester?

      A:Voltage: 1KV / 5KV / 10KV

2. Q:What is the resistance test range of  insulation resistance meter / tester ?

From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is  founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance  tester,Power Quality Analyzer and so on.

Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.

Warmly welcome all partners to join us for mutual benefits cooperation.
