                                            Online Residual Chlorine meter with sensor





1-Production description.jpg


Industrial online Residual chlorine meter CL-9650 is online Residual chlorine and HOCL, PH monitoring


and controlling analyzer.



To measure  Residual chlorine, Hypochlorous acid (HOCl), PH and Temperature value.



Application: widely used in drinking water, bottling water, electricity, medicine, chemical, food, pulp &paper,


swimming pool, water treatment industry.

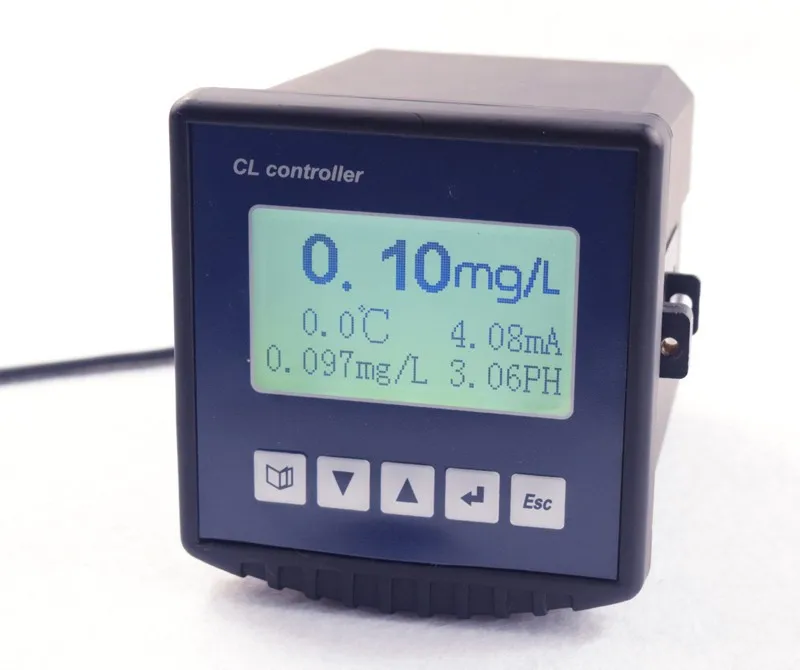

3-Production Picture.jpg

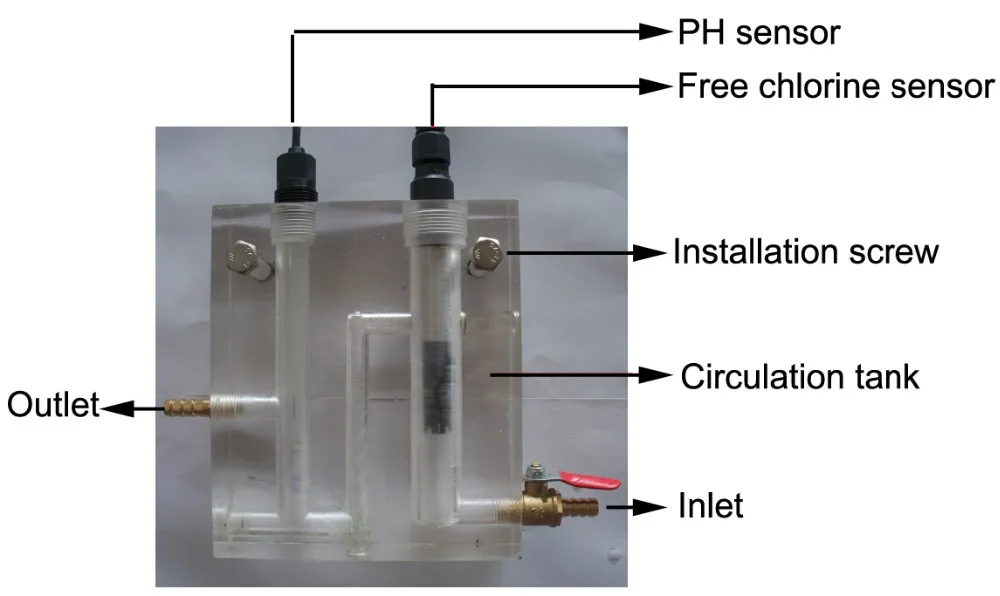

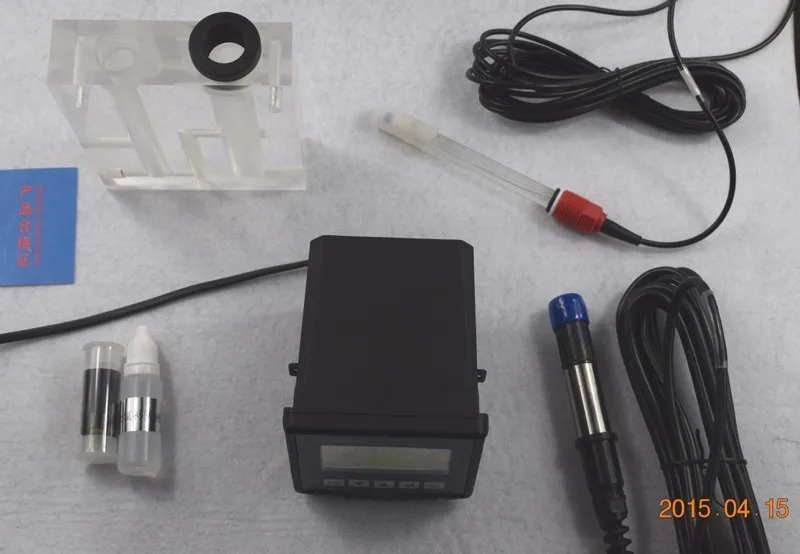

CL-9650-Spare parts.jpg





4-Matched Sensor Electrode.jpg

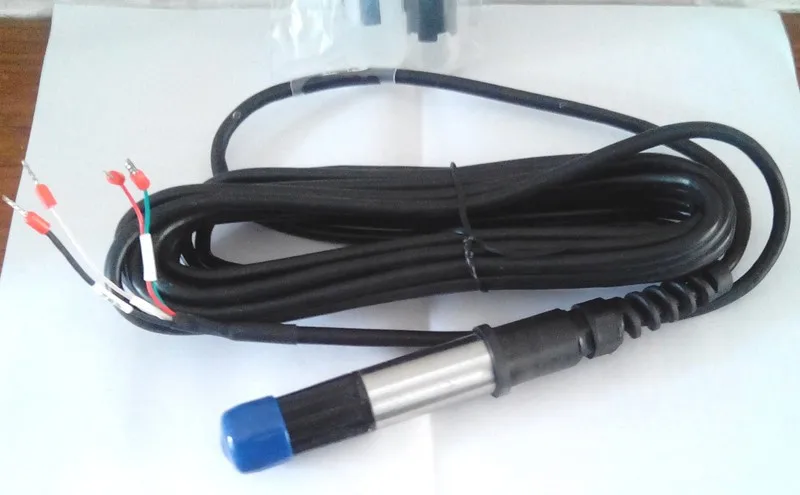

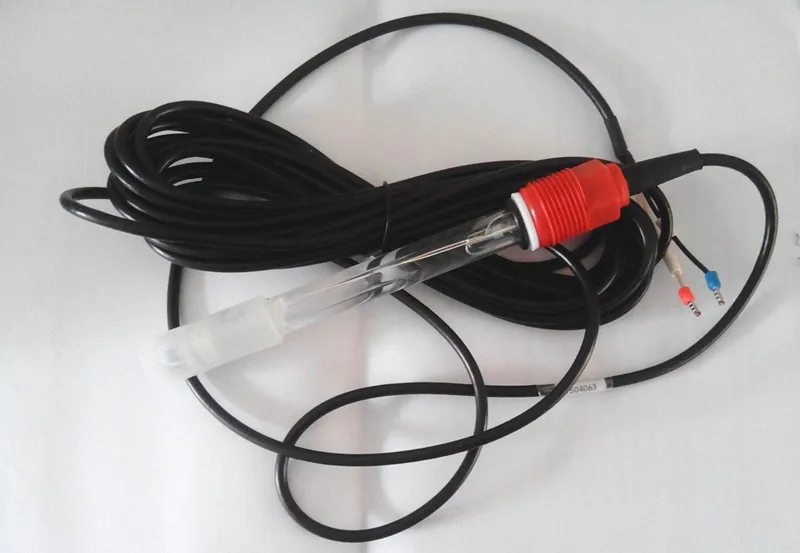

 Residual Chlorine meter CL-9650 matched free chlorine and Ph electrode:





CL-9650-FL Electrod.jpg   CL-9650 PH electrode.jpg





2-Main Technique data.jpg

































































 Function                Model



CL-9650 Residual Chlorine meter



Range



Free chlorine :0-20.00 mg/L(ppm)


Hypochlorous acid (HOCl) :0-10.00 mg/L(ppm)


 PH value :0-14pH, Temperature: 0-60 ℃



 Accuracy



Free chlorine : ±1% or ±0.01 mg/L,


Hypochlorous acid (HOCl) :±1% o ±0.01 mg/L,


PH value :±0.02pH, Temperature: ±0.5℃



Temp. Comp.



Manual/automatic pH compensation feature(0-14)


and temperature compensation(0~60℃)



Electrode



Free chlorine Sensor,PH sensor



Display



LCD display



Operation Temp.



0~60℃



Current output



isolation 4~20mA



Control output



ON/OFF High limit,low limit relay



Power



AC 220V±10% 50/60Hz



Working environment



Ambient Temp. 0~50℃, Relative Humidity 90%



Overall dimensions



96×96×115mm(H×W×D)



Hole size



91×91mm(H×W)



Installation Mode



Panel mounted(embedded)






5-Packing picture.jpg


 Residual Chlorine meter are packed into strong carton which is suitable for long distance transport, color label is


 available as per request on the carton.


Packing carton-1.jpg





6-Transport details.jpg





     1.   Residual Chlorine meter will be transported by Express DHL, TNT, etc as per request, which will take 3-5days.


     2.  By air transport for the bulky order, it will  it will take 5-7days for different area,


     3.  By sea transport for the not urgent bulky order.





     Express Co.jpg





7-Business Terms.jpg






  1.  Business term: FOB, C&F, CIF, DDU,DDP are acceptable.

  2. We accept Western Union, T/T, L/C,Paypal etc term of payment.




9-Contact info..jpg
    If you want to know more detailed info. about our products and us ,





    pls see our website: www.watequipment.com





    or E-mail me: info at watequipment.com.





    or add me on skype: sunnylee301





    or QQ: 544432716
