Automatic poultry closed house system chicken broiler farm equipment (U-Best)

1).The function of deliver system is to transmit the feed outside shed to the hopper of feeding system inside, control system indicates delivery system to work automatically.
2).Feed of poultry raising farm is stored in the silo, so as to save large amount of package, and also to ensure the health of feed. Different specifications of silos are alternative to choose according to the daily consumption and the size of silo. Material of silo consist of galvanized sheet and glass fiber reinforced plastic.

3).If you don't use silo, you can use manpower hopper.Usually,if you just build one or two farm,we suggest you use hopper instead of silo.

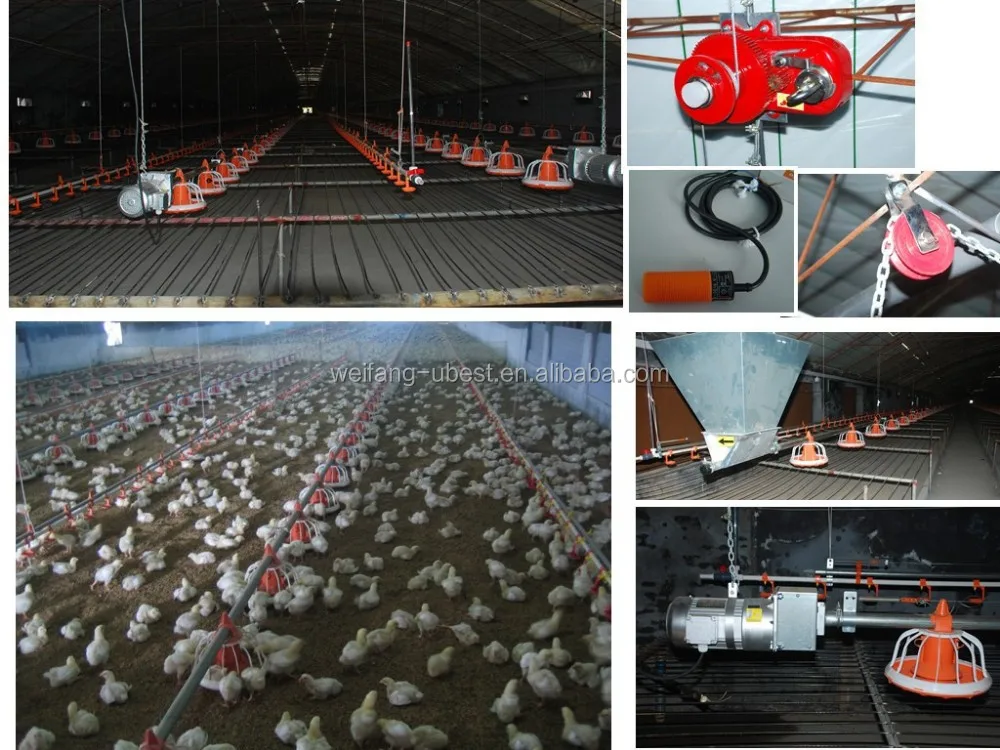

2.Automatic Pan Feeding line system:

1).Feed pan is the core of feeding system. Feed in the hopper is delivered by the motor, through delivery pipe to full fill feed pans one by one. When all of the feed pan are all of feed, control box will stop the motor from working.

2). The length of one feed line will not longer than 150m, so the length of chicken house can’t be longer than 150m. This is the important thing to concern when design the size of the chicken house.

3).The distance between 2 feeding line is about 4m. This is also the important thing to concern when design the size of chicken house.

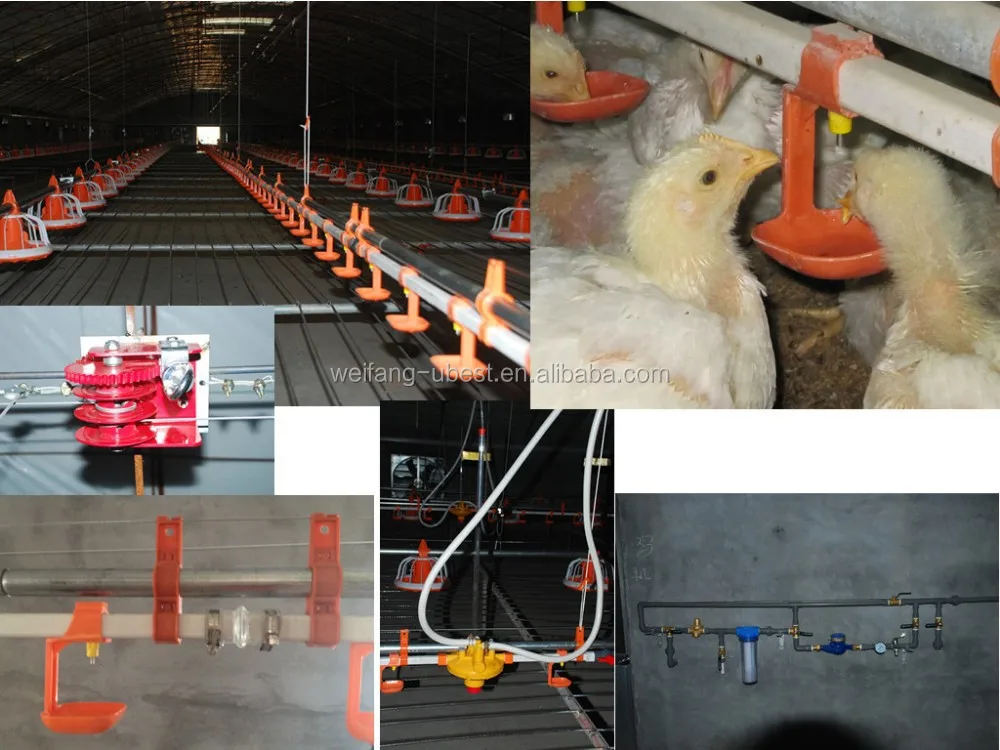

3.Automatic nipple drinking line system:

Nipple Drinking System providing flesh and clean water for birds,which is very vital to let the birds

have a good growing performance.Meanwhile,nipple drinking system can make the poultry house

environment better.The nipple drinking system has been become the necessary equipment for stander poultry feeding.

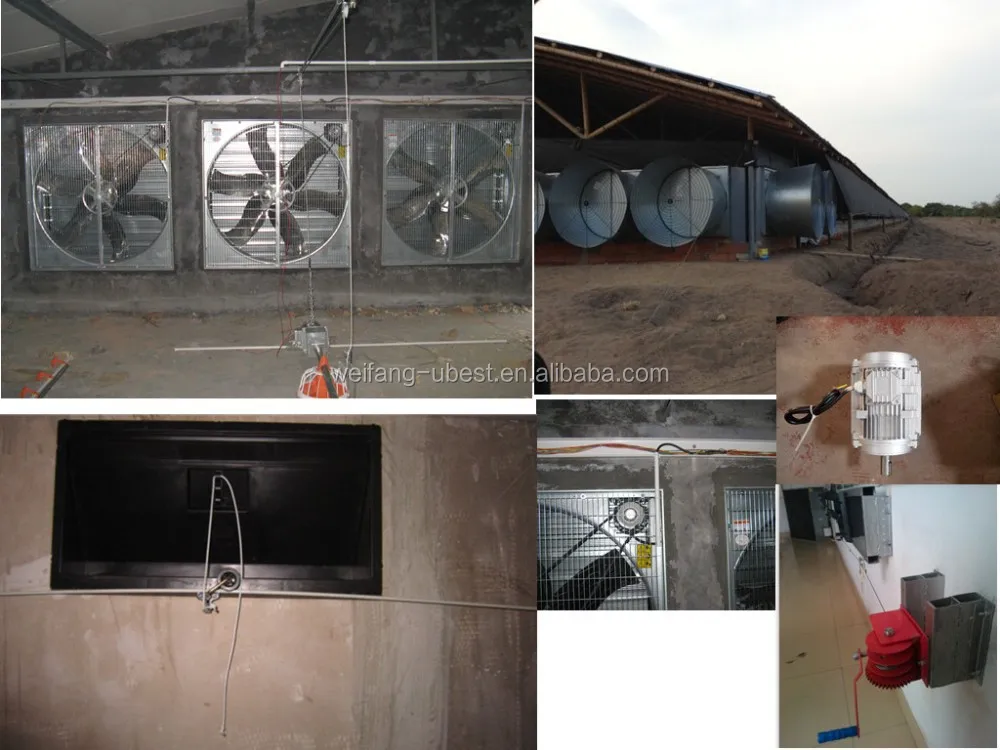

4.Automatic ventilation system:

The main parts of ventilation system is the big fan and small fan. They are controlled by the control system. The NO. of the fans to run was decided by the temperature of the poultry house.

About 200m2 need 1 big fan and 15-20m need a small fan, this is the standard to design the quantity of fans in chicken house.

Ventilation fan parameters:

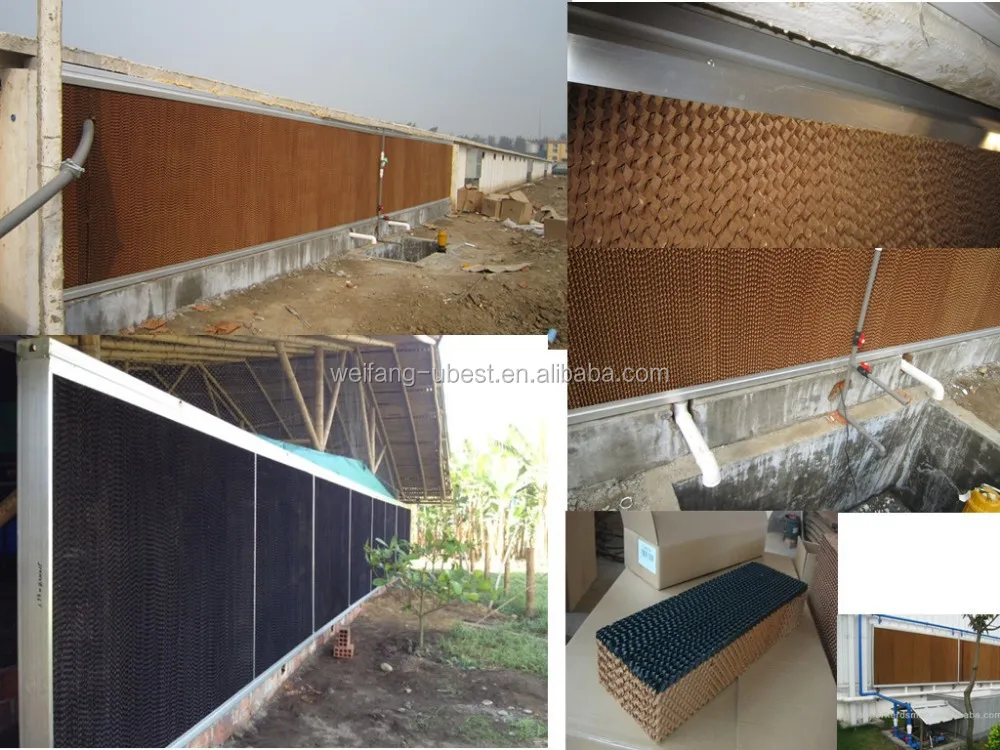

5.Cooling pad system:

Evaporative cooling pad system works in the condition of negative pressure, the cooling pad is installed on one side of the wall, fan installed other side. When air flow through cooling pads, the water evaporation absorbs a lot amount of heat.

The height of cooling pad is 1.5-2.2m, length about 3m, the area of cooling pad in chicken house is about 6-8 times than the fans.

6.Spray & disinfecting system:

Function:It is effectively tools for cooling, damping, dedutsing, disinfecting the house.

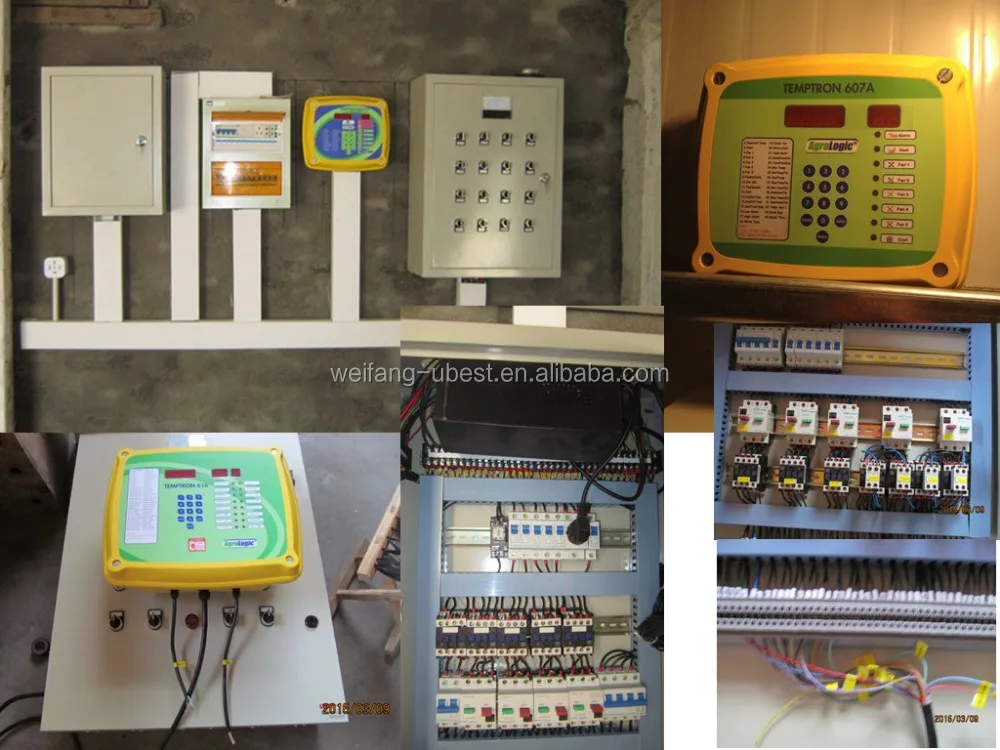

7.Environment controller:

This system saves the labor and the resources under the condition of assuring the optimum growth environment of the chickens. It is imported from Israel can set an optimum working mode according to the local climate and raising environment.

8.Heating system /Heaters:

Heating poultry house when it is needed to satisfy the temperature demand of chickens at different growth stage. Hot-blast heater of coal and diesel, poultry gas heater and infrared gas brooder, 3 different kind at your option.

1. Size: (length×width × height)

2. Quantity (discount based on order)

3. Weight of chicken when you sale to the market (the rearing period, From   -  weeks)

4. Types of chicken: laying hens or broiler chickens

5. Types of breeding: in cages or on the ground

6. Poultry house location and local climatic condition like snowfall, rainfall, wind and earthquake.

--Time saveing &Labour saving, one person is enough for one chicken house.

--Increasing chciken living rate.

--High quantiy to ensure nonstopping running of your houses

--Comparitively cheap price.

--automatic poultry farming equipment

 1).Poultry farm shed design -- provide the best guide and service for your chicken house buliding.

 2).Equipment installation -- we can dispech our engineer to your local for equipment installation.

 3).Workers training--we can train your workers, to make sure no-risk farming.

 4).After-sale service--prompt reply for any questions from our clients.

within 15 days after receipt of your deposit.
