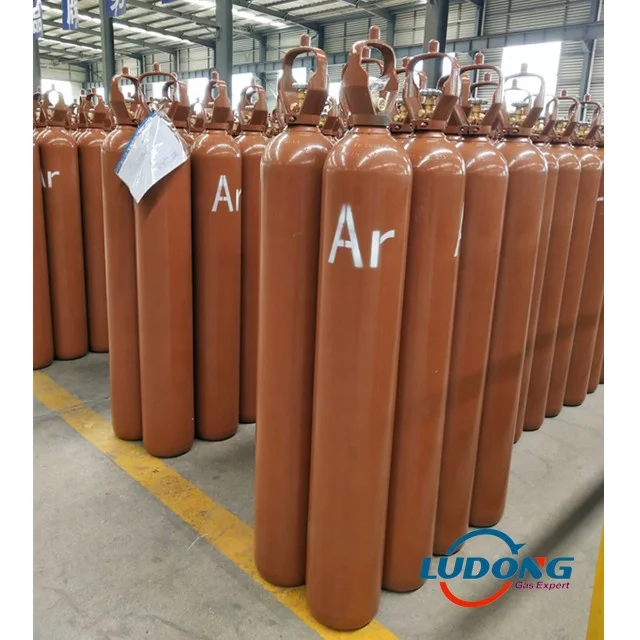

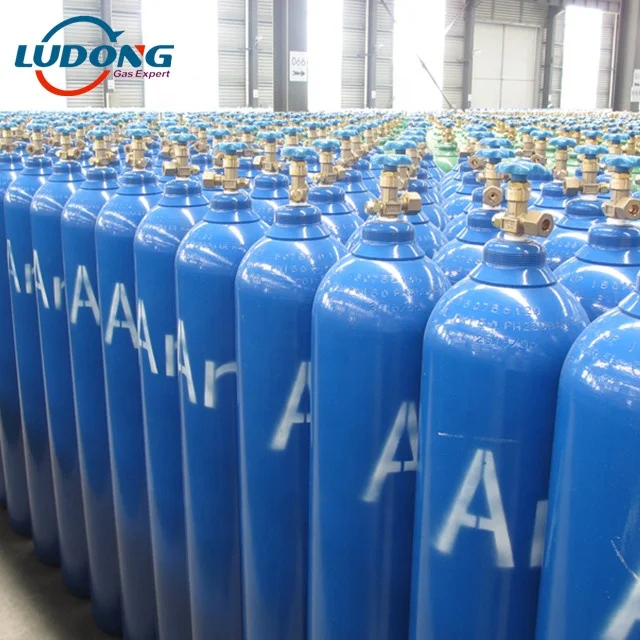

Наполнение газовым аргоном в цилиндре 40 л/6

Категория: Элементарные вещества >>>
Поставщик: Qingdao Ludong Gas Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

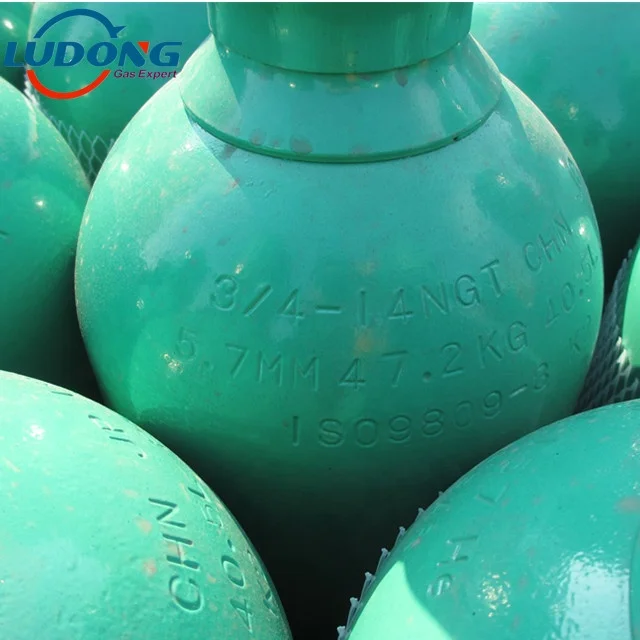

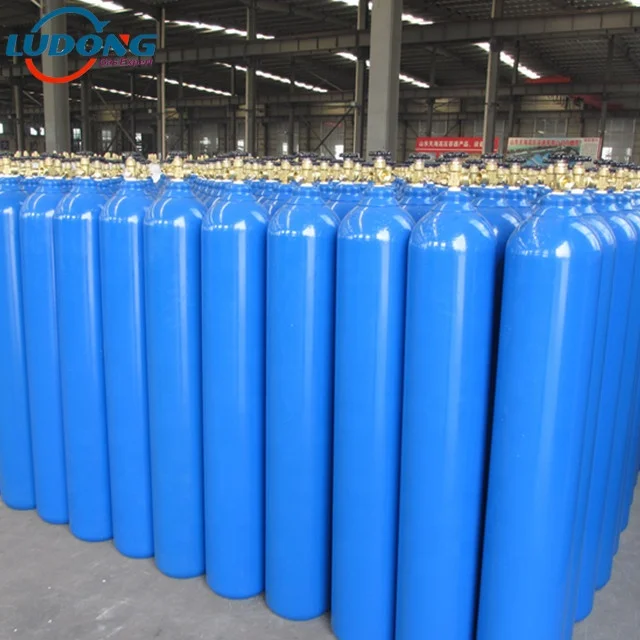

Our Seamless Steel Gas Cylinder is transportable high-pressure vessel. The product is manufactured with the most advanced technology, machinery and equipment in the world. Our Seamless Steel Gas Cylinder is ideal for holding compressed gases and high pressure liquefied gases of oxygen, hydrogen, argon and carbon dioxide. The major part of our Seamless Steel Gas Cylinder is made of high-quality alloy steel material. The product is widely applied in chemical, metallurgical, mechanical, medical, scientific research and building industry.

Serial No.	Type	Nominal working Pressure	Water test pressure	Volume L	Nominal Outer Dia	Design Wall Thickness	Length	Weight	Material	Carry out standard
	WMA159-10-15	150	250	10	159	4.5	650	15.5	37Mn	ISO9809/EN1964-1
1	WMA219-20-15	150	250	20	219	5.7	715	28	37Mn	ISO9809/EN1964-1
2	WMA219-27-15			27			950	35.8
3	WMA219-36-15			36			1195	42.5
5	WMA219-40-15			40			1305	46.5
	WMA219-47-15			47			1540	56
	WMA232-47-15	150	250	47	232	5.0	1345	50	37Mn	ISO9809/EN1964-1
	WMA232-50-15			50			1460	53.5
	WMA232-60-15			60			1710	62
6	WZA267-68-15	150	250	68	267	6.1	1500	74	37Mn	ISO9809/EN1964-1
7	WZA267-70-15			70			1540	76
8	WZA267-80-15			80			1740	84
9	WZA267-82-15			82			1780	86
13	WGA232-40-20	200	300	40	232	5.5	1185	47	34CrMo4	ISO9809/EN1964-1
14	WGA232-47-20			47			1365	50
15	WGA232-50-20			50			1445	53
	WZA267-68-20	200	300	68	267	6.2	1475	72.8	34CrMo4	ISO9809/EN1964-1
	WZA267-80-20	200	300	80	267	6.2	1710	84	34CrMo4	ISO9809/EN1964-1

Cylinder Production Process

Acceptance of raw materials ,Mechanical tests , Flaw detection and hardness test, Hydranlic test, leakage test every step to control the quality of the our cylinder.
