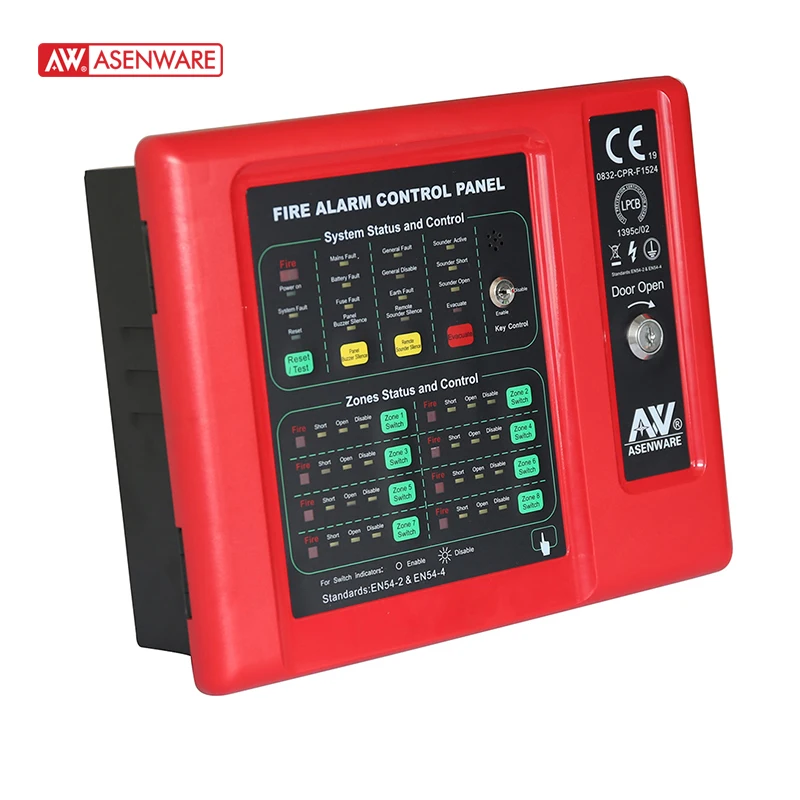

2 зоны газового пожаротушения релизе управления системы пожарной сигнализации для FM200 CO2
190,00 $ - 230,00 $

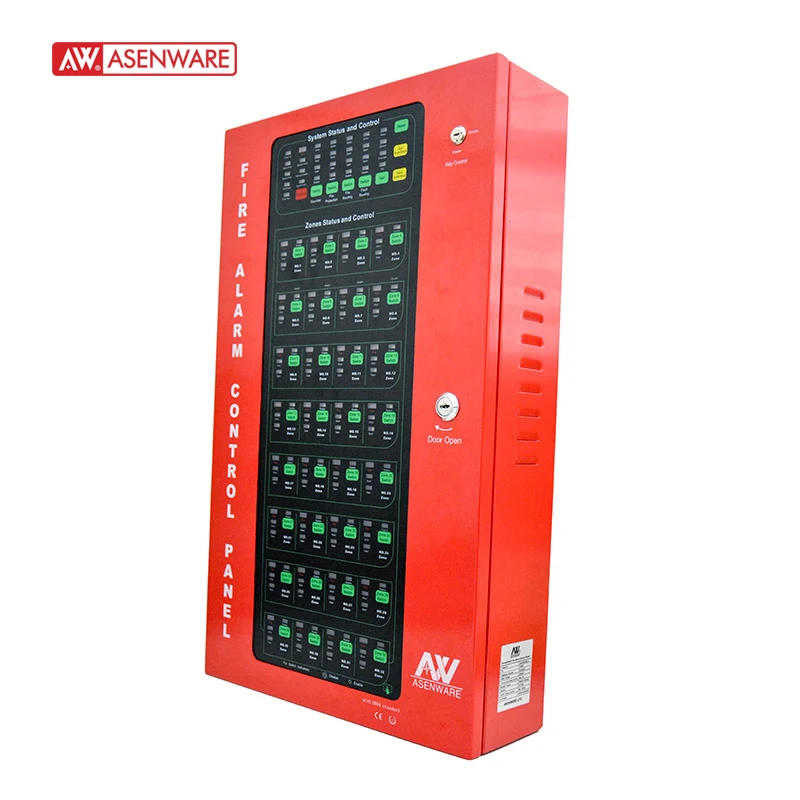

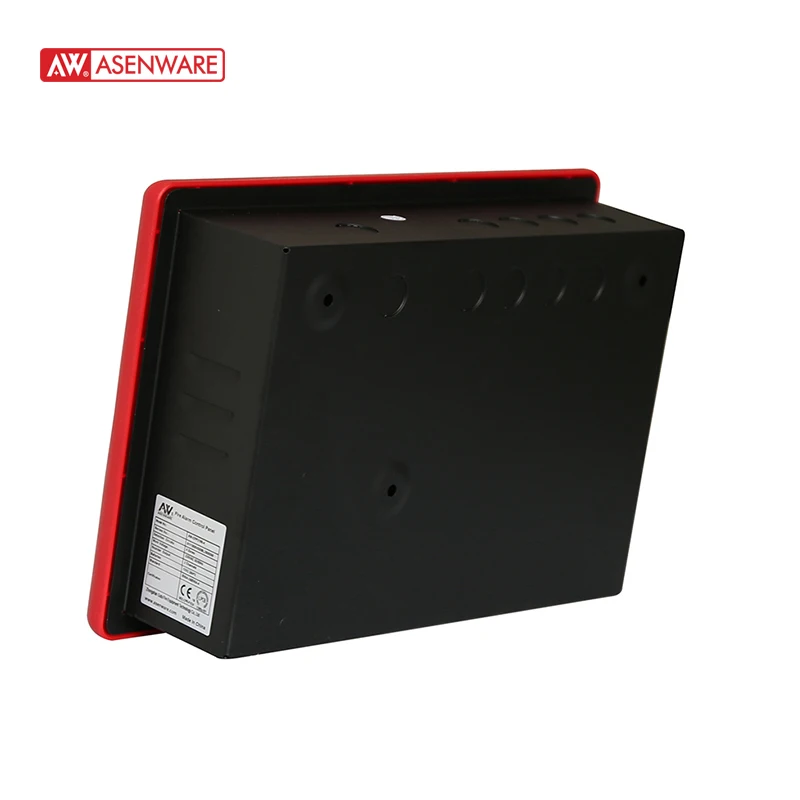

1/2/4/8/12/32 / 28 зон панель управления пожарной сигнализации Система безопасности
- Категория: Панель управления пожарной сигнализации >>>
- Поставщик: Shenzhen Asenware Test & Control Technology Co. Ltd.
Сохранить в закладки 60303787243:
Описание и отзывы
Характеристики
Product Description

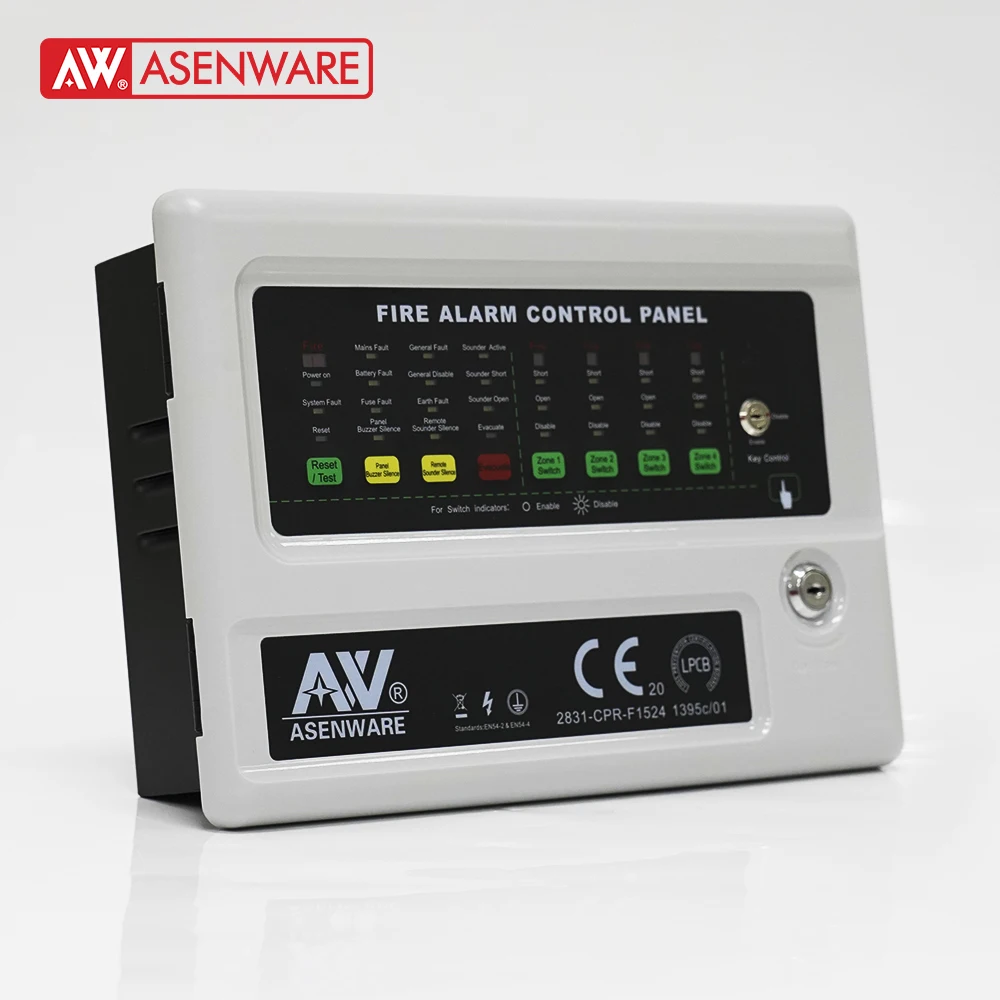

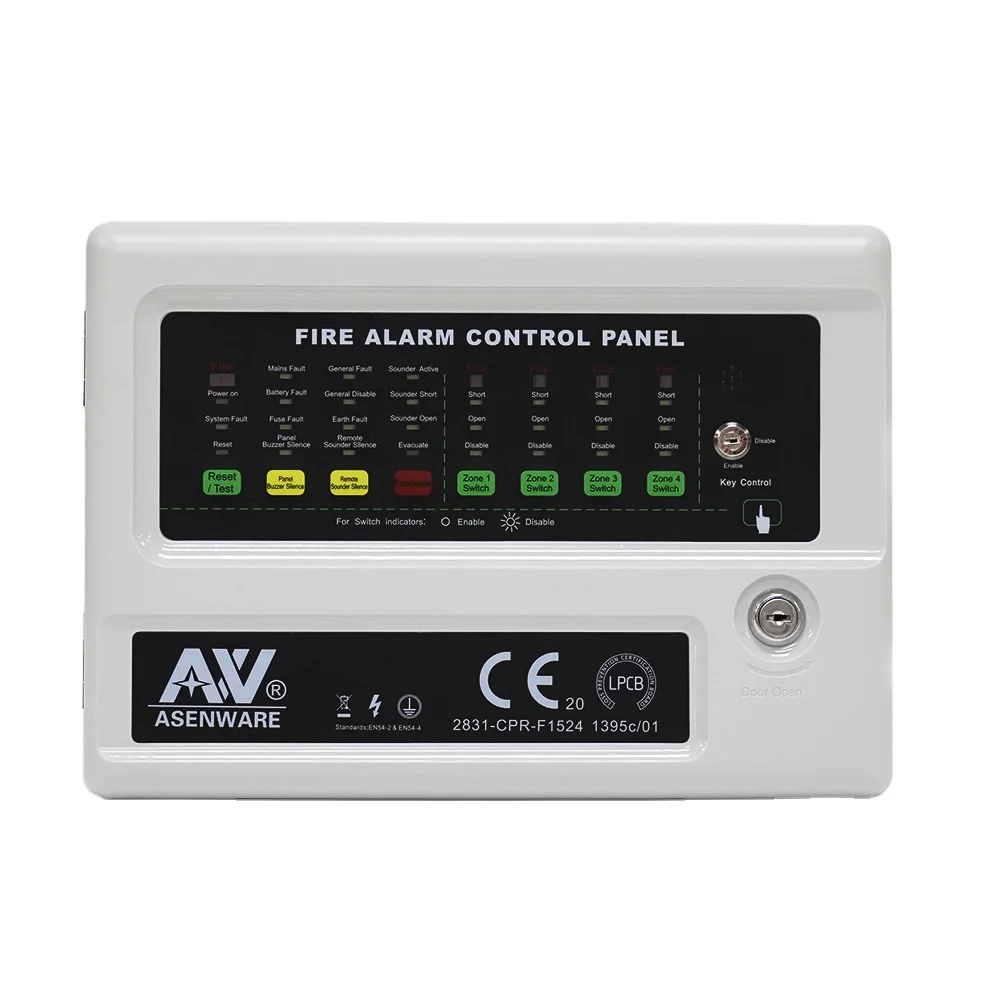

The AW-CFP2166 fire alarm panel has the following characteristics:
● Analogue conventional detector inputs: 20 detectors maximum for each zone
● Extensible zones from 4-32: each zonal expansion board has 4 zones
● 5 outputs for alarm devices (3 relay-outputs): bells/ fire protection/ fire routing/ fault routing
● Configurable relay-outputs mode: wet and dry
● Auxiliary power output: 24VDC/ 100mA limiting protection
● Automatic power switchover: mains power and stand-by power
● Independent functional buttons with indication: friendly user interface for easy operation and recognition
● Access levels: 3 (look over, operation, setting)
● Fault supervision and notification: inputs, outputs, system, power, earth, fuse
● Disablement: output disablement (relays disablement), zones disablement
● Evacuation: man-made fire alarm condition on panel
● Silence: sounders and buzzer silence
● Walk test: indicators check
● Stand-by interface for GSM application: inform user anytime by mobile telephone
● Analogue conventional detector inputs: 20 detectors maximum for each zone
● Extensible zones from 4-32: each zonal expansion board has 4 zones
● 5 outputs for alarm devices (3 relay-outputs): bells/ fire protection/ fire routing/ fault routing
● Configurable relay-outputs mode: wet and dry
● Auxiliary power output: 24VDC/ 100mA limiting protection
● Automatic power switchover: mains power and stand-by power
● Independent functional buttons with indication: friendly user interface for easy operation and recognition
● Access levels: 3 (look over, operation, setting)
● Fault supervision and notification: inputs, outputs, system, power, earth, fuse
● Disablement: output disablement (relays disablement), zones disablement
● Evacuation: man-made fire alarm condition on panel
● Silence: sounders and buzzer silence
● Walk test: indicators check
● Stand-by interface for GSM application: inform user anytime by mobile telephone

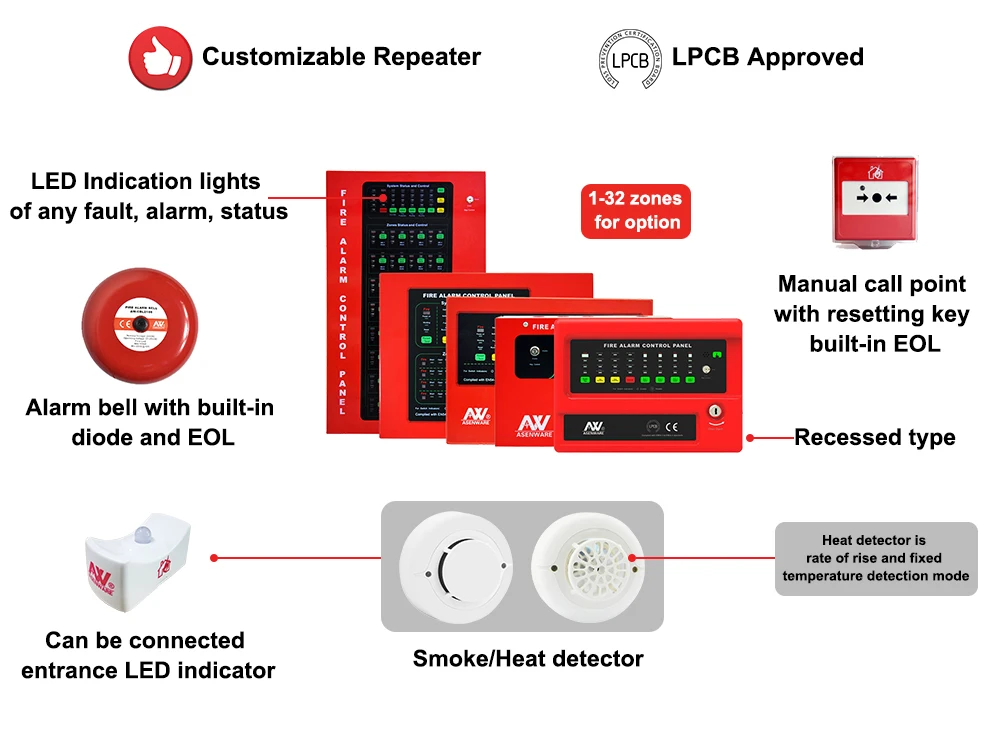

❀ Product Features
Specification
AC INPUT | 220VAC 50HZ | +10% | |||||
-15% | |||||||
DC OUTPUT | 24VDC typical | ||||||
Current at 24VDC from PSE | 450mA standby current | ||||||
Maximum current from PSE | 2A except batteries charge | ||||||
Batteries current | 1.85A maximum, current limited | ||||||
Auxiliary output | 24VDC +/- 10%, 100 mA max, current limited, monitored | ||||||
Batteries | 2*12V/ 2.3Ah sealed lead acid gel, self-regulated | ||||||
2*12V/ 7Ah if needed | |||||||
Battery replace Resistance | 2Ω±10% if needed | ||||||
Battery low-voltage protection | 22.2V | ||||||
Detectors connection allowed each zone | 20 (except MCPs) | ||||||
Zone alarm current | 6mA minimum/ 27mA maximum | ||||||
Sounder output | 2*0.75A maximum | ||||||
Fire protection | 100mA maximum | ||||||
Fire routing | 100mA maximum | ||||||
Fault routing | 100mA maximum | ||||||
Communication protocol | 2 wires RS485 bus system | ||||||
Relay contacts rating | Dry contacts (NO/NC) 1A @24VDC | ||||||
EOL resistor for zone | 6.8K 1W | ||||||
EOL resistor for outputs | 6.8K 1W | ||||||
Fuse on power board | 3A/ 250V glass tube fuse 20mm | ||||||
Fuse on EMI board | 1A/ 250V glass tube fuse 20mm | ||||||
Environmental | Class A temperature range: -5 to 40°C (23~104°F) Humidity: 5 to 95% RH, non-condensing | ||||||
Terminal blocks rating | All terminals rated for 12 to18 AWG (0.75 to 2.5 mm2) | ||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

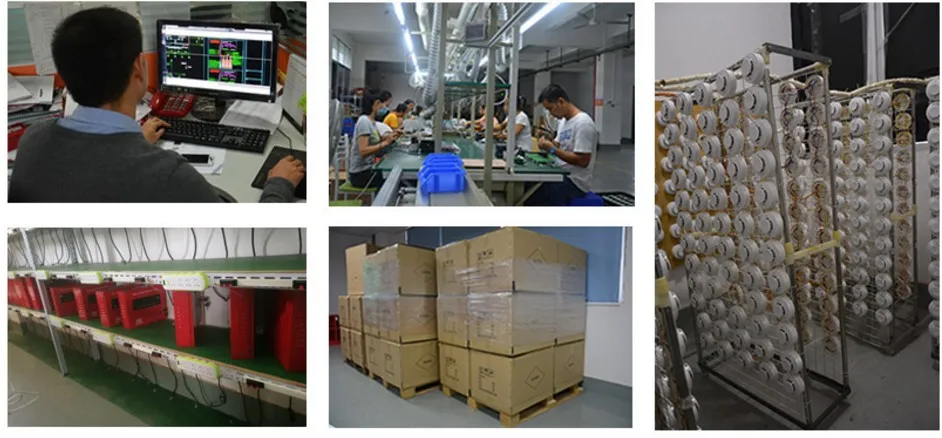

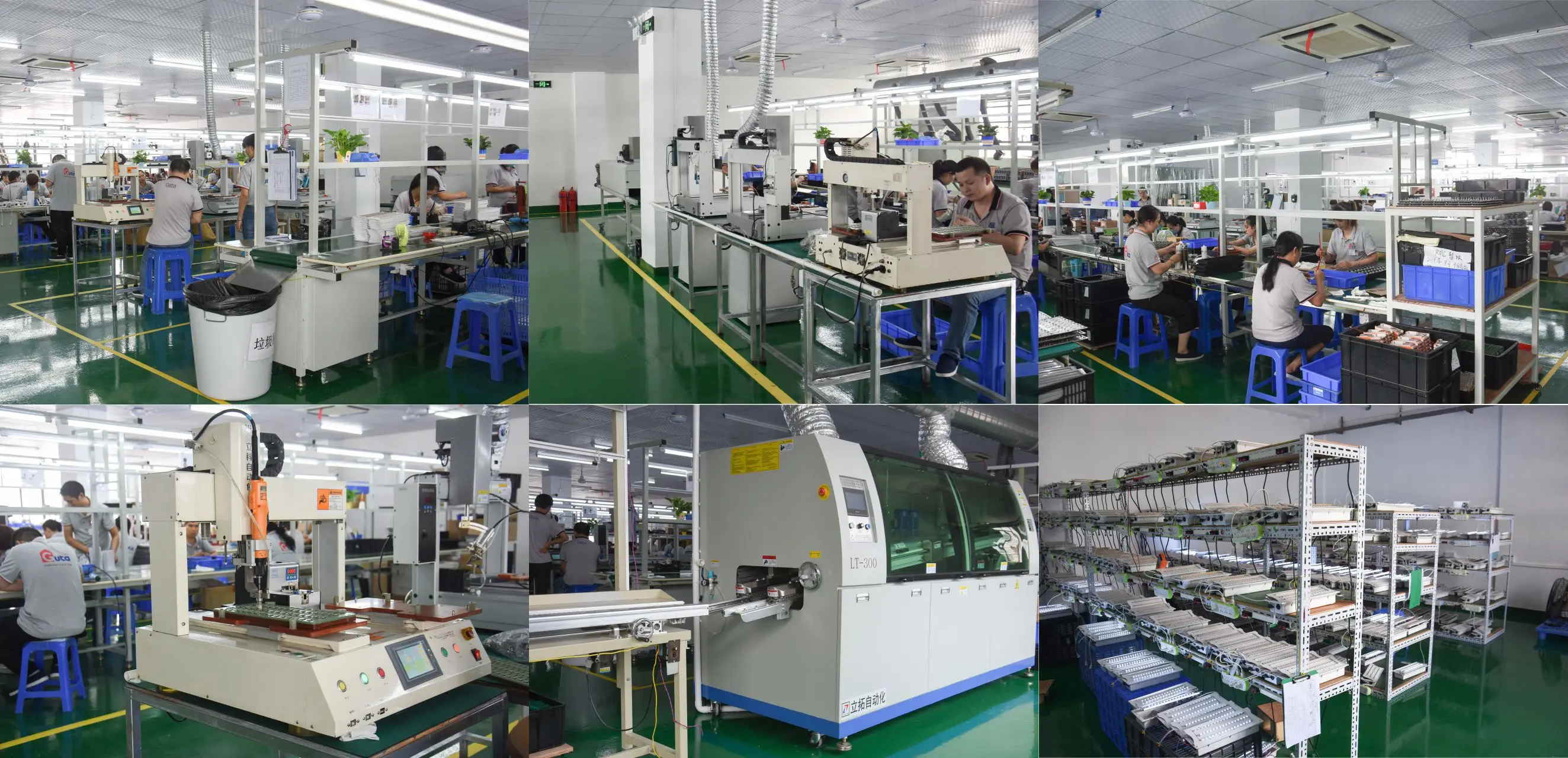

Company Profile
ASENWARE was established in 2005. We have focused on the Fire Alarm and BMS(Building
Management System) over 11 years. Our headquarter is in London, UK.
We develop and manufacture addressable fire alarm system, conventional fire alarm system,
fire extinguisher, CCTV camera and DVR, and DDC for HVAC system.
1:Based on our ISO9001 quality control system and our experiences in BMS and NDT, we
integrated a series of products in our E-Shop; they are cost-effective and guaranteed
quality.
2:We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas
projects.
Management System) over 11 years. Our headquarter is in London, UK.
We develop and manufacture addressable fire alarm system, conventional fire alarm system,
fire extinguisher, CCTV camera and DVR, and DDC for HVAC system.
1:Based on our ISO9001 quality control system and our experiences in BMS and NDT, we
integrated a series of products in our E-Shop; they are cost-effective and guaranteed
quality.
2:We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas
projects.
Related Products
♬ Exibition & Certification
FAQ
1.OEM / ODM services.
2.Professional technical team.
3.Offer Free technical support whenever you need
4.Two year warranty and technical maintenance
FAQ:
Q1: Are you manufacturer?
A: (yes)
Q2: What is the lead time?
A: usually
Fire control: one week working day. bulk quality: three weeks working days
Emergency lights: two weeks working days
bulk quality: four weeks
FM200: two weeks working day
Fire pump: 25 days
Q3: How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or by Air. 3-5 days after payment received.
Q4: Can I have a sample order?
A:Yes,we welcome sample order to test and check quality.
Q5: Do you offer OEM service?
A: Yes, we can design the things according to your request.
Contact us
Lisa Liu
Skype: sales06_294
WhatsApp: 008613590125319
Email: sales06(at)asenware.com
2.Professional technical team.
3.Offer Free technical support whenever you need
4.Two year warranty and technical maintenance
FAQ:
Q1: Are you manufacturer?
A: (yes)
Q2: What is the lead time?
A: usually
Fire control: one week working day. bulk quality: three weeks working days
Emergency lights: two weeks working days
bulk quality: four weeks
FM200: two weeks working day
Fire pump: 25 days
Q3: How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or by Air. 3-5 days after payment received.
Q4: Can I have a sample order?
A:Yes,we welcome sample order to test and check quality.
Q5: Do you offer OEM service?
A: Yes, we can design the things according to your request.
Contact us
Lisa Liu
Skype: sales06_294
WhatsApp: 008613590125319
Email: sales06(at)asenware.com
