Профессиональный Din нарезка резьбы и набор ручных инструментов с небольшие краны круглые шестерни из углеродистой стали PT110 3
- Категория: >>>
- Поставщик: Hangzhou Pangong Tool Co. Ltd.
Сохранить в закладки 60303874954:
Описание и отзывы
Характеристики
Taps and dies are hand cutting tools used to create screw threads, which is called threading. A tap is used to cut the female portion of the mating pair (e.g., anut). A die is used to cut the male portion of the mating pair (e.g., a screw). The process of cutting threads using a tap is called tapping, whereas the process using a die is called threading. Both tools can be used to clean up a thread, which is called chasing.
Product Description
Specifications
| Model: PT110-3 |
| Our Brand: TUNGSTEN |

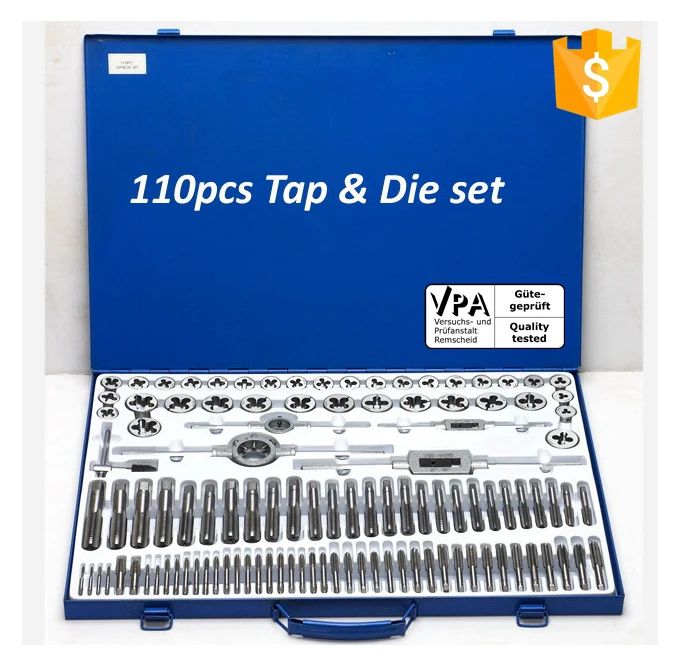

Metrail: Alloy steel Gcr15,9Crsior HSS4241/4341/6542/5341/M2 or Carbon Steel (optional) HCR: 58-63 Package: 110Pcs Tap & Die Set In Metal Case / Metal case |
Color: Bright ,Black,Golden Process: grinding,drilling,tapping,milling,stamping,heat treating,chamfering |
1.OEM: Accpetable 2.Logo Printing: We can print your LOGO on the handle and package. 3.Free Samples: We are willing to provde free samples. 4.Payment term: T/T,L/C,Western Union,Paypal and etc. 5.Delivery: within 15-40 days after the order be confirmed
Professional Din Tapping and Threading Hand Tool Set with Small Taps and Round Dies PT110-3
|
| METRIC |
| 35PC dies size:2×0.4 3×0.5 4×0.7 5×0.8 6×1.0 6×0.75 7×1.0 7×0.75 8×1.25 8×1.0 8×0.75 9×1.25 9×1.0 9×0.75 10×1.5 10×1.25 10×1.0 10×0.75 11×1.5 11×1.25 11×1.0 11×0.75 12×1.75 12×1.5 12×1.25 12×1.0 12×0.75 14×2.0 14×1.5 14×1.25 14×1.0 16×2.0 16×1.5 16×1.0 18×1.5 35PC Taper and Plug taps:size as dies 2PC Tap Wrenchs 1PC T Type Wrench 1/4"capacity 1PC Die Handle 1"OD 1PC Die Handle 11/2" OD |
| SAE |
| 35PC dies size:4-40 4-36 6-32 6-40 8-32 8-36 10-24 10-32 12-24 12-28 1/4-20 1/4-28 1/4-24 1/4-40 5/16-18 5/16-24 5/16-32 3/8-16 3/8-24 3/8-32 7/16-14 7/16-20 1/2-10 1/2-13 1/2-20 9/16-12 9/16-18 5/8-11 5/8-18 11/16-12 11/16-16 3/4-10 3/4-16 1/8NPT27 1/4NPT18 35PC Taper and Plug Taps:same size as dies 2PC Tap Wrenchs 1PC T Type Wrench 1/4"capacity 1PC Die handle 1"OD 1PC Die handle 1-1/2" OD |
| COMBINATION |
| 35PC Dies size: 4-40, 6-32, 8-32, 10-24, 10-32, 12-24, 1/4"-20, 1/4"-28, 1/4"-24, 1/4"-40, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 9/16"-12, 9/16"-18, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16, 6×1.0, 8×1.25, 10×1.5, 10×1.0, 11×1.5, 12×1.25, 12×1.75, 14×1.25, 18×1.5,1/8NPT27,1/4NPT18 35PC Taper and Plug Taps:same size as dies 2PC Tap Wrenchs 1PC T Type Wrench 1/4"capacity 1PC Die Handle 1"OD 1PC Die Handle 1-1/2" OD |

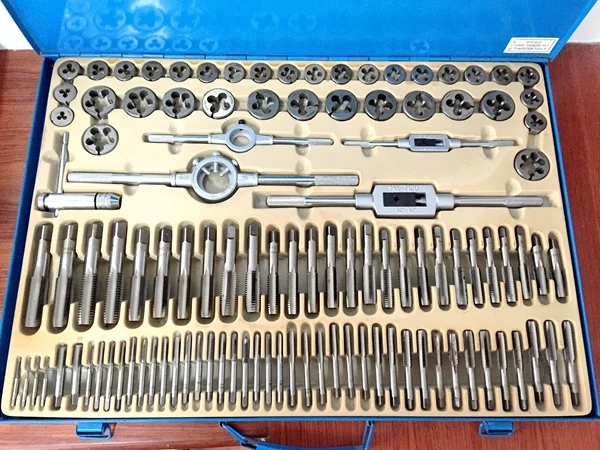

Pictures of PT110-3

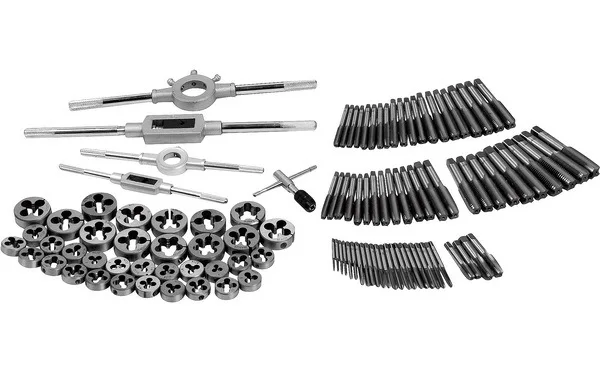

110PC Thread cutting Tools Kit contains:
70 Taps + 35 Dies + 2 Tap wrench + 1 T handle tap wrench +2 Die handle
T Handle Tap wrench![T handle]()
How to create outernal screw threads :
1.Choose the required thread diameter and the associated thread pitch.
2.Select a suitable bolt,and fix a suitable die in the die stock. Before positioning the die over the bolt, deburr workpiece and file it to a slightly taper.
3.Cut the outside thread by turning the die stock backwards and forwards several times. Keep the workpiece lubricated with cutting oil.State cutting only possible from the marked side.
How to create internal screw threads :
1.Choose the required thread diameter and the associated thread pitch.
2.Drill a pilot hole in the appropriate diameter.
3.Fix a suitable tap in the tap wrench. Cut the thread by truning the tapping tool backwards and forwards a few times,at the same time putting cutting oil into the drilled hole.
Other customers are interested in ...
Related Products
More PANGONG TOOLS you may interest
Tap and die set
10PC 12PC-1 12PC-2 13PC 16PC-1 16PC-2 16PC-3 20PC-1 20PC-2 20PC-3
21PC 22PC 24PC-1 24PC-2 25PC 27PC-1 27PC-2 28PC 29PC 32PC
33PC-1 33PC-2 33PC-3 34PC-1 34PC-2 35PC-1 35PC-2 39PC 40PC-1
40PC-2 40PC-3 40PC-4 40PC-5 41PC-1 41PC-2 42PC 44PC 45PC-1
45PC-2 45PC-3 46PC 50PC 51PC-1 51PC-2 52PC-1 52PC-2 58PC-1
58PC-2 60PC-1 60PC-2 60PC-3 60PC-4 60PC-5 64PC 65PC 75PC
76PC 79PC 110PC-1 110PC-2 110PC-3 PVC pipe threading die
Tap and Drill set
Combination Ratchet Wrench
5PC/ Plastic box 5PC/ Plastic frame 5PC/ Metal case
5PC/ Blister pack 7PC/ Plastic File 14PC/ Canvas Bag
Flexible head Combination Ratchet Wrench
5PC/ Plastic box 5PC/ Plastic frame 5PC/ Metal case
5PC/ Blister pack 7PC/ Plastic File 10PC/ Plastic frame 12PC/ Canvas Bag
Double ring Ratchet offset wrench
5PC/ Plastic box 5PC/ Plastic frame 5PC/ Metal case 6PC/ Canvas Bag
Double ring two direction operated ratchet wrench
5PC/ Plastic frame 6PC/ Plastic box 6PC/ Canvas Bag
Company Information
About us
Pangong Tools Co.,Ltd is specilized in tread cutting tools .Main products are Round Dies , Hexagon die,hand &machinetaps ,including all kinds of combination set ,with series of Metric ,SAE and UNC &UNF international standards.Meanwhile, our company is marking efforts to research,develop and produce all kinds of spanners and ratchet spanners.
We own professional technical forces,advanced equipments, precise measuring
instrument,scientifically management systems,efficient and strong teamwork.
We will exert ourselves to create prefect "TUNGSTEN" trademark with our excellent service,supplying the satisfied qualified products to you , continuously create new products of top quality.
Похожие товары
Стоматологический аспирационный шприц

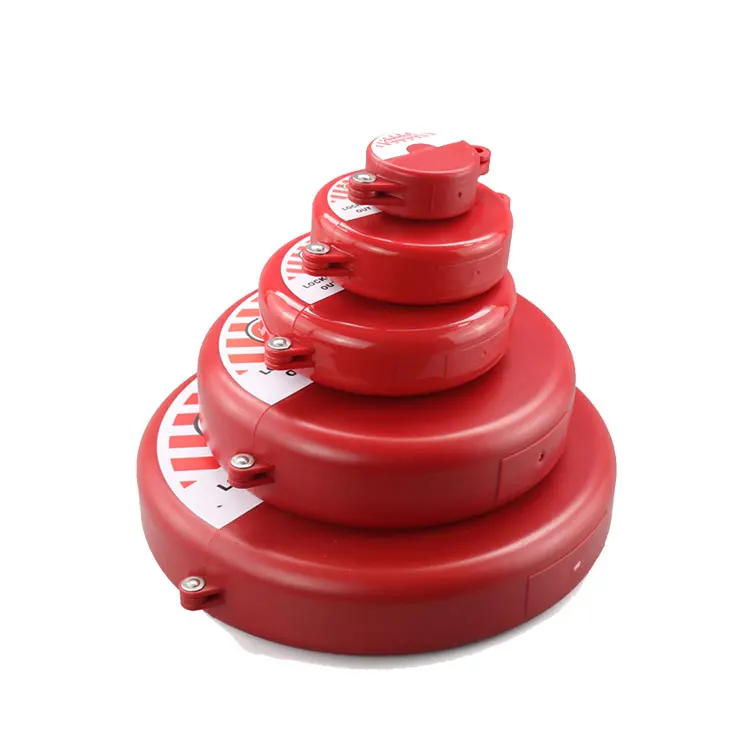

Регулируемый запорный клапан, запорное устройство безопасности, дисковое ручное колесо промышленного стандарта
25,3 г., хромированная Автомобильная блокировка колес dimater

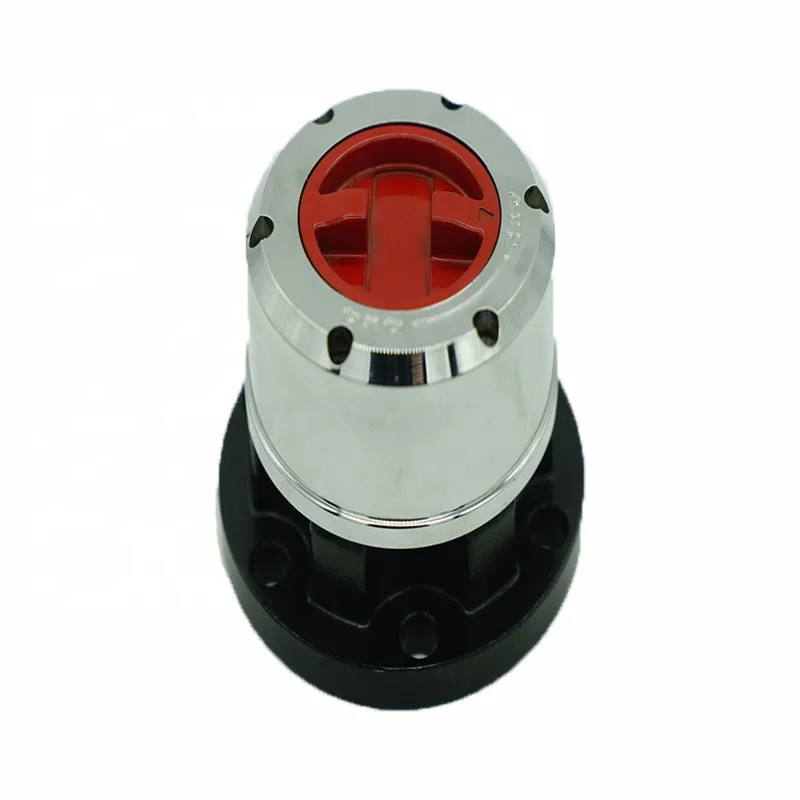

Свободные ступицы блокировки колеса для GREAT WALL AVM480 Steel B051
21,00 $ - 28,50 $

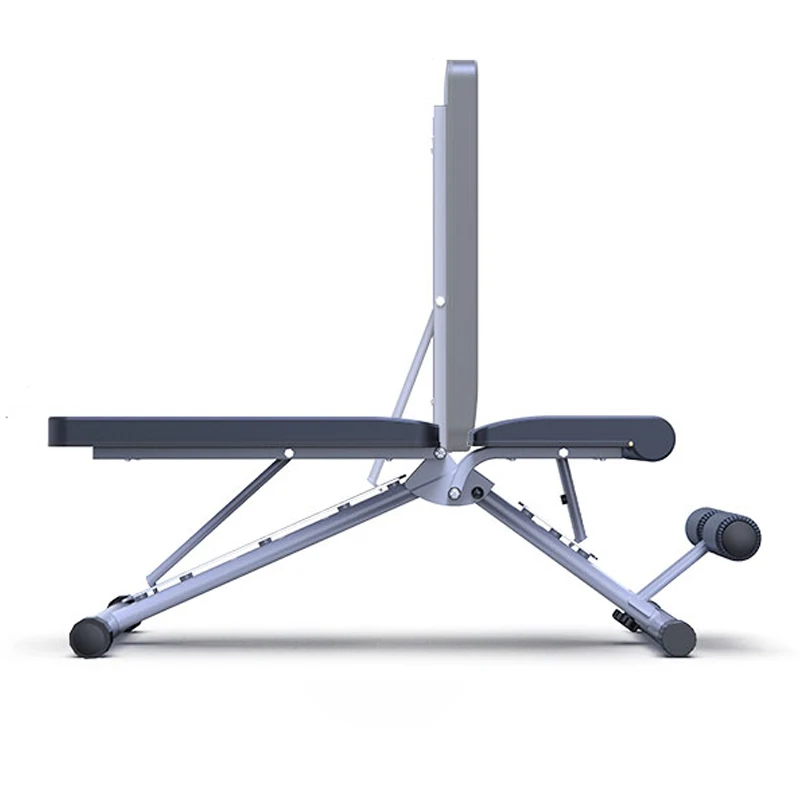

Многофункциональный регулируемый утилита скамейка для бодибилдинга & тренировки регулируемыми

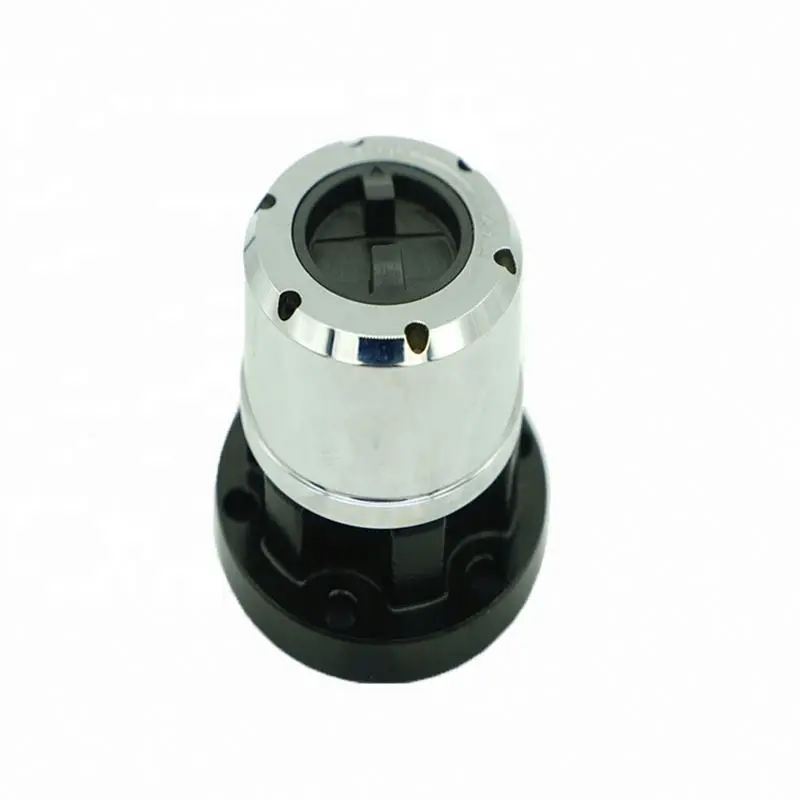

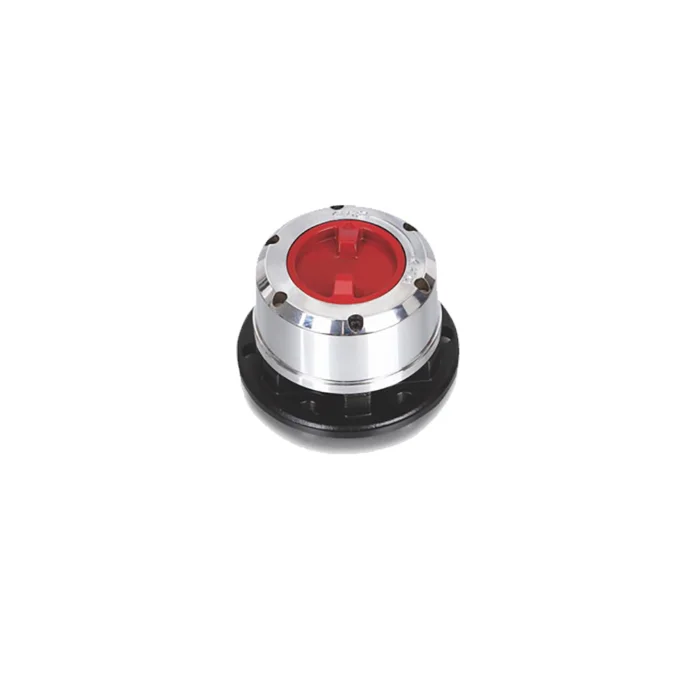

Ступицы с ручной блокировкой, свободное колесо AVM410 для UZ Gas
