SGD 3300S высокое качество Обивочные Ткани Машина для вязания крючком больших ткань

Technical parameters:

Operational breadth: 762mm (30 inches)

Gauge Needles per inch: 15, 18, 20 (according to customer need)

Weft needle plates: 6 groups (4 or 2 groups of servo systems are attached to themachine)

Root weft density range: 5-20S/cm

Main shaft speed: 1,500r/min maximum

Main motor power: 1.5kW

Servo drive power: 1 kW x N (N is the number of the servo system groups)

Frame yarn circumference: 170cm

Spool seat number: 260 seatsInter-spool seat distance: 200mm

Main frame size (L x W x H): 1,950 x 1,950 x 1,750mm

Winding frame size (L x W x H): 3,300 x 3,050 x 2,400m

Yarn frame size (L x W x H): 2,100 x 1,700 x 2,750mm

Entire machine weight: 1,100kg

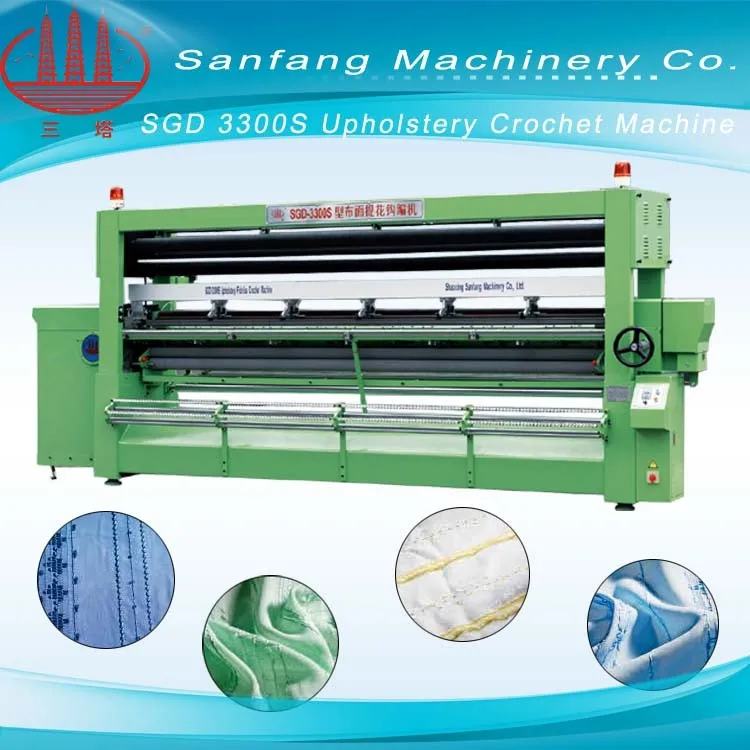

SGD-3300S

Upholstery fabric crochet machine

      The machine adopt single-spindle driving DC Motor , each spindle running separately with stepless speed adjustable function , and installed the length counter , the spindle can auto stop according to any demand of take-up length . Combine the digital controlling of traverse , it can adjust yarn Guider’s traverse Gauge easily to anti-ribboning for different counts of yarn . Driving is provided with an infinite speed regulation to make it possible to start the machine at a low speed, brake the machine quickly and have a step motion at a low speed to meet the needs of test and calibration of the machine. The machine is divided into two parts: the main machine and Creel to facilitate the operation and maintenance. Furthermore, the spare parts are interchangeable. It is really a perfect machine for the knitting and garment industry.

About us

      Established in 1992, Shaoxing Sanfang Machinery Co., Ltd is located in Paojiang lndustry Development Zone in Shaoxing which is a famous historical and cultural city and a water town in the regions south of the Yangze River.It is enterprise in the textile machinery industry, with the assets of nearly RMB50, 000, 000and the annual output value of RMB1000, 000, 000, covering a floor area of nearly 30, 000 square meters. Since establishment, the company has been carrying out the strategy of famous brand,following the road of prosperity by quality,uphoding the enterprise's spirit of pioneering and innowating,adoancing with fimes,omnibearingly improving the quality of staff,strengthening their awareness of creating excellence,trained a group of superb techinacal backbones,and introduced the mechanical production equipment which take edad in the current machinery building industry,such ad the processing center,NC punching machine,NC lathe,NC miling machine,laser cutting machine,precision grinding machine,etc.The company researched and maufactrred the advanced textile machinery.The mainstay productsinclude SGD950 special style lace crochet knitting machine ,SGD260 lace&band crochet machine,SGD-980 fancy yarn crocheting loom,SGD-1700S cloth cover jacquard crocheting loom,SGD-3300S cloth cover jacquard crocheting loom,SGD-980B computerized fancy yarn crocheting loom,AGEN980-A/B AirCovering Yarn machine,AGEN280 Single-spindle Air covering machine,CAJ800 Advanced Air covering yarn machine,SGD9710 Serious Thread Rewingding machine,SGD2010 Emergy-Saving Rewinding machine,SGD2012 Efficinet-Digital Rewinding machine,SGD268 Serious Computerized spooler,SGD280 High speed rewinding machine SGD2180 multi-functional NC compound twisting frame,etc.The company passed IS0900-2000 certification.The marketing network spreads throughout the country and extends overseas,The products win a full trust of the broad masses of users.The struggling way ahedd is still very long,but we will sontinue struggling and go ahead. In the new century,facing the new situation after China joining WTO,the staff of the company will sontinue as before increasing the strength inside,extablishing the brand outside,and expanding bussiness field.Santa people will sontinue seeking to create excellent quality machines in textile machinery industry,and going forward in big strides on the read of developing and enlarging Sanfang Machinery.

We are professional textile machinery manufacturer for a decade

30#,west of century street, paojiang industry park, shaoxing , zhejiang,China

Winding Machine,Crochet Machine,Air Covering Machine,Spooler Machine, Intermingle Machine

Yes, we offer you free samples as your requirement,you will afford the freight.

Yes, of course, we can start cooperating from small order
