X120-L EXCAVATOR
WHEEL EXCAVATOR
It is the first economical, high end wheel excavator in china, totally researched and developed by our company.
Using YANMAR engine, in-line four strokes, low fuel consumption, environmental protection, convenient repair and maintenance.
Electronic monitoring using a dot matrix type advanced multifunctional large screen liquid crystal display ,electronic throttle control system has the function of throttle control, automatic idle speed, overheat protection, speed acquisition.
Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.
The hydraulic parts are imported, stable quality and performance, LED lights, hydraulic transmission, high working efficiency, well-adapted.
Based on the strong and durable key parts and international quality chassis configuration, operation stability is stronger.
The machine adopted new type cab with wide field of vision, new seat, and automatic regulated air conditioning system, make the operation flexible and comfortable.
The concept of low noise, ensure the operator to manipulate more comfortable and safety.

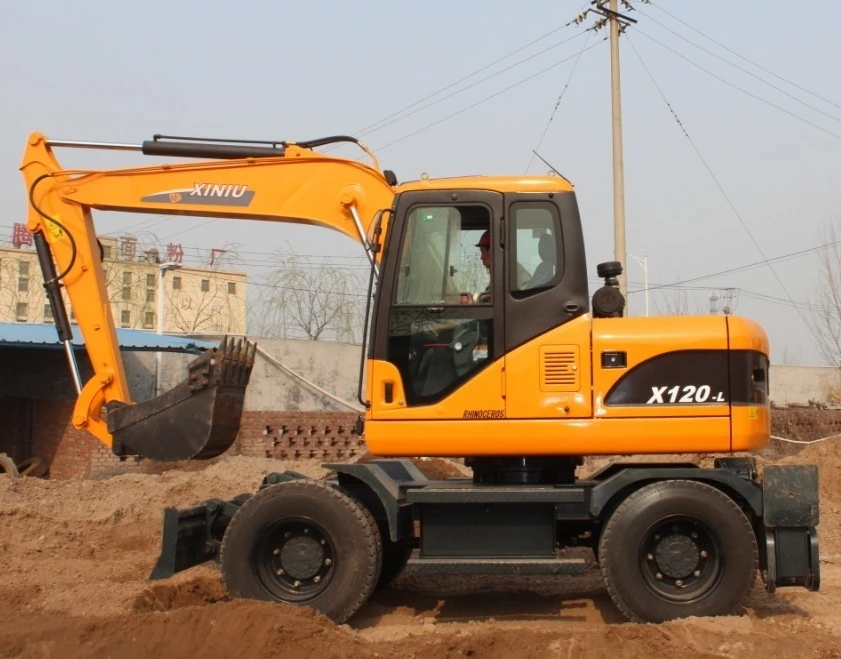

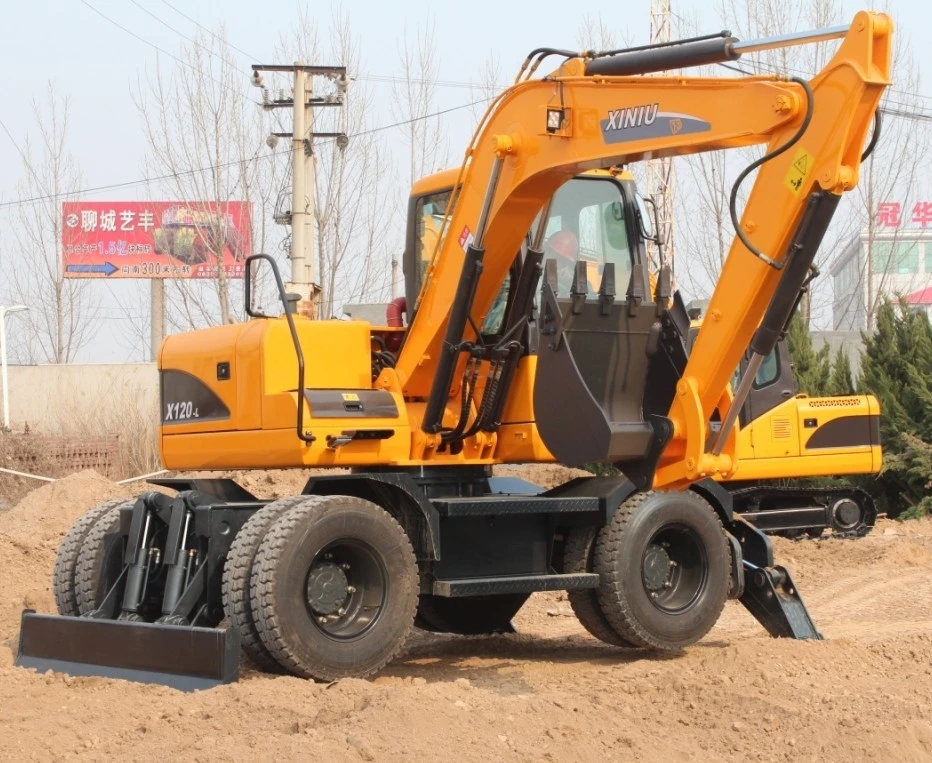

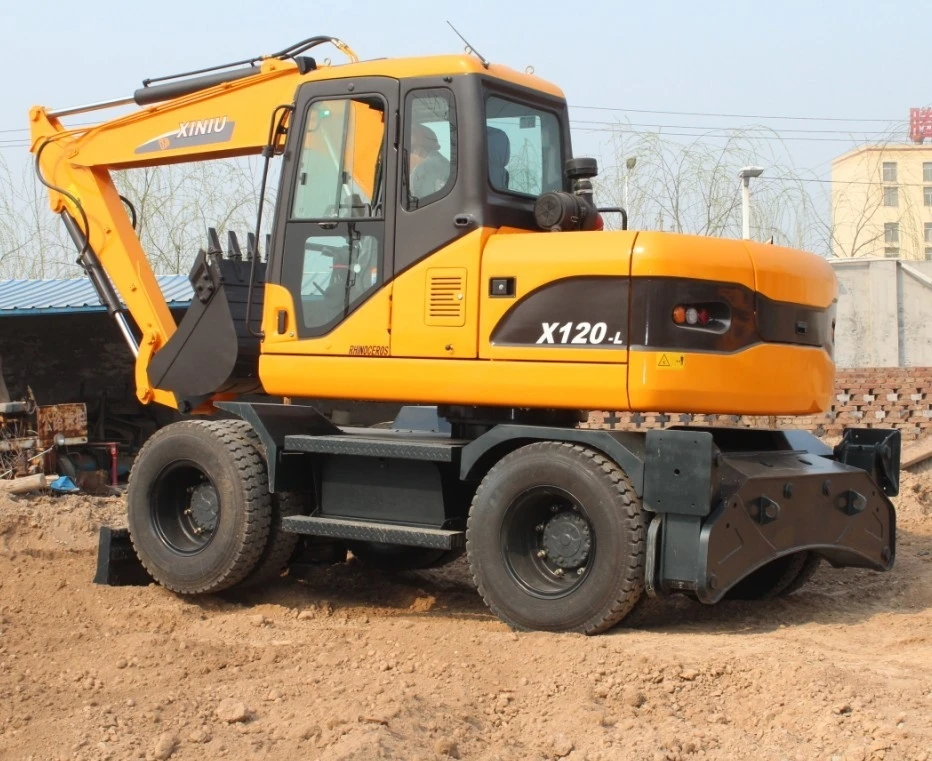

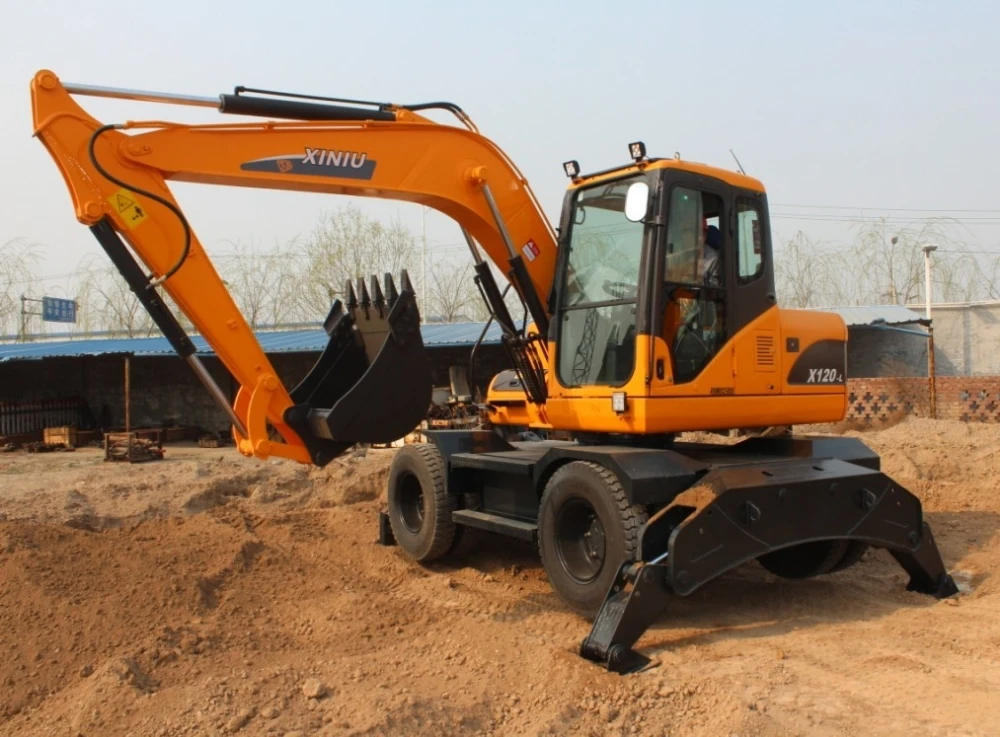

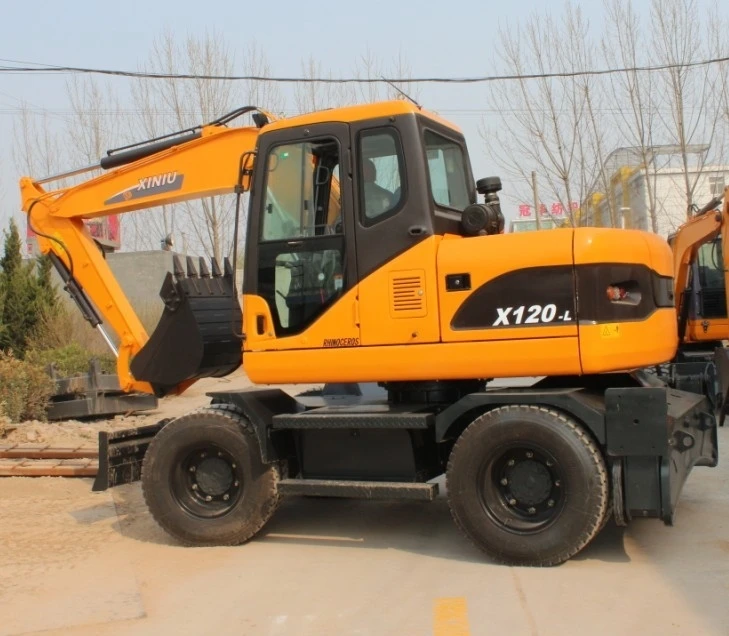

WORKING PHOTO:


DETAILS FOR PRODUCT:
MAIN DIMENSIONS | UNIT | XN120-L |
(Operating Weight) | kg | 12,000 |
(Overall Dimension) | mm | 6650x2475x3165 |
(Bucket Capacity) | cbm | 0.45 |
(Wheel Base) | mm | 2500 |
(Wheel Tread) | mm | 1940 |
(Ground Clearance) | mm | 270 |
(Blade Height) | mm | 360 |
(Blade Dimension) | mm | 2350x475 |
(Tire Type) | 9.00R20 8 tyres | |
SYSTEM CONFIGURATION | ||
(Engine Type) | YANMAR(4TNV98T-SFN) | |
(Rated Power/Speed) | kw | 57.7 |
(No. of Cylinders/Type) | 4 cylinder / in line | |
(Starting Type) | Electirc 12V | |
(Drive Method 2WD/4WD) | Hydraulic 4WD | |
(Hydraulic Main Pump) | MOIFLIUD | |
(Hydraulic System Pressure) | MPa | 29 |
(Hydraulic System Flow) | L/min | 150 |
(Valve) | MOIFLIUD | |
(Swing Motor) | EATON | |
(Max Swing Speed) | r/min | 10.5/min |
(Travel Motor) | LIYUAN | |
(Max Travel Speed) | km/h | 25km/h |
(Axle) | KAICHUANG | |
(Gear) | F:1 2 ; R: 1 2 | |
(Bucket Digging Force) | Kn | 55 |
(Arm Digging Force) | Kn | 40 |
(Grade ability) | degree | 35 |
(Working Fuel Consumption) | L/h | 8.16 |
(Diesel Oil Tank Capacity) | L | 160 |
(Hydraulic Oil Tank Capacity) | L | 130 |
OPERATION RANGE | ||
(Munising Radius) | mm | 2515 |
(Boom Length) | mm | 3800 |
(Arm Length) | mm | 1824 |
(Max Digging Height) | mm | 7140 |
(Max Dumping Height) | mm | 5195 |
(Max Digging Depth) | mm | 3640 |
(Max Digging Radius) | mm | 6530 |
(Standard Machine With A/C) | AC | Standard |
(Packing Way) | Roll-on-roll-off | |
(Passed Certificates) | CE ISO |
Container loading
1. Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.
2. Spare parts or wearing parts will be packed in wooden box or paper carton.
3. Standard shipping method is by container, most of our excavator and backhoe loader can be loaded in container. Convenient.

We try our best to making your experience with us a positive one and therefore we stand behind everything we sell.
This item comes with 1 years or 1200 working hours manufacturers warranty whichever comes first.
Pre-sale service:
Call us no matter cooperate or not. you may get unexpected harvest. We would discuss the future development of this line together according to many years experience on selling and producing which could help to enlarge the profits and improvement for both of us.
Studying the customer's requirement carefully, we would help customer to choose the most suitable machine and will offer you the relative samples and suggestions promotely and considerately, according to customer's production scale and technical requirements.
Selling service:
Promotely and paintely answer customer's questions. put our heart and soul into service for customer, including supply some suggestions on choosing the place, how to save cost, and play the maxium value of our machine
After-sale Service:
1. our technicians will provide on-site service to customers in china. We will supply the whole day online service to foreign customers. According to foreign customer's requirement, we will arrange technicians go abroad to install or maintenance the machine if necessary.
2. within the warranty period and the machine parts damage under normal using condition, we will offer free new ones for replacement.
3. after the expiry of warranty, we can renewal of the contract, which can enjoy the same service as that during the warranty period.
4. our company will research the staffs service attitude aperiodically to improve the service satisfaction.
Shandong Rhinoceros Engineering Machinery Co., LTD is a professional manufacturer of construction machinery, engineering machinery and trucks in china, the machines cover wheel excavator 5-15 ton, crawler excavator 6 -45 ton , backhoe loader 5-7 ton, wheel loader 0.5-5ton, concrete pump 21-55 meter, small trucks and mini dumper. So i am confident there must be one model can meet to your needs. Most of the machines are with CE, TUV certificate,company ISO certificate. Please send me message for more information.
