Мини Размер 8 портов GPON OLT Huawei MA5683T с одной картой GPBD 2 плата управления 1 uplink карта питания
- Категория: >>>
- Поставщик: Shenzhen Phifo Technology Co. Limited
Сохранить в закладки 60314184846:
Описание и отзывы
Характеристики

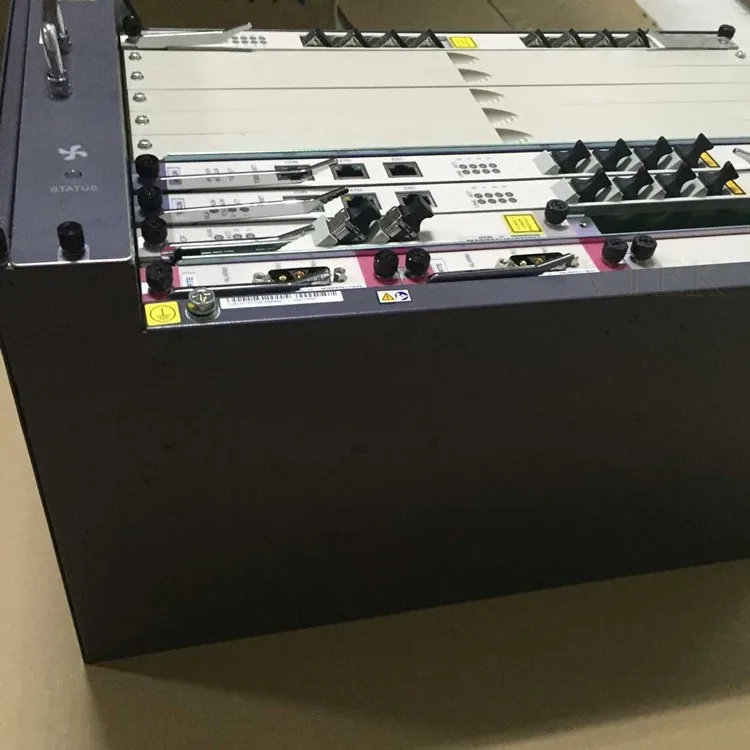

Huawei MA5683T GPON OLT Full configuration 8ports GPON card 2*control board 1*uplink board 2*power card

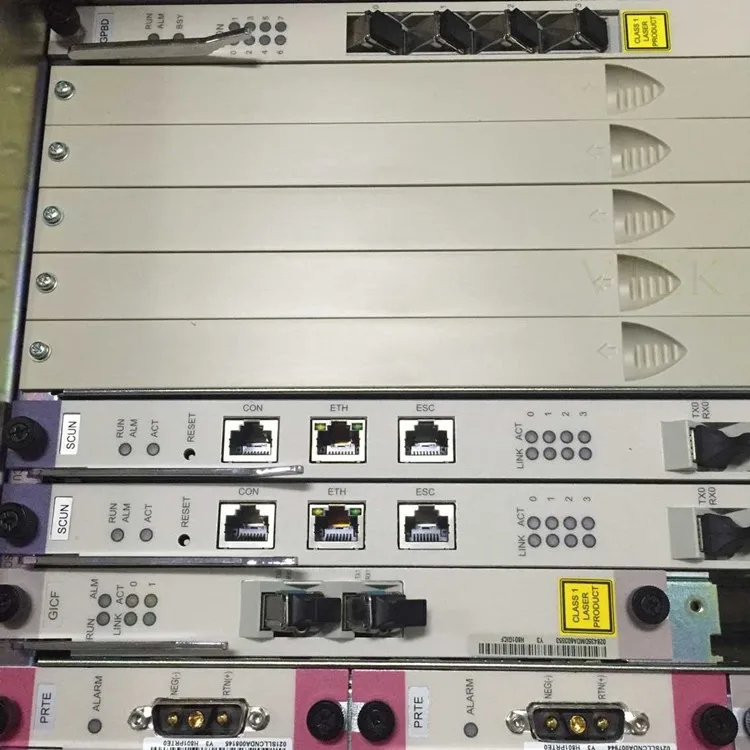

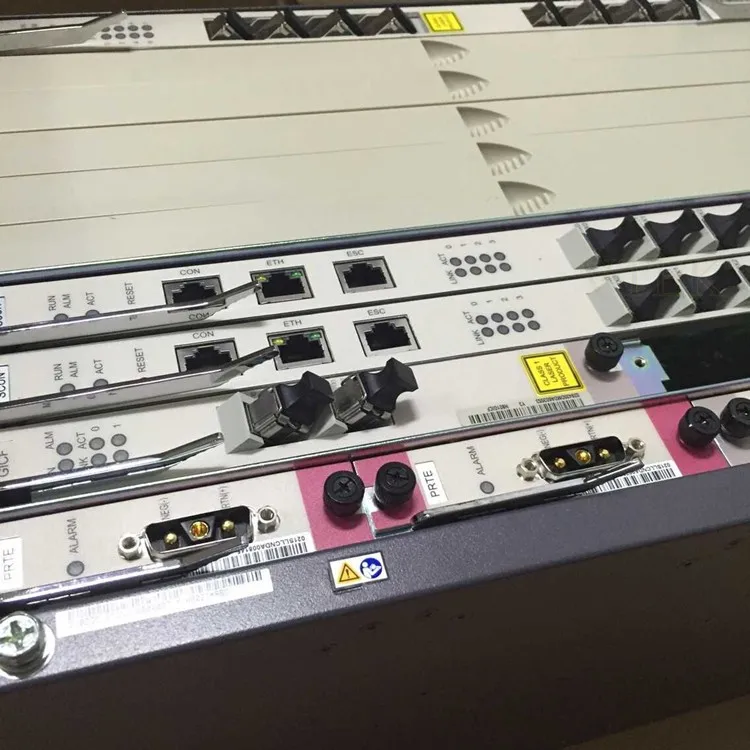

Price includes: 1*MA5683T Chassis+2*SCUN+1*GICF+2*PRTE+1*GPBD+Power cables
Packing dimension : 600*480*530mm
Gross weight : 20.5kg
Huawei MA5683T is similar as MA5603T, with the same function if works as GPON OLT
Support GPON, EPON and P2P
Support GPON & EPON simultaneously
Chassis supports 6 Service Slots
Support 8-GPON port interface card GPBD, 16-GPON port interface card GPFD
Support GPON split ration 1:128
Support GE (GICF uplink card) or 10G uplink( X2CS uplink card)
Support Transmit Distance 20KM
Power: AC to DC power supply, 48V, in cabinet
Huawei MA5683T is a aggregation Optical Line Terminal(OLT), it supports up to 6 service slots and can support maximum 12K ONT (GPON). A typical MA5683T configuration includes one MA5683T Chassis, two Main Control Board SCUN, two Power Board PRTE, one uplink board GICF (2 GE Optical with SFP Module), several 8 Ports GPON board GPBD and software.
AC to DC power supply
MA5683T Specifications and Datasheet
| System performance | |
| Backplane bus switching capacity | 1.5 Tbit/s |
| System L2 packet forwarding rate | SCUB: 72 Mpps |
| SCUN: 726 Mpps(Active/Standby mode), 1452 Mpps(Load-sharing mode) | |
| SCUF: 190 Mpps | |
| SCUH: 1428 Mpps(Active/Standby mode), 2856 Mpps(Load-sharing mode) | |
| Control board switching capacity | SCUB: 48 Gbit/s |
| SCUN: 480 Gbit/s(Active/Standby mode), 960Gbit/s(Load-sharing mode) | |
| SCUF: 128 Gbit/s | |
| SCUH: 960 Gbit/s(Active/Standby mode), 1920Gbit/s(Load-sharing mode) | |
| Switching/Forwarding delay | Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs. |
| BER in full load | BER of port when transmitting data in full load < 10 e-7 |
| System performance | |
| System | Redundant configuration |
| System availability in typical configuration | >99.999% |
| Mean Time Between Failures (year) | ≈45 |
| Configuration | |
| Maintenance port | Number of 10 Mbit/s/100 Mbit/s maintenance Ethernet ports: 1 |
| Number of serial ports for local/remote maintenance: 1 | |
| Monitoring port | Number of environment monitoring serial ports: 1 |
| Maximum number of GPON ports in a subrack | 96 |
| Maximum number of 10G GPON ports in a subrack | 24 |
| Maximum number of P2P FE ports in a subrack | 288 |
| Maximum number of P2P GE ports in a subrack | 288 |
| Maximum number of upstream ports (GE ports in the GIU slot) in a subrack | 8 |
| Maximum number of upstream ports (10GE ports in the GIU slot) in a subrack | 4 |
| Management ports | |
| Outband management Ethernet port (RJ-45) | SCUB/SCUN/SCUF/SCUH control board: 1 Port Per Board |
| Local serial port (Console) | SCUB/SCUN/SCUF/SCUH control board: 1 Port Per Board |
| Upstream ports | |
| GE electrical port | GICE: 4 Ports Per Board |
| GICG: 2 Ports Per Board | |
| GE optical port | GICF/GICK: 2 Ports Per Board |
| SCUB/SCUN/SCUH/GICD/GSCA: 4 Ports Per Board | |
| ETHB/SPUA/SPUF: 8 Ports Per Board | |
| SPUC: 40 Ports Per Board | |
| 10GE optical port | X2CS/SPUA: 2 Ports Per Board |
| SPUC: 4 Ports Per Board | |
| SPUF: 8 Ports Per Board | |
| E1 port | TOPA: 16 Ports Per Board |
| STM-1 upstream optical port | TOPA: 2 Ports Per Board |
| PON upstream optical port | P2CA: 2 Ports Per Board (One PON port is available and the other is backup.) |
| Service ports | |
| GPON port | GPBD/GPBH: 8 Ports Per Board |
| GPFD: 16 Ports Per Board | |
| 10G GPON port | XGBC: 4 Ports Per Board |
| XGBD: 8 Ports Per Board | |
| P2P GE optical port | OPGD/OPGE: Single-fiber bi-directional: 48 Ports Per Board, Two-fiber bi-directional: 24 Ports Per Board |
| P2P FE optical port | OPFA: 16 Ports Per Board |
| OPGD/OPGE: Single-fiber bi-directional: 48 Ports Per Board, Two-fiber bi-directional: 24 Ports Per Board | |
| Ethernet optical port | ETHB: 8 Ports Per Board |
| E1 port | H802EDTB: 16 Ports Per Board |
| Device Specifications | |
| Dimensions (W x D x H, excluding mounting brackets) | 442.00 mm x 283.20 mm x 263.90 mm |
| Dimensions (W x D x H, including mounting brackets) | 535.00 mm x 283.20 mm x 263.90 mm, for ETSI cabinet |
| 482.60 mm x 283.20 mm x 263.90 mm, for IEC cabinet | |
| Weight (empty chassis) | 7.0kg |
| Working environment temperature | For an indoor cabinet Configured with 1 subrack: -25°C to +65°C Configured with 2 subracks: -25°C to +55°C |
| Working environment humidity | 5% RH to 95% RH |
| Atmosphere pressure | 61 kPa to 106 kPa |
| Altitude | < 4000 m |
Q&A
Q: What is the difference between MA5683T and MA5603T?
A:
MA5603T is multi service based while MA5683T is just OLT, MA5603T can support service like ADSL, VDSL, GPON etc, while MA5683T only supports GPON, P2P etc, but their hardware and configuration command are the same.
Q: What is the difference between MA5683T and MA5680T?
A:
The only difference is capacity, MA5683T supports max 6 service slots, MA5680Tsupports max 16 service slots.
Our Services
(1) We can provide detailed documents and remote technology support for device installation and configuration if needed.
(2) Warranty: 1 year, the period can be extended to one and a half year (After the quality guarantee period, buyers will be charged for appropriate maintenance service fee.)
(3) RMA: We keep all serial numbers in record for each ONU and board. Accept Return for repair. If repair is not available, we provide new units for replacement.
