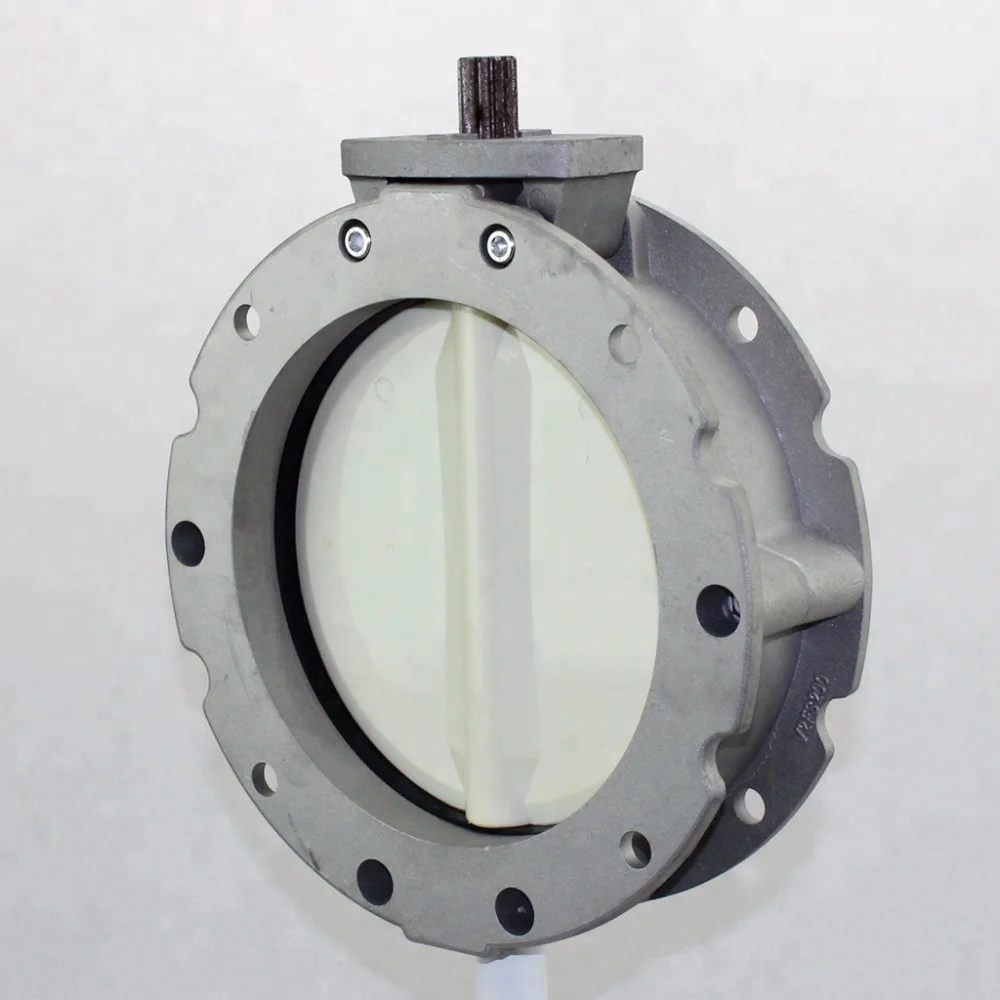

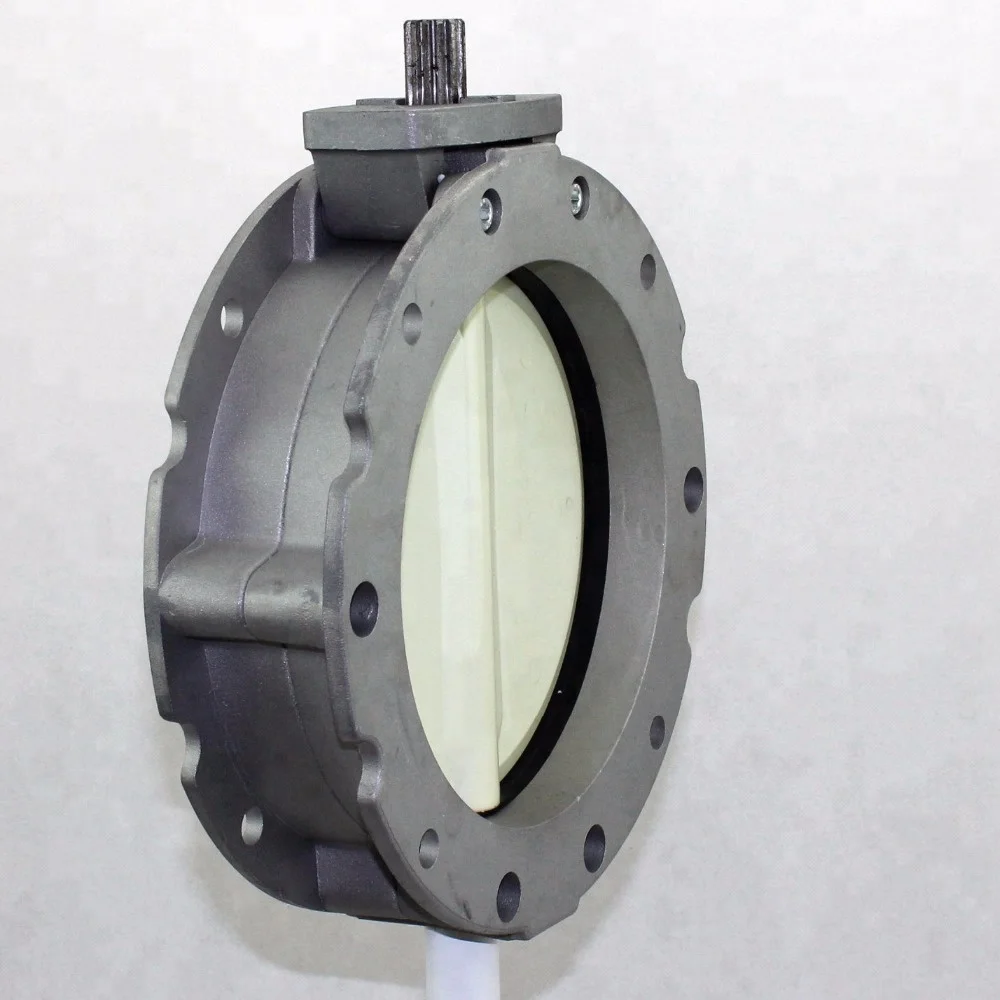

Клапан бабочка V2FS200SN диаметр 8 дюймов DN200 алюминиевый корпус клапан бабочка для

Сохранить в закладки 60325562589:


Цена:50,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики




Product parameter



VFS Butterfly Valves are used in all types of bulk solids processing plants where interception of gravity-fed or pneumatically conveyed dry powders or granules is required.
VFS Butterfly Valves can be fitted beneath hoppers, bins, silos, screw or other type conveyors, or for material interception in pneumatic conveying ducts.



Product Name: Powder butterfly  valve
Model: V2FS200SN
Component Composition: butterfly valve
Drive Type: pneumatic, manual or electric
Air pressure: 0-8bar
Line pressure: 0-0.2bar
Path: DN200       8 " inches
Seal type: Soft sealing
Sealing material: rubber NBR (otherwise EPDM and silicone optional)
Pipe temperature: Standard seal -20- + 80 degrees (ethylene-propylene rubber and silicone working temperature up to 120 degrees to 180 degrees)
Connection: Double flange
Valve installation thickness: 77mm
Body material: Aluminum
Body Color: aluminum character
Valve plate material: GB = ductile iron (black)
                                      S = dust-proof rubber lined valve plate (white)
                                      A = 304 stainless steel valve plate
Valve plate Color:  white
Medium: cement powder, fly ash
Supporting pneumatic actuators: DN100-DN150 supporting CP063 actuators
                                                            DN200-DN300 supporting CP101 actuators
                                                            DN350-DN400 supporting CP126 actuators
Pneumatic actuators under heavy circumstances should intensify One option, (the company another electric actuator and manual actuator optional) For more details, please contact the our company.



Powder butterfly valve mounting dimensions

 VFSVFSVFS1VFS1



Product Description

 _01_03_02


Company Information


FAQ

Why Us?

Quality assurance: All the products will go through lots of tests carefully before dispatch
2.Competitive production capacity and fast shipping
3. Factory direct sale, most competitive price.

Q.Tender

We win many tenders in all of the world, most in Africa, Uganda, Kenya and Ghana

Q: Are you a factory or trading company?

A:We are a factory.

Q:Where is your factory located? How can I visit there?

A:Our factory is located in  NO.7 Michung Baishi,Yueqing,Zhejiang ,China



Q:How can I get some samples?

A:We are honored to offer you samples if you find the products you are interested in or send us your drawings.



Q:How does your factory do regarding quality control?

A:Quality is a  great importance to quality controlling from the very beginning to the end. we have strict inspector and  past the certificate of quality system of ROHS standard and UL 94v-0  Flame Retardancy

Q: Could you accept small orders ?

A: If the items are normal sizes and we are in stock .will be very glad to ofter them to you .

Q : What  is your payment terms  ?

A: As for small orders  .we accept  Paypal ,Western Union 100%  or T/T (10-500 usd below) As for big orders ,we accept T/T 30% in advance .  the balance 70% before shippment  or after scanning the B/L copy , L/C and others.

Q:  Can you offer test report of the product?
A:We test every product before packing and delivery test report with corresponding product.


Q: Can you offer components of the products?
A:Yes, we also sell components separately too.

Q: If I'm interested in your products when I can receive your

 A:quotation and detail information after send the enquiry?A: All your enquiry will be replied in 24hours.

Q: Can I get a sample before the order because I really don't how is your products’ quality?

A: Of course! We also think sample order is the best way to build the trust. And in our  company we offer free sample service! Please send the enquiry to us and get the free sample!

Q:How's the delivery? Because I really need them is urgently?

A:For sample order 3~7days will be no problem. And for regular order we promise in 15days.

Q:How's the warranty  period for your products?

A:We offer one year warranty for our customer.

Q.  tell me the standard of package?

The 5 layers corrugated empty carton can bear 1 person pressure ,you can rest assured about our fixed package and we
use 4 trips to reinforce our carton,the international standards package methods guaranteed our goods safety during transportation

Q. Would you accept to use our logo ?

If you have good quantity,it absolute no problem to do OEM.

Q. Could you offer Form A or C/O ?

It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.

Q.Manufacturer With Competitive Price And High Quality.

A:We are the manufacturer with direct sale price and high quality to help you open the markets which located in Wenzhou City, Zhejiang Province, China. Welcomed to visit our company.


Q.OEM/ODM.
A:We are the manufacturer with a brilliant team work team work.
