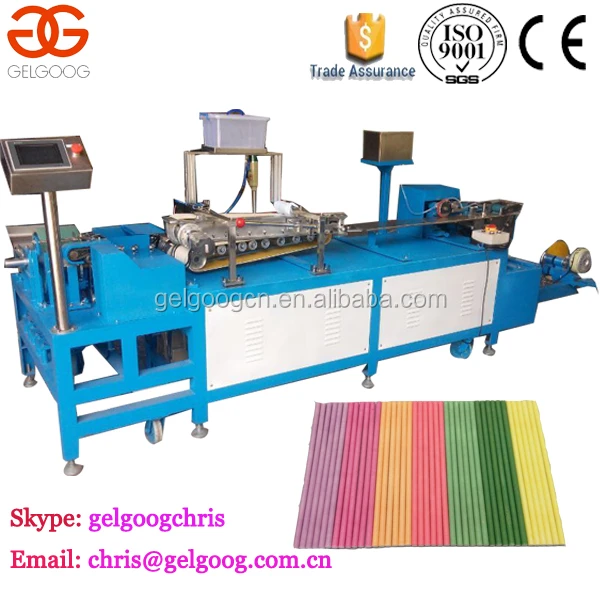

Высококачественная машина для производства ватных палочек

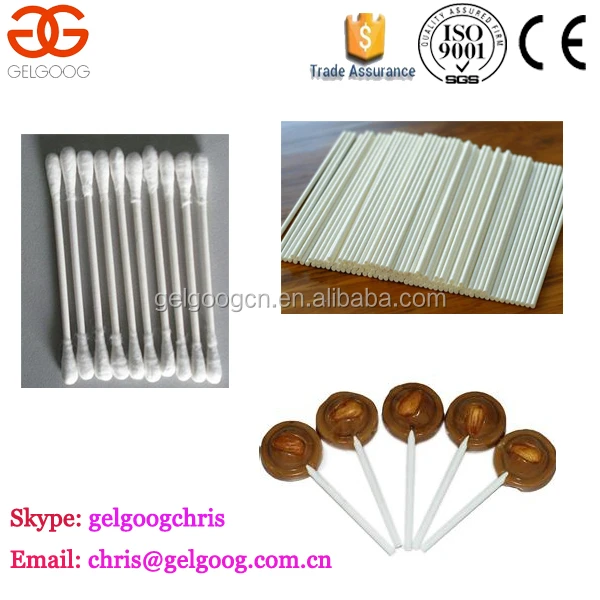

This machine is made of pure wood pulp paper pickup wands of professional equipment. Mainly used for cotton producers, lollipop food production units, as well as use of corporate paper rod. The device has automatic feeding, automatic winding core, automatic gluing, automatic molding and other functions. With a production speed, high efficiency, high degree of automation, and compact structure, simple operation, easy maintenance adjustments and so on.

1. This line need Three Steps to complete paper stick production:

A, Rolling stick:rolling stick machine after the paper coating made of a certain diameter paper roll bars, then cut through the rod body is cut into a separate paper stick, and then after forming the rubber roller after completion of paper rod production.

B, Drying: When rolling stick need a certain amount of glue and water (easy to roll). So just roll molding wands need to go through the dryer for drying.

C, Cutting sticks:Cut stick machine has two tasks. First, the paper cut after two rods forming customer requirements length dimensions wands, this model out of a type known as a (that is, each out of a paper stick); If the paper sticks cut after two, the middle and then cut back or both knife, once formed a two or

three, the model is called as a Type II and a III.

2.Features:

1, the inverter is used, with a smooth starting speed and overload protection;

2, the use of micro-motor speed, can accurately control the volume of paper attached to the required amount of glue stick;

3, discharge adopts magnetic powder tension control, to ensure a stable feed tension;

4, equipped with flexible manual correction device that can quickly adjust the paper feed error.

3. Main Technical Parameters

1. Feed / cutter motor power: 2.2KW (1.5KW) / 380V / 50HZ

2, Feeding molding machine: 1.5KW / 380V / 50HZ

3, Paper rod production efficiency: 35 (45) m / min (in paper rod diameter, length varies)

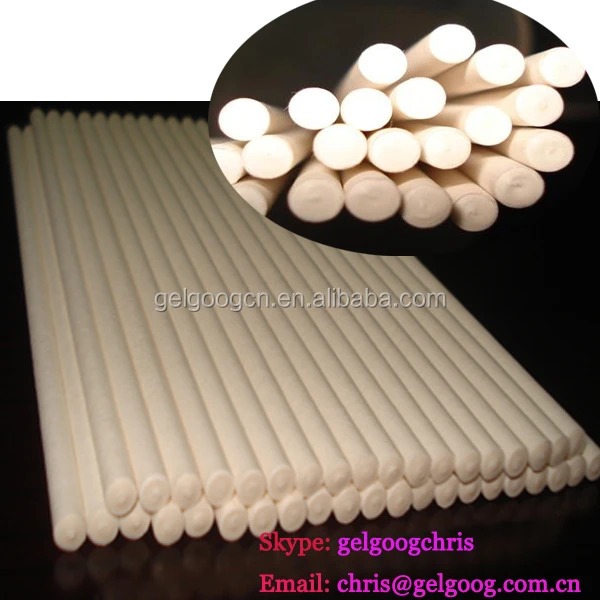

4, paper stick diameter: 1.5 -6.5mm (customer specified)

5, paper stick length: 100-400mm (customer specified)

5), The whole dimension: 5800 *1500 * 1650 mm
