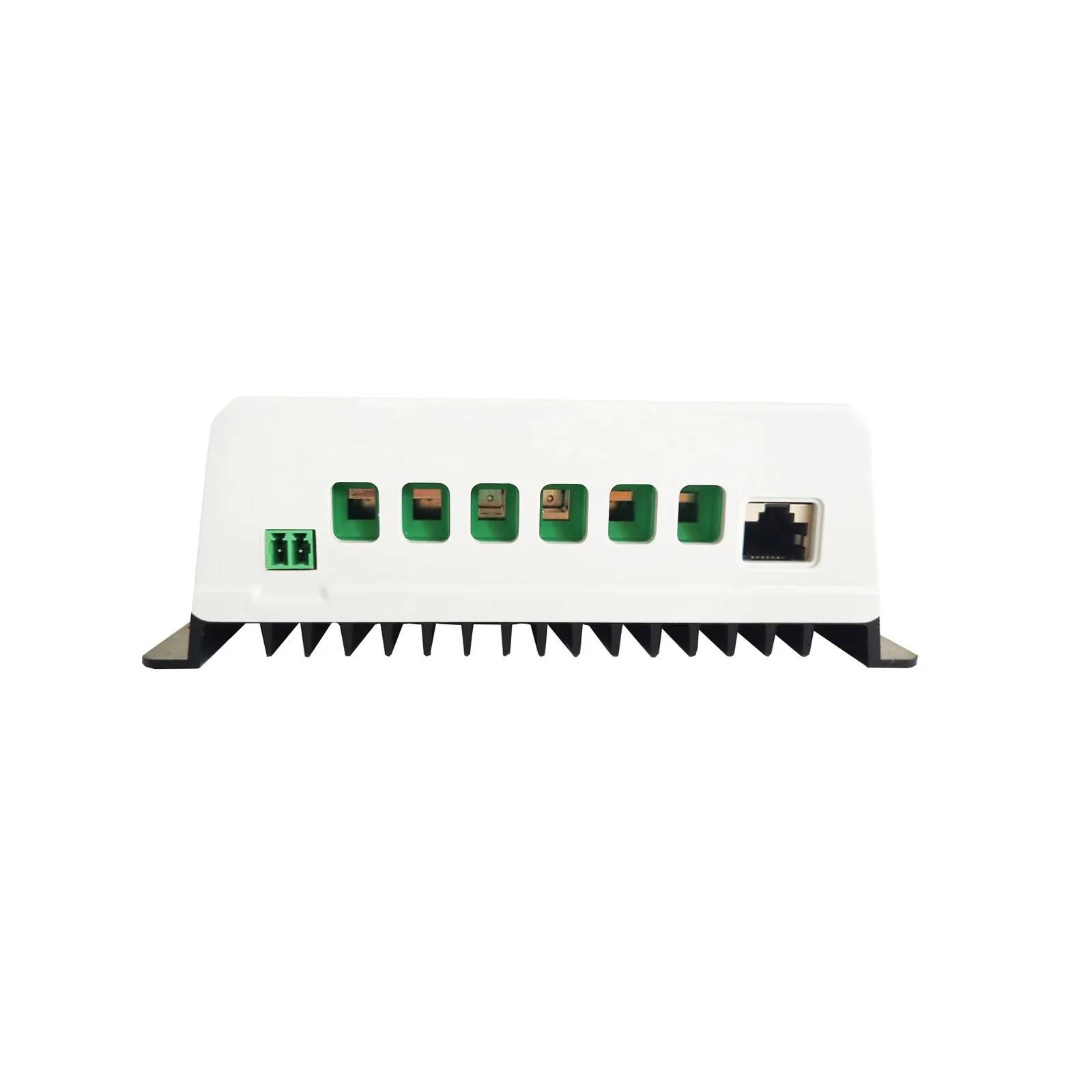

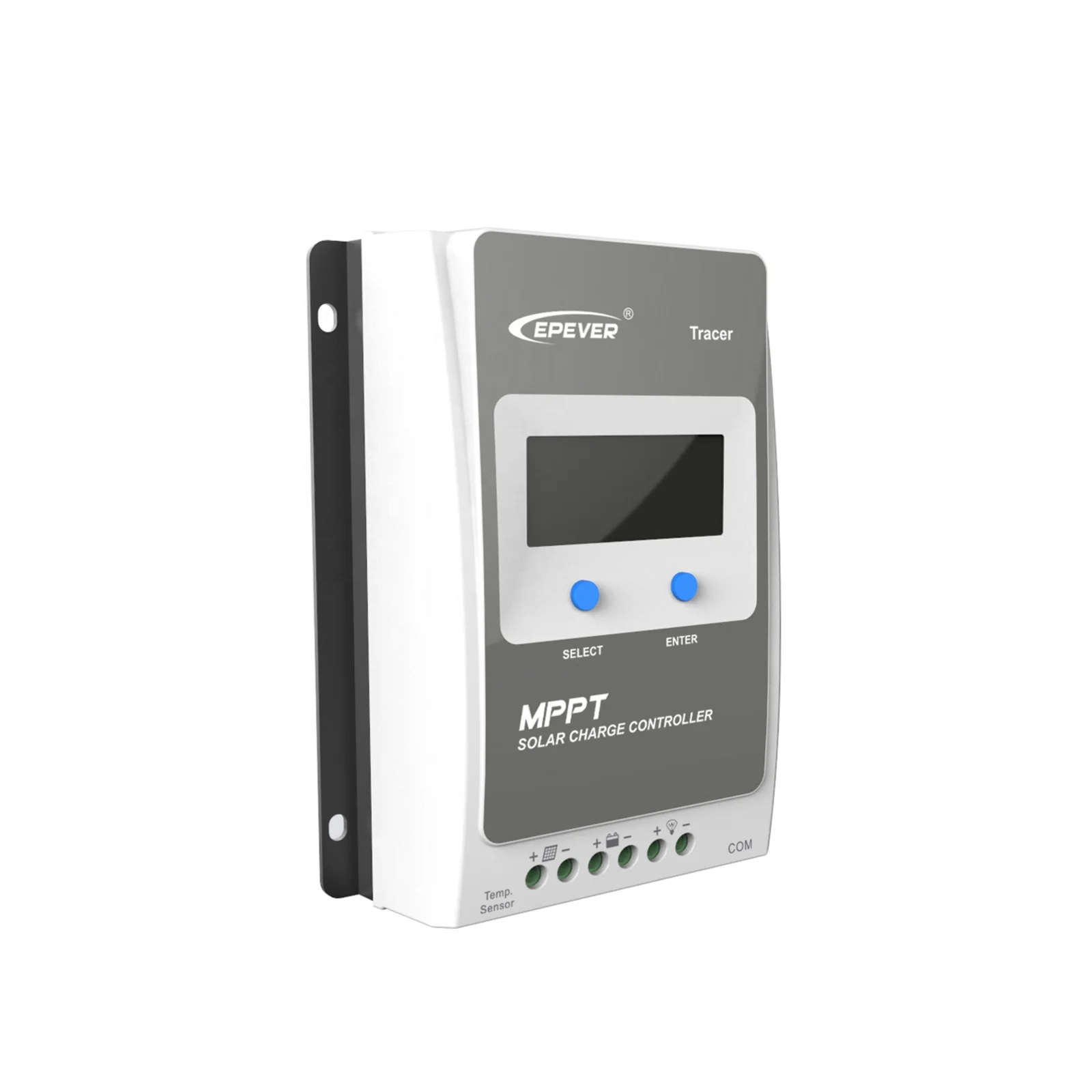

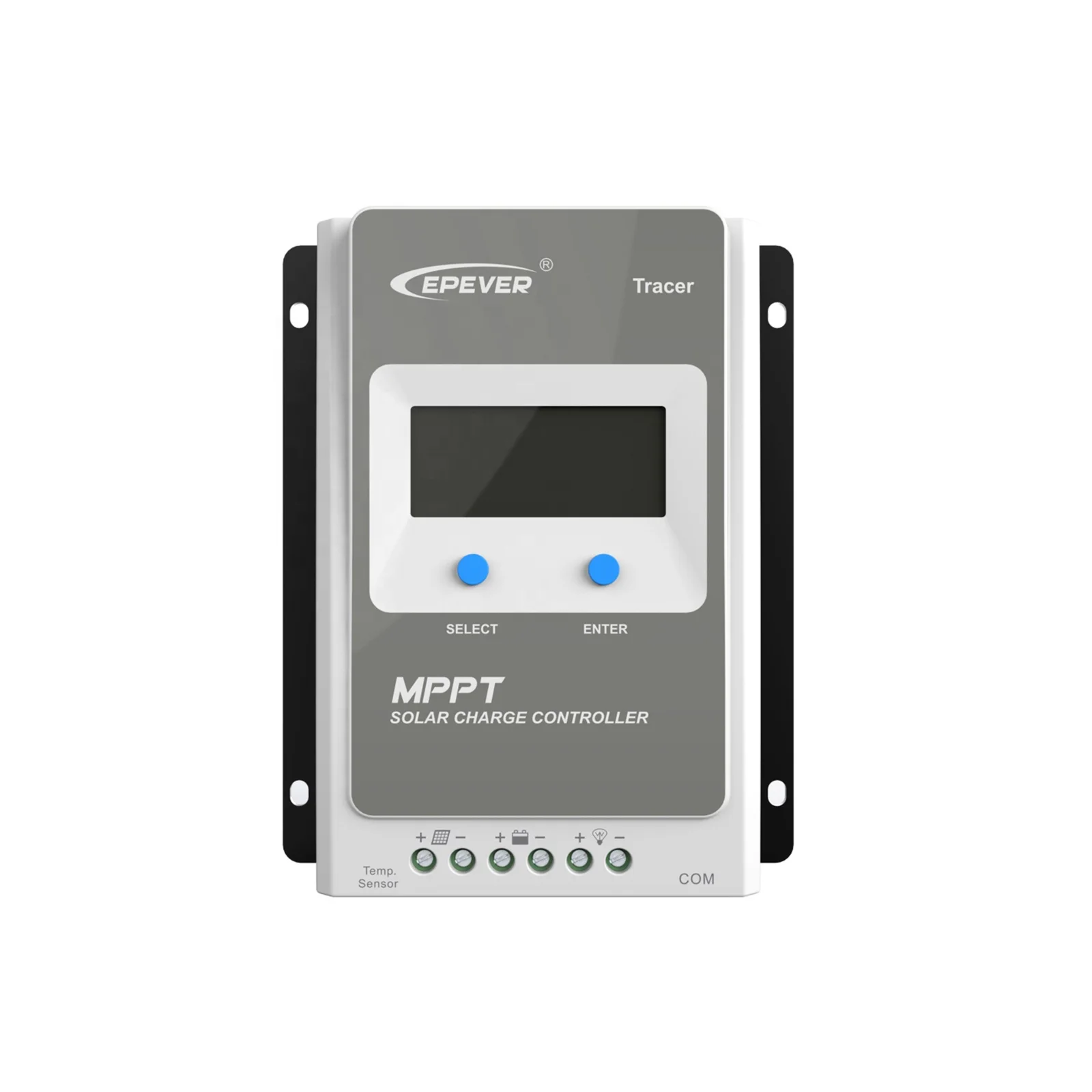

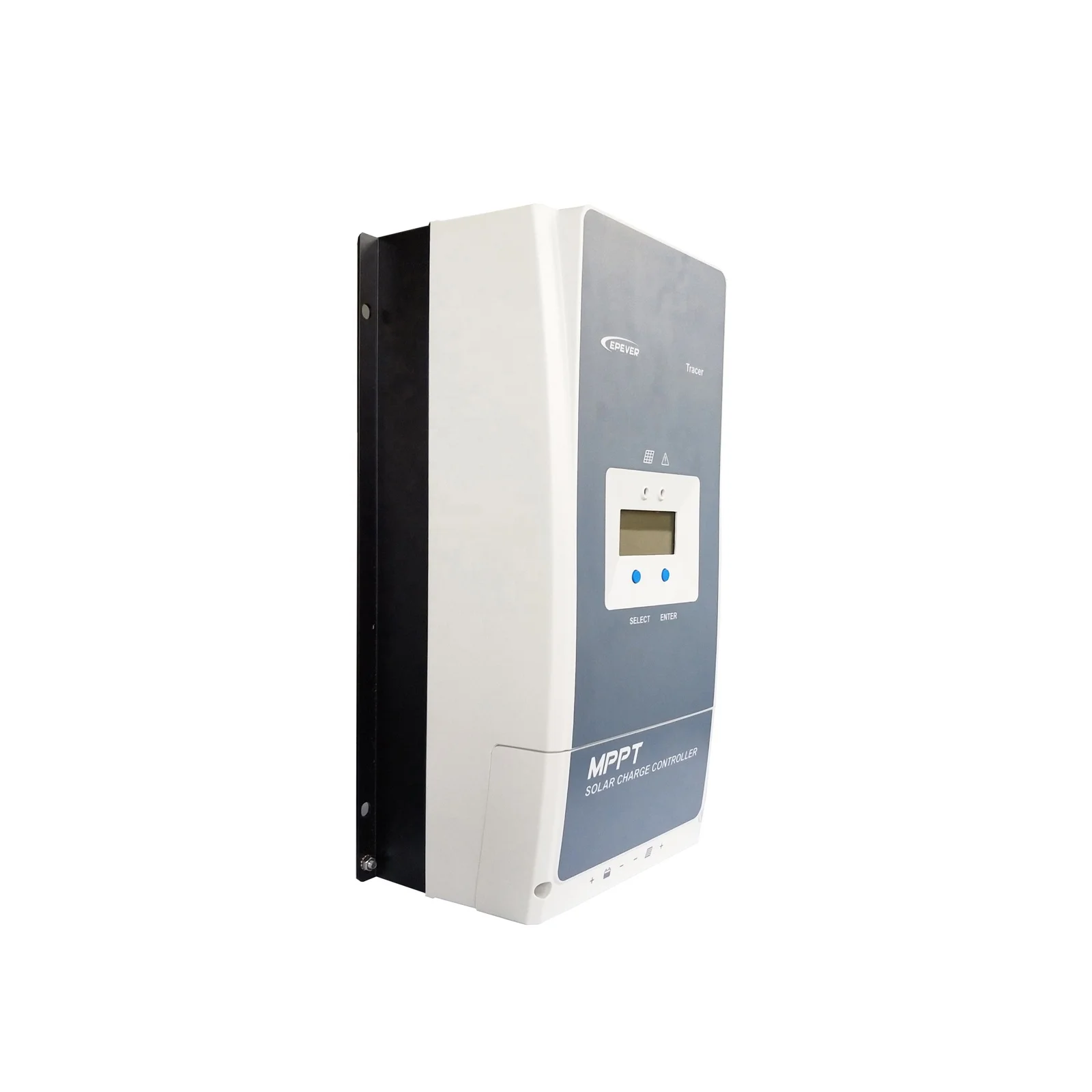

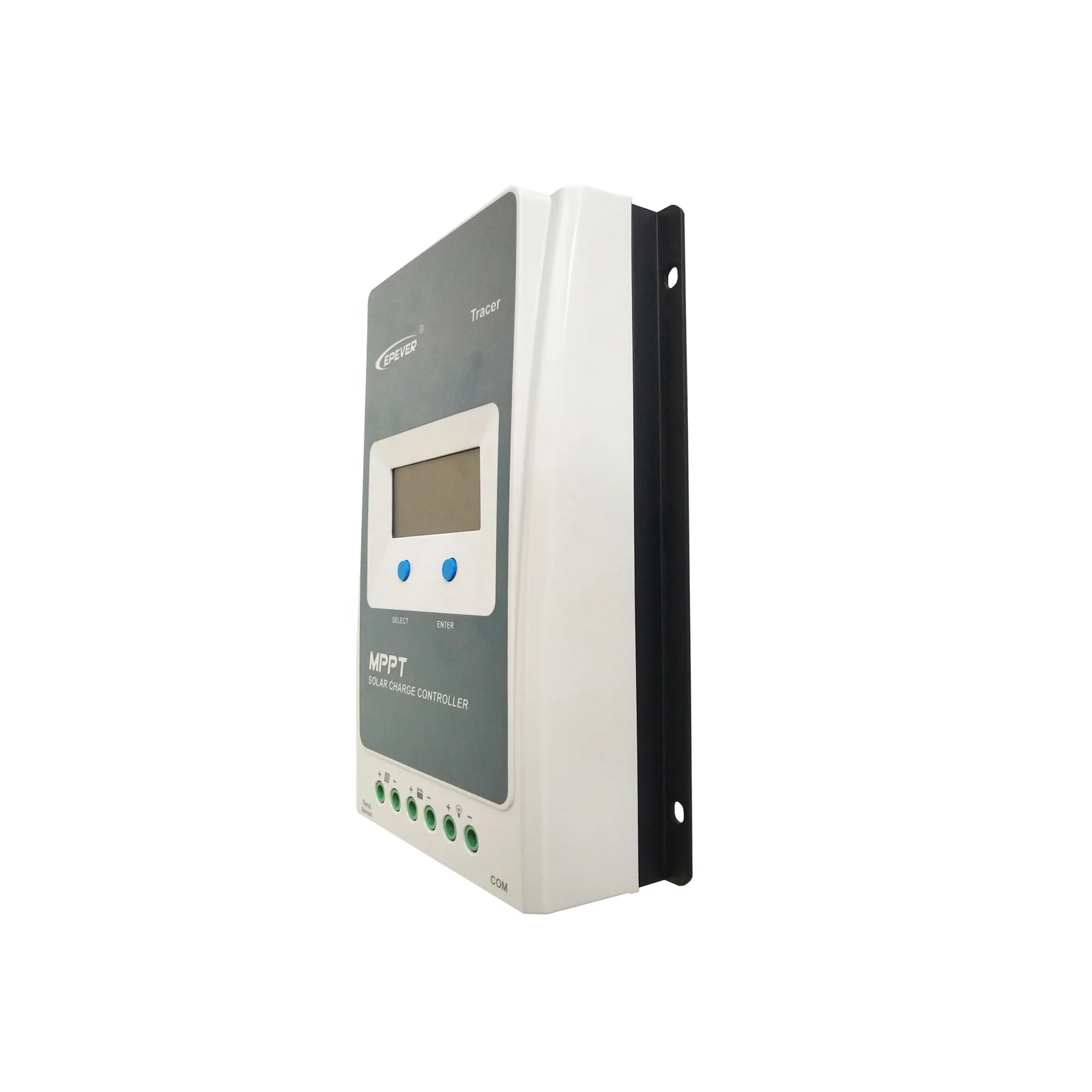

Контроллер солнечной батареи Tracer 10415AN 10420AN MPPT 12 В 24 в 36 48 100 А
- Категория: Solar Charger Controllers >>>
- Поставщик: Shenzhen Suns Energy Co. Limited.
Сохранить в закладки 60335077036:
Описание и отзывы
Характеристики
Tracer6420AN/ Tracer8420AN/ Tracer10415AN/ Tracer10420AN
Product Description
Tracer 10415AN 10420AN MPPT solar controller 12V24V36V48V 100A off grid solar charger controller
Tracer AN series adopts common positive design and advanced MPPT control algorithm. The products can track the MPP point fast and accurately in any situation which will improve energy efficiency and obtain the maximum solar energy.

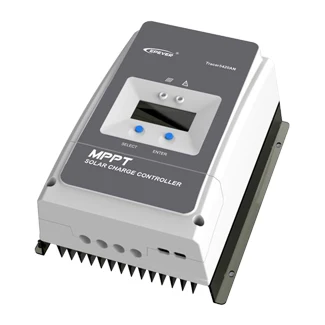

![5]()
Specifications:
Item no | Tracer 5210AN | Tracer 6210AN | Tracer 5415AN | Tracer 6415AN | Tracer 8415AN | Tracer 10415AN | Tracer 5420AN | Tracer 6420AN | Tracer 8420AN | Tracer 10420AN | |||
Nominal system voltage | 12/24VDC or Auto | 12/24VDC Auto | |||||||||||
Battery input voltage | 8V~32V | 8V~68V | |||||||||||
Battery type | Sealed(default)/Gel/Flooded/User | ||||||||||||
Battery fuse | 80A/58V | 150A/58V | 80A/58V | 150A/58V | |||||||||
Rated charge current | 50A | 60A | 50A | 60A | 80A | 100A | 50A | 60A | 80A | 100A | |||
Rated charge power | 625W/12V 1250W/24V | 750W/12V 1500W/24V | 625W/12V 1250W/24V 1875W/36V 2500W/48V | 750W/12V 1500W/24V 2250W/36V 3000W/48V | 1000W/12V 2000W/24V 3000W/36V 4000W/48V | 1250W/12V 2500W/24V 3750W/36V 5000W/48V | 625W/12V 1250W/24V 1875W/36V 2500W/48V | 750W/12V 1500W/24V 2250W/36V 3000W/48V | 1000W/12V 2000W/24V 3000W/36V 4000W/48V | 1250W/12V 2500W/24V 3750W/36V 5000W/48V | |||
Max. PV open circuit voltage | 100V 92V | 150V 138V | 200V 180V | ||||||||||
MPP voltage range | (Battery voltage +2V)72V | (Battery voltage +2V)~108V | (Battery voltage +2V)~144V | ||||||||||
Tracking efficiency | >99.5% | ||||||||||||
Max. conversion efficiency | 98.0% | 98.0% | 98.3% | 98.6% | 98.5% | 98.6% | 98.3% | 98.1% | 98.5% | 98.5% | |||
Full load efficiency | 97.0% | 97.0% | 97.8% | 98.0% | 98.0% | 98.0% | 97.1% | 97.5% | 97.5% | 97.6% | |||
Self-consumption | 98mA/12V , 60mA/24V , 50mA/36V , 46mA/48V | ||||||||||||
Grounding | Common negative grounding | ||||||||||||
Temperature compensate coefficient | -3mV/℃/2V (Default) | ||||||||||||
Grounding | Common negative | ||||||||||||
LCD backlight time | 60S (Default) , Range:0~999S (0S:the backlight is ON all the time) | ||||||||||||
Features:
• Advanced MPPT technology
• High tracking efficiency no less than 99.5%
• Peak conversion efficiency of 98%
• Accurately recognizing and tracking of multiple power point
• Multi-function LCD displays system information intuitively
• User programmable for battery types, load control etc.
• RS485 port with industrial standard MODBUS open architecture
• Fully programmable function via PC software or remote meter
