100% чистая пластиковая капельная поилка и 14 кормушек автоматическая система подачи
- Категория: Animal Feeders >>>
- Поставщик: Weifang U-Best Husbandry Equipment Co. Ltd.
Сохранить в закладки 60344930765:
Описание и отзывы
Характеристики
100% Pure Plastic Nipple drinker and 14 Girds Feeder pan automatic livestock
feeding system
1.Main feeding line system
2.Pan feeding line system
3.Nipple drinking line system
4.Automatic ventilation system
5.Cooling pad system
6.Environment control system
7.Spraying&disinfecting system
8.Heating system
Product Overviews

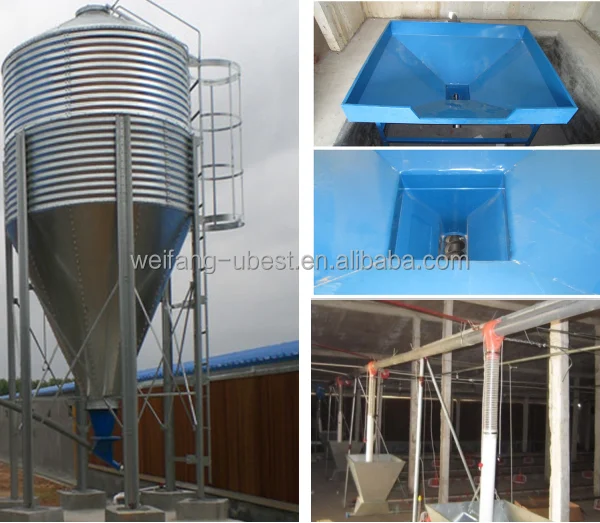

1.Main Feeding Line System
Silo/manpower hopper is the beginning of main feed line. There is a feed sensor at the end
of main feed linewhich controls motor on and off to achieve automatic feed delivery.
| Name | Feature |
| Silo | 1.Silo with standard ladder and guard railing is safe and reliable. 2.Solid connection and good sealing performance. 3.Steel sheet galvanized ensure a service life of more than 10 years. 4.Model: 1.8M,2.75M,3.05M,3.6M; Capacity:2.5T to 27T; |
| Manpower hopper | Galvanized sheet material, 600kg,800kg capacity |
| Driving Motor | Power:0.75kw; Voltage:380V ; frequency :50HZ, three phase AC current. |
| Feed level sensor | Germany IFM feed level sensor. |
| Feed Conveying | Diameter of conveying pipe:75*3.6mm ; Material: PVC Helical spring auger from South Africa; Feeding ability: 1,400kg/h, Maximum Coveying lenrth:60m; Radius of bending pipe: R1500-2000 |

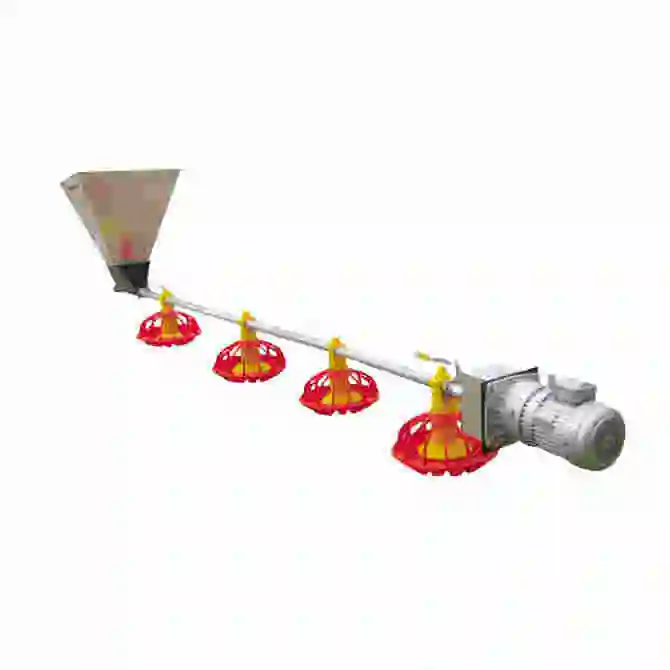

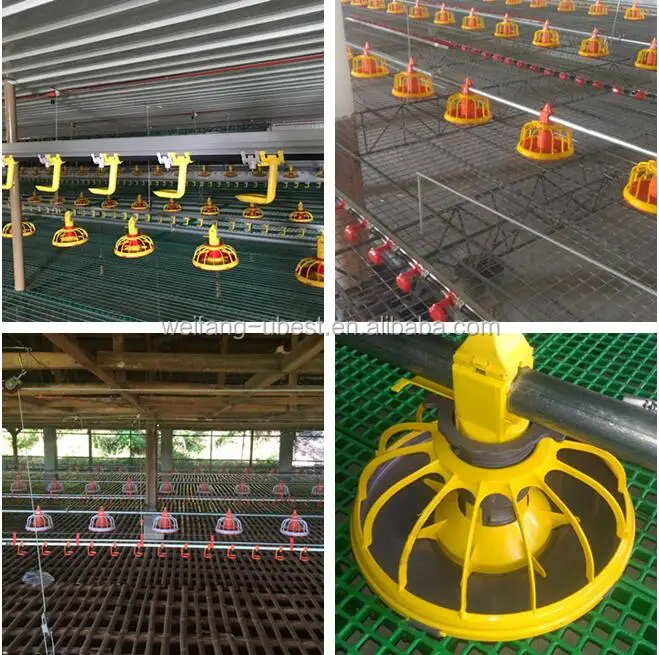

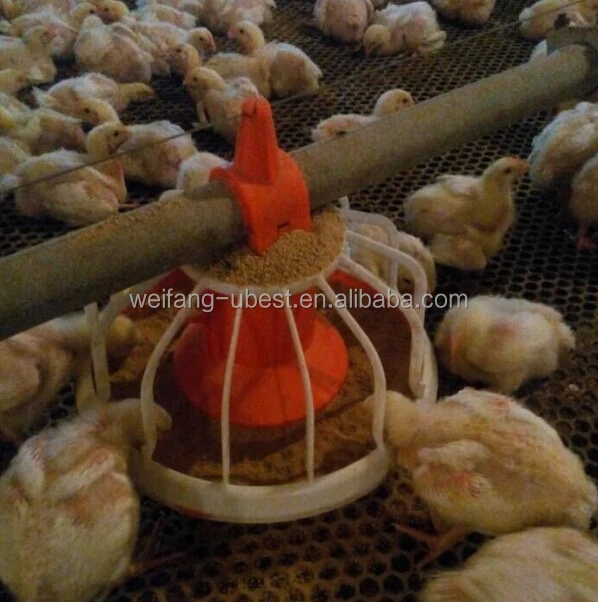

2.Automatic Pan Feeding Line System:
There is a pan feed sensor at the end of each feeding line which controls motors
on and off to achieve automatic feed delivery.
| Name | Features |
V-shaper Bin (with hopper) | Bin volume: 115L, Material: hot-dip galvanized sheet. Material thickness: 1mm |
Special driving reduction motor | Taiwan Motor with overload protection of IP55) Power:0.75kw Voltage:380V Frequency: 50HZ, three phase AC current |
| Feeding system | Diameter of conveying pipe: 45mm (4-pan/3m, 3pan/3m) Material: hot-dip galvanized sheet pipe with the zinc coating amount of more than 275m2. Helical spring auger from South Africa feeding capacity: 450kg/h. |
| Feed level sensor | time delay range 0 to 2 hours. |
| Suspension and lifting system | It's very convient to adjust the feeding line height by winch. |
3.Automatic Nipple Drinking line System:
This system can provide fresh and clean water for poultry which is crucial for the growth of poultry.
The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking
easier.
| Name | Features |
Nipples for the system | 1).All nipples are anti-rusting, service life more than ten years. 2).Double sealing structure with good sealing performance, can avoid leaking water. 3).Valvo rod is movable in 360 degree, is suitable for all chicken to drink. |
Lifting and suspension system | Correct height for drinking system is very important for chicken (both higher and lower can effect chicken bone's distortion, it's bad for chicken growth, and also can have some water wasting), it's very easy to adjuct drinking system's height if use this system. |
| Water display level tube | Use high transparency & impact resistant material, it's sturdy and durable, and convient to watch water level. This device with advanced design, it's very easy to take down and clean. |

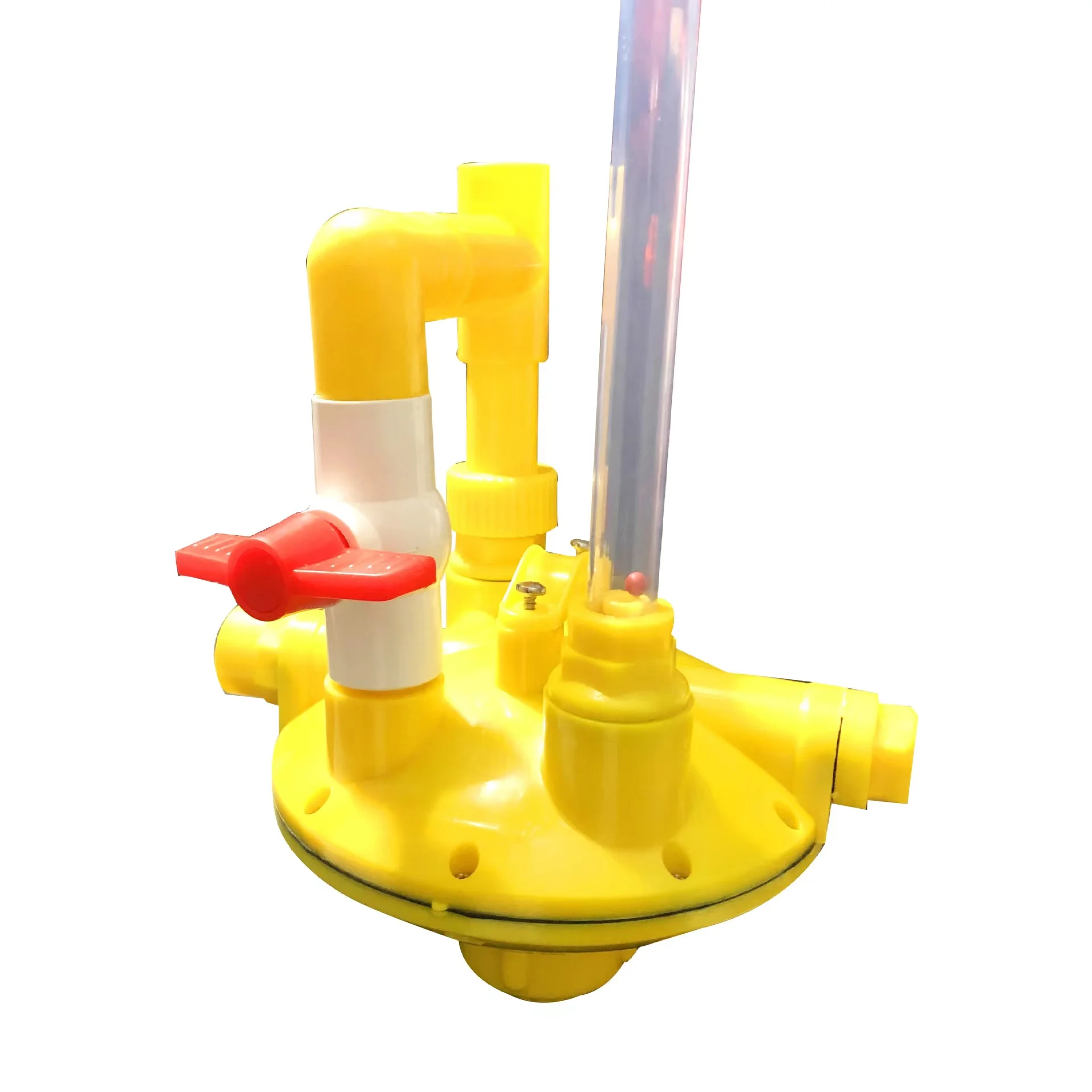

Pressure regulator (Double barreled with large flow capacity) | 1). Regulating stability. 2). High switching performance. 3). Water supply is sufficient& equality. 4). Recoil cleaning with good cleaning result, and can save time and can save water. 5). Good quality movable valve, it's easy to change. |
| Doser | 1).can add medicine into drinking system automatically. 2).Don't use power. It's economical and reliable. 3).Accurate, after setting, it can adjust medicine volume according to water pressure change. 4). It's easy to control and maintain, with good corrosion resistance. |
Plasson type nipple drinking system:
Big herdsman type nipple drinking system:
4.Automatic Ventilation System:
This system controls climate conditions,fresh air,humidity and temperature in poultry shed.
It is vital for growing birds,including air inlets,exhusat fans for your choice.
Airinlet window parameters:
The wall of installed windows must keep the same level.
Within 15cm below the window must be soild wall which could be fixed with eapansion bolt,
hollow brick not available.
To prevent water flow backward, the window hole of inside is higher than outside.
Pre-embedded wood frame is same level with inside wall of chicken house.

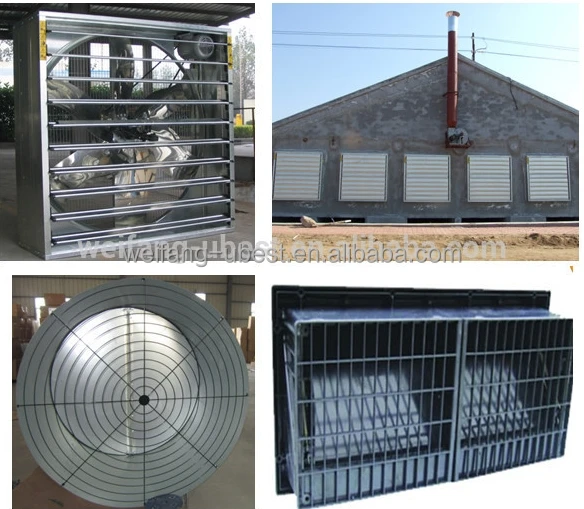

Exhaust fan:
Model: Centrifugal box fan;Hanging fan;Shutter/Butterfly cone fan;Speed vaiable fan.
Size: 24'',36'',50''
Motor: Chinese brand and Siemens Brand available
Blade: Stainless Steel
5.Cooling Pad System:
The longitudonal way of cooling-fan ventiliation is the most economical and effective
way to reduce temperature of chicken house in summer.
Advantages:
Hygroscopicity, Dry solution, Non-porous surfaces.
Cooling pad parameters:
Thickness | 100mm;150mm |
Width | 300mm;600mm |
Height | 1660mm;1960mm;2160mm |
Frame | Galvanized sheedt and Aluminium alloy |
Aluminium alloy frame | High strength, good corrsion resistance, water distribution uniformity,beautiful and practical. |
6.Spray & Disinfecting System:
Function:
It is effectively tools for cooling, damping, dedusting, disinfecting the house.
Characteristics:
-Instant cooling but not wet.
-Large flow high pressure, good atomization, and corrosion resistance.
-Increase the humidity to the preset range according to the requirements--60 to 70 percent
of the maximum relative humidity.
-Effectively prevent the dust, and reduce respiratory diseases of livestock and poultry.
-Disinfect with chickens.
7.Environment Control System:
This system saves the labor and the resources under the condition of assuring the optimum growth environment of the chickens. It is imported from Israel can set an optimum working mode according to
the local climate and raising environment.
8.Heating System:
Heating poultry house when it is needed to satisfy the temperature demand of chickens at different
growth stage. Hot-blast heater of coal and diesel, poultry gas heater and infrared gas brooder,
3 different kind at your option.
Advantages
Great advantage for automatic feeding system
1.Time saveing &Labour saving, one person is enough for one chicken house.
2.Increasing chicken living rate.
3.High quality to ensure non stopping running of your house.
4.Comparitively cheap price.
5.one-stop shopping, prefab chicken house and automatic poultry equipments can be
provided by us.
Packaging&Shipping
Professional Packaging&Shipping:
1. Shipment by FCL or LCL.
2. Delivery time: 10-15 working days after the deposit.
3. Package:
- Feeder pan: unassembled, in carton box;
- Feeding pipe: 20pcs per bunch, in bulk;
- Hanging system: in carton box;
- watering pipe fitted with nipple, in plastic bag, 20pcs per each;
- Water spare parts like medicator, regulator,cup in carton box;
- Ventilation fan & air inlet in carton box;
- Cooling pad paper in carton box, cooling pad in nude;
- Environment control system in carton box;
- Heaters in carton box.
Contact information
Weifang U-BEST Husbandry Equipment Co,.Ltd
Our company located in the cultural World kite capital, Weifang, China,where enjoys
convenient access to major transportation networks. Our company specializes in the
collection of animal husbandry equipment research& development, manufacture, sales, installment, overall design and after-sale maintance in the integration of modern
comprehensive import and export service. We are pursuing to be the most
visible animal husbandry equipment and solution provider worldwide.
Contact information:
