Henghui высокоскоростная машина для плетения жаккардового
3 900,00 $ - 4 000,00 $
HLT 48 шпиндель медная проволока горизонтальная оплетка машина
- Категория: Машина для плетения >>>
- Поставщик: Wuxi Longterm Machinery Technologies Co. Ltd.
Сохранить в закладки 60345536508:
Описание и отзывы
Характеристики
Product Description
Stainless steel sleeve braiding machine
Flexible Hose Braiding Machine
The wire braiding machines we can make as follows:
braiding machine Wire diameter: 0.3mm to 0.8mm
No.of spindles:16 to 156 spindle braiding machine
ID of the braids:4mm to 600mm
Material of wires:stainless steel,galvanized carbon steel, copper wire
Flexible Hose Braiding Machine
The wire braiding machines we can make as follows:
braiding machine Wire diameter: 0.3mm to 0.8mm
No.of spindles:16 to 156 spindle braiding machine
ID of the braids:4mm to 600mm
Material of wires:stainless steel,galvanized carbon steel, copper wire
Flexible Hose Braiding Machine
Type No. | Braid ID (mm) | Rotation speed of spindle (r/min) | Braiding angle | Pitch(mm) | Pulling speed(m/h) | No.of carriers | Motor power(LW) |
BG-16 | 4-10 | 24.8 | 54。44‘ | 9-22 | 13-33 | 16 | Y132M1-6 4.0KW |
BG-20 | 6-13 | 19.8 | 54。44‘ | 13-29 | 15-34.5 | 20 | Y132M1-6 4.0KW |
BG-24 | 10-31 | 14.25 | 54。44‘ | 22-69 | 21-66 | 24 | Y132M1-6 4.0KW |
BG-36 | 15-45 | 10 | 54。44‘ | 33-100 | 22-66 | 36 | Y132M1-6 5.5KW |
BG-48 | 30-75 | 7.25 | 54。44‘ | 66-166 | 29-72 | 48 | Y132M1-6 7.5KW |
BG-64 | 51-110 | 4.56 | 54。44‘ | 67-240 | 18.6-102 | 64 | Y160M1-6 11KW |
BG-72 | 80-150 | 4.25 | 54。44‘ | 170-330 | 44-83 | 72 | Y160M1-6 11KW |
BG-96 | 150-400 | 2.75 | 54。44‘ | 240-750 | 50-120 | 96 | Y160M1-6 11KW |
Techinical drawing of wire braiding machine
Stainless steel sleeve braiding machine showing as below

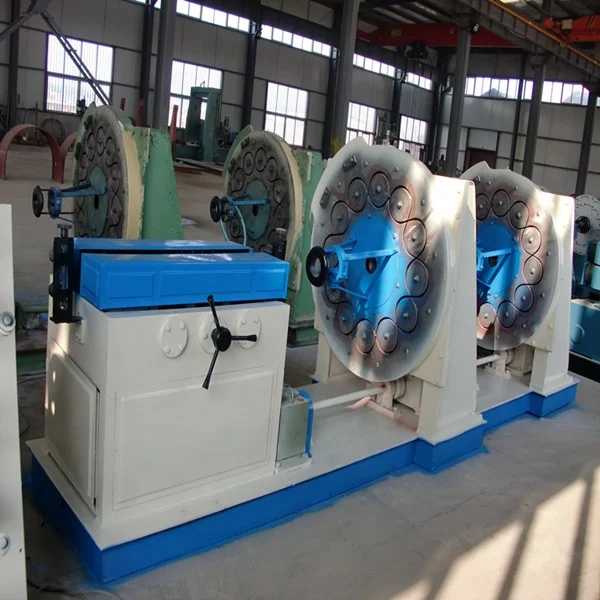

48 Single decker wire braiding machine
Braiding diameter (mm): 30-75
Carrier rotation speed (r/min): 7.25
Braiding angle: 54°44”
Braiding pitch (mm): 66-166
Pulling speed (M/H): 29-72
Carrier NO.: 48
Dimension (L*W*H): 3850*1900*2150
Weight (KG): 4000kg
Carrier rotation speed (r/min): 7.25
Braiding angle: 54°44”
Braiding pitch (mm): 66-166
Pulling speed (M/H): 29-72
Carrier NO.: 48
Dimension (L*W*H): 3850*1900*2150
Weight (KG): 4000kg

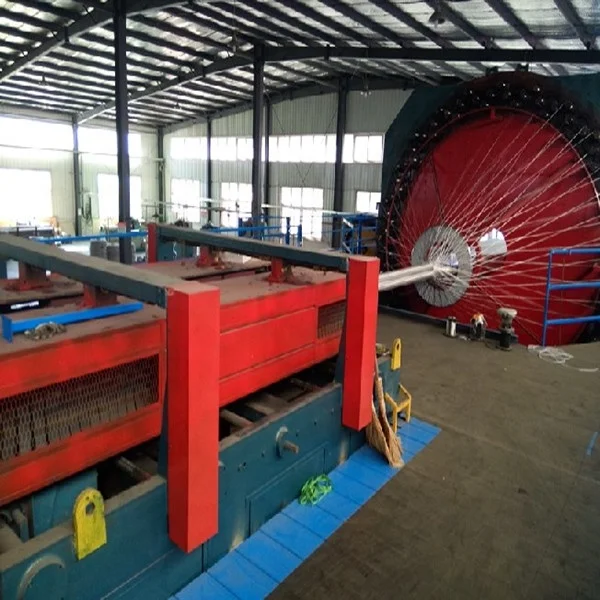

96 Double decker wire braiding machine
Braiding diameter (mm): 150-400
Carrier rotation speed (r/min): 2.75
Braiding angle: 54°44”
Braiding pitch (mm): 240-750
Pulling speed (M/H): 50-120
Carrier NO.: 96
Dimension (L*W*H): 5770*3360*3600
Weight (KG): 17500kg
48 Double decker wire braiding machine
Braiding diameter (mm): 30-75
Carrier rotation speed (r/min): 7.25
Braiding angle: 54°44”
Braiding pitch (mm): 66-166
Pulling speed (M/H): 29-72
Carrier NO.: 48
Dimension (L*W*H): 3850*1900*2150
Weight (KG): 4000kg
Carrier rotation speed (r/min): 7.25
Braiding angle: 54°44”
Braiding pitch (mm): 66-166
Pulling speed (M/H): 29-72
Carrier NO.: 48
Dimension (L*W*H): 3850*1900*2150
Weight (KG): 4000kg
Wire braiding machine with sound proof
Soundproof cover can reduce the noise of the machine, this machine should be customized.
Detailed Images
Finished products of wire braiding machine
Our braiding machine can be widely used for braiding hoses and metal hoses.
wire braids for rubber hose
wire braids only
wire braids for metal hose
Related Accessories
Spindle&Carrier of wire braiding machine
service life :1-3 year, can replace some spare parts.
Caterpillar of braiding machine
Name: Caterpillar
Brand: HLT
Original: China
Domestic famous engines, strong driving force, low electrica consumption, high economic benefits
Flexible Hose Braiding Machine
Bobbin of wire braiding machine
Length of bobbin:170mm
If you want to use bobbin on 156 carriers wire braiding machine, the length of bobbin should be 210mm
Flexible Hose Braiding Machine
Related Machinery
18-ly Rewinding machine
Winding diameter(mm): 2-18
Rotation speed (r/min): 180-570
Wire diameter(mm): 0.25-0.5
Winding speed(m/min): 50
Dimension (pay-off rack): 2700*1350*2000mm
Dimension (winder): 1510*1240*1500mm
Weight (KG): 1300
Rotation speed (r/min): 180-570
Wire diameter(mm): 0.25-0.5
Winding speed(m/min): 50
Dimension (pay-off rack): 2700*1350*2000mm
Dimension (winder): 1510*1240*1500mm
Weight (KG): 1300
Rewinding machine with sound proof
Soundproof cover can reduce the noise of the machine, this machine should be customized.
Certifications
Packing & Delivery
Packaging | ||
Size | 2000mm*1500mm*1500mm | |
Weight | 3-4 ton | |
Packing details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request | |
Delievery
We have professional domestic inland transportation team for Stainless steel sleeve braiding machine
Our service
Customers ' trainning in our factory
After-sale service
Our team
222
We are the professional manufacturer of all types of metal flexible metal hose and machinery, with more than 25 years of experience. Our wire braiding machine can be used for many kind of hoses, such as corrugated metal hose,square lock and interlock hose/ conduit, rubber hose. The hoses are widely used in many industries: gas hose, water hose ,chemical hose, etc..Annular and corrugated metal hose: ID8 till ID600 on different machine.
FAQ
1. Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30 years of experience
2. What wires can you machine braid?
A. Stainless steel wire
B. Copper lad steel wire
C. Copper wire
3. What application of your braiding machine?
Popular for both rubber hose and metal hose manufacturing
We need to know the following information to quote you correct machineries:
1.What outer diameter of the hose you want to braid?
2. Structure of the braid?
How many carriers/bobbins you need for braiding your hose? For instance, 24, 36,64,72,96,128 carrier, etc..
If you want to know more about our braiding machine please click here.
