Product Description

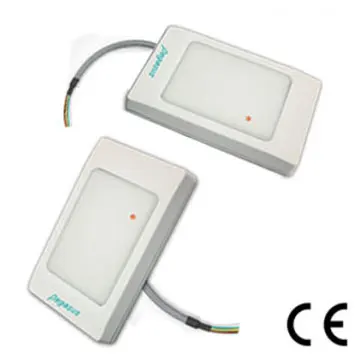

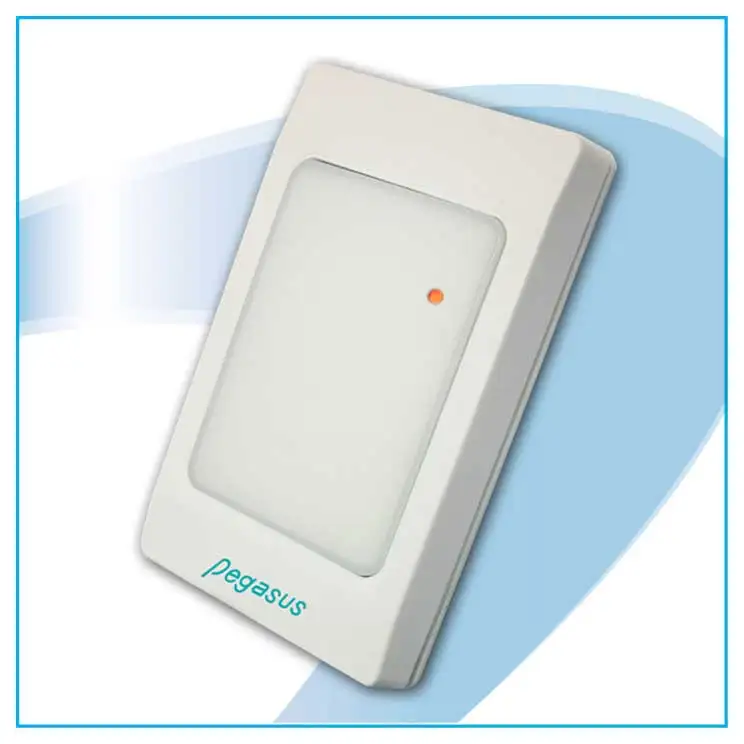

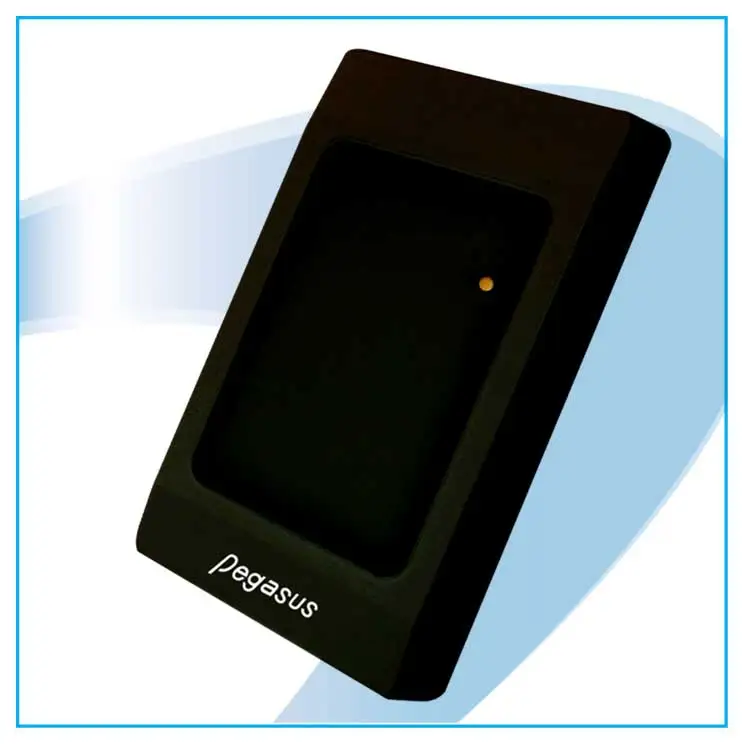

The RFID smart card reader and writer is designed to comply with ISO14443A / B,ISO15693 standard for reading and writing the smart card for various applications. such as prepaid value system for vehicle, ticket, membership club, dining, laundry, etc. it's easily to communicate with PC by USB or RS-232, RS-485 interface.
Specifications
•Dimensions (L x W x H): 118 x 75 x 17 mm / 4.6 x 3 x 0.7 inch
•Material: PC
•Power supply: 5VDC±10%, 12VDC±10%
•Operation temperature / Humidity: -10 ℃ ~ 75 ℃ ,10%~90% RH, Non condensation
•Frequency of Operation: 13.56MHz
•Output Interface: RS232, RS485, USB
•Card type: 13.56MHz (ISO 14443A / 14443B / 15693)
Ordering information
PUA-310V-0/M2R2/Y4 | : Desktop, RS-232 interface , reader and writer , support ISO 14443A |
PUA-310V-0/M2R2/Y4S | : Desktop, RS-232 interface , reader and writer ,support ISO 14443A, Card number: in positive |
PUA-310V-0/M2U2/Y4 | : Desktop, USB interface , reader and writer , support ISO 14443A |
PUA-310V-0/M2U2/Z2 | : Desktop, USB interface , reader and writer , support ISO 15693 |
PUA-310V-0/M2U2/Z1 | : Desktop, USB interface , reader and writer , support ISO 14443A / 14443B / 15693 |
PUA-310V1-0M2R2Y4 | : Surface mounting, RS-232 interface , reader and writer, support ISO 14443A |
PUA-310V1-0/M2R5/Y4 | : Surface mounting, RS-485 interface , reader and writer, support ISO 14443A |
PUA-310V1-0M2R2Y4-5V | : Surface mounting, RS-485 interface , reader and writer, support ISO 14443A, DC 5V |
PUA-310V1-1/M2U2/Y4B | :Surface mounting, USB interface , reader and writer, support ISO 14443A, with epoxy, black |
Optional Accessories

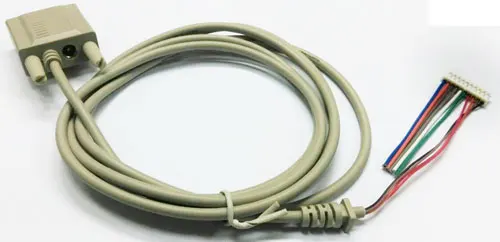

l R-12-PM690DB9 : RS-232 Cable
l PG-ADAPTER/100-240-3 :100-240V Adapter
l PCT-R2R5: RS-232 to RS-485 Interface Converter
l PCT-UR5: USB to RS-485 Interface Converter
l R-21-310-3 : Insulator for PUA-310V1
Dimension: 119.6(L) x 76.6(W) x 15(H)mm
Feature: Avoid intervention
Weight: 40g±5%
Material: Acrylic
We reserve the right to change the specification without prior notice or obligation!
