agricultural equipment farm land spraying machinery multi-functional track sprayer
1. Feature of the muti-functional spraying machine and the loading machine
1. Spryer machine with hundling function is a multi-purpose machine, which greatly improving the utilization of the machine.
2. The 200L-600L high capacity of the sprayer improves the efficiency of large-scale spraying.
3. Self-propelled spraying machine saves labor and time.
2. Technical Parameters:
For 200L track sprayer machine:
Sprayer Weight | 156kg | ||
Loading Weight | 350kg | ||
Machine Dimension | Length*Width*Height | 1620mm*600mm*830mm | |
Height of cargo floor | 295mm | ||
Track center distance | 410mm | ||
Track touching ground length | 650mm | ||
Track touching ground width | 295mm | ||
Cargo | Inside dimension of the cargo | Length | 850mm |
Width | 570mm | ||
Height | 290mm | ||
Tripper way | Manually | ||
Tripper angle | 60° | ||
Engine | Name | WM168F/P | |
Ways | Single cylinder,OHV,Four-stroke,Forced cold | ||
Total displacement | 196 ml | ||
Rated power | 3.6kw/3600rpm | ||
Engine weight | 18kg | ||
Starting method | Hand rope recoil start | ||
The lowest fuel consumption | 395k/kw/h | ||
Fuel tank capacity | 3.6 L | ||
Oil Capacity | 0.6 L | ||
Lgnition system | Non-contact with transistor | ||
Spark plug model | F7(R)TC | ||
Oil grades | 150W/40 SAE(GB11121-2006) | ||
Fuel grade | ≥ NO. 90 (GB17930-2006) | ||
Walking Performance | Walking speed | Forward 1 gear | 0.5km/h |
Forward 2 gear | 0.8km/h | ||
Forward 3 gear | 1.3km/h | ||
Forward 4 gear | 1.8km/h | ||
Forward 5 gear | 3km/h | ||
Forward 6 gear | 4.9km/h | ||
Backward 1 gear | 0.6km/h | ||
Backward 2 gear | 2.3km/h | ||
The minimum radius of gyration | 1.15m | ||
Climbing ability | 30° | ||
Brake method | Inner expand brake | ||
Transmission lubricants product No. | GL-4 | ||
Transmission oil | 1.5L | ||
Packing Size(Length*Width*Height) | 1270*760*1000mm | ||
|
| ||
For 500L track sprayer machine:
Machine Dimension | Length*Width*Height | 1875*665*910 mm |
Height of cargo floor | ≥100 | |
Track center distance | 485mm | |
Track touching ground length | 750mm | |
Track touching ground width | 140mm | |
Cargo(Length*Width*Height) | 1100*520*200mm | |
Sprayer Weight | 200kg | |
Loading Weight | 300kg | |
Climbing ability | ≤25° | |
Engine | Model | MS-500 |
Maximum output power | 3.6kw | |
Walking Performance | Forward | 0.5-6.1km/h |
Backward | 0.7-3.1km/h | |
Performance of the pump | Model | Triplex plunger pump |
Rotating speed | 800-1000 r/min | |
Working pressure | 2.0-3.5Mpa | |
Flow | 28-34L/min | |
|
| |

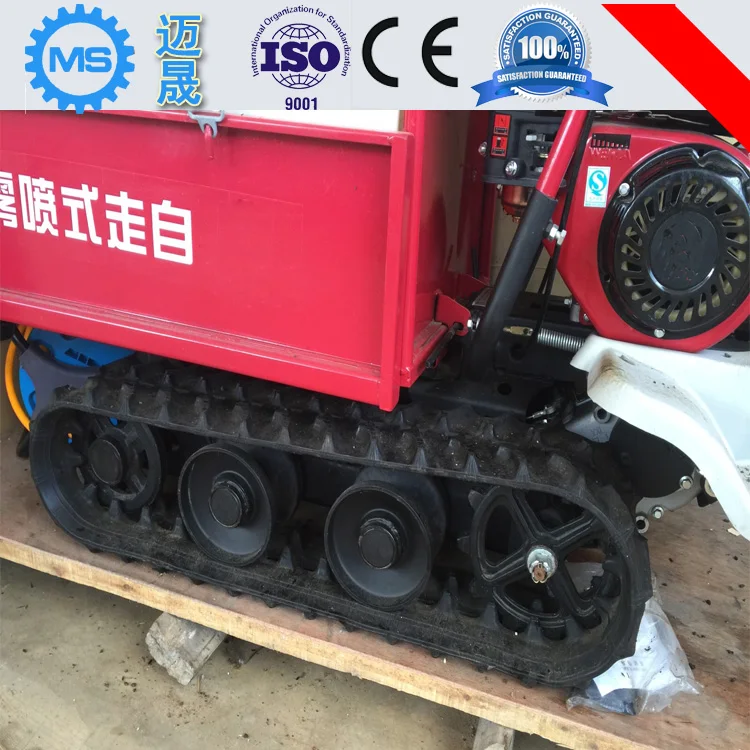

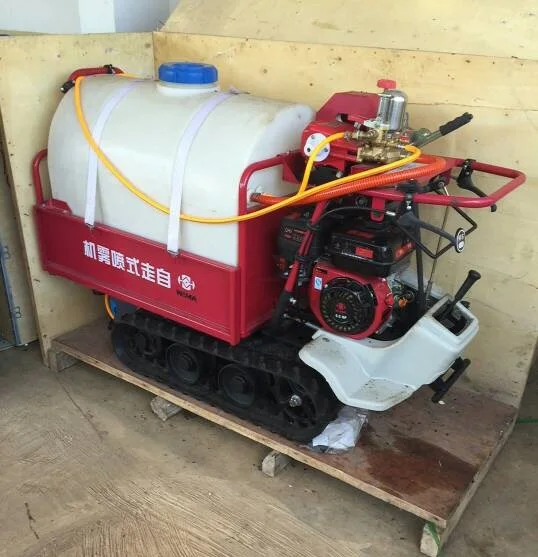

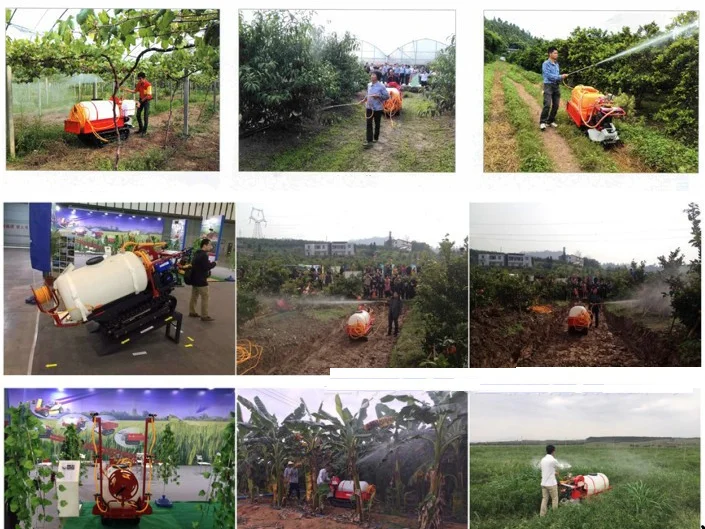

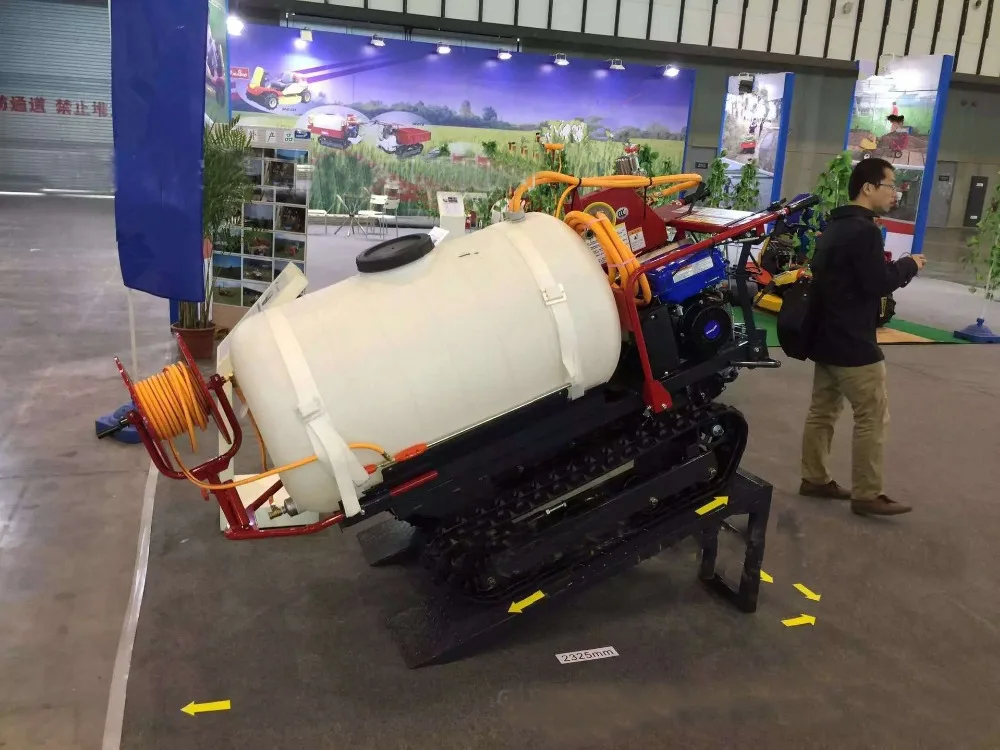

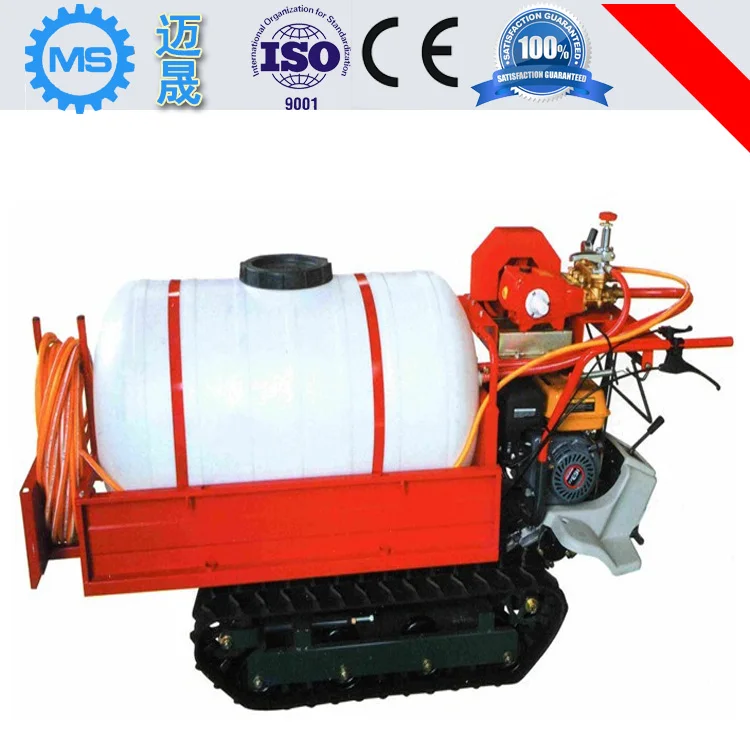

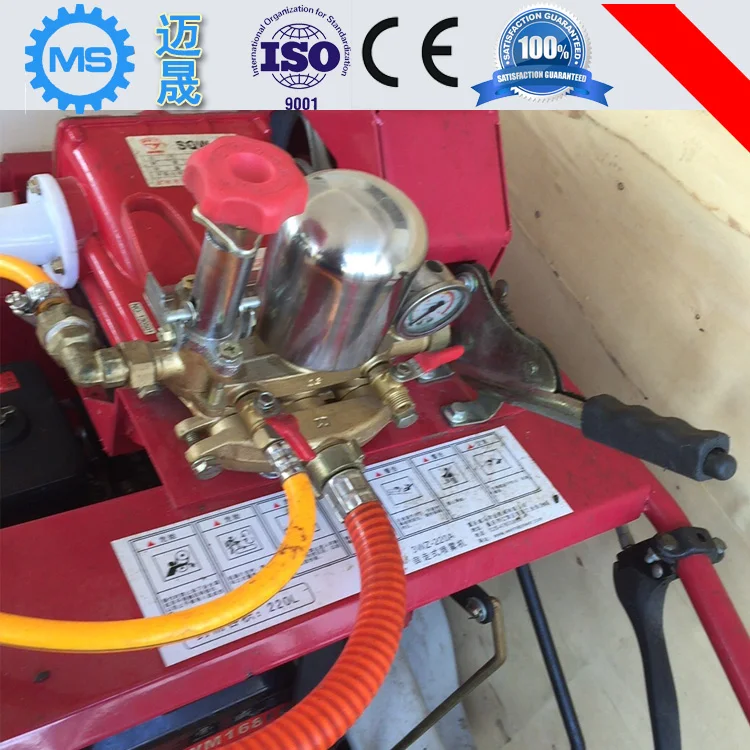

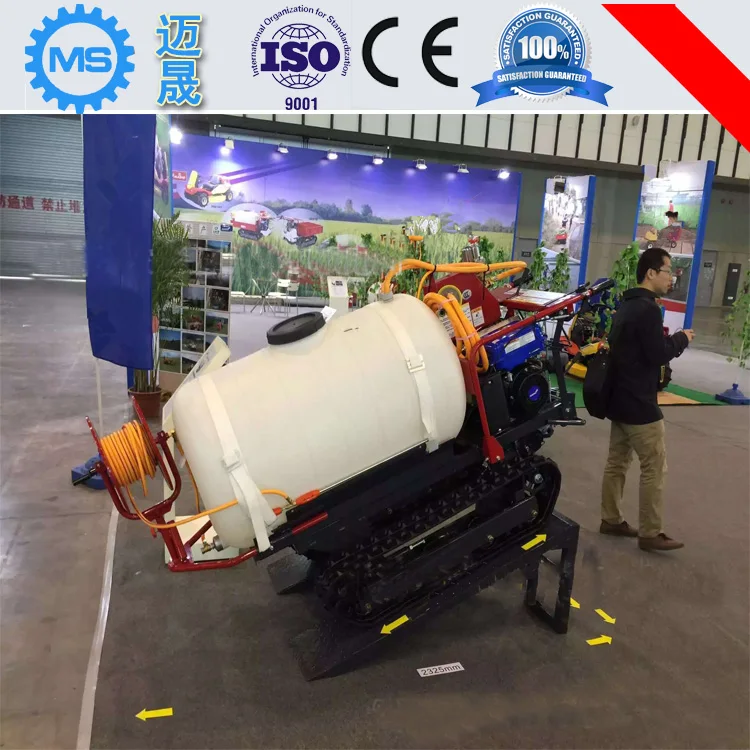

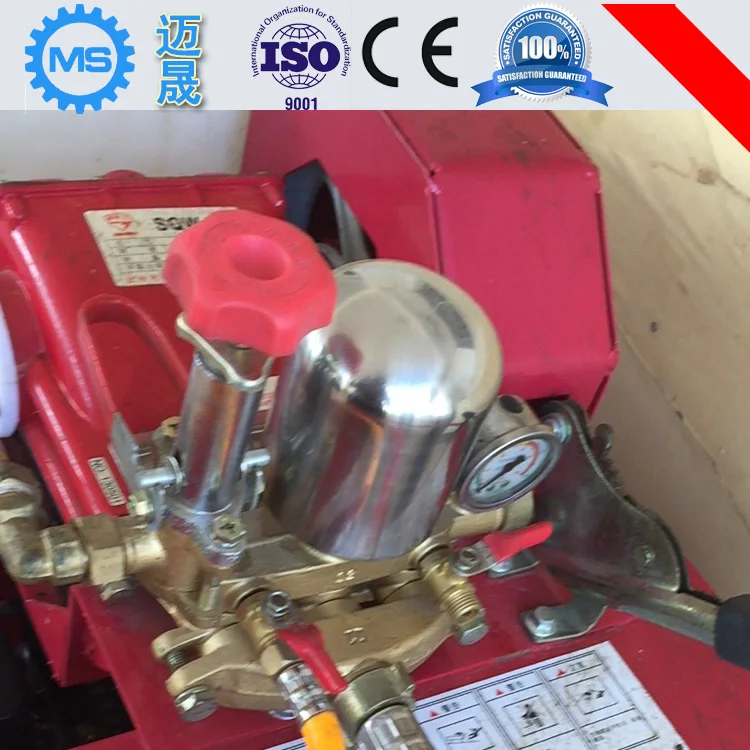

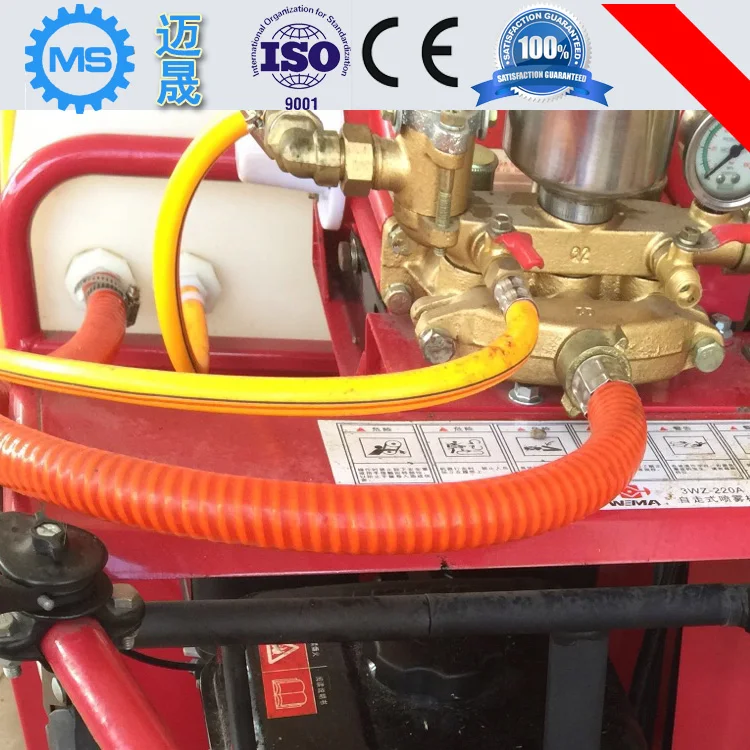

3. Pictures of farm land spraying machinery multi-functional track sprayer

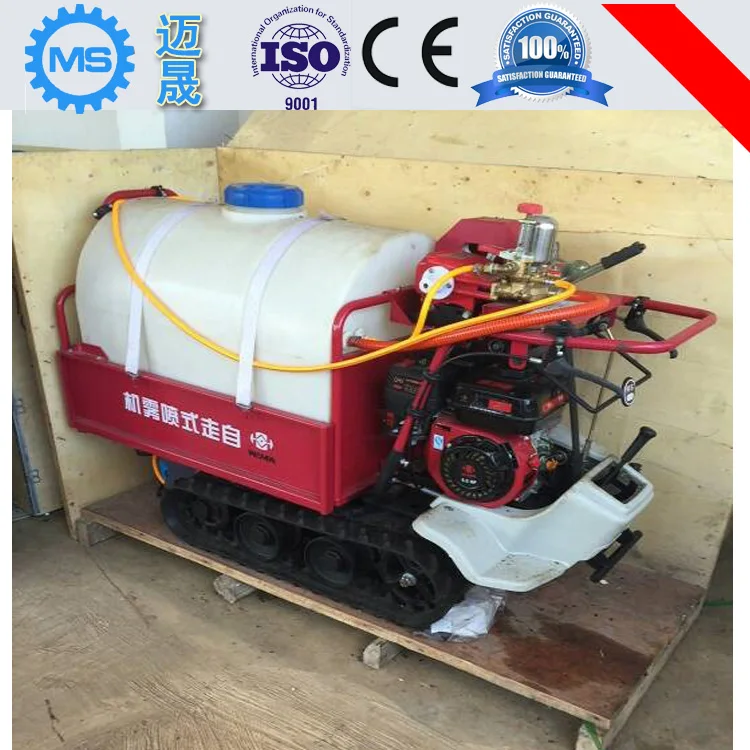

The machine will be packed in wooden pallets or cases, safely and practically, as below picture showed:
We can not only provide the good machines, but also wholeheartedly provide the comprehensive
for our clients. The series of professional technology service will make you have an excellent
product experience.
After we signed the purchase contract and have a certain reputation guarantee, we will contact the
professional group that responsible for ship bookings, commodity inspection, commercial invoices,
packing list, insurance policy and so on, in order to provide you the perfect goods trading services,
until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product
properly to the destination, in order to supply you a full range of products installation services.
For some typical problems, our rigorous installed engineers also will do some certain installation
debugging training, etc.

Henan Machinery & Equipment CO., Ltd is a famous agriculture machine manufacturer integrating food equipment and products research, technical process, and supporting service. The products are popular for hihg quality, good performance, simple operation and low failure rate.
Thanks to our quality, credit and service advantages, our machines have been deeply favored by domestic and foreign clients, our production lines has been exported to Italy, America, Australia, Thailand, Russia, India, Tunisia, Libya, Egypt, UK, Japan, Korea, Ethiopia, Poland, Malaysia, etc... We have established a good longterm relationships with many customers around the world. At the same time we welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
