Morcellator хорошее качество инструменты для лапароскопии электрический резак матки/хирургический Электрический гинекологический morcellator
- Категория: >>>
- Поставщик: Tonglu BA Medical Devices Co. Ltd.
Сохранить в закладки 60356220571:
Описание и отзывы
Характеристики
PRODUCT DESCRIPTION
II.Main Specifications
1.Input voltage AC220V±10%,50HZ 2.Output voltage 10-28V
3.Output Current 0~1A 4.Load Regulation <5%
5.Overcurrent protection 1.0A±0.2A 6.Current standard :Dual hot backup
7.Display Accuracy 0.2% 8,Device Specification Diameter Tolerance<0.5mm
9.Operating hours Continuous work 10.Motor voltage 24 V
11.Motor current 0.5A 12.Motor speed 100-200r/min
13.Maximum output power 16.5W 14.Leakage Current <0.5mA
15.Device Specifications Length Tolerance<3mm
III.Instructions for use
1.Plug into 220V power supply,turn on the power switch and the indicator light goes on.
2.Connected the electro-motor and electric controller with a wire.
3.Press the touch switch of the electro-motor to start it,then adjust the rotary switch
on the electric controller(according to the direction of the arrow)from slow to fast
for stepless speed(The display shows the regulated voltage),push the reversible
switch, adjust the direction of rotation,normally, in the clockwise direction.
4.Fixing the serrated knife tube to the electro-motor,then insert the grasping forces into the tube,grasper forceps head is 3~5cm longer than the tube. Then insert the needle cannula together into the abdominal cavity.
5.Using grasping forceps to grasp the rotate uterus,and pull into the serrated knife tube,then start the motor to rotate(The display shows the output current).

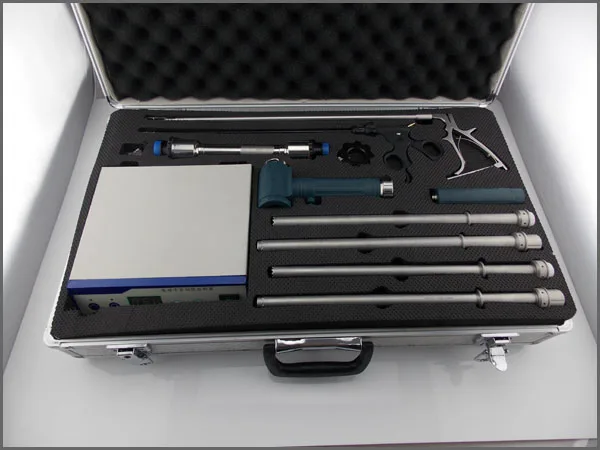

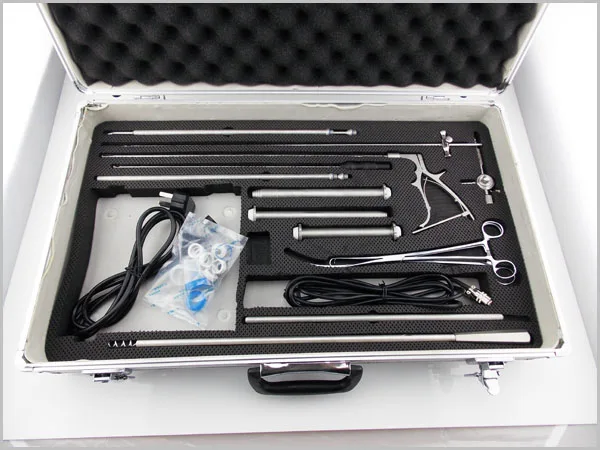

PRODUCT PICTURE
| Product Code | Product Name | Spec | Material | QTY |
| BSK504-125 | Controller unit | LCD display | Stainless steel | 1 set |
| BSK504-118A | Handpiece motor | autoclavable | Stainless steel | 1 pc |

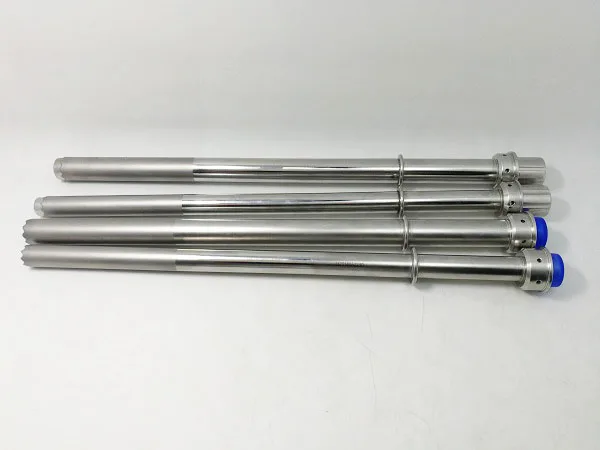

| BSK504-101 | Womb resector | Even head 15×330mm | Stainless steel | 1pc |
| BSK504-102 | Womb resector | Even head 18×330mm | Stainless steel | 1pc |
| BSK504-103 | Womb resector | Dentate head 15×330mm | Stainless steel | 1pc |
| BSK504-104 | Womb resector | Dentate head 18×330mm | Stainless steel | 1pc |
| BSK504-105 | Womb measuring probe | 5×500mm | Stainless steel | 1pc |
| BSK504-121 | Guide probe | 10×370mm | Stainless steel | 1pc |
| BSK504-119 | Knot-pusher | 5×320mm | Stainless steel | 1pc |

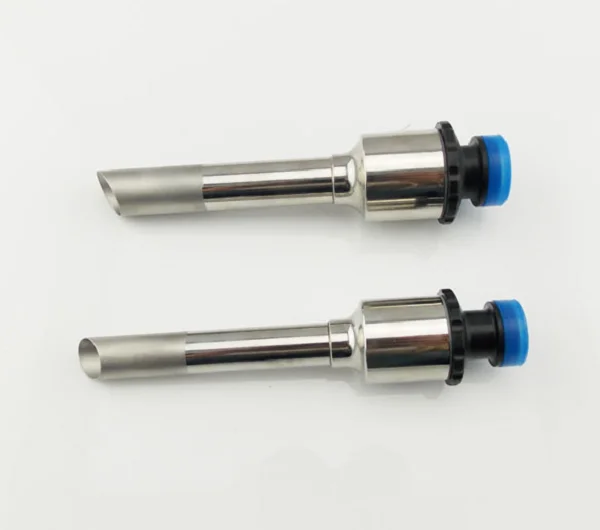

| BSK504-116 | Trocar sleeve | 15×95mm | Stainless steel | 1pc |
| BSK504-117 | Trocar sleeve | 18×95mm | Stainless steel | 1pc |
| BSK504-113 | Dilator | 10-18mm | Stainless steel | 1pc |
| BSK504-112 | Dilator | 10-15mm | Stainless steel | 1pc |
| BSK504-115 | Reducer | 15-5mm | Stainless steel | 1pc |
| BSK504-114 | Reducer | 18-5mm | Stainless steel | 1pc |
| BSK504-109 | Large grasping forceps | 10×420mm | Stainless steel | 1pc |
| BSK504-110 | Small grasping forceps | 5×420mm | Stainless steel | 1pc |
| BSK504--122 | Cervix forceps | Stainless steel | 1pc | |
| BSK504-123 | Cervix forceps | Long head | Stainless steel | 1pc |
| BSK504-461 | Irrigating Tube | Stainless steel | 1pc | |
| BSK504-107 | Hysteromyoma punch | 10×420mm | Stainless steel | 1pc |
| BSK504-106 | Handwheel | Stainless steel | 1pc | |
| BSK504-258 | Hook scissors | 5x330mm | Stainless steel | 1pc |
| Sealing Cap | Stainless steel | |||
| Total | Stainless steel | 24pcs |
