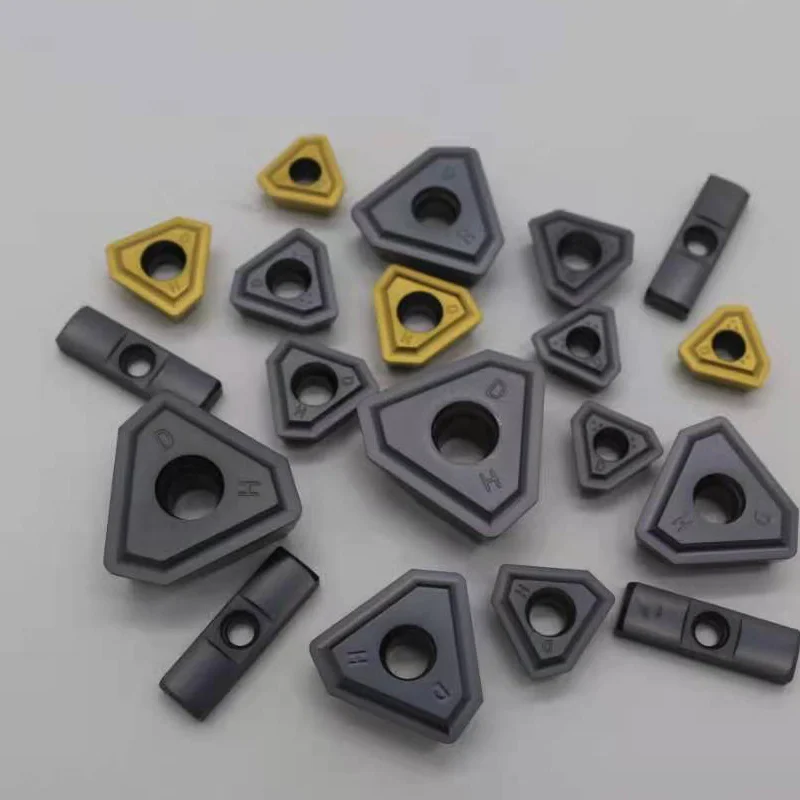

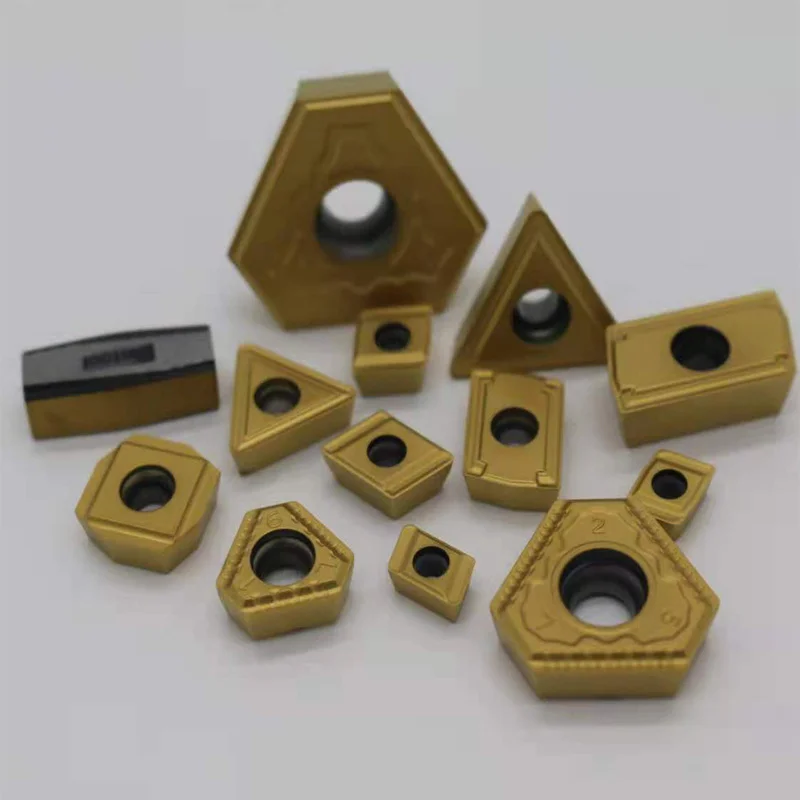

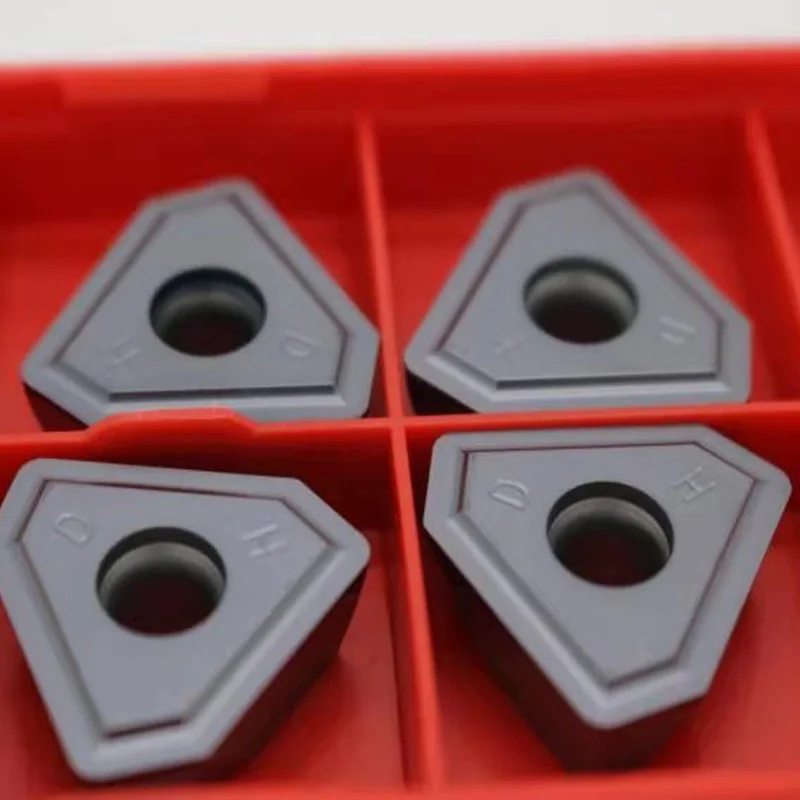

ЧПУ Индексируемые вставки из карбида вольфрама для токарных инструментов

Сохранить в закладки 60356345997:


Цена:22 041,68 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики

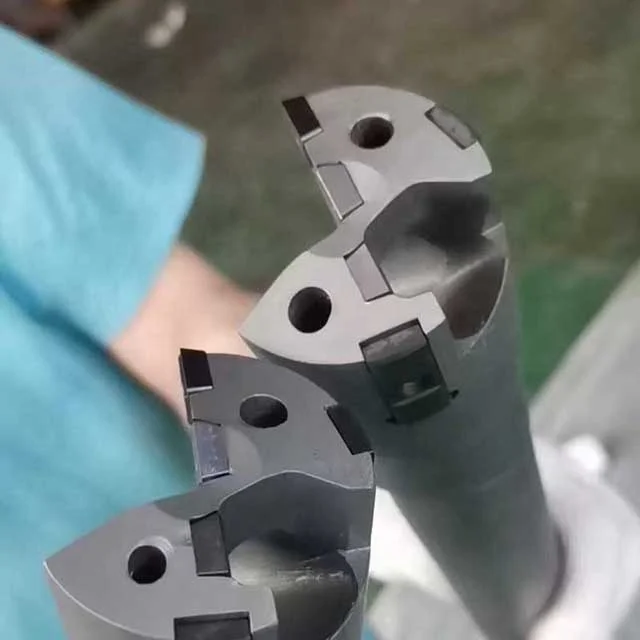

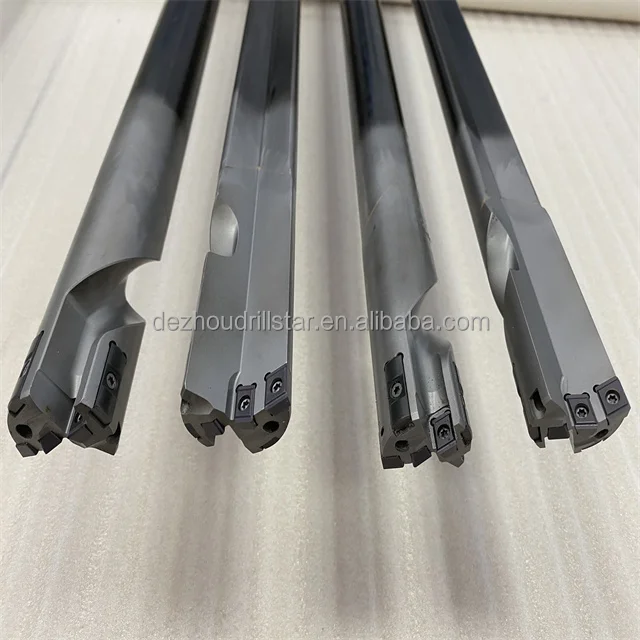

Indexable gun drill and insert pad
Diameter Insert type padinsert
screw
pad screw
11.52060204RGP04-055M2.5x4.5M2x3.7
12.02060204RGP04-055M2.5x4.5M2x3.7
12.52-13.52060204RGP04-055M2.5x5M2x3.7
14.02-15.52070304RGP05-060M2.5x5M2.2x4.5
16.02-17.52080305RGP05-075M2.5x6M2.2x4.5
18.02-18.52090305RGP06-085M2.5x6M2.5x5
19.02-19.52090305RGP06-085M2.5x6M2.5x6
20.02-20.52100305RGP06-085M3x7M2.5x6
21.02-21.52100305RGP06-100M3x7M2.5x6
22.02-24.52110405RGP06-100M3.5x9M2.5x6
25.02-25.52120405RGP06M4x10M2.5x6
26.02-27.52120405RGP06M4x10M2.5x6
28.02-29.02120405RGP06M4x10M2.5x6
29.52130408RGP06M4x10M2.5x6
30.02-32.02130408RGP07M5x11M3x6.5
30.02-31.02NPHT070404R NPMT060404R
NPMT060408L
GP07M2.5x6.5M3x6.5
32.02NPHT070404R NPMT060404R
NPMT060408L
GP07M2.5x6.5M3x6.5
33.02NPHT070404R NPMT060404R
NPMT060408L
GP07M2.5x6.5M3x6.5
34.02NPHT070404R NPMT060404R
NPMT060408L
GP07M2.5x6.5M3x6.5
35.02NPHT070404R NPMT060404R
NPMT080408L
GP07M2.5x6.5M3x6.5
36.02NPHT070404R NPMT060404R
NPMT080408L
GP07M2.5x6.5M3x6.5
37.02NPHT070404R NPMT060404R
NPMT080408L
GP07M2.5x6.5M3x6.5
38.02NPHT090404R NPMT060404R
NPMT080408L
GP07M2.5x6.5M3x6.5
39.02NPHT090404R NPMT060404R
NPMT080408L
GP08M2.5x6.5M3x8
40.02NPHT090404R NPMT060404R
NPMT080408L
GP08M2.5x6.5M3x8
41.02NPHT090404R
NPMT 080404R
NPMT 080408L
GP08M2.5x6.5M3x8
42.02NPHT090404R
NPMT 080404R
NPMT 080408L
GP08M2.5x6.5M3x8
43.02NPHT090404R
NPMT 080404R
NPMT 080408L
GP08M2.5x6.5M3x8
44.02NPHT090404R
NPMT 080404R
NPMT 090408L
GP08M2.5x6.5M3x8
45.02NPHT090404R
NPMT 080404R
NPMT 090408L
GPS-10M2.5x6.5M3.5x9
46.02NPHT090404R
NPMT 080404R
NPMT 080408L
GPS-10M2.5x6.5M3.5x9
47.02NPHT 110404R
NPMT 080404R
NPMT 090408L
GPS-10M2.5x6.5M3.5x9
48.02NPHT 110404R
NPMT 080404R
NPMT 090408L
GPS-10M2.5x6.5M3.5x9
49.02NPHT 110404R
NPMT 080404R
NPMT 090408L
GPS-10M2.5x6.5M3.5x9
50.02NPHT 110404R
NPMT 080404R
NPMT 090408L
GPS-10M2.5x6.5M3.5x9

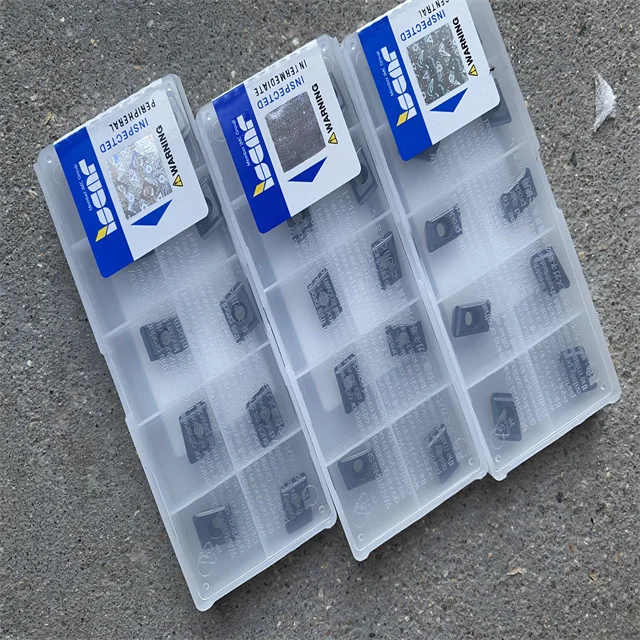

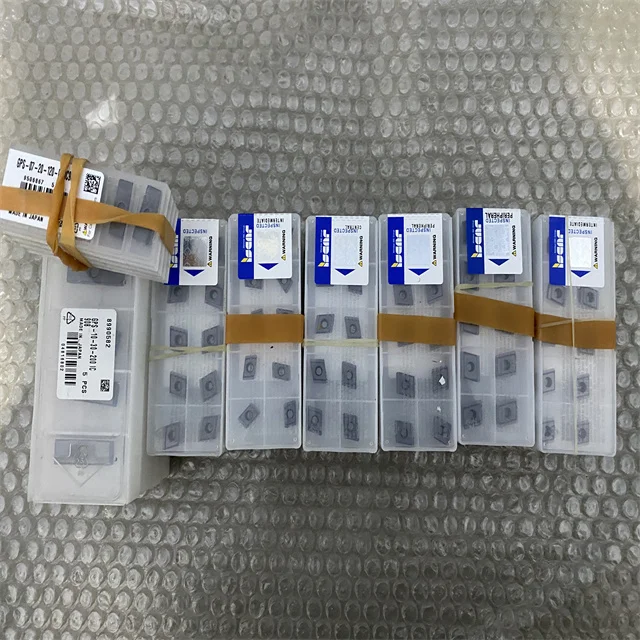

151614_202206201030581insert

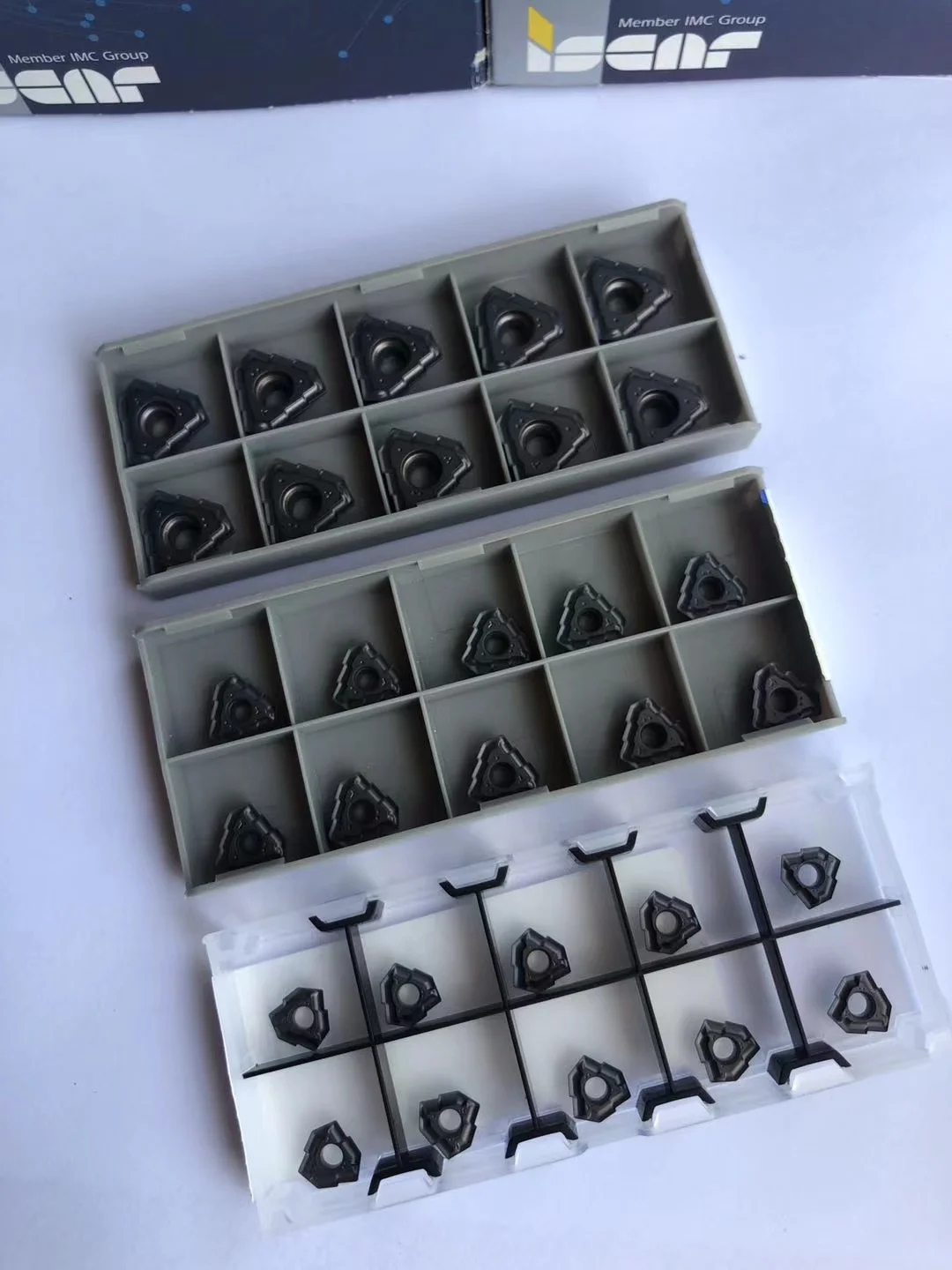

iscar insert.jpg





 Fast shipping:




Package:












Inner packing




As normal, ten pieces packed in one standard plastic box








Outer packing




Outer packing with standard cartons wrapped firmly.






Company Information


 Dezhou Drillstar Cutting Tool Co., Ltd is a manufacturer and exporter of deep hole cutting tools including gun drills, gun reamers, BTA, Trepanning, boring tools, honing tools etc, as well as tool accessories. We also distribute cutting oils, cutter grinder, oil spray pump complete kit on the deep hole drilling field. We are engaged in designing products in compliance with international quality standards with best configuration to offer excellent productivity and quality to clients.Started in the year 2010, we have occupied a strong foothold in the domestic market and have also acquired many clients in South East Asia, Europe and others. We are One-Stop solution provider for deep hole cutting tools.In addition to this, we are an importer of Tungsten Carbide Tips & Rods and other raw materials from Europe and USA





FAQ:





 Q1: What is the Warranty for the tungsten carbide products ?





A1: We own high precision grading machine to control geometry dimensions and apply ultra fine grain size substrate coated with high performance coatings to guarantee the lifetime of our products, which can satisfy every working condition.If any quality problems on our side occurred in this period , we will take on the shipping cost and replacement.

Q2: Do you provide free samples?





A2: Yes, usually we provide free samples for testing under the condition of freight paid by customer.

Q3: What is your minimum order requirement?



A3: We will indicate the MOQ for each item in the quotation sheet. We accept the sample and trial order. If the quantity of single item can't reach the MOQ, the price should be sample price.

Q4: What is the delivery time of your products?



A4: It depends on the inventory availability.If items needed are in stock, the delivery time would be within 8 work days, but if not the delivery time would be around 20 work days.

Q5: Can you manufacture carbide Special-shaped products?



A5: Yes, we can. We can produce both standard end mills and special tools. We can make them according to your drawings and samples.

Q6: May I have my order working schedule ?



A6: Yes, we will send working schedule of your order each week. We will inspect and test all merchandise in case of damaging and missing parts before shipment. The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.

Your feedback is our best honor, please do not hesitate to give us your valuable feedback and we can let you feel more confident to our company and products.


if have any problem ,pls contact me





whatsapp:+86 18505347032
