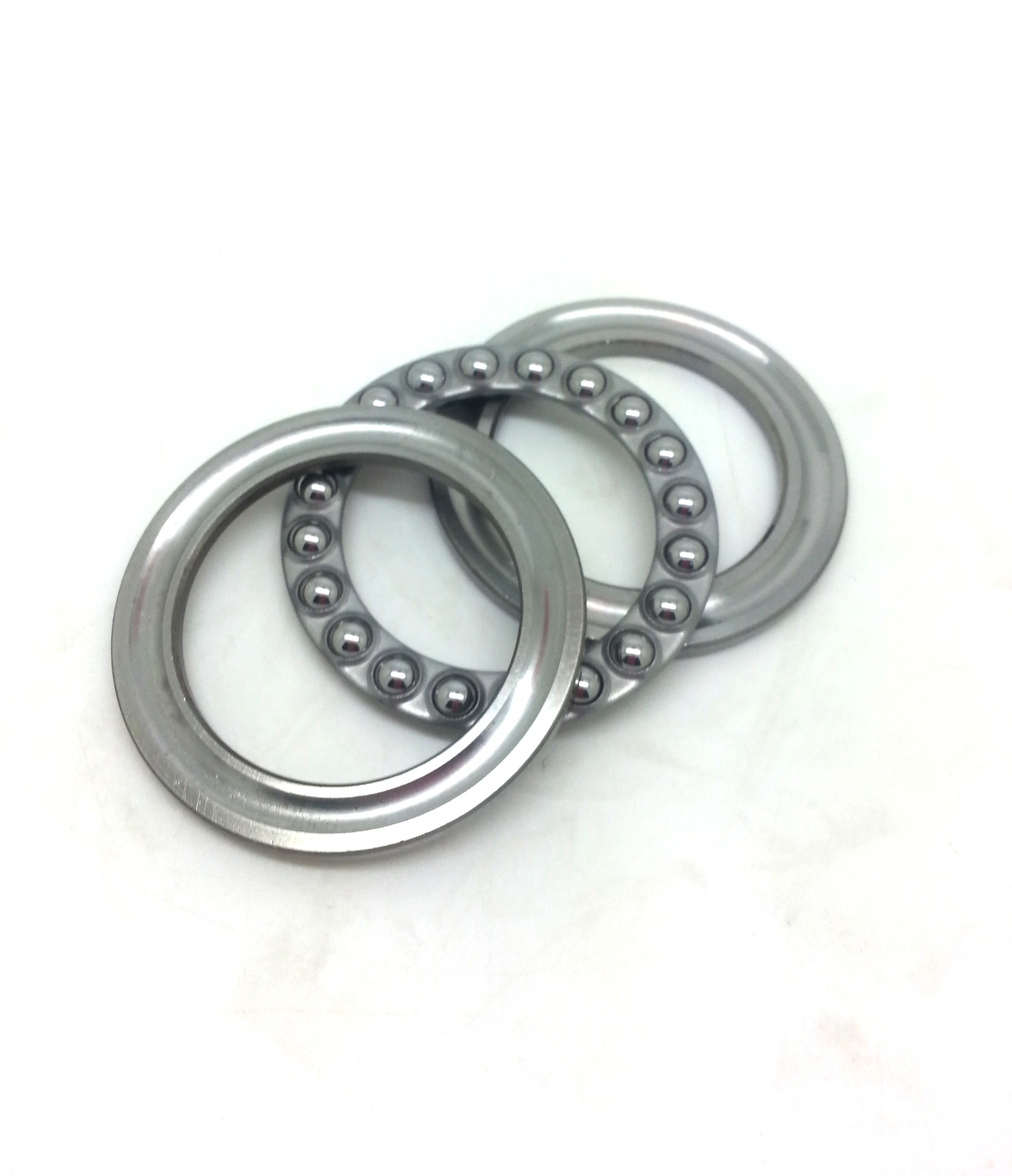

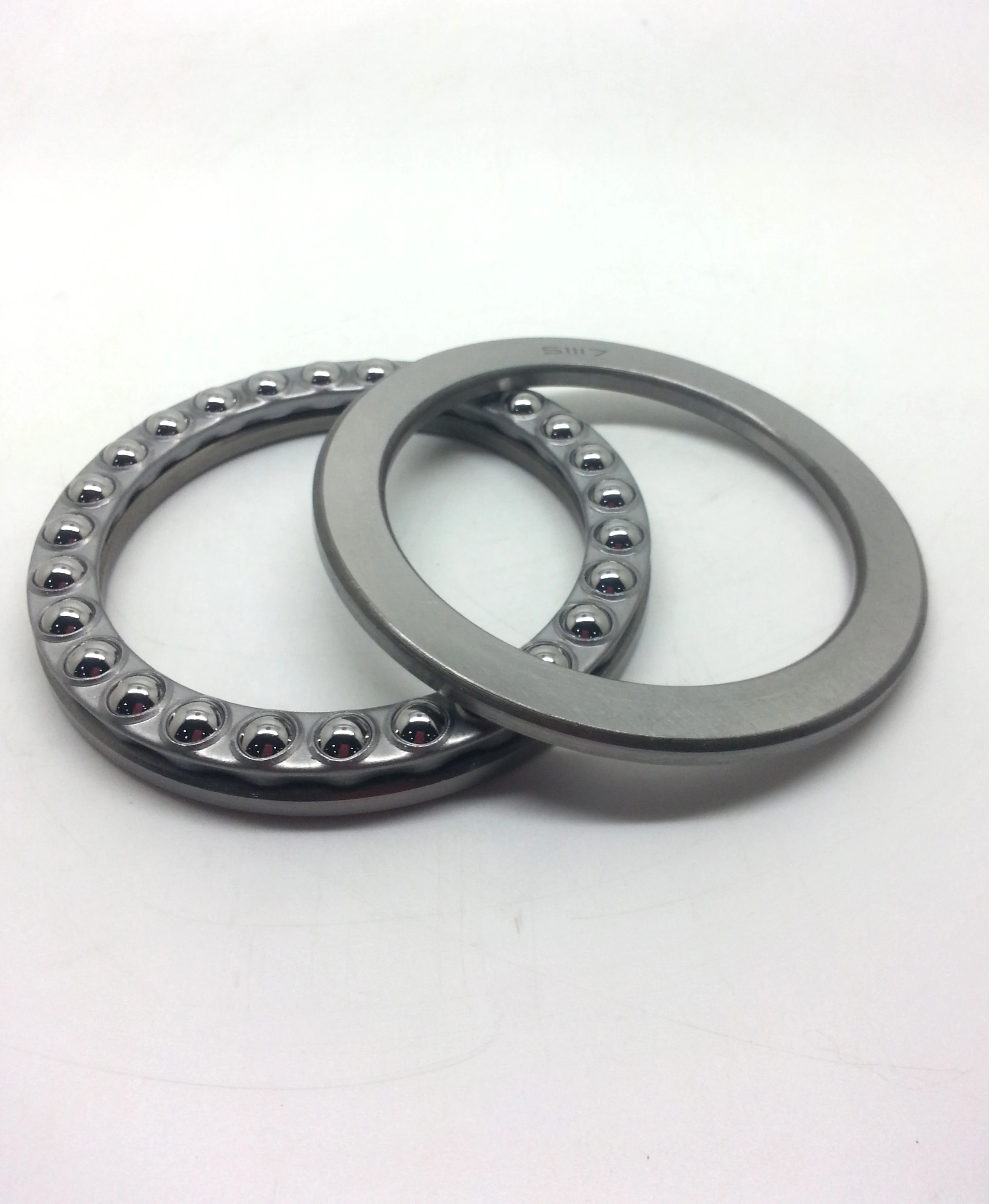

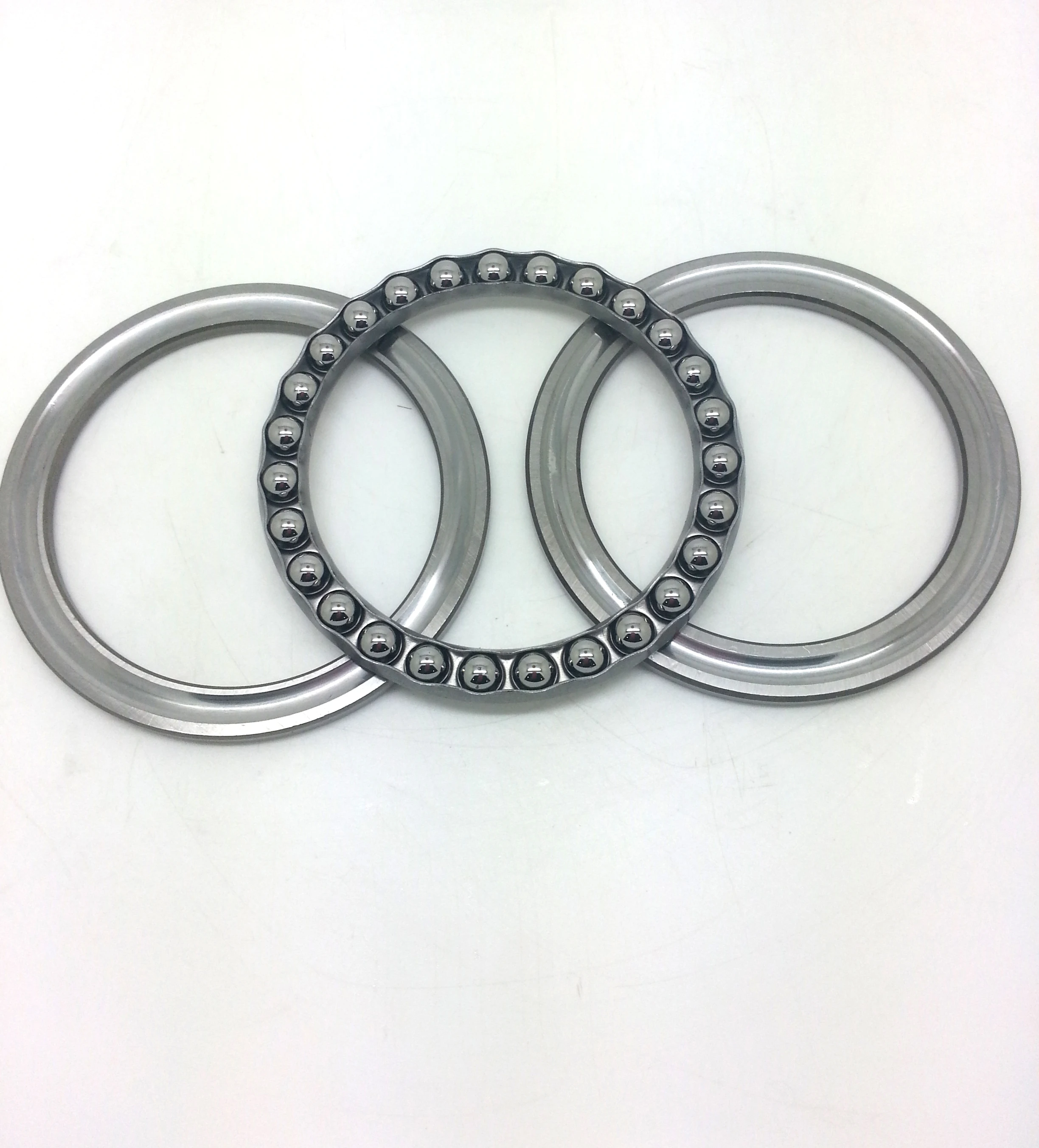

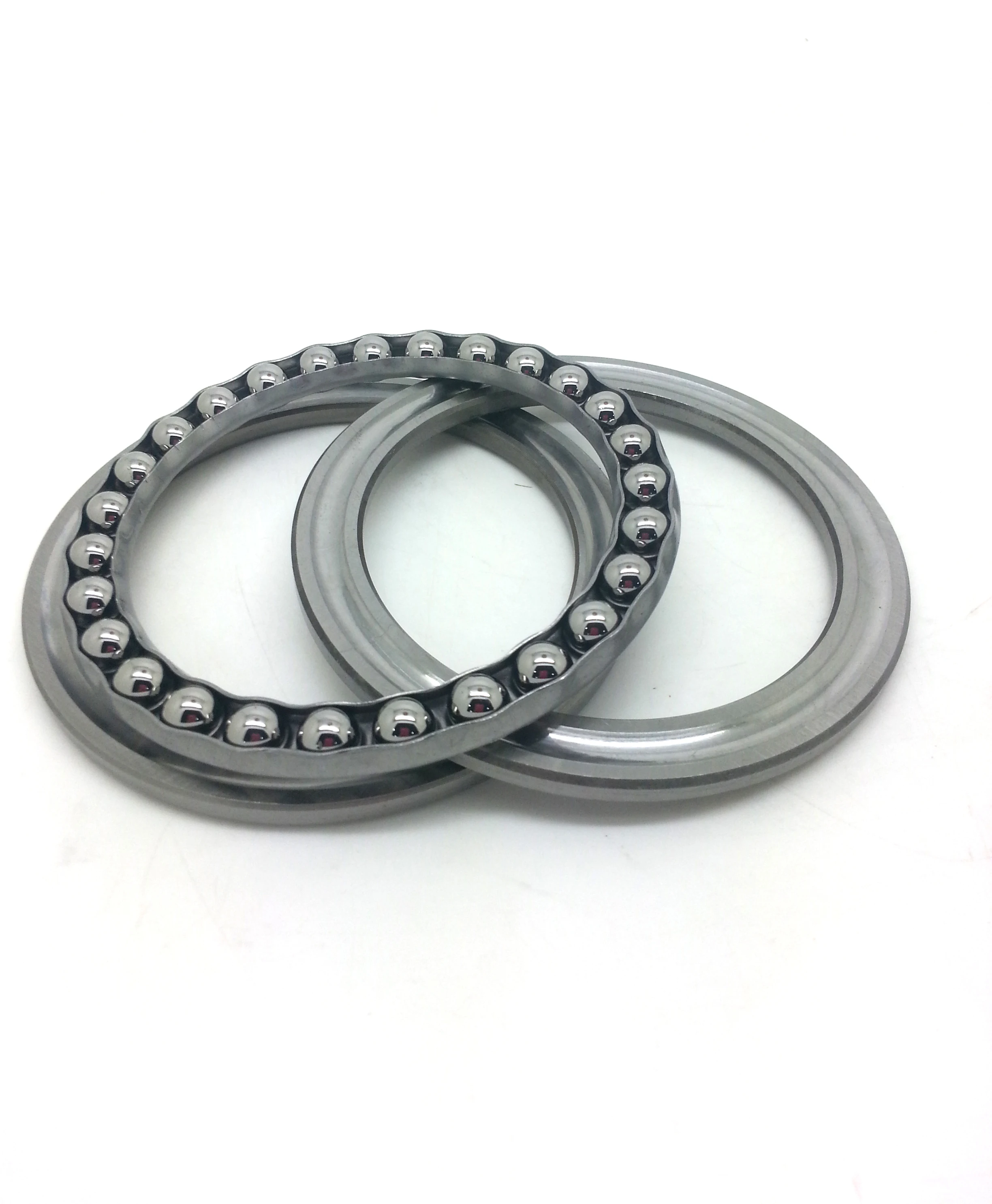

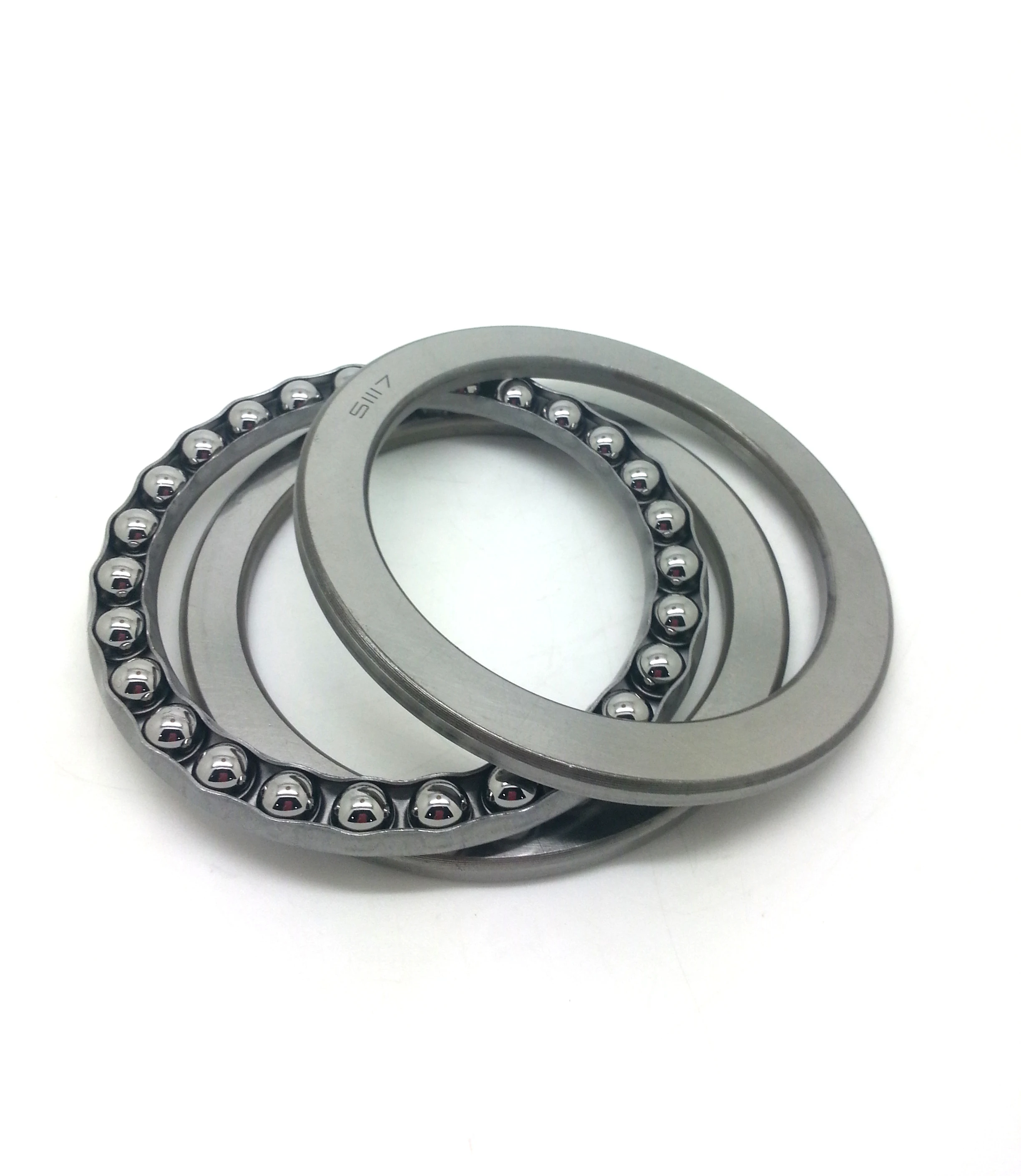

130x225x75mm Chinese factory thrust flat ball bearing

130x225x75mm Chinese factory thrust flat ball bearing

Категория: Thrust Ball Bearings >>>
Поставщик: Linqing Betton Bearing Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

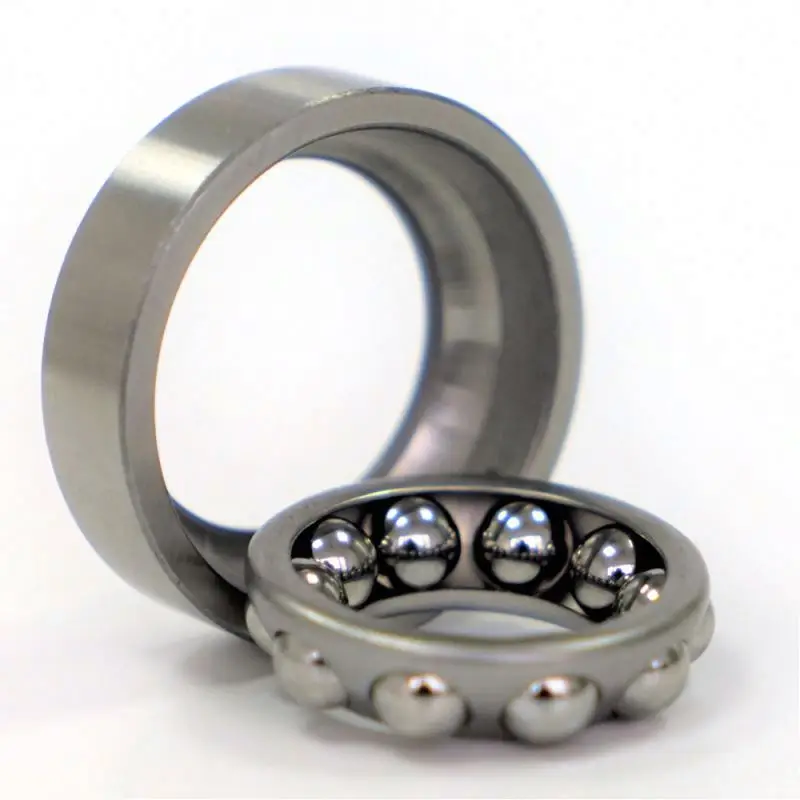

single row radial thrust ball bearing
This bearing has a contact angle, so suitable to bear the axial load in one direction, or a synthetic load. Structure, bearing
radial load generated axial component, so the 2 bearing opposed the use of, or more than two pairs of dual use. single row radial
thrust ball bearing can use the preloading method to improve the rigidity, suitable for high rotation accuracy of machine tool
spindle.
biserial radial thrust ball bearing
double row centripetal thrust ball bearing, the single row radial thrust ball bearing inner ring, outer ring back-to-back duplex,
became one of the structure. Can withstand two direction axial load, a torque load capacity. Can be used as a fixed end bearing.
Features :

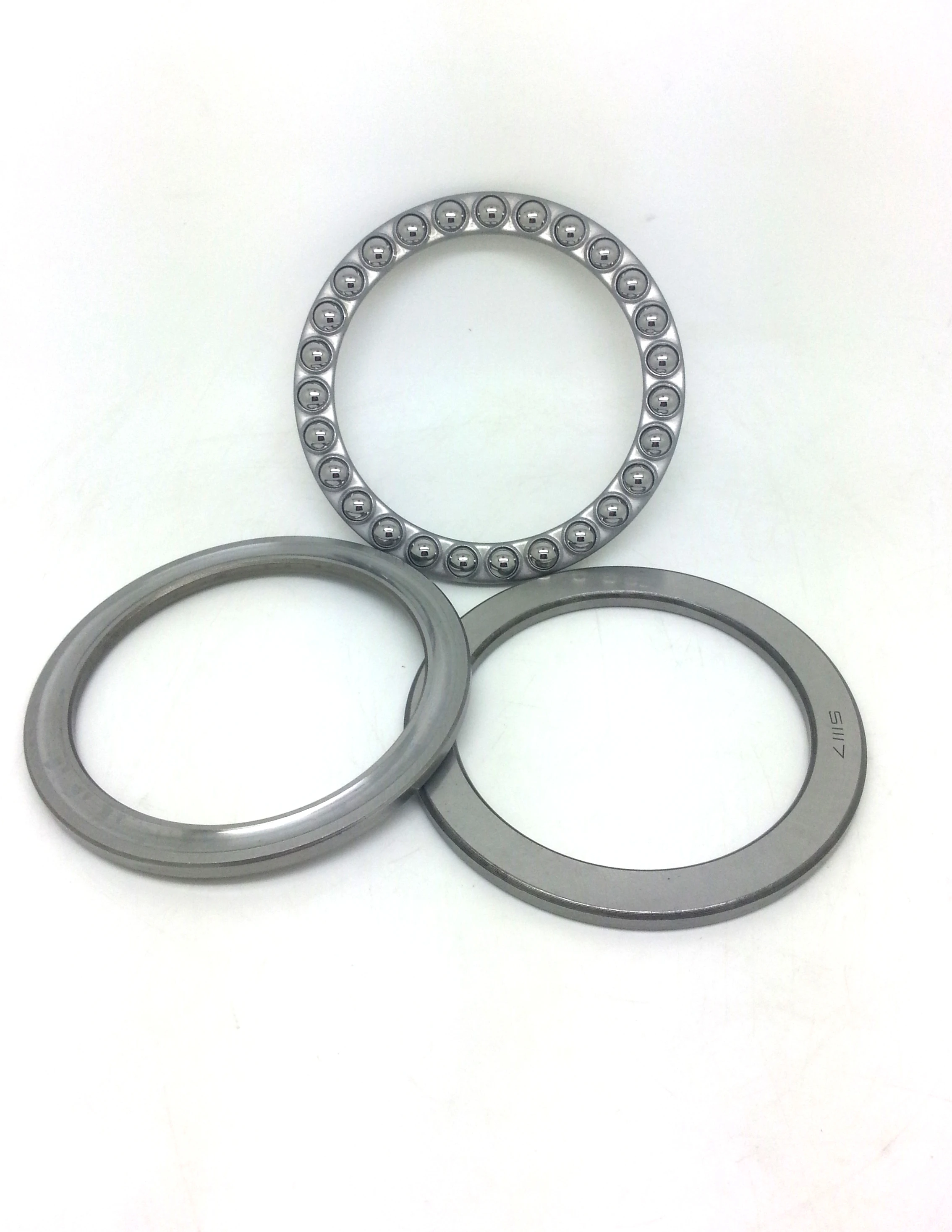

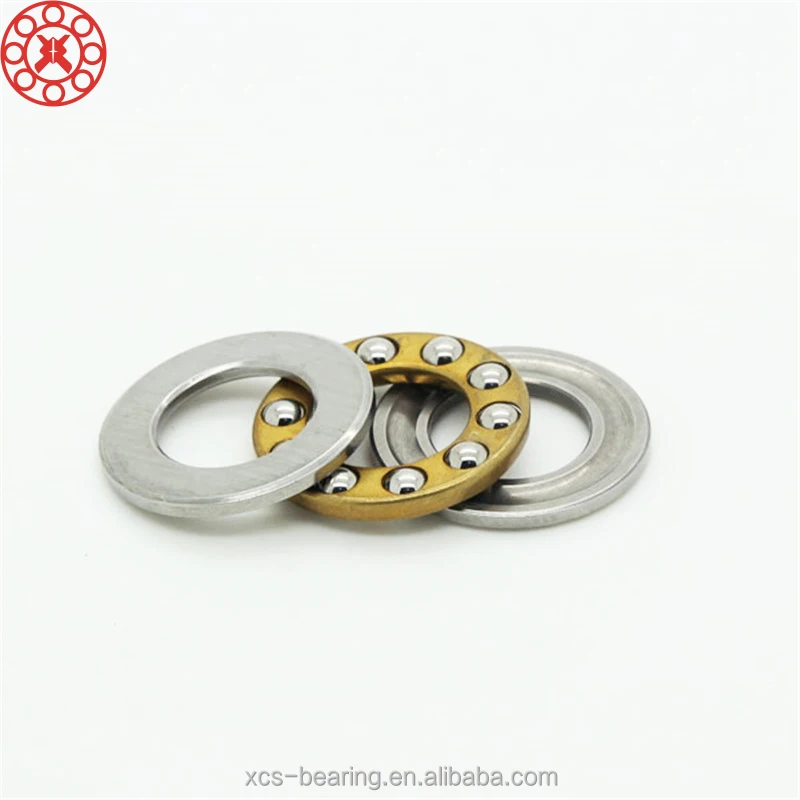

Thrust ball bearings consist of two precision chrome steel washers (ring) and a ball complement spaced by bronze retainer. They
can be supplied with or without radius ball grooves in the rings. Thrust bearings are used under purely axial loads.Thrust ball
bearings can handle loads in the axial direction only. Bearing rings mounted on the shaft are called shaft washers, and those
mounted in the housing are called housing washers. Both washers contain raceways for the balls.Thrust ball bearings are available
as both single and bi-directional types. The bi-directional thrust bearing incorporates a third washer and an additional set of
balls. This center washer is located in the axial direction by a shaft shoulder and sleeve.Care must be taken in handling to
prevent damage to the separable rings and ball assemblies.
Thrust ball bearing is one kind of thrust bearing that the rolling body is a ball.Using the design that can withstand of the
thrust load when high-speed revolve,it is constitute with a ball rolling groove and washer-shaped rings.
Mainly used for crane hooks,vertical pumps,vertical centrifuge,jack,low-speed reducer and so on.

Bearing name	bearing sleeves
Seal Style
Material	Chrome steel
Package	Tube and single box Packing
Brand	OEM brand
Precision	P0 P6 P5 P4

Direction for use

Thrust ball bearing is one kind of thrust bearing that the rolling body is a ball.Using the design that can withstand of the
thrust load when high-speed revolve,it is constitute with a ball rolling groove and washer-shaped rings.
Mainly used for crane hooks,vertical pumps,vertical centrifuge,jack,low-speed reducer and so on.

Main products series:

51000 series: Single direction thrust ball bearing,consists of a shaft washer,a seat and a steel ball-cage assemblies

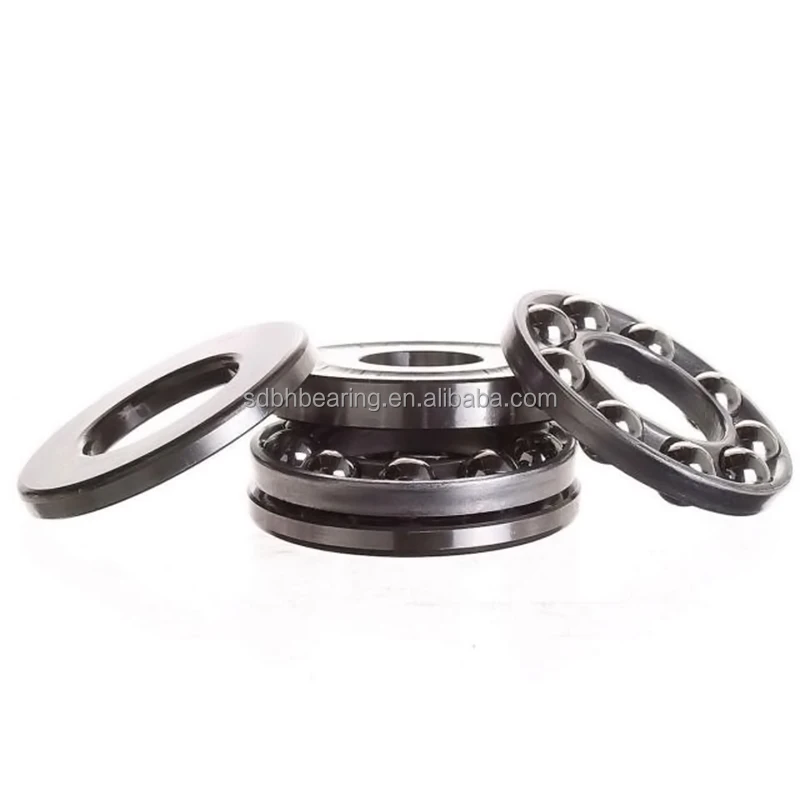

52000series: Double direction thrust ball bearing,consists of a shaft washer,two seats,and two balls-cage assembly.The bearings
are separated,all parts can install alone
53000 series:No aligning seat washers aligning thrust ball bearings
53000U series:Aligning seat washers aligning thrust ball bearings
54000 series:No aligning seat washers double direction aligning thrust ball bearings
54000u series:Aligning seat washers double direction aligning thrust ball bearings

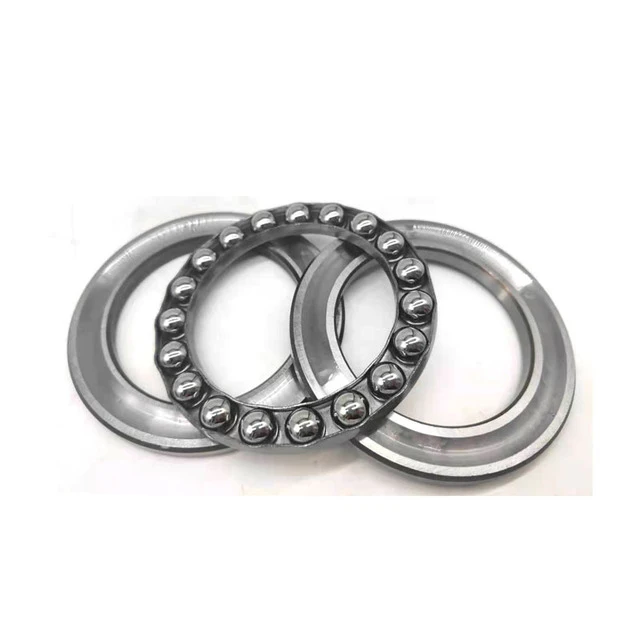

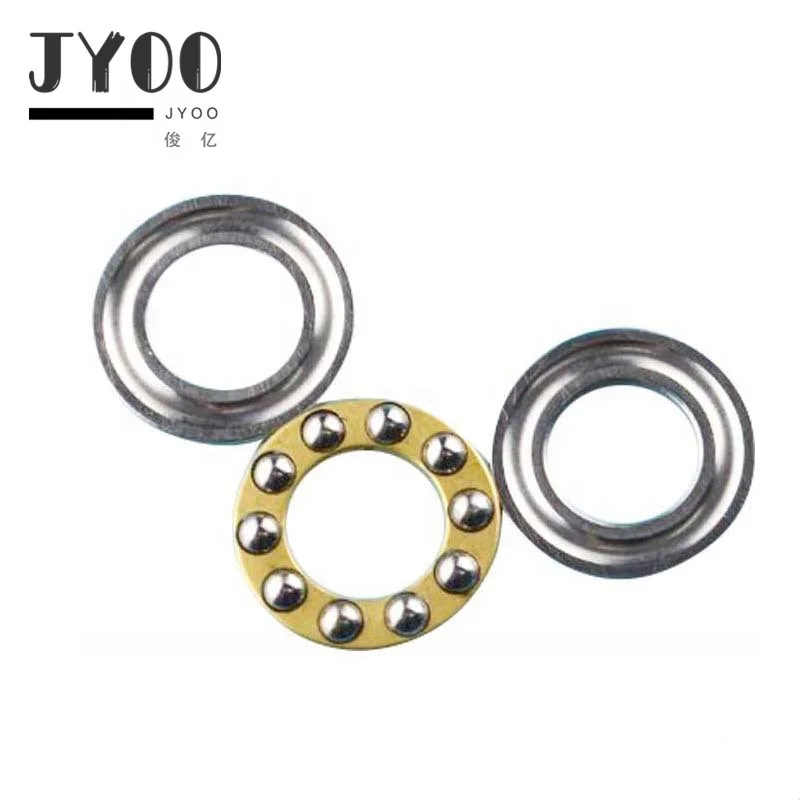

Detailed Images

Packing&Shipping

Our packing is tube packing +cartons+pallet or wooden case.

Our packing is sigle box packing +cartons+pallet or wooden case.

After Sales Service

After customers receive our goods.If there is anything problem we will do our best to solve the problem with customers together.We hope to cooperate with every customers fo long term.

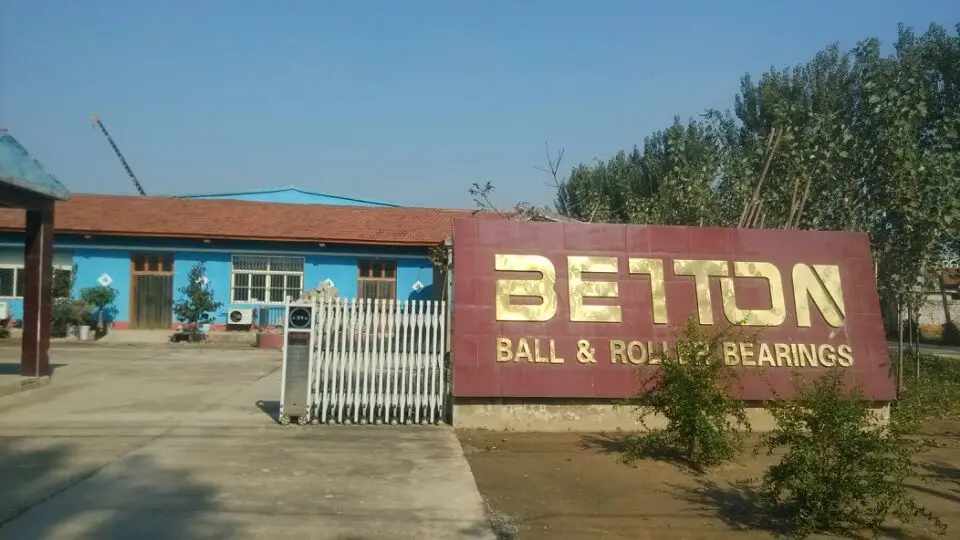

Company Introduction

Linqing Betton Bearing Co.,LTD.,was founded in 2004,the main business is produing and selling bearings and bearing parts.The company has the self-management import and export rights,mainly produce deep groove ball bearing ,tapered roller bearing,spherical roller bearing,pillow block bearing and other products.Deponds on the professional knoledge of the bearings and foreign trading.We have our own brand and can provide the OEM brand.And customized the cutomer own brand.

Our Services & Strength

Betton bearing company still keep promise provide the good quality bearing to customers.And make every detail prefect.To let our cutomers are satisfied with our products,package and service.

FAQ

Q:How can we trust you ?
We have decades of professional experience, there are a lot of old customers for several years. We are looking for longterm
cooperation so as to achieve winwin situation, and become your friends, that we want to see.

Q:Do you have the real factory?
Of course, our company is started from the process of bearings, slowly formed its present size, product quality can better grasp,
the price is also a great advantage.

Q: Why your price is higher than others?
Price = quality . We firmly believe that by the quality of the customer is always get more reliable than on price . So we insist
on doing high-quality products.

Q:What kind of transport do you have ?
According to the weight, we will choose the most appropriate mode of transport for you. Our freight forwarding is efficient and
cheap.

Q:How long is your delivery time?
Generally it is 5-10 days if the goods are in stock or it is 15-20days if the goods are not in stock,it is according to quantity.

Q:Could you tell me the payment term of your company can accept?
TT L/C Western uion Money gram

Q:Could you accept OEM and customize?
Of course, OEM is accepted and we can customize for you according to sample or drawing.
