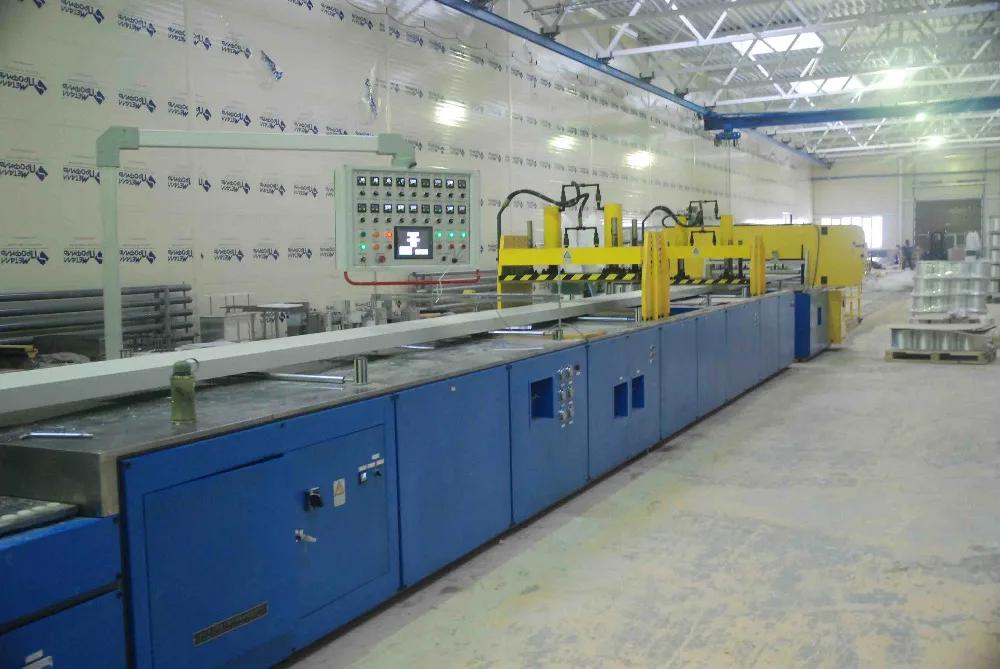

 Hydraulic FRP Profile Angle Pultrusion extruder machine

Feature of pultrusion Equipment:

• Maximum Pulling force (Pressure range from 0 - 1885 PSI, 0 to 13 MPa)
• Maximum Clamping force (Pressure range from 0 - 1885 PSI, 0 to 13 MPa)
• The Pulling cylinder stroke: ranging from 17.7-19.7 inches, 450~500 mm
• The die is divided into 6 heating areas. Adjustable temperature, ranging from 0~392 - 10F (0~200 - 10C) and temperature can be automatically maintained at a constant level.
• The traction operation can be controlled either manually or automatic.
• Electric power for die heating: 18 to 24Kw
• Die platform dimensions: 43.3" x 31.5" (1100 x 800 mm) (Can be customized)
• Clamp pressures & maximum pulling pressures adjustable by operator.
• Hydraulic Pump manufactured by "YUKEN", Japan.
• "OMRON" PLC elements utilized in the control system.
• Solenoid direction valves manufactured in Switzerland.
• "SMC" seals used in cylinder sealing system.
• Speed regulator valve manufactured in Switzerland.
• Electrical heating module utilizes solid-state, contactless relay and the heating element is made of aluminum alloy.
• Touch Screen LCD display control system utilizing "OMRON" products
• Pultrusion timer included (intermittent pultrusion & automatic die purge).
• Availability of PLC software & code with commands (English) to allow additional functions to be modified.
• Hydraulic fluid tank sealed with a filtered breather.
• All return fluid (especially case drain lines from the hydraulic pumps) filtered prior to return to the hydraulic fluid tank.
• Temperature control module utilizes "OMRON" products.
• Thermostatically controlled oil cooler with electric fan to maintain hydraulic fluid at the correct operating temperature.
• Return line filter with replaceable cartridge in oil return line to the tank.
• Variable rate pistons with pressure and flow compensation controlled by the puller circuit.
• Separate pump for the clamping function (both pumps driven from the same electric motor
•
